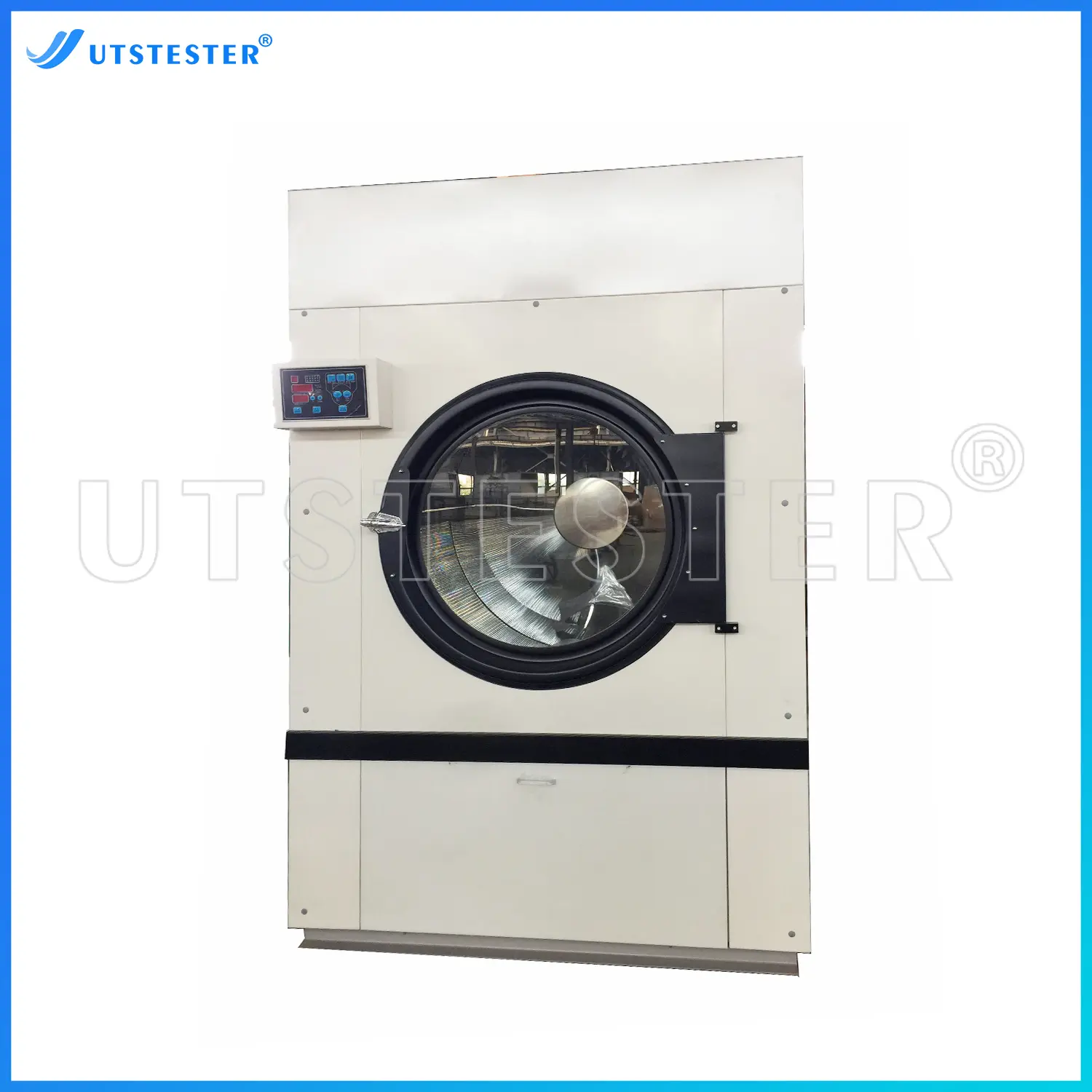

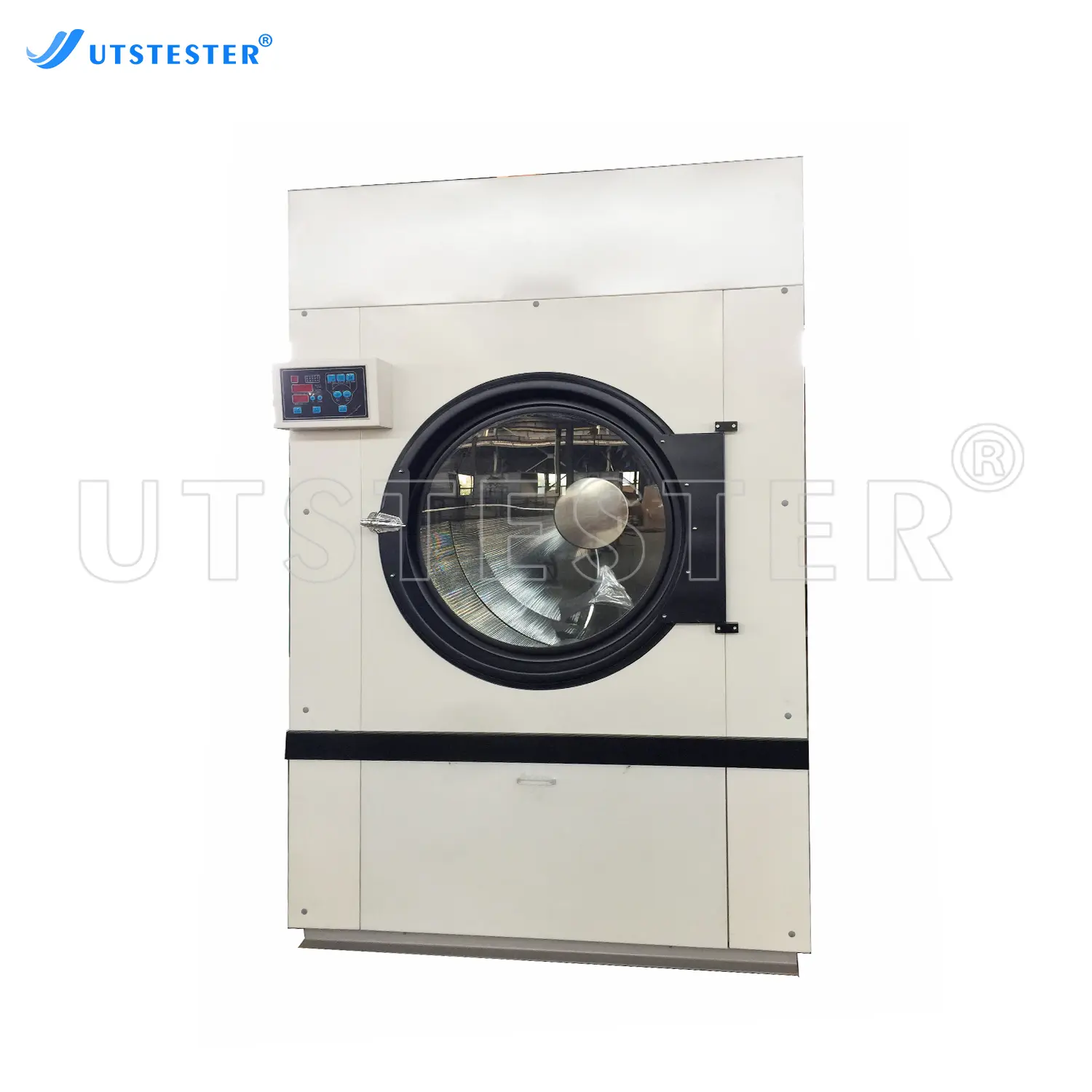

Textile Laboratory Testing Equipment Industry Dryer D039
Overview
1. Adopt microcomputer automatic control, there are a variety of programs can set the drying time, drying temperature, cooling time, suitable for different materials drying;
2. The inner liner is made of high quality stainless steel, which can reduce the wear of clothes and prolong the service life;
3. The machine runs smoothly, installation is convenient, operation and use is simple, the outer roller has insulation cotton, heating efficiency is high, heating is fast.

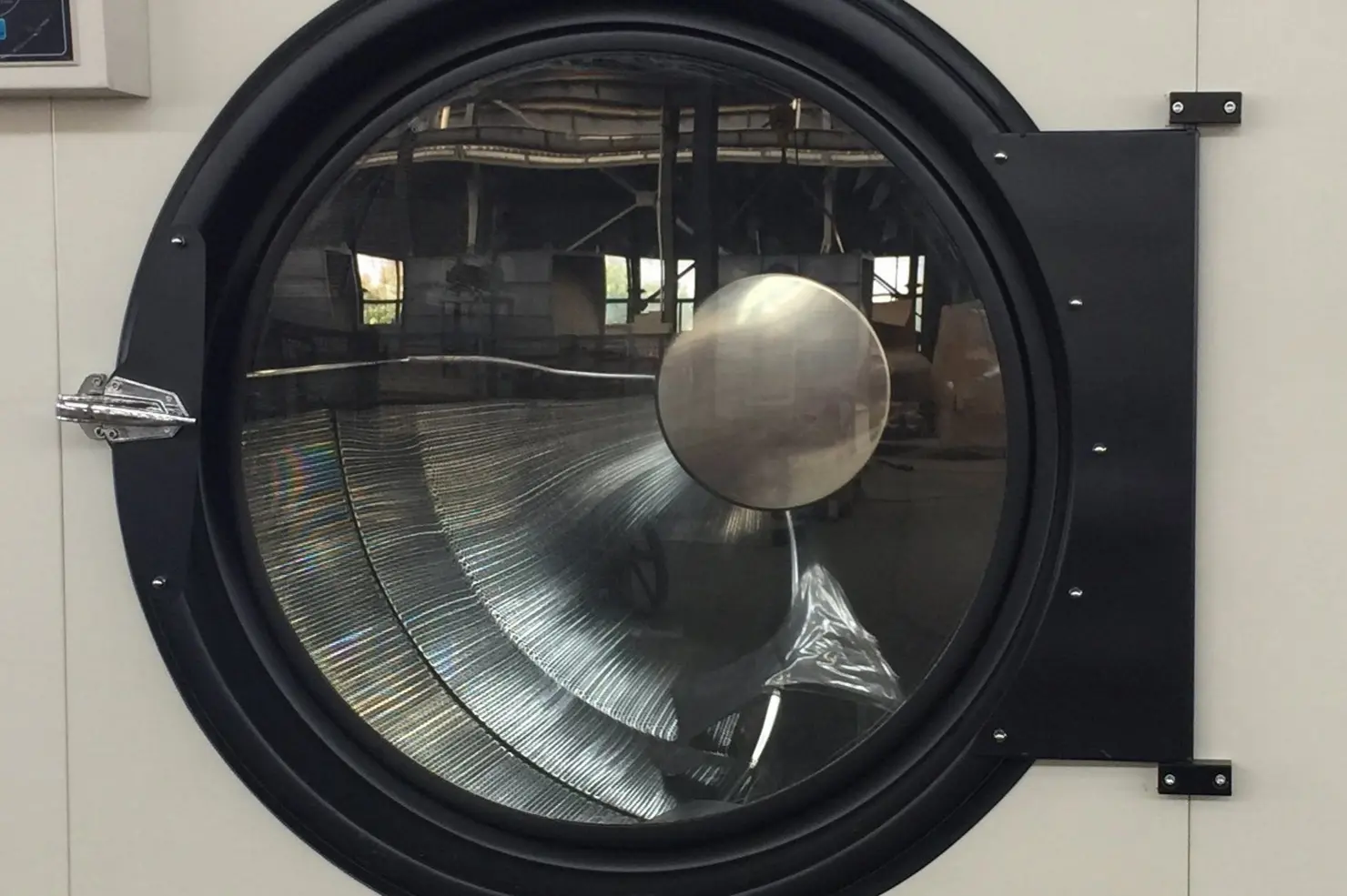

4.Adopt big door view mirror, take clothes conveniently.
Application
Textiles
Fabrics
Standards
Standards
Key Parameters
|
Model |
D039 |
|
Nominal capacity |
50kg |
|
Drum size (mm) |
Diameter 1150mm x Depth 970mm |
|
Dimensions (㎜) |
1380x 1750 x 2160 (Width x Depth x Height ) |
|
Motor power (KW) |
2.2 |
|
Air consumption (kg) |
40~50 |
|
Rated voltage (V) |
380 |
|
Machine weight (Kg) |
620 |
|
Drying time (min) |
40~60 |
|
The rotating speed of the drum( r/min) |
40 |
|
Steam pressure |
0.4~0.6 |
|
Panel material |
Baking paint (can be made to stainless steel) |
|
The tank material |
Stainless steel |
|
Equipment weight |
620kg |
Product Details
Sample Testing Area

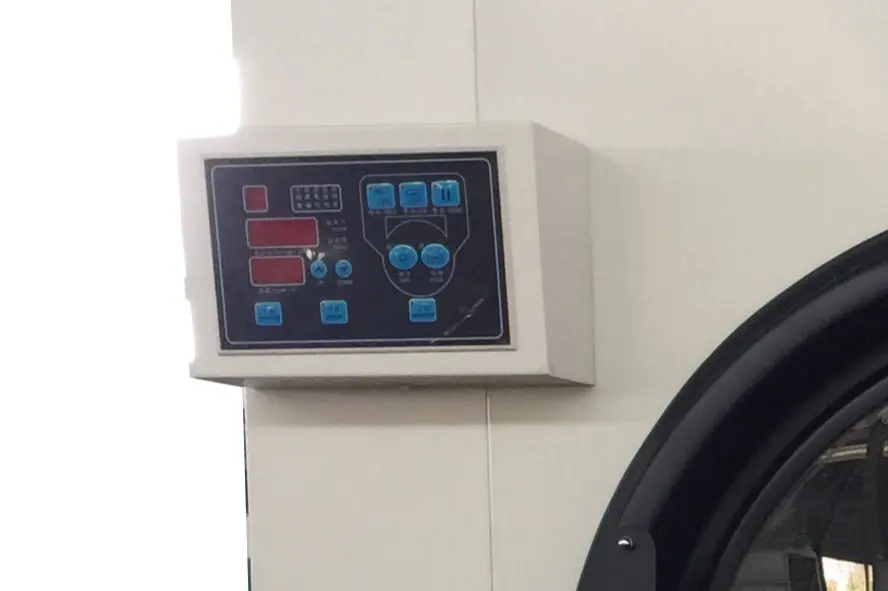

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
