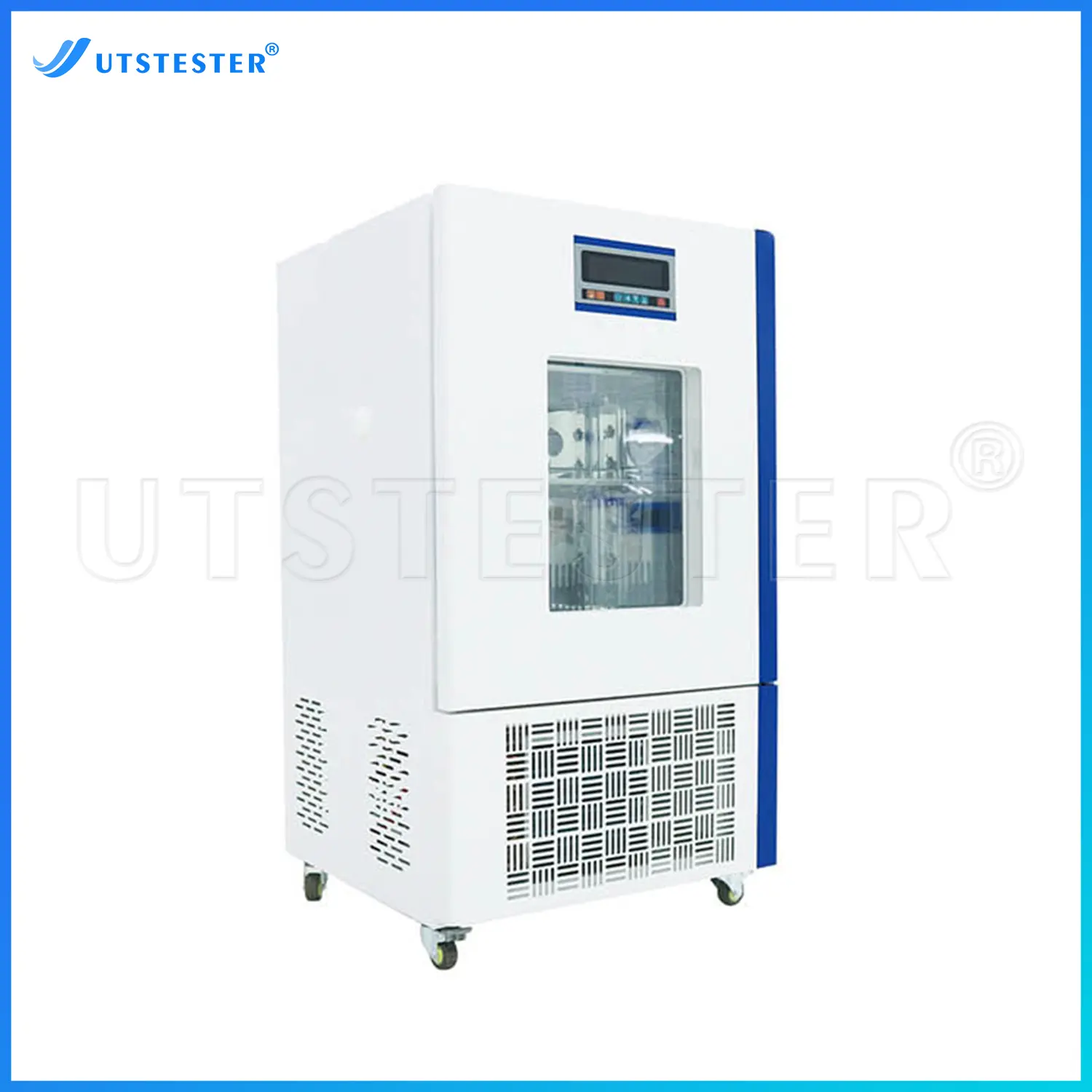

Textile Laboratory Testing Equipment Series Mildew Mould Incubator D010M

1.Structural design: The box shell material is made of cold-rolled steel plate, which is environmentally friendly sprayed, and has strong corrosion resistance; the studio is made of SUS304 mirror 2.Energy-saving design: non-fluorine environmentally friendly high-efficiency refrigerant, fast cooling speed, high cooling efficiency, low power consumption.
3.Humanized design: the height of the shelf can be adjusted at will and free assembly; the outer door adopts a magnetic door seal with good airtightness; the outer door is equipped with an observation window.
4.Safety guarantee: The equipment is equipped with a leakage protection device and a buzzer alarm system.

product details

Production Processes

Packing System

Overview

This series of products are widely used in medical and health, epidemic prevention and inspection, biopharmaceuticals, animal husbandry research, environmental protection, agricultural scientific research and other fields.

Application

SILK

HESSIAN

GARMENT

FABRICS

Standards

Key Parameters

Model	D010-M100B	D010-M150B	D010-M200B	D010-M-250B
Capacity	100L	150L	200L	250L
Humidity Fluctuation	±3~±5%RH
Humidity Range	50~95%RH
Temp.Control Range	0~85℃
Temp.Resolution	0.1℃
Temp.Fluctuation	0~18℃: ±1.0℃; 19-42℃: ±0.5℃; 43-85℃: ±1.0℃
Temp.Uniformity	±1℃(at 37℃)
Humidification Method	Built-in humidification system (standard)
Timing Range	1-5999min
Sterilization Method	UV sterilization lamp (timeable setting)
Refrigerant	R134a (CFC-free environmentally friendly refrigerant)
Power	AC 220V, 50/60Hz (Standard); AC110V, 60Hz (Optional)
Input Power (W)	700-1500
Shelves (standard)	2
Internal size(WDH)	350500580mm	401550690mm	450598750mm	450660850mm
External size(WDH)	6476441170mm	6926901270mm	7437421340mm	7438021440mm
Package size(WDH)	7727691330mm	8178151430mm	8688671500mm	8689271600mm
Net weight	99kg	120kg	130kg	145kg
Gross weight	125kg	140kg	150kg	170kg

Product Details

Sample Test Area

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
