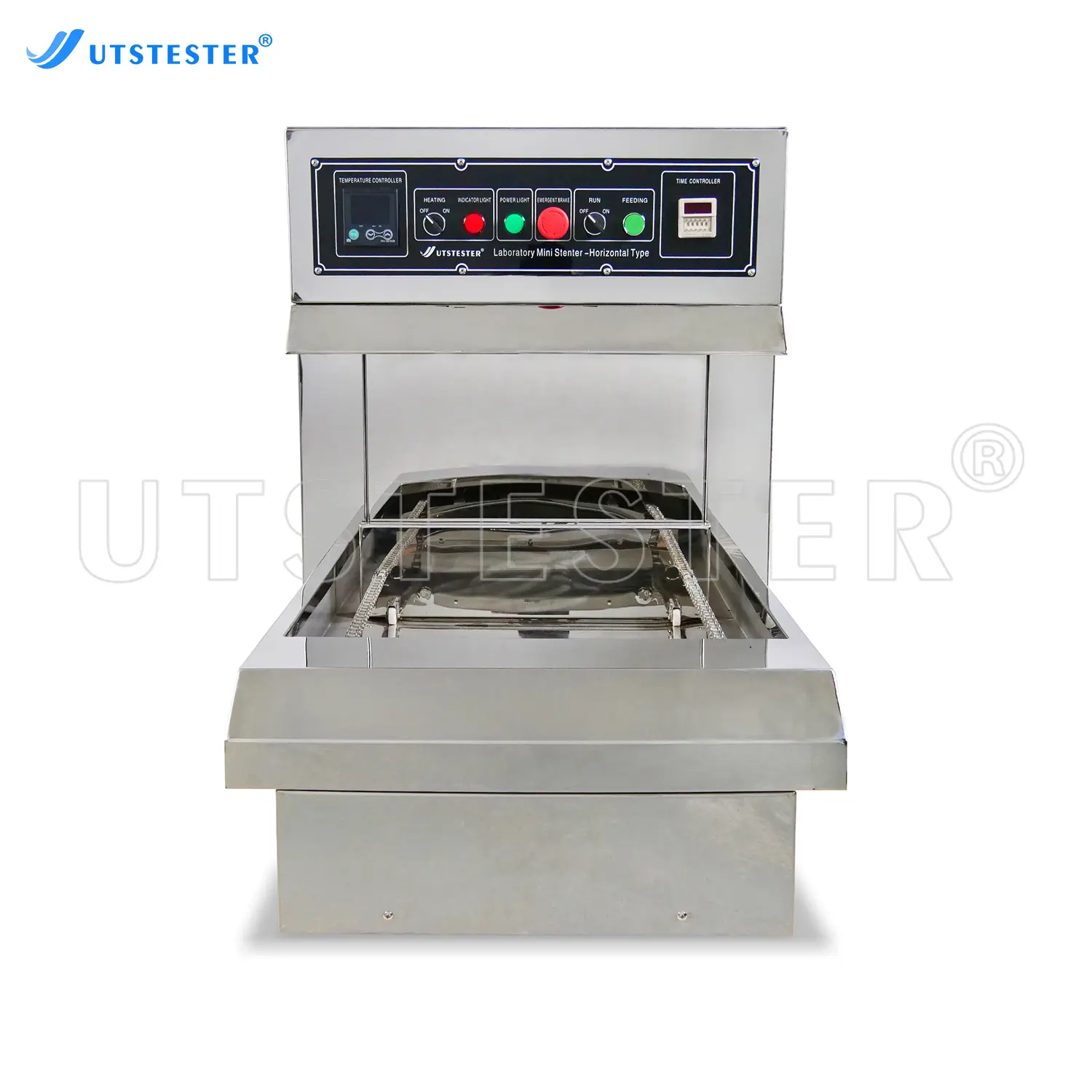

Textile Machine Mini Stenter - Horizontal Type Drying Molding Heat-Setting Tester D018A-1
Overview
D018A-1 Laboratory Mini Stenter without steamer, is applicable for garment, dyeing and finishing, chemical and other industries.
It is used to conduct dry, stereotypia, resin treatment baking, pad dyeing baking and thermal fixation tests. So as to obtain correct resin treatment recipe, test dyeing and finishing color changing situation, as well as verify the test results of medicament. Also can be used to fulfill hand-feel sample plate production to get right color and texture sample plate.
Application
Chemical industry
Printing and dyeing
Garment
Dyeing and finishing
Key Parameters
|
Model |
D018A-1 |
|
Sample size |
350 x 400mm (Effective size 300 x 350mm) |
|
Temperature range |
20-250℃ |
|
Heat preservation time control |
10 sec to 360secs can be preset. Auto stop once test finished and alarm. |
|
Display mode |
LCD digital display |
|
Testing time range |
1-999s |
|
Power supply |
3∮AC 380V 50/60HZ 6KW |
|
Dimension |
1360 x 730 x 840 mm(L x W x H) |
|
Weight |
120 kg |
Product Details

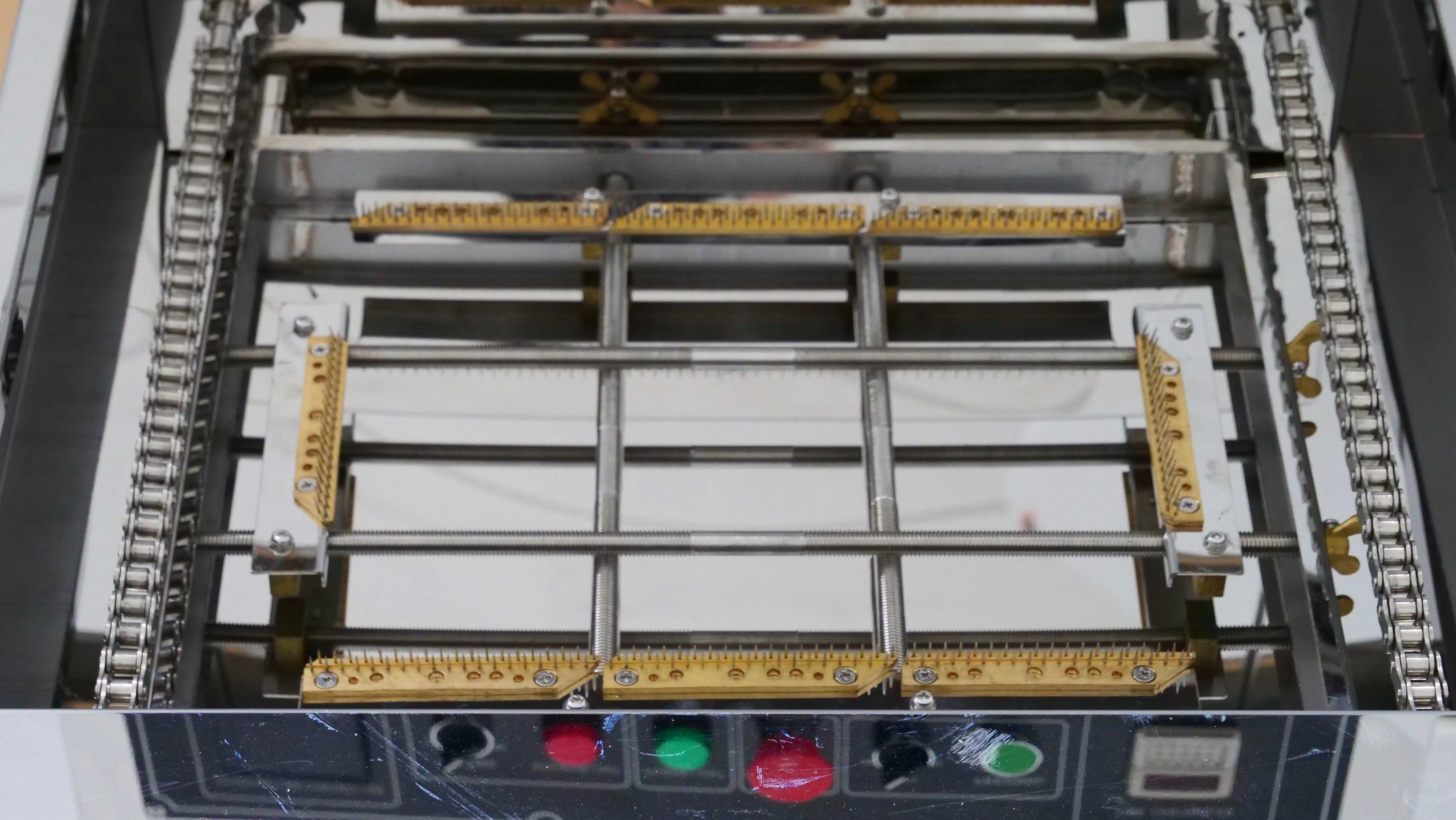

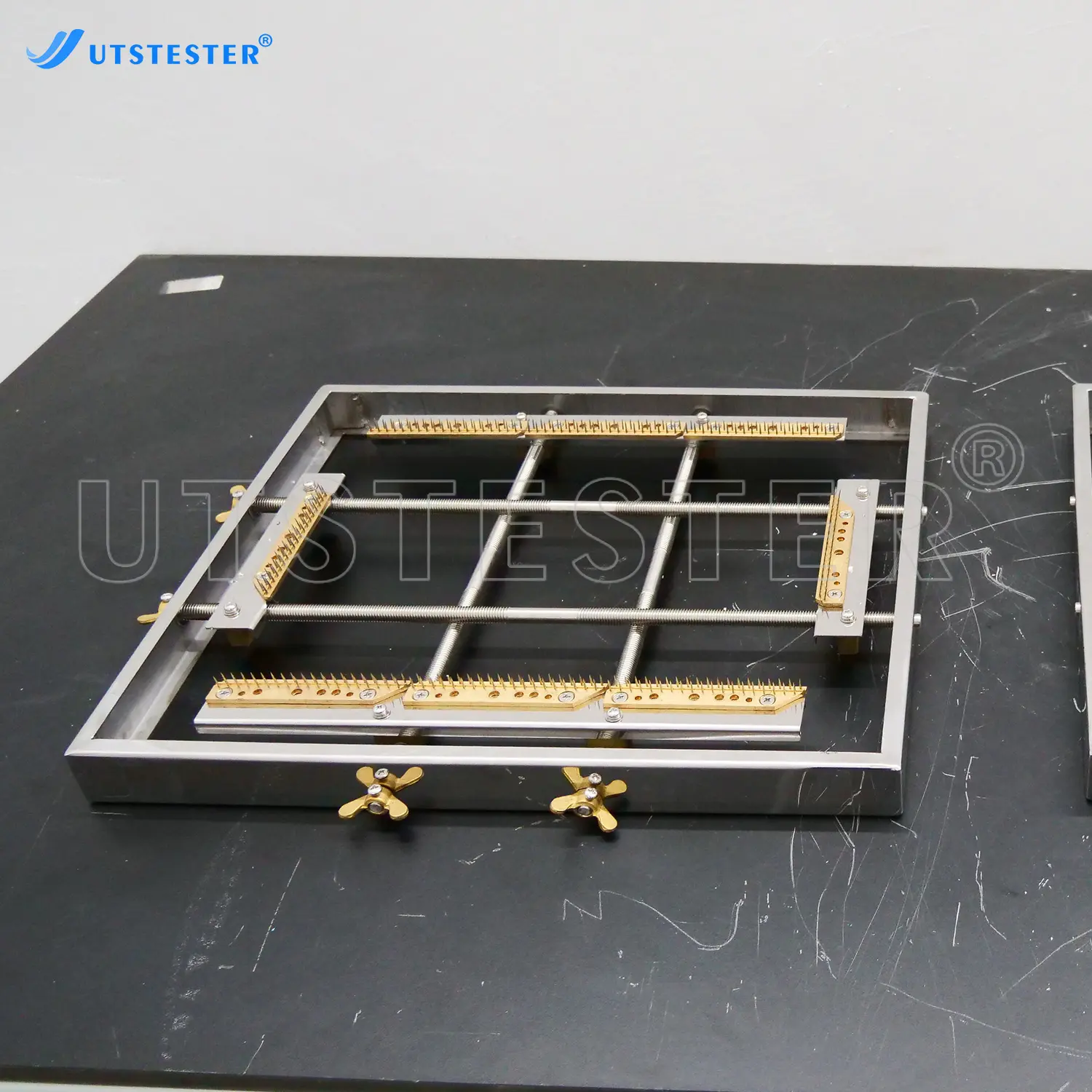

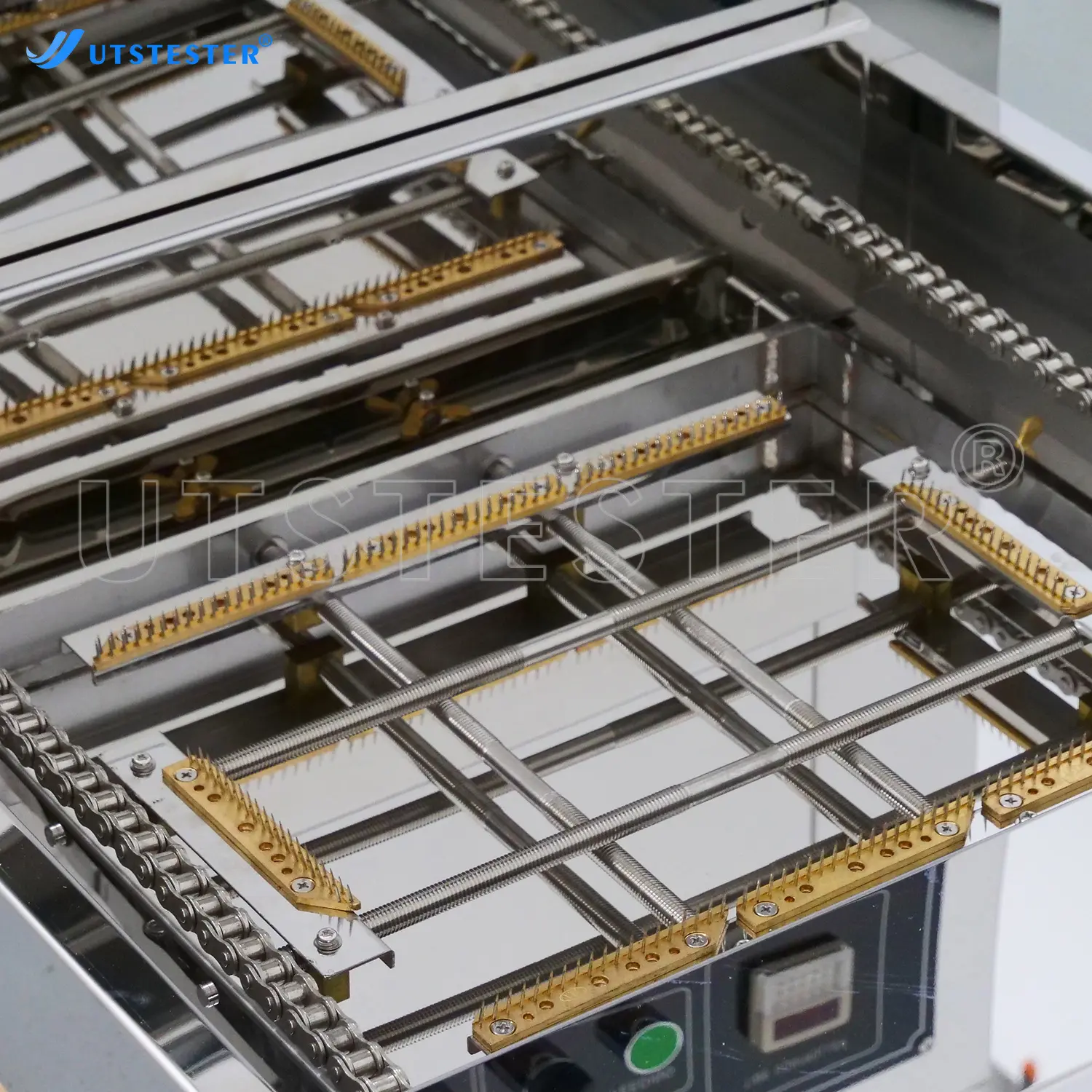

Needle plate shelf

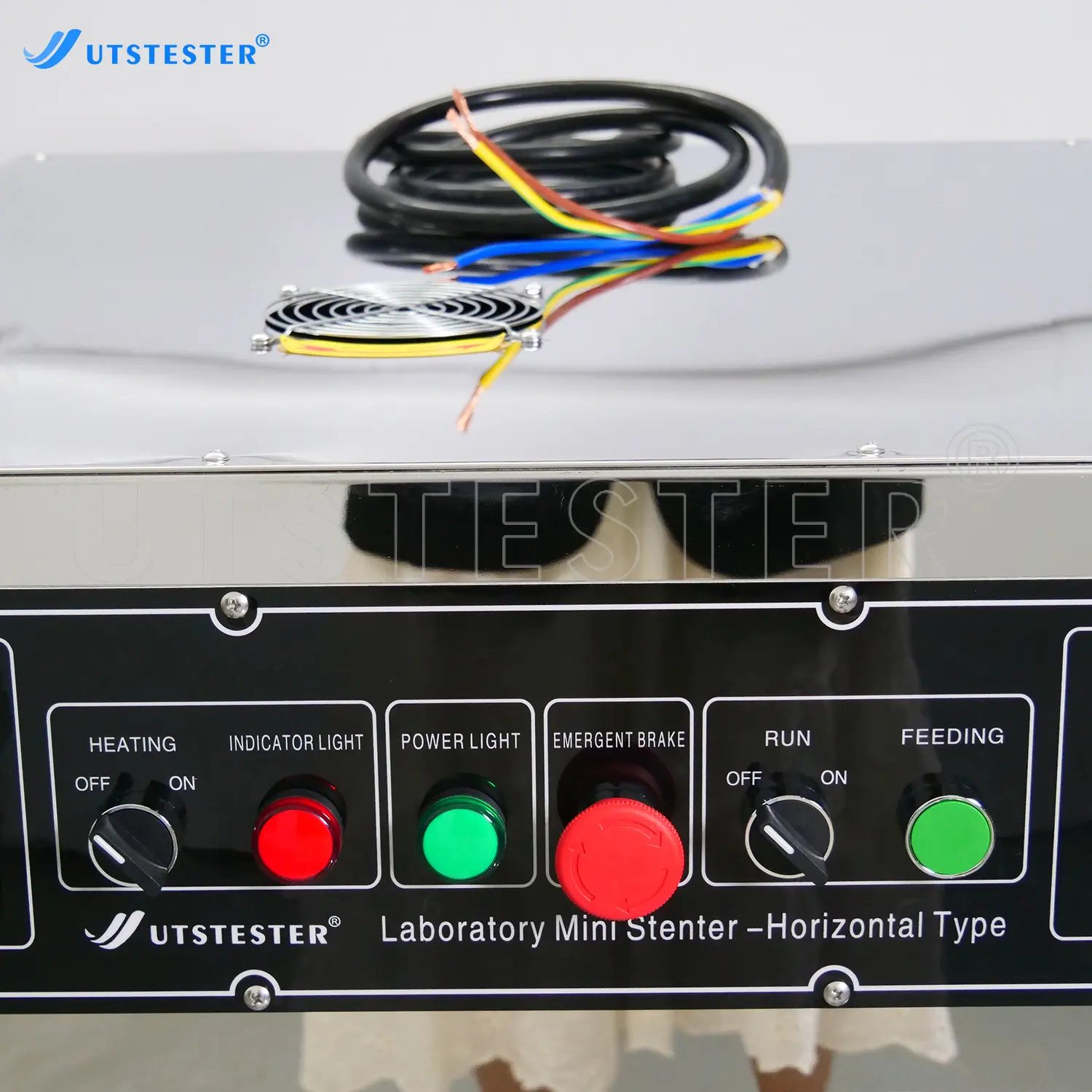

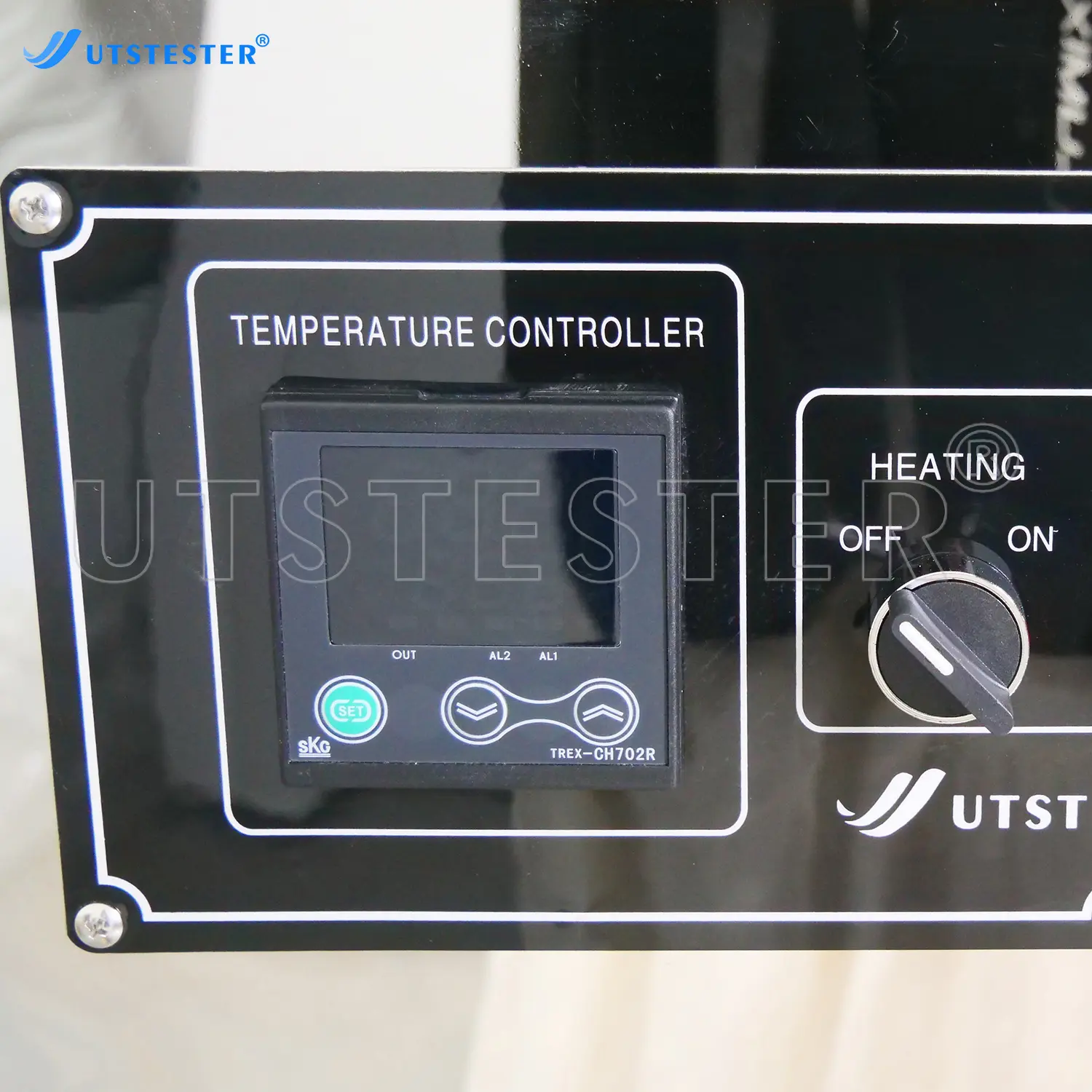

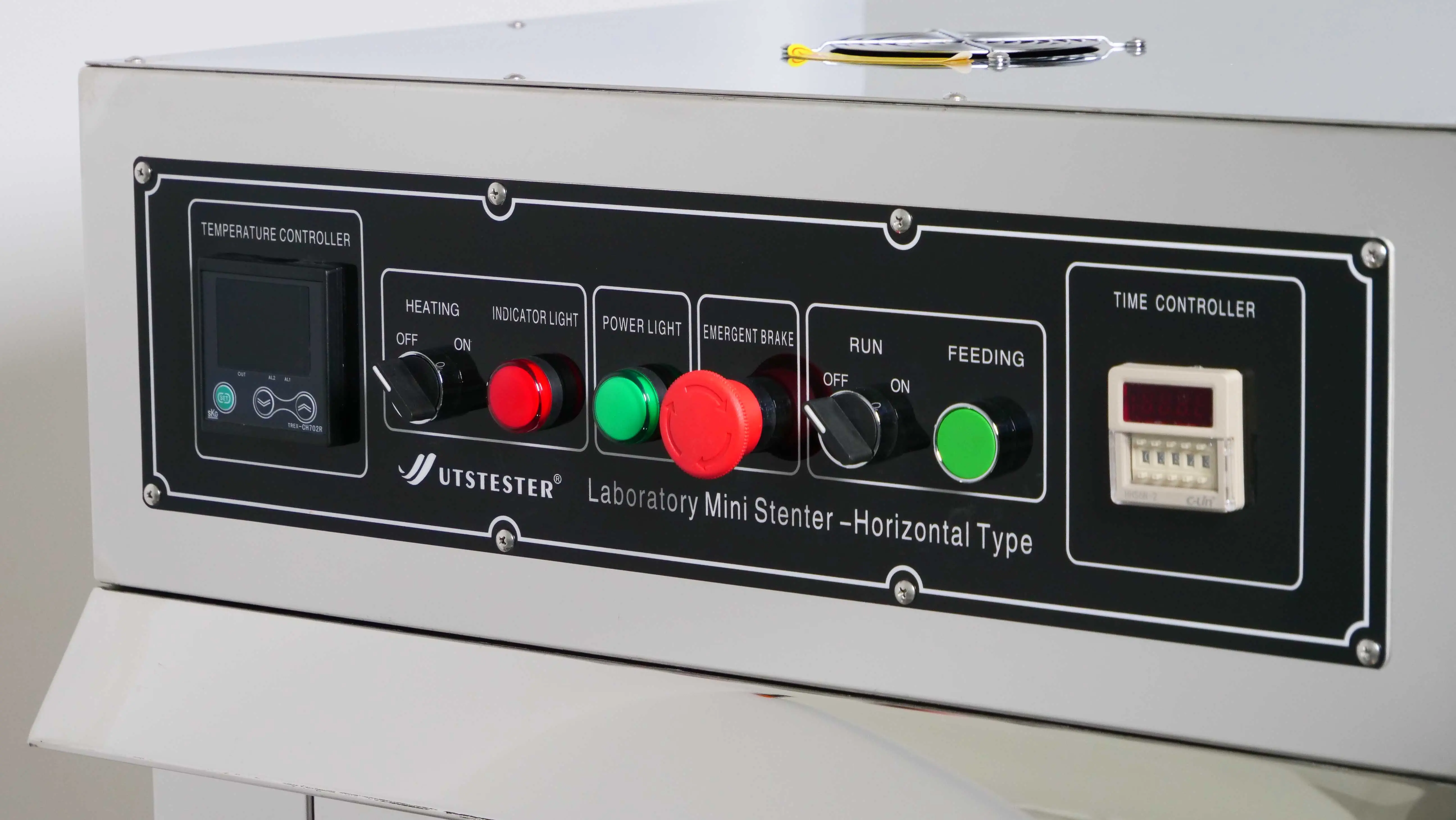

Control panel

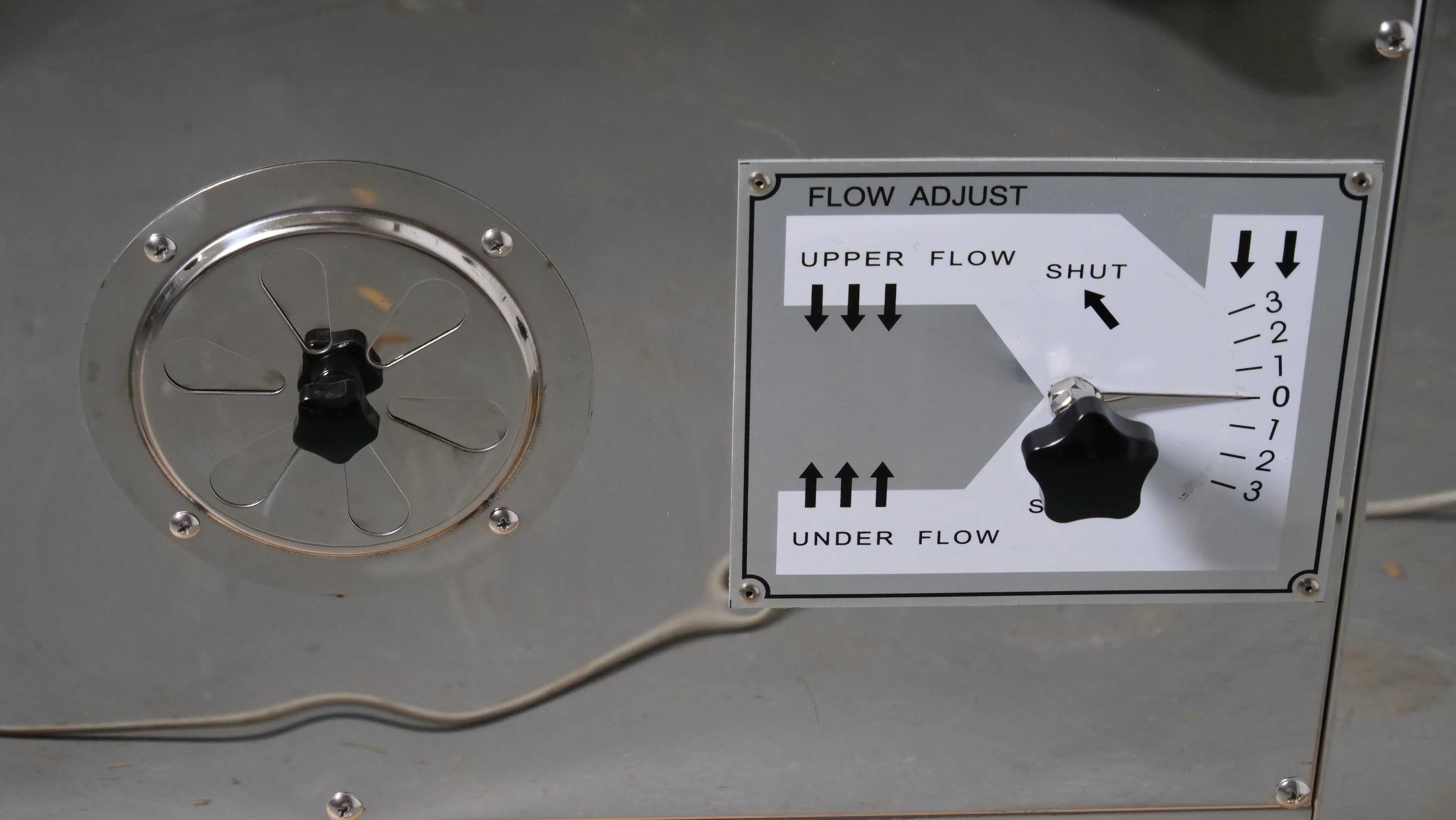

Ajustable ventilation door
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory

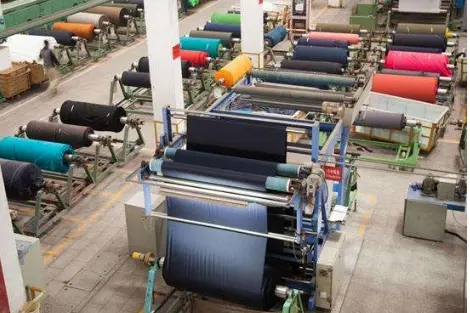

Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
