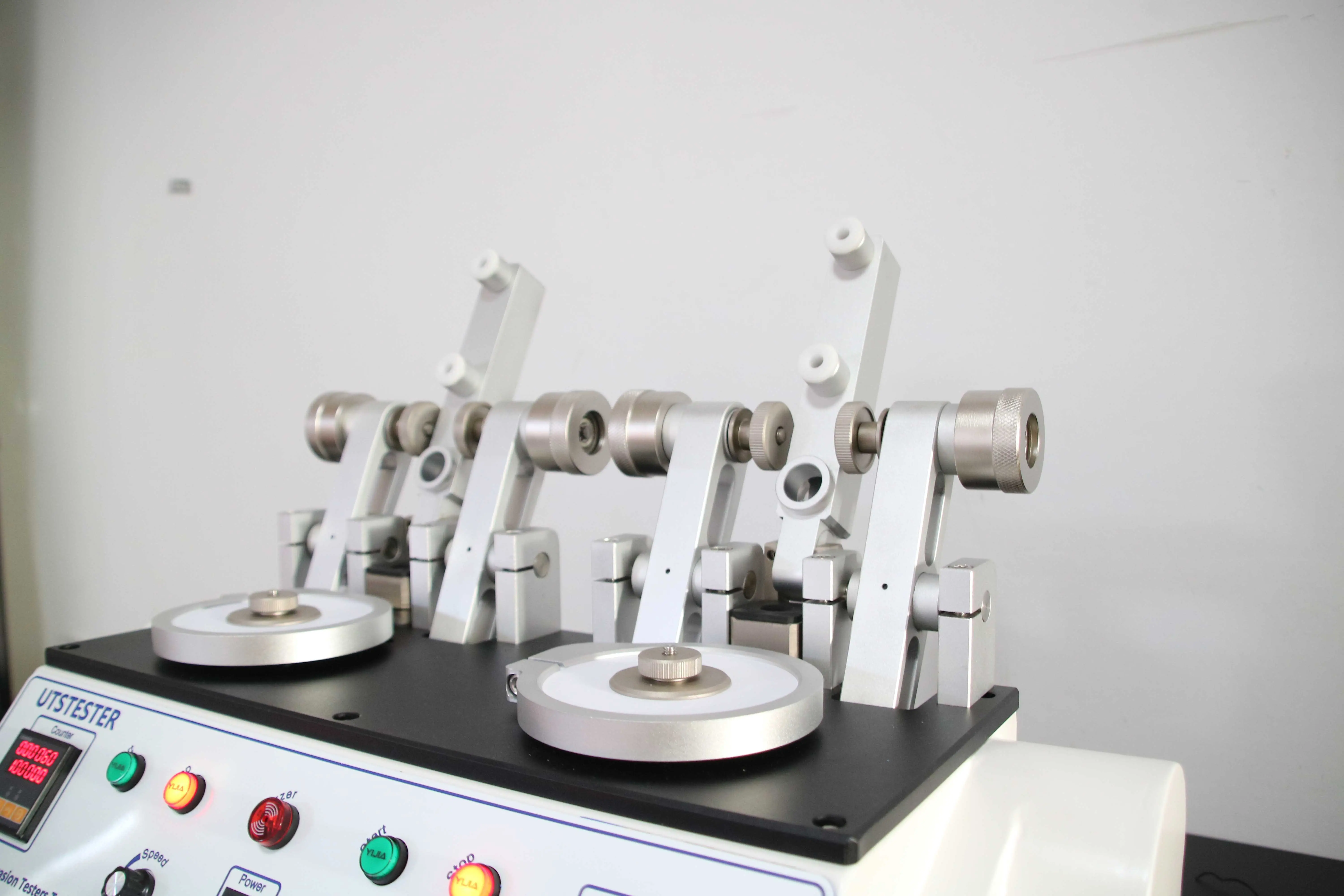

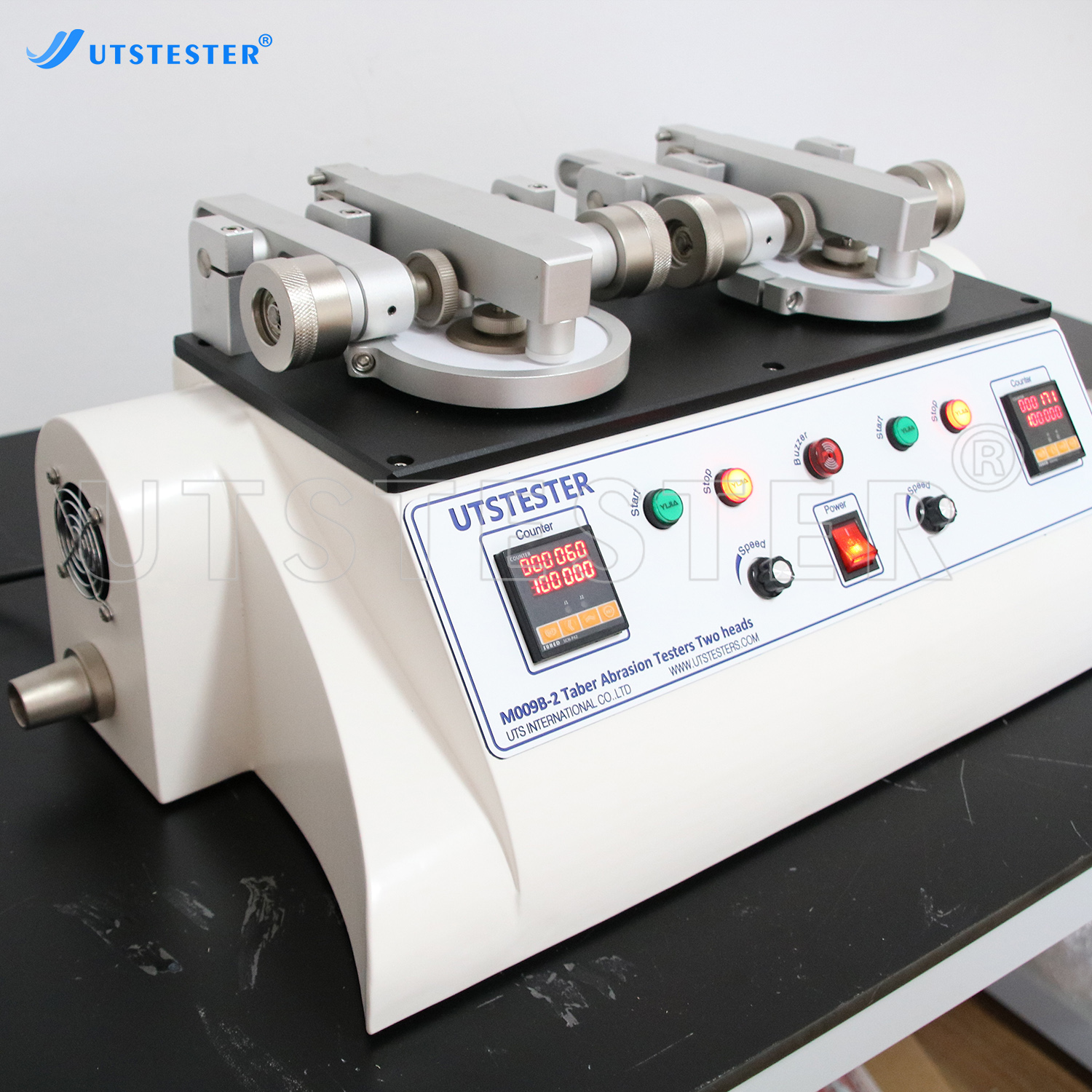

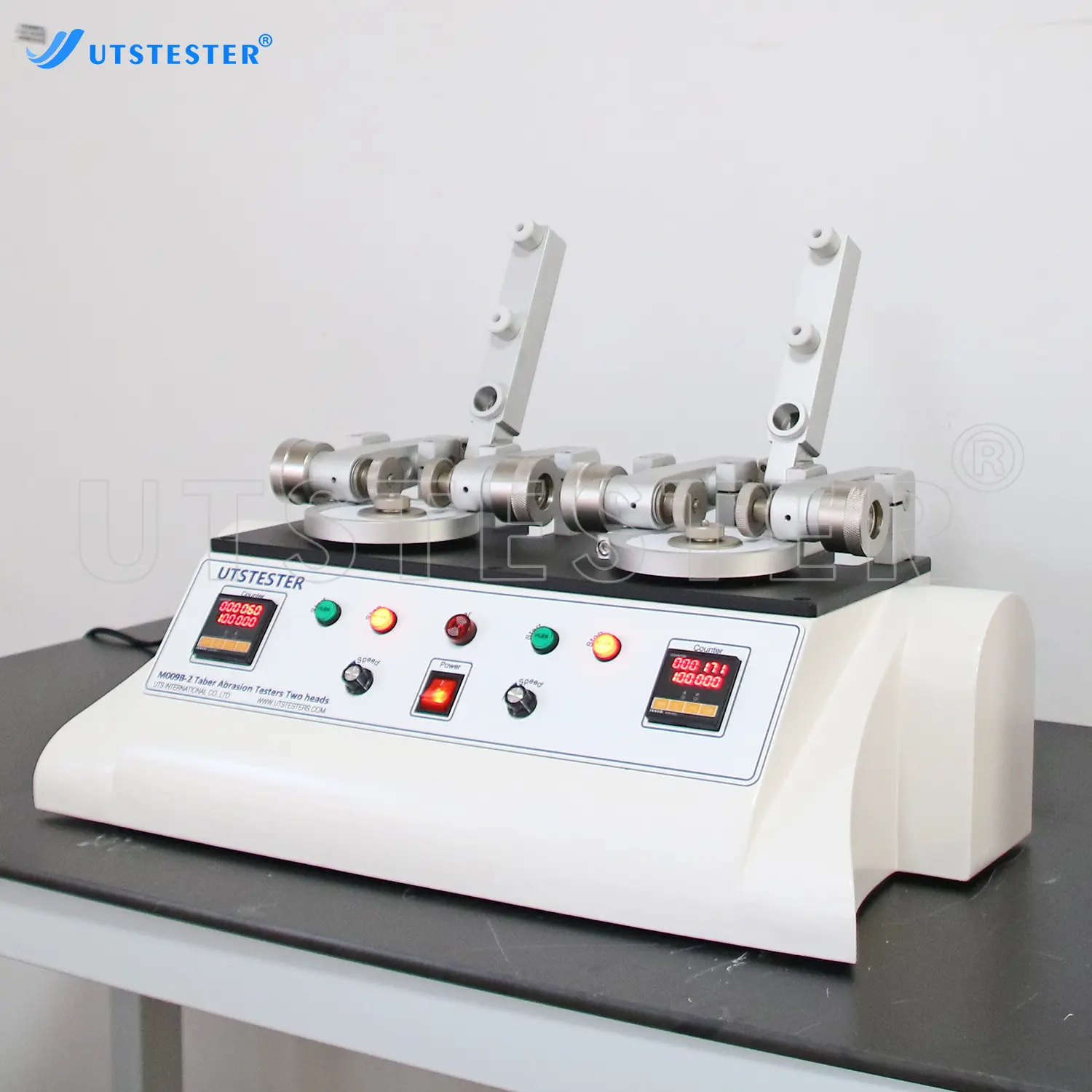

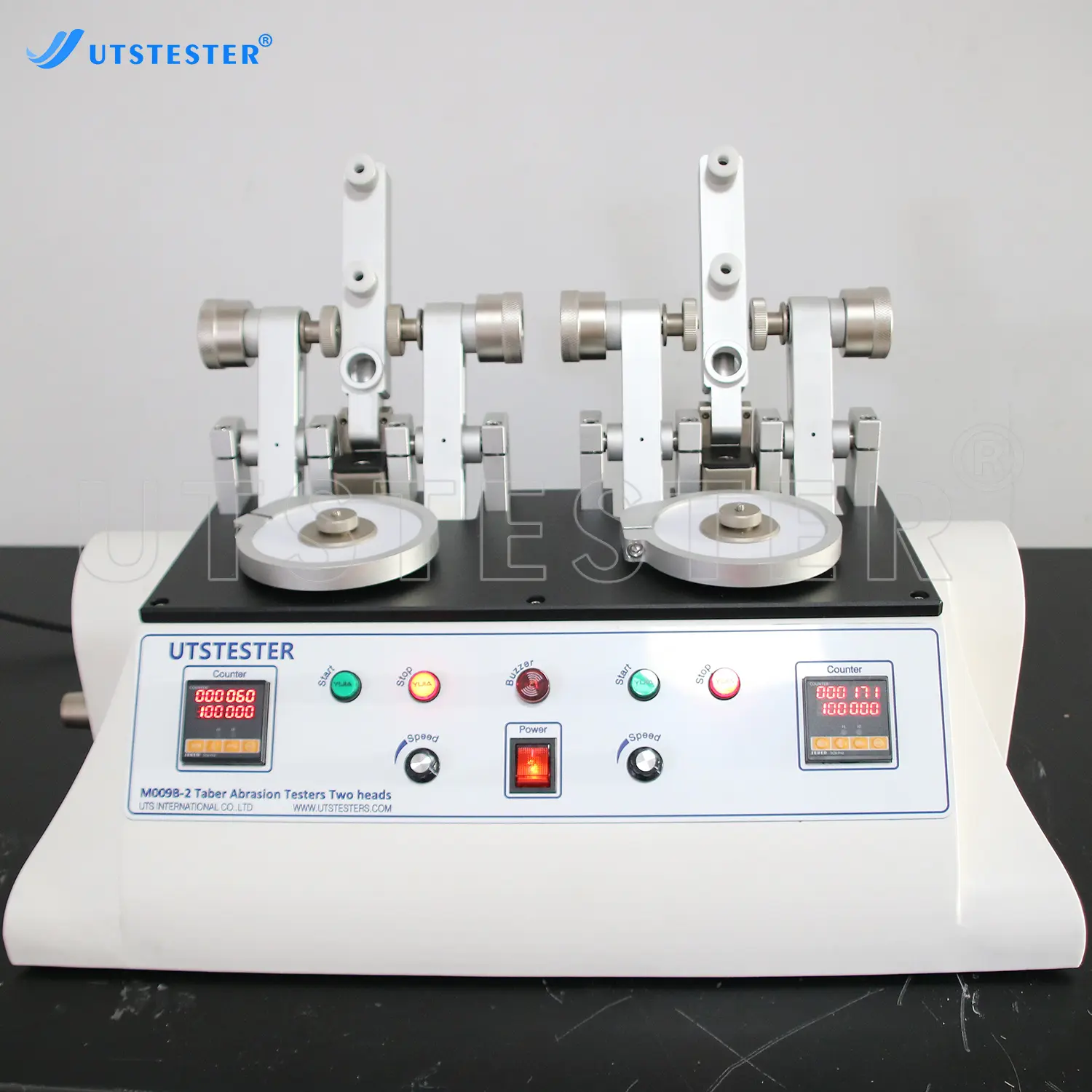

Textile Machinery ASTM D3884 Taber Abrasion Resistance to Surface Abrasion Tester M009B
Overview
To determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.
Application
textiles
paper
glass
metals
paints
rubber
leather
Standards
ISO 7784-2, ISO 9352, ISO 5470-1, ASTM D3884, ASTM D4685, ASTM D1175, ASTM D1044, ASTM D4060, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, TAPPI T476, ANSI INCITS 332, QC/T 236, GB/T 1768
Key Parameters
|
Model |
M009B-1 |
M009B-2 |
|
|
Test position |
1 |
2 |
|
|
Sample |
External diameter: 120mm; Inner diameter: 6.5mm; Thickness: 3mm |
||
|
Abrasive wheel |
Φ2"(max 45mm) (W)1/2" |
||
|
Abrasive wheel central interval |
63.5mm |
||
|
Abrasive wheel and sample plate central interval |
37mm~38mm |
||
|
Rotate speed |
70r.p.m. |
||
|
Load |
250g 500g 1000g |
||
|
Counter |
LCD, 0-999,999 |
||
|
Power supply |
1∮ AC220V 50Hz 5A |
||
|
Dimensions ( L x W x H ) |
53cm x 32cm x 31cm |
60×38cm ×28cm |
|
|
Weight |
18kg |
30kg |
|
Product Details

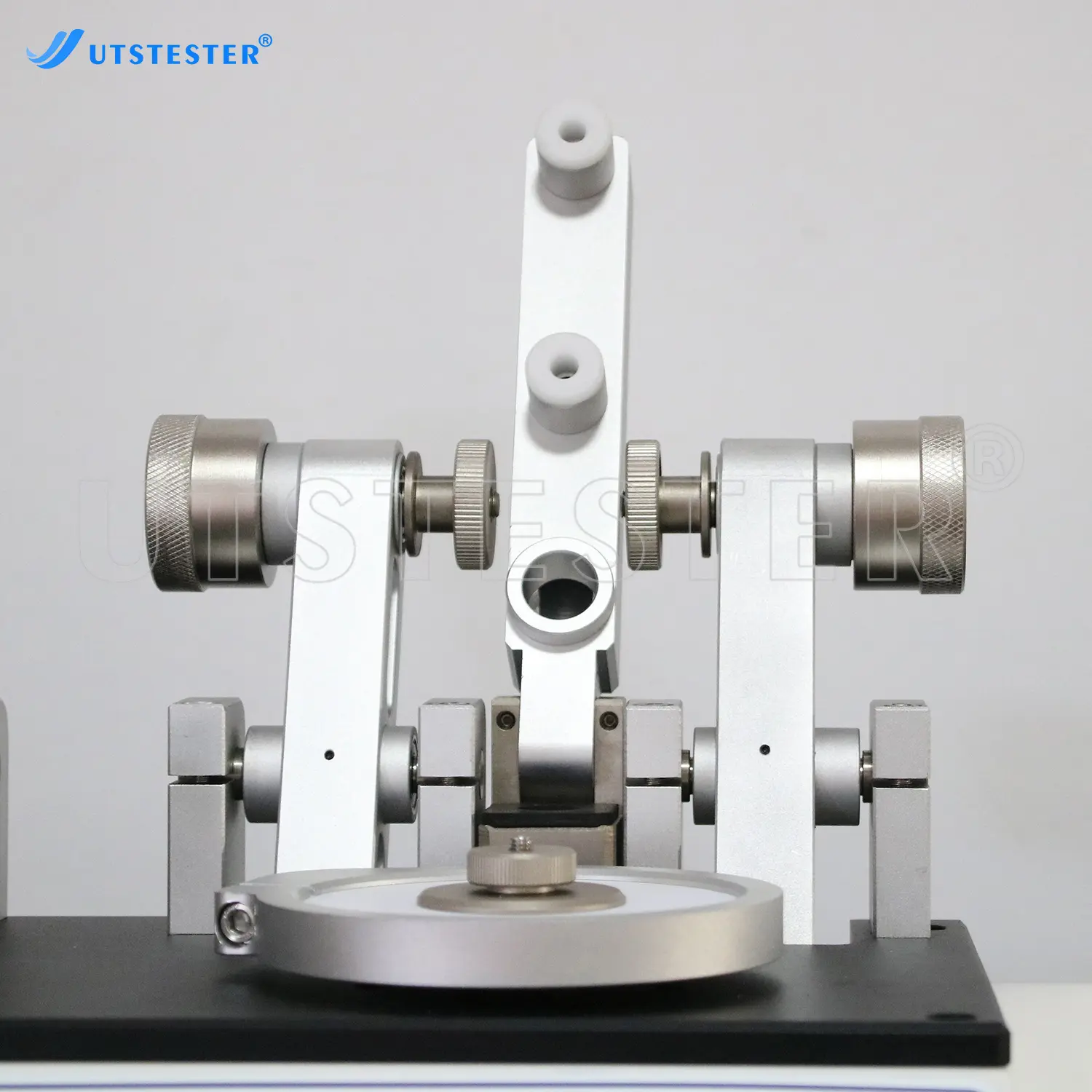

Grinding Wheel device

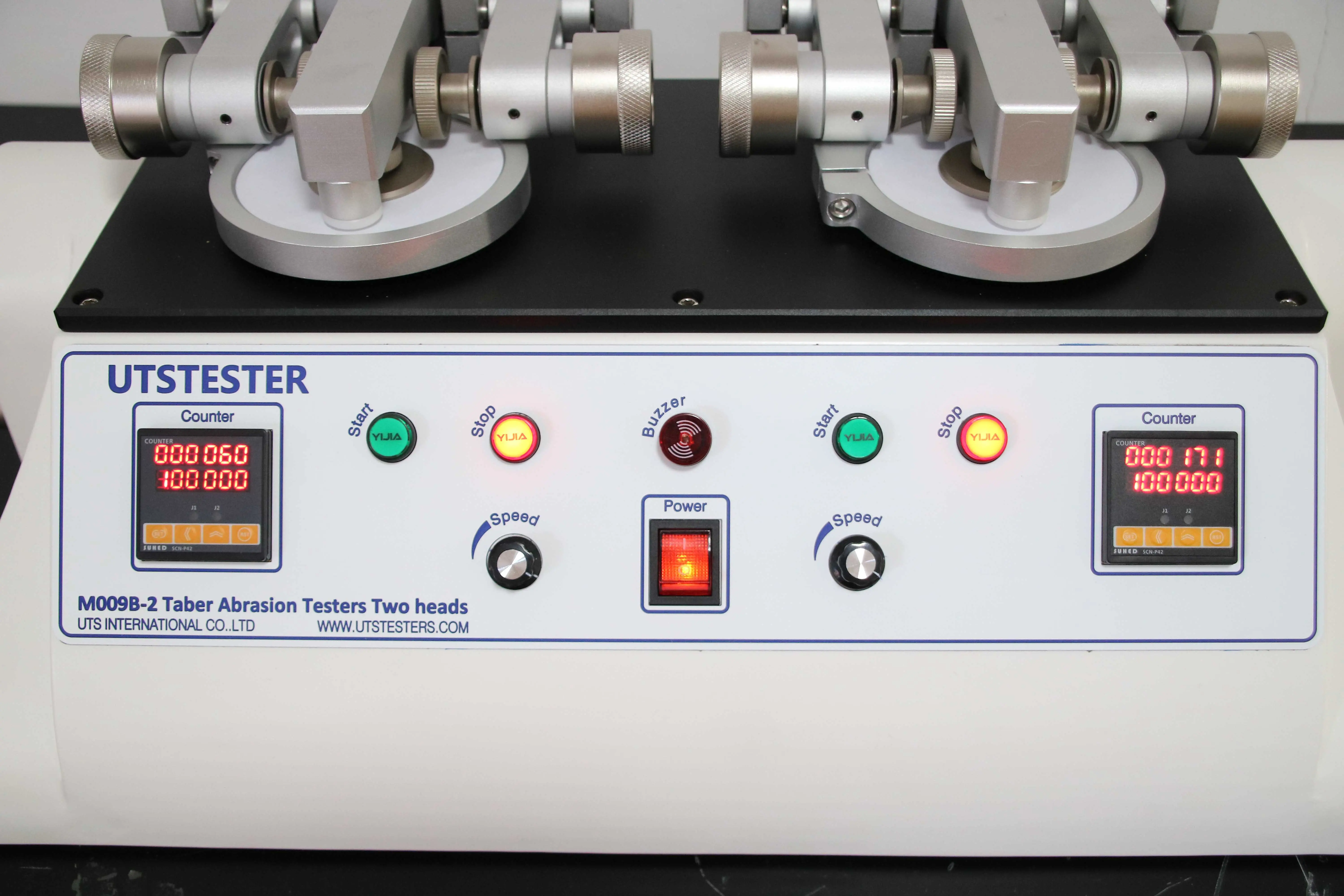

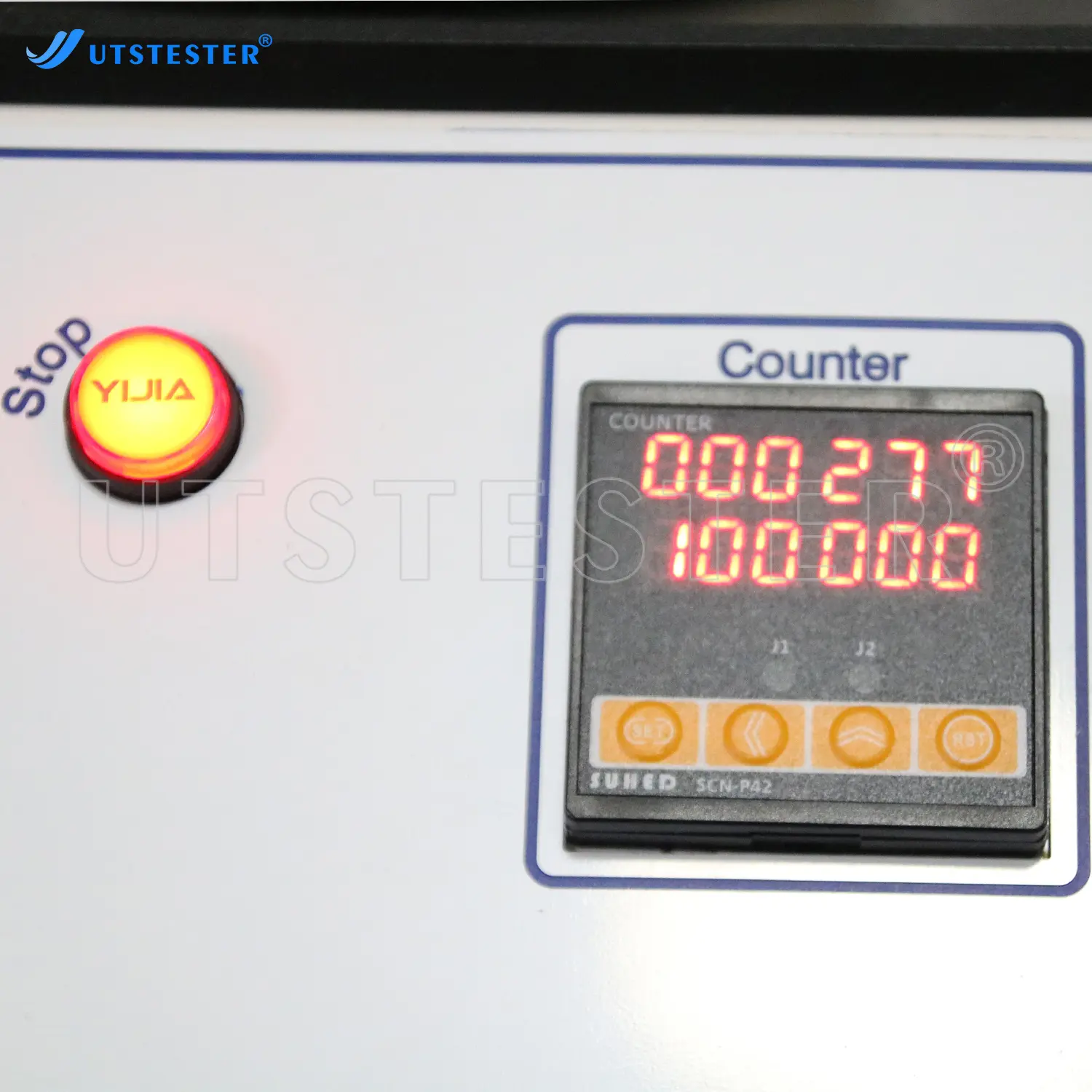

Controler

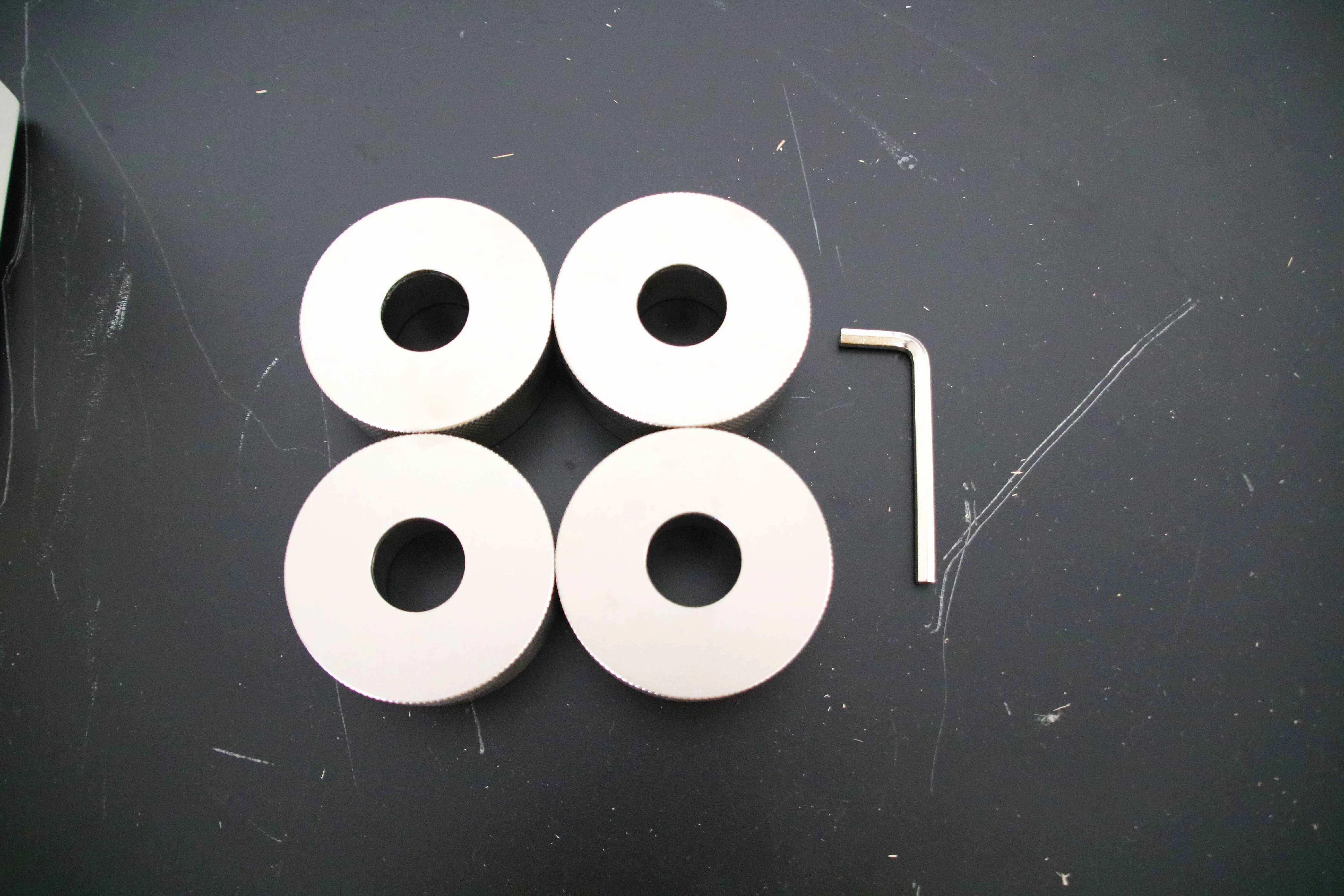

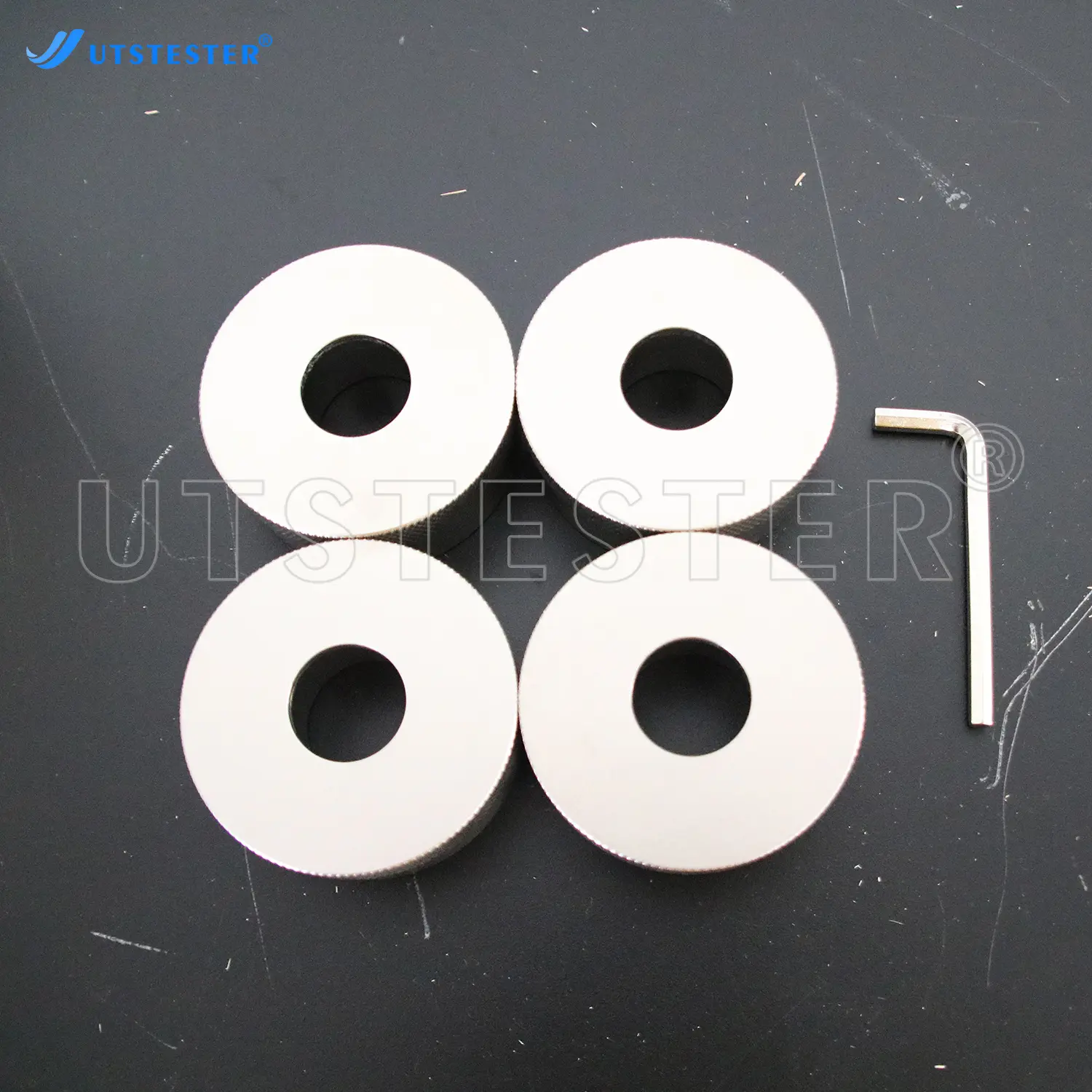

Load Weight
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
