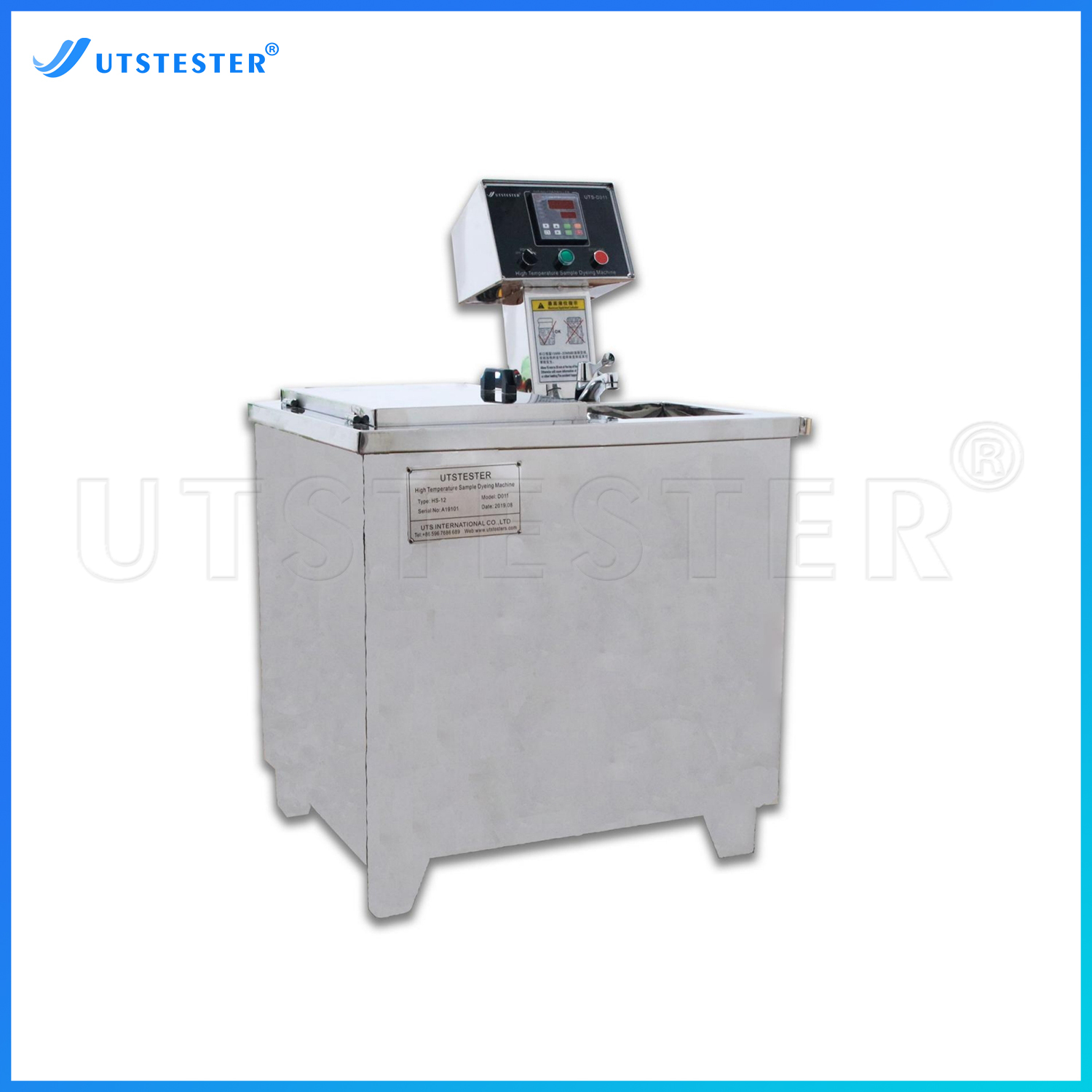

Textile Machinery High Temperature Lab Dyeing Machine D011C
Overview
To accurately simulate real producing condition including dyeing, washing and colorfastness test for apparel, dyeing and finishing, chemical industry, etc.
Equipped with new type dyeing machine special computer, precision heating system and accurate temperature and time control to improve test success rate.
Application
Silk
Garment
Hessian
Fabrics
Key Parameters
|
Model |
D011C |
|
Dyeing cups |
1pc |
|
Power supply |
AC 380V 50/60HZ 6KW |
|
Cup capacity |
50kg |
|
Heating medium |
Glycerinum |
|
Cooling medium |
Water |
|
Maximum temperature |
145℃ |
|
Liquor ratio |
1:5-1:20 |
|
Heating mode |
Electric heating |
|
Running mode |
Dyeing cup vertically overturn, including positive &negative overturn |
|
Runnning speed |
40 RPM |
|
Size |
780 x 720 x 1150mm |
|
Weight |
Approx. 130kg |
Product Details

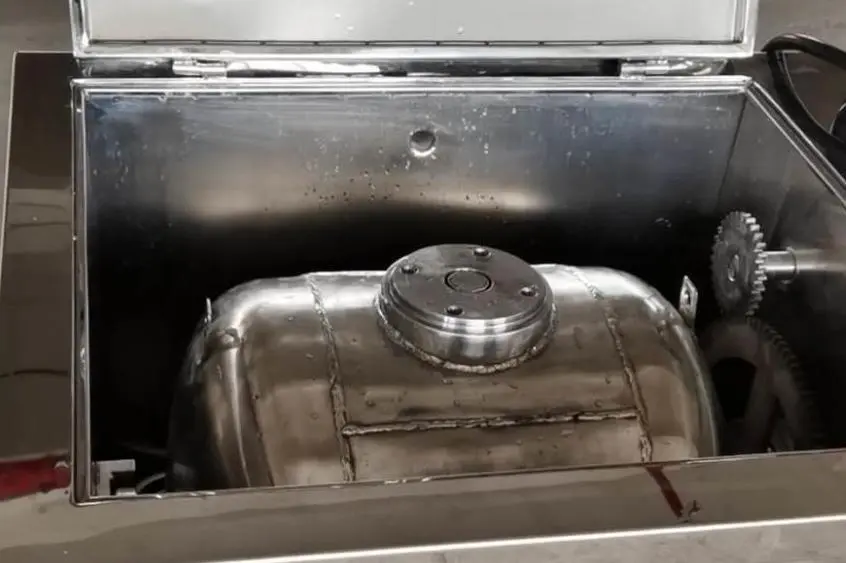

Sample Testing Area

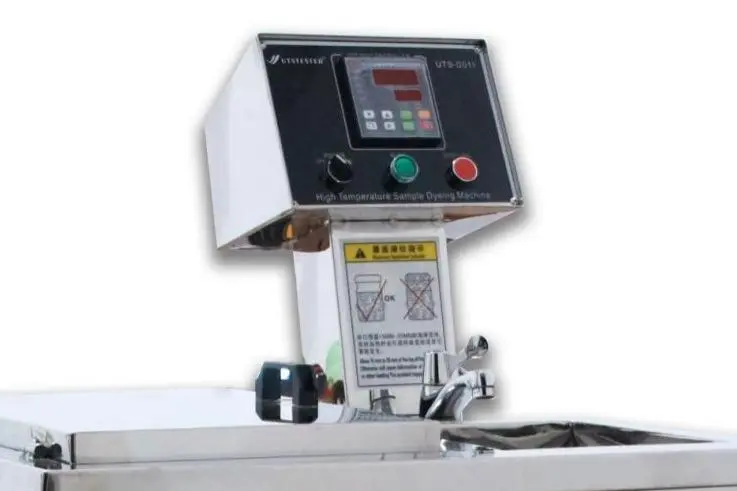

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
