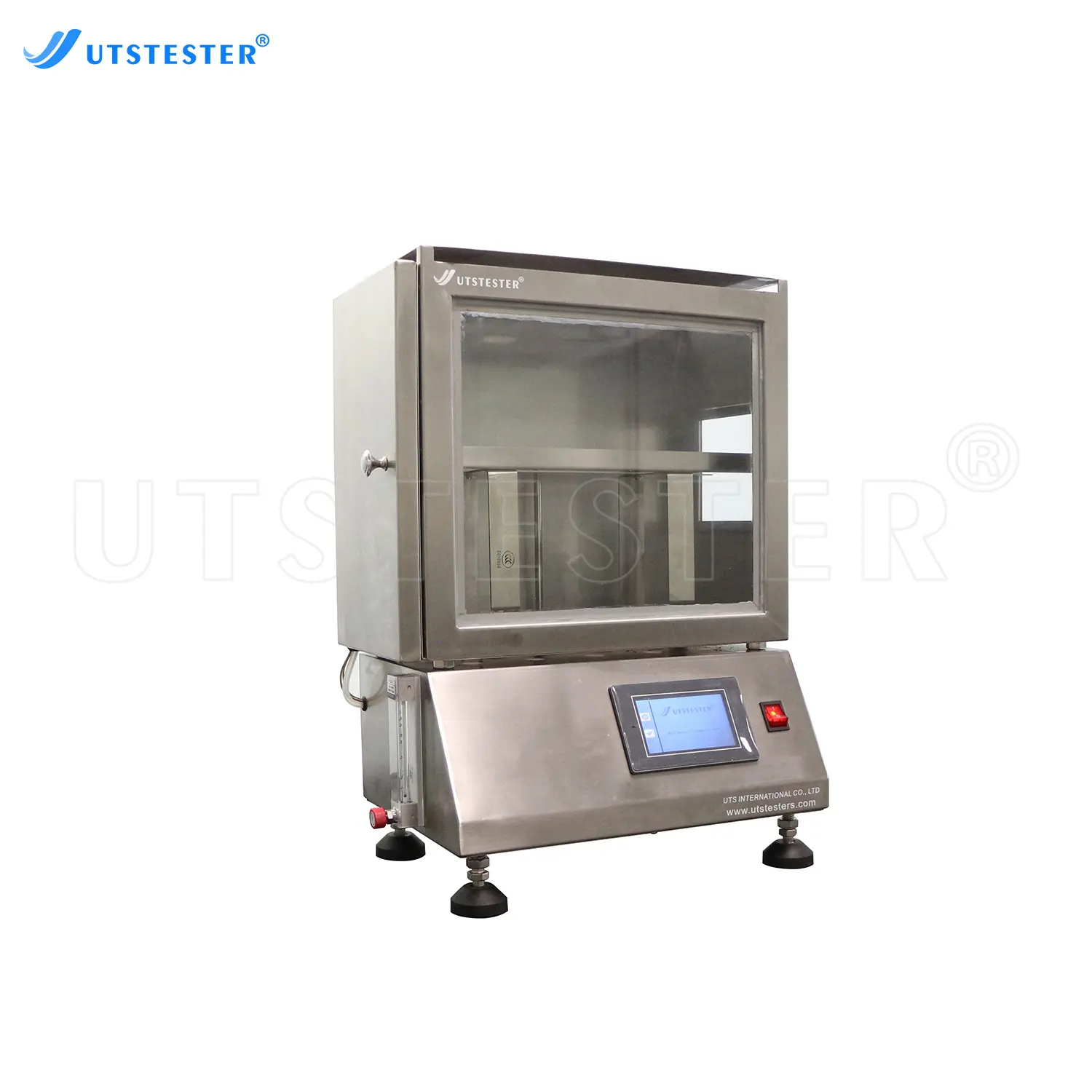

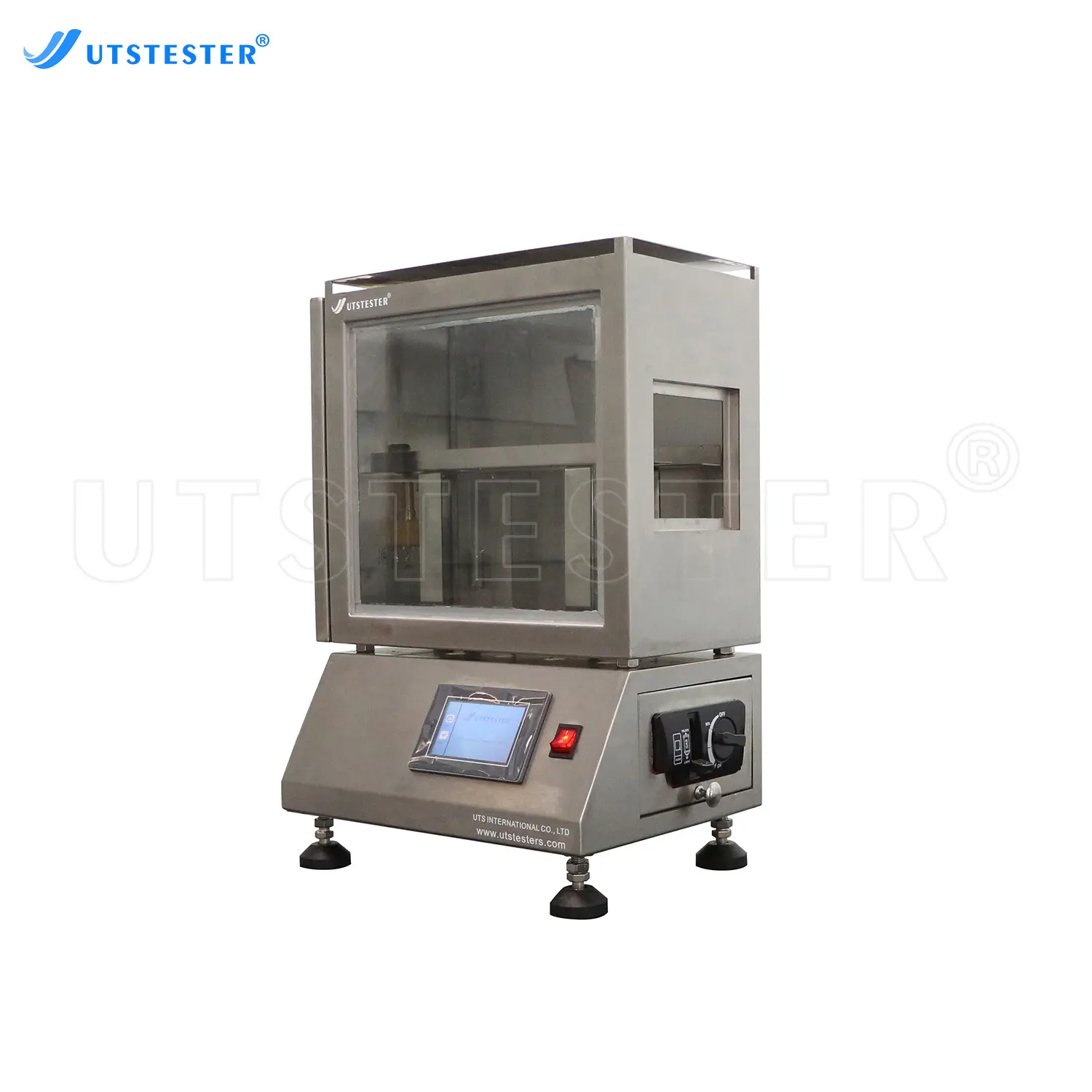

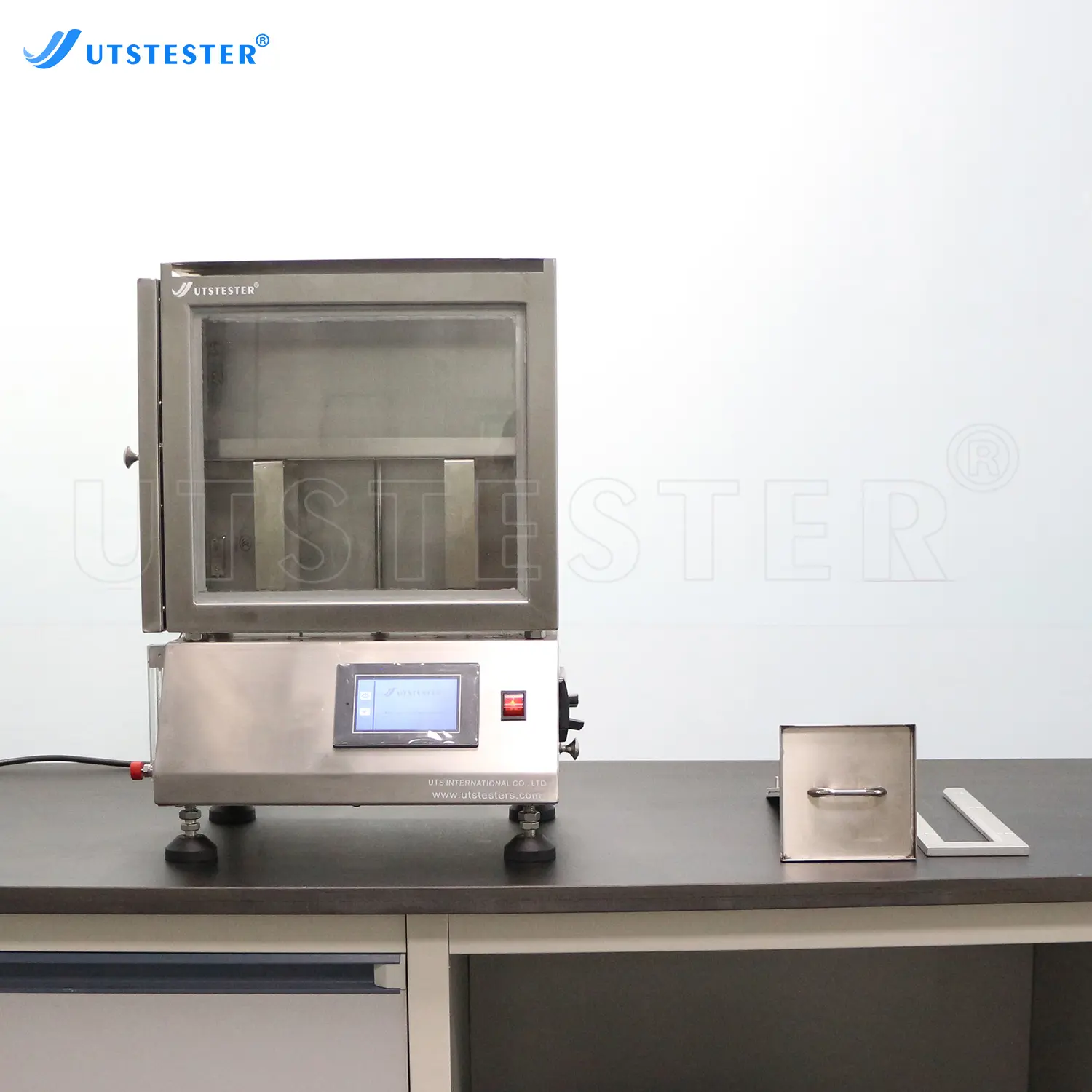

Textile Machinery Horizontal Flame Chamber Horizontal Burning Tester Flammability Testing Equipment M016AN
Overview
To determine the horizontal burn rates and burn resistance of textiles, particularly those for automotive interior use. It is the flammability test about the required time which flame spreads at horizontal direction to the specified distance.
Application
Textile for automotive interior
Textile for automotive interior
Textile for automotive interior
Standards
TL 1010, DIN 75200, ISO 3795 , JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW3232, ASTM D5132, FAR 25.853
Key Parameters
|
Model |
M016AN |
|
Timing range |
Spreading time: 0.1 to 999.9s accuracy 0.1s Marking time: 0.1～999.9s precision 0.1s Spreading extinguishing time: 0.1～999.9s precision 0.1s |
|
Preheating time |
3～20s precision 0.1s |
|
Ignition time |
0～99s precision 0.1s |
|
Burning rate |
1～9999mm/min |
|
Size of specimen holder |
Outer frame 360×100mm, thickness 2mm; inner frame 330×50m |
|
Igniter pipe diameter |
9.5mm |
|
Igniter gas |
Propane or butane; pressure 17.2±1.7kPa air pressure can be adjusted |
|
Flame height |
38±2mm can be adjusted |
|
Collection tray |
336×85×12mm |
|
Dimension |
460×300×570mm |
|
Weight |
25kg |
|
Power source |
AC 220V 50Hz 100W |
Product Details

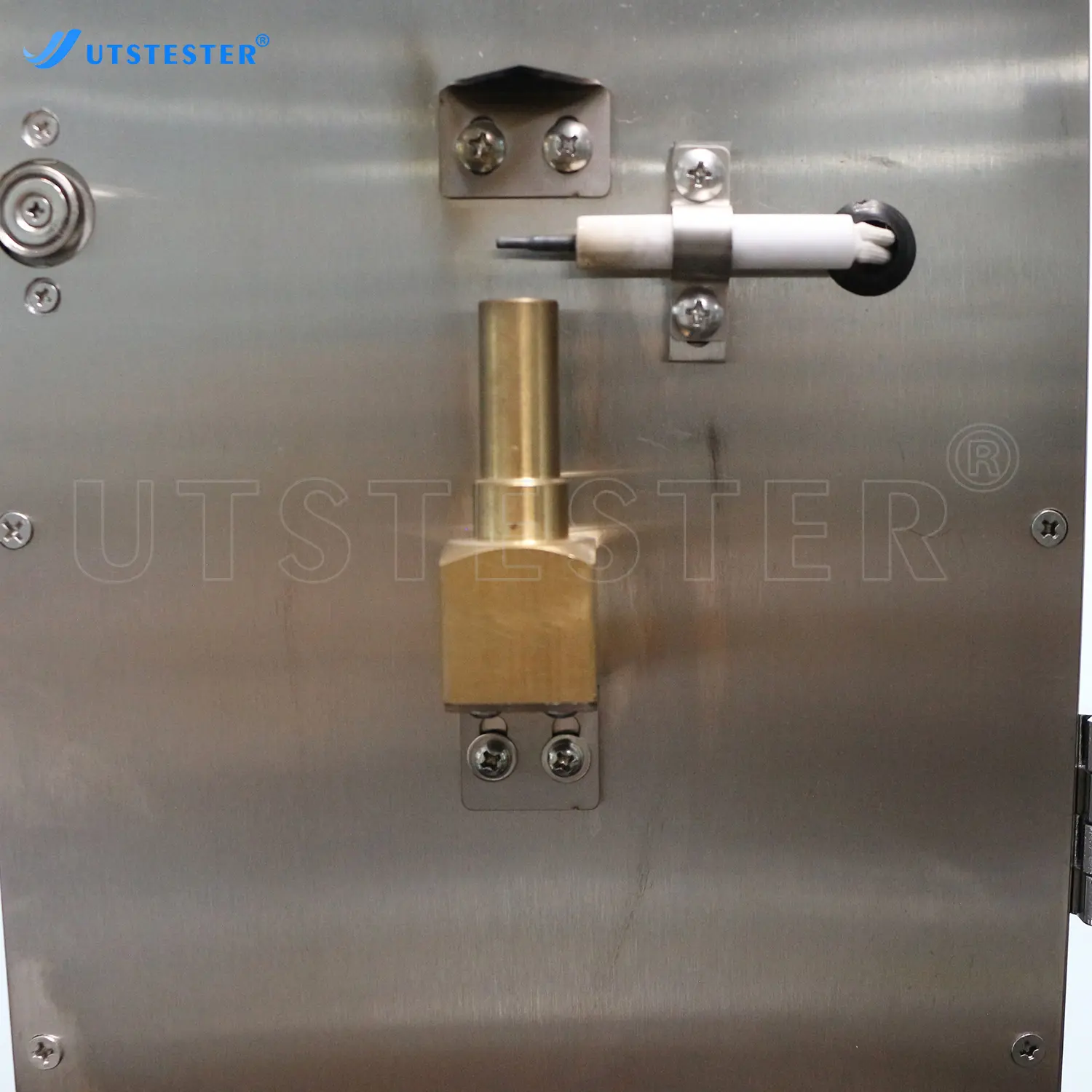

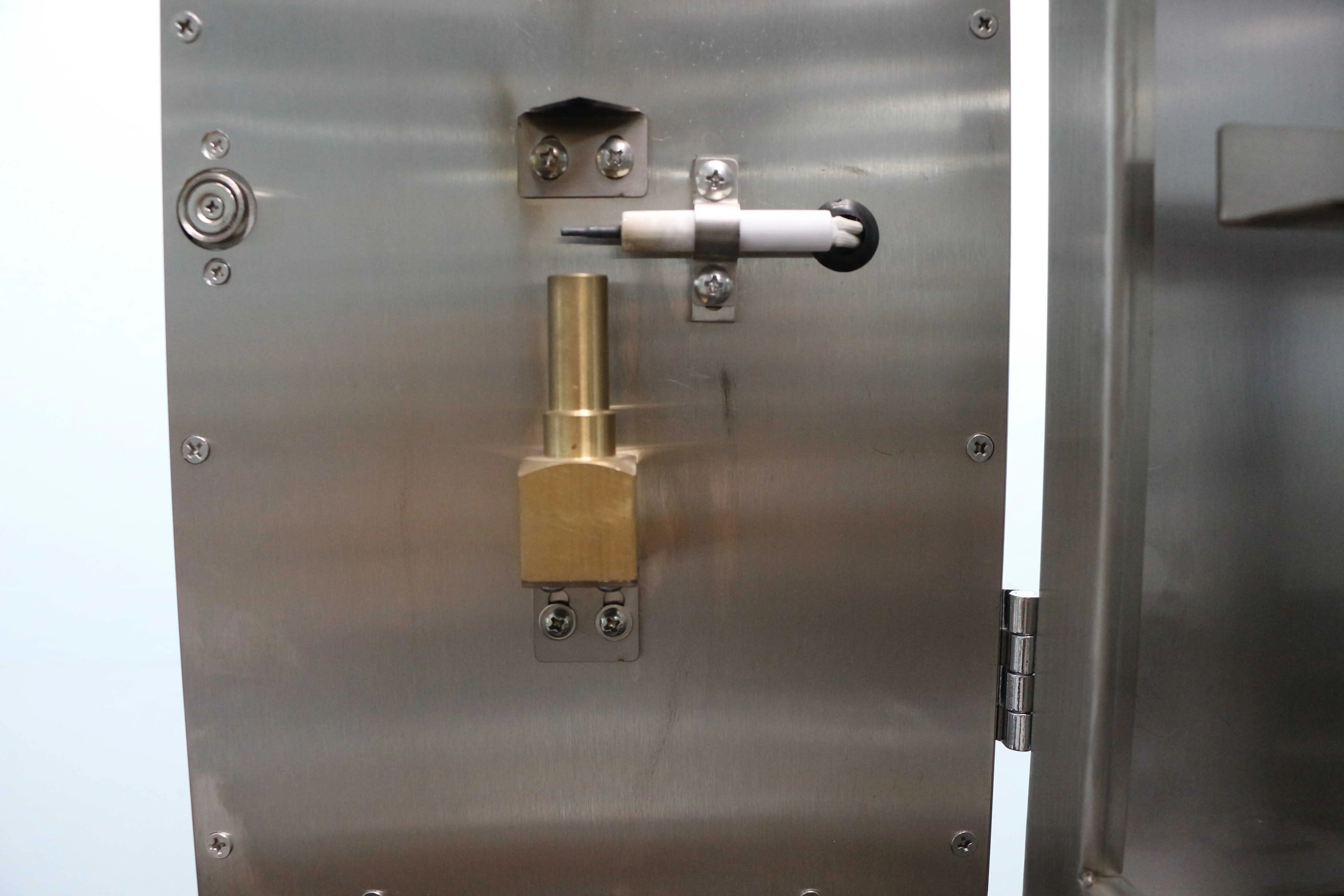

Ignition device

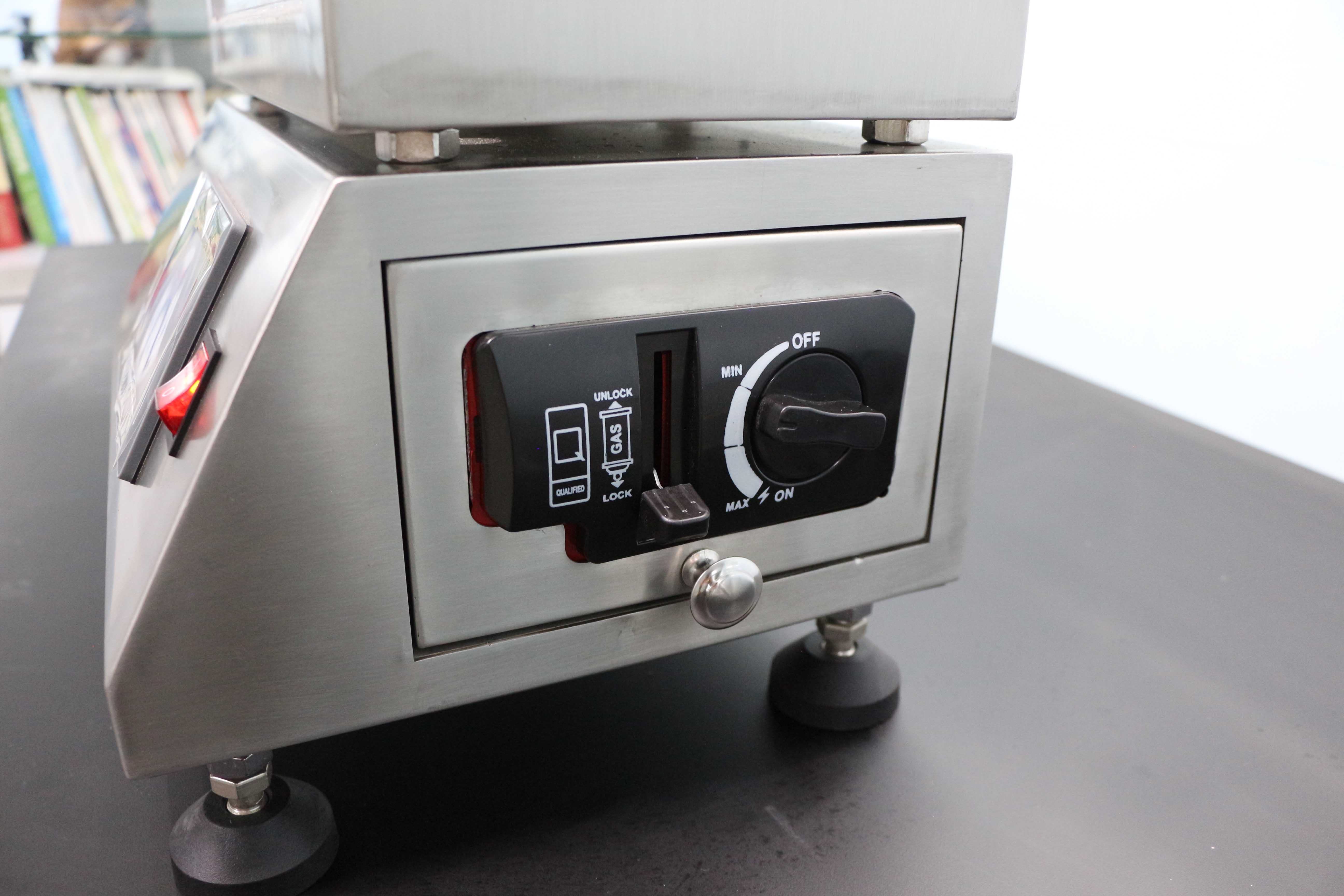

Gas

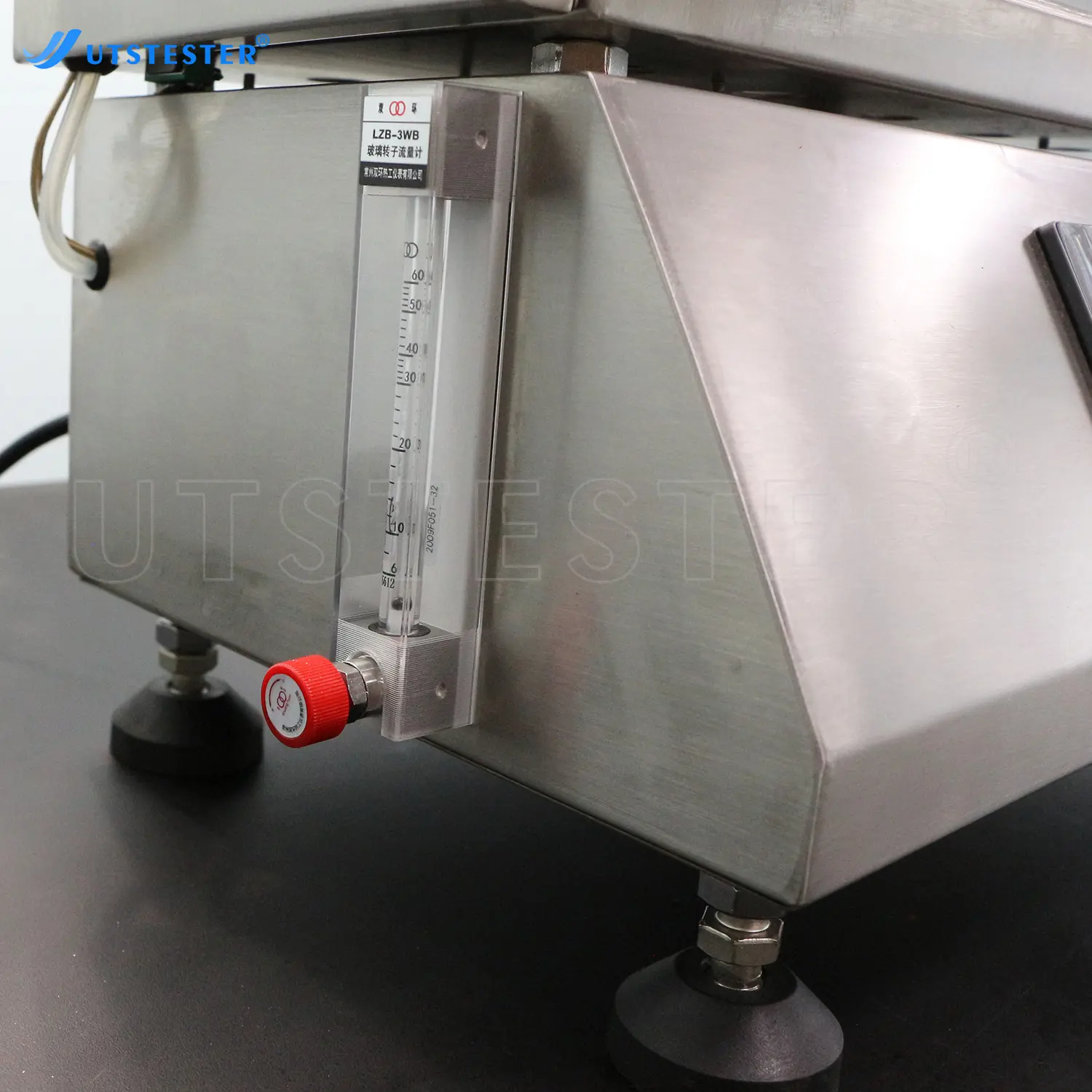

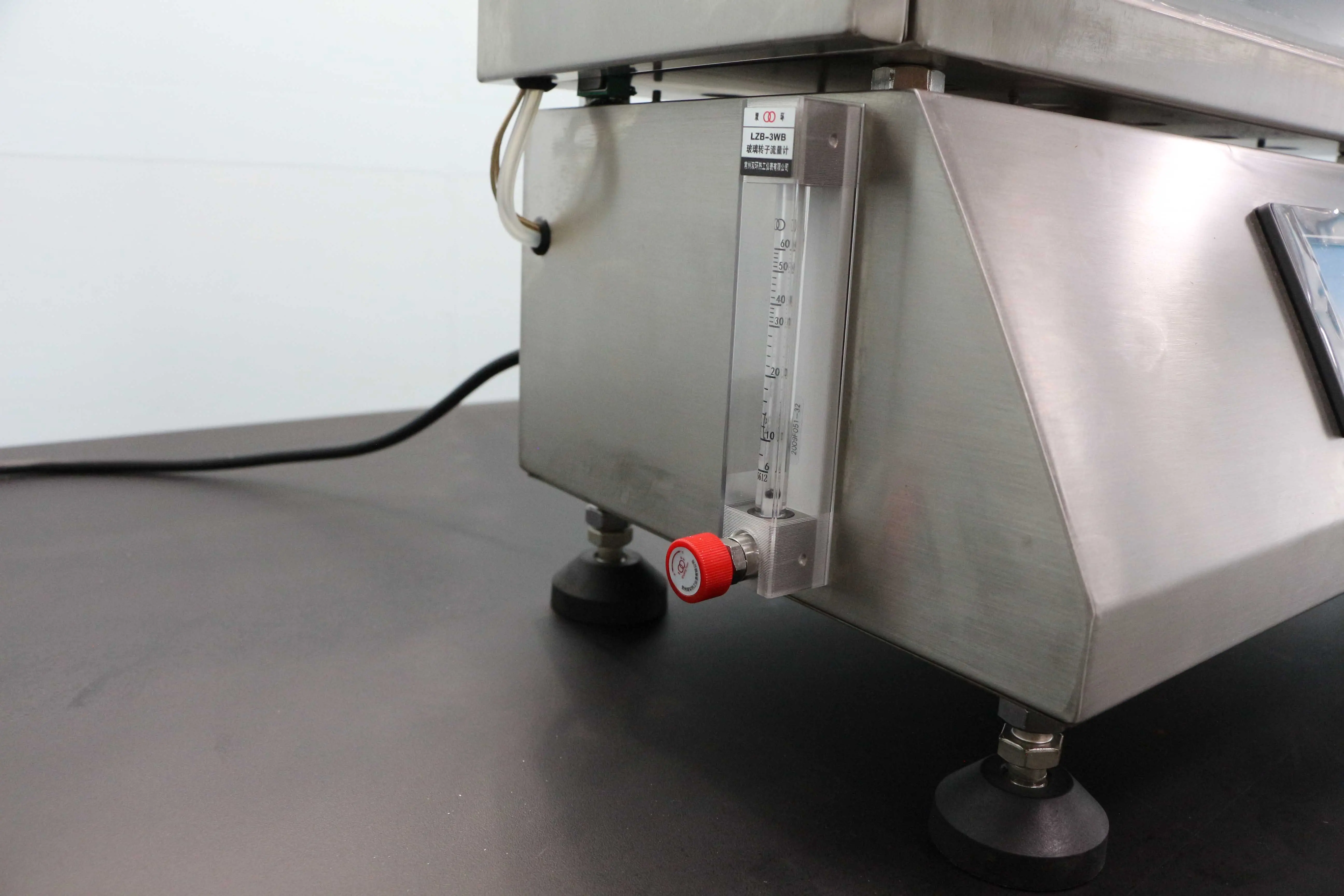

Flow meter

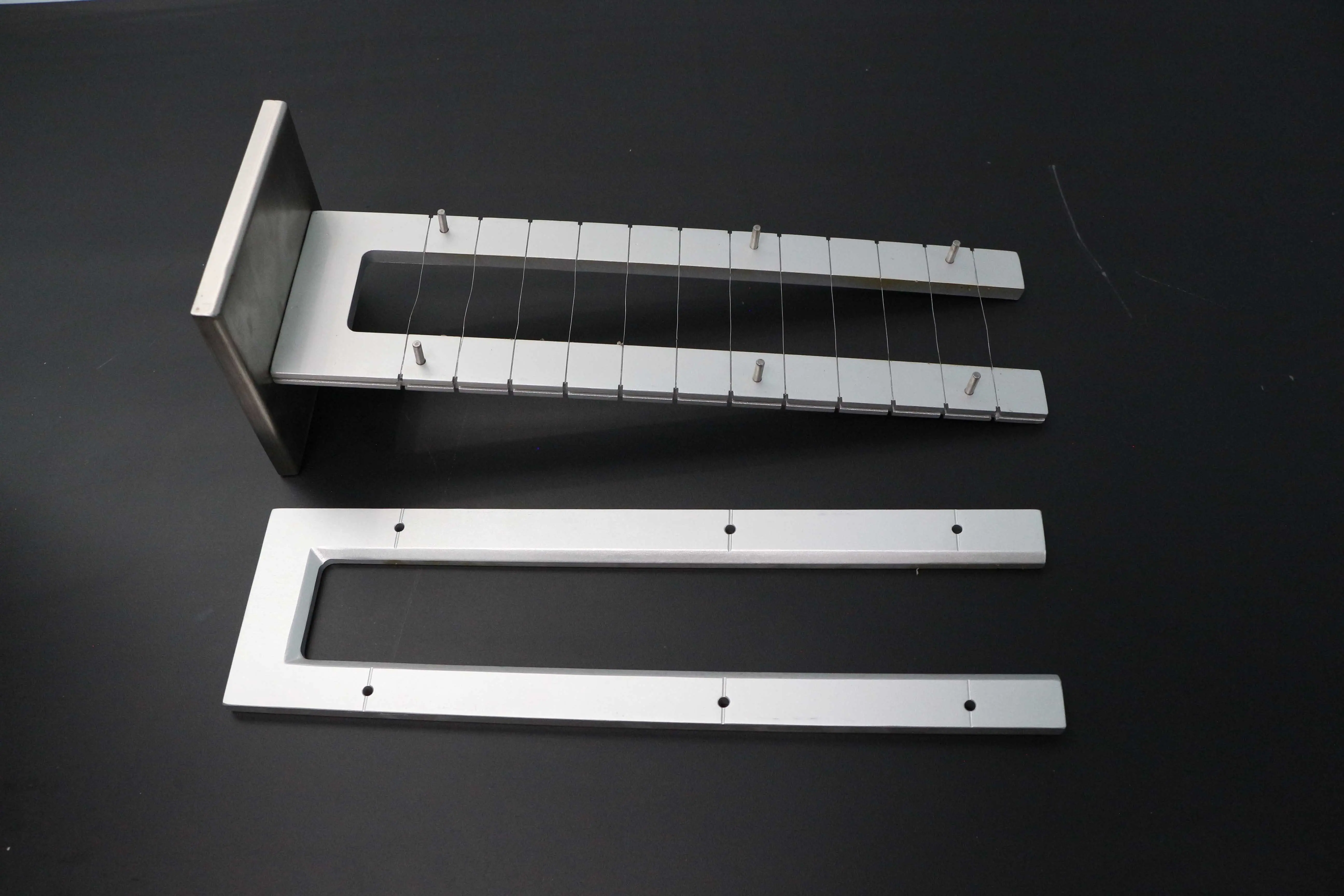

Sample clip plate
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
