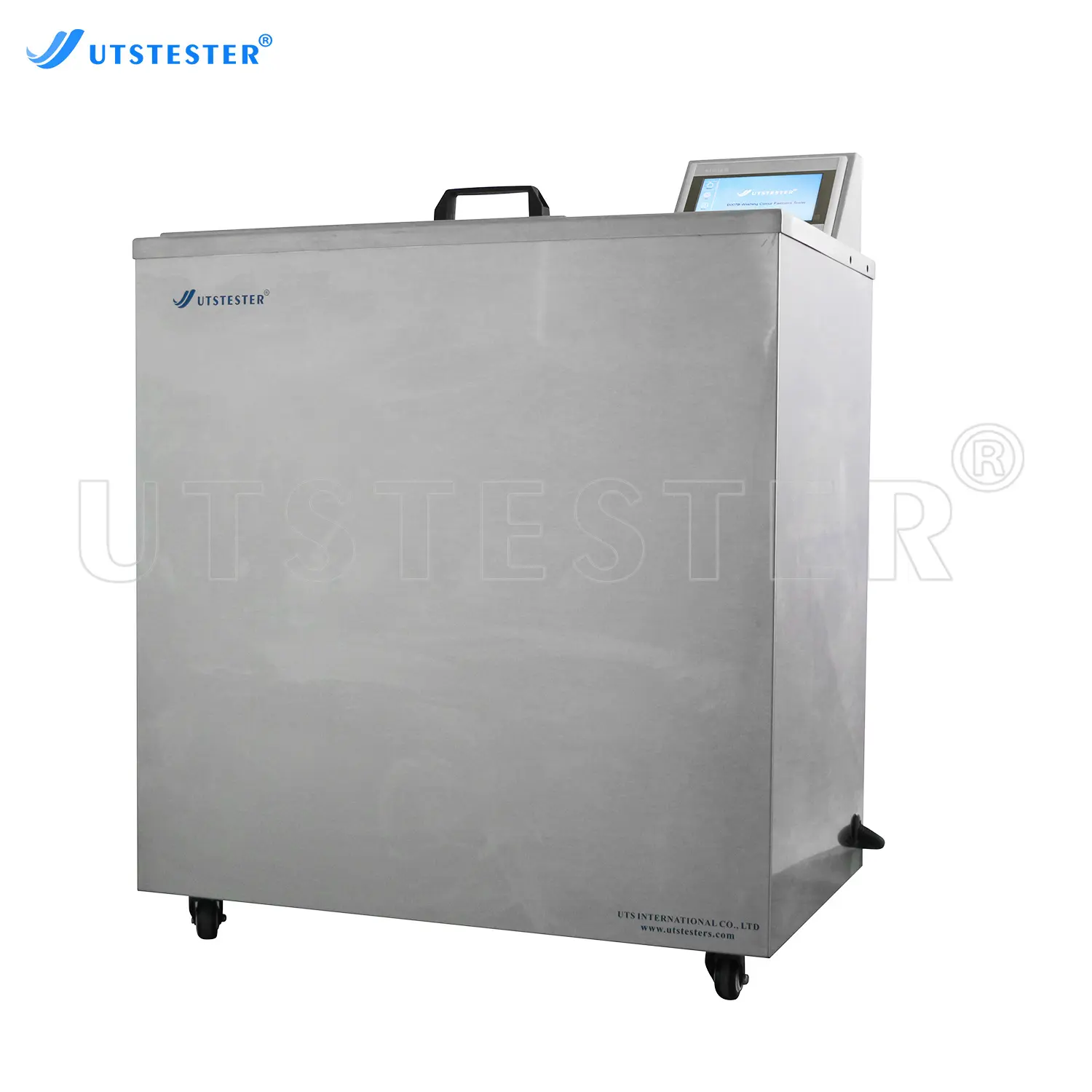

Textile-Machinery-Parts Washing Colorfastness Tester for Textiles D007E
Overview
The instrument is designed by drawing on the advantages of similar instruments at home and abroad. The display uses a color touch screen. The interface is simple to understand, easy to operate and sensitive to click.The fuselage uses 304 stainless steel, the appearance is simple and generous.The rotating structure adopts low noise reducer and synchronous belt, running smoothly and with low noise. PID algorithm is adopted for temperature control. The heating speed is fast and the control fluctuation is small.
Application
SILK
HESSIAN
GARMENT
FABRICS
Standards
ISO105-C01, C02, C03, C04, C05, C06, C08, C09, C10, D01, E03, E12
AATCC 3, 61, 62, 86, 132, 151, 162, 190; GB/T 5711, GB/T3921-1 ~ 5, GB/T 12490 ;
Key Parameters
|
Washing cups |
A(AATCC cup volume): 1200±50ml B(ISO cup volume): 550±50ml |
||||||
|
Washing cups
|
Model No. |
D007E-12B |
D007E-6AB |
D007E-20B |
D007E-10AB |
D007E-24B |
D007E-12AB |
|
Combination |
12B |
6A+6B |
20B |
10A+10B |
24B |
12A+12B |
|
|
Water inflow and drain design |
Automatically |
||||||
|
Display |
Touch screen display |
||||||
|
Rotation speed |
40±2 rpm |
||||||
|
Timing range |
1~999min |
||||||
|
Temperature range |
Room temp. to 99 centigrade degree |
||||||
|
Temperature fluctuation |
<±1 centigrade degree |
||||||
|
Heating methods |
Electrical heating tube |
||||||
|
Power supply |
3∮AC 380V 50/60HZ 5KW |
||||||
Product Details

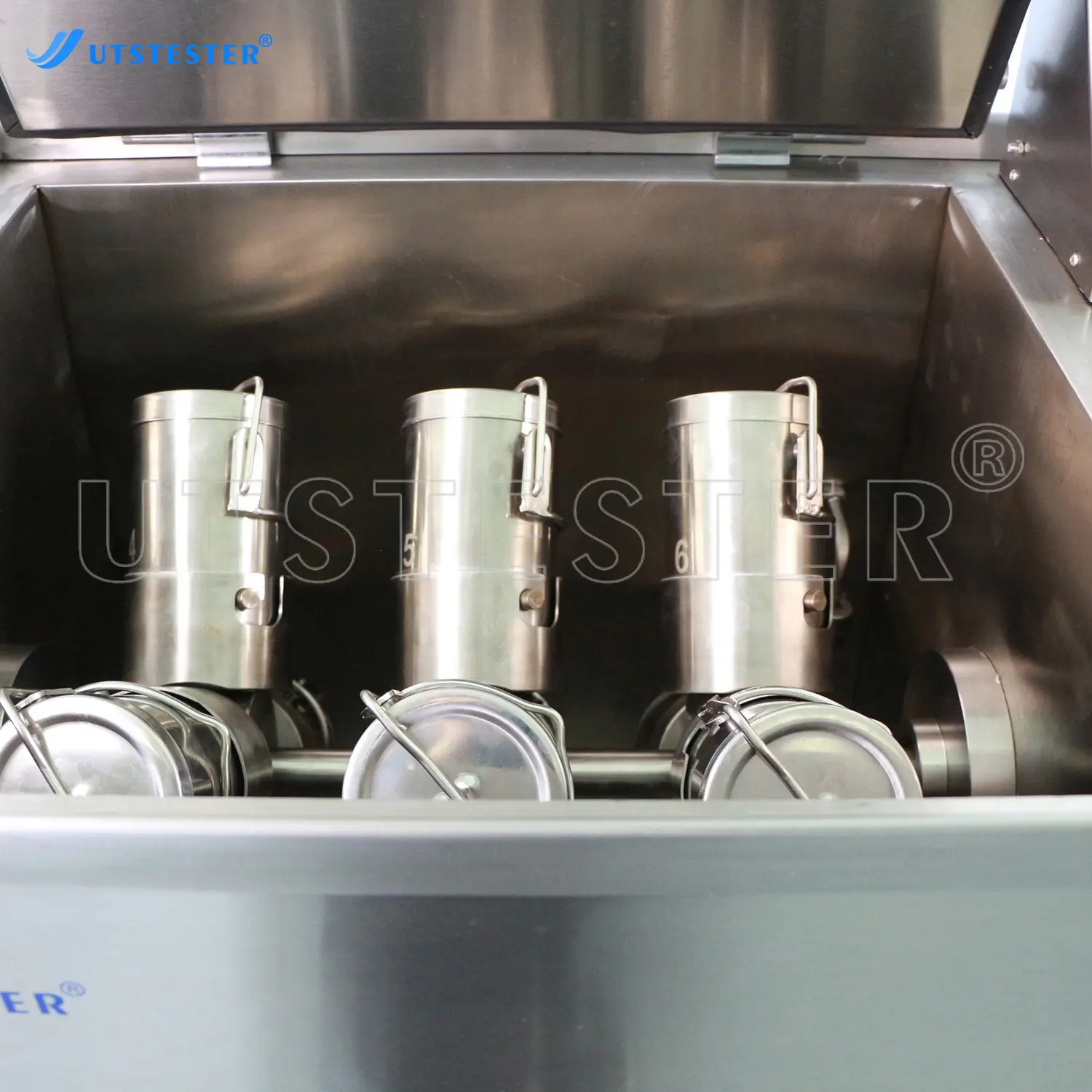

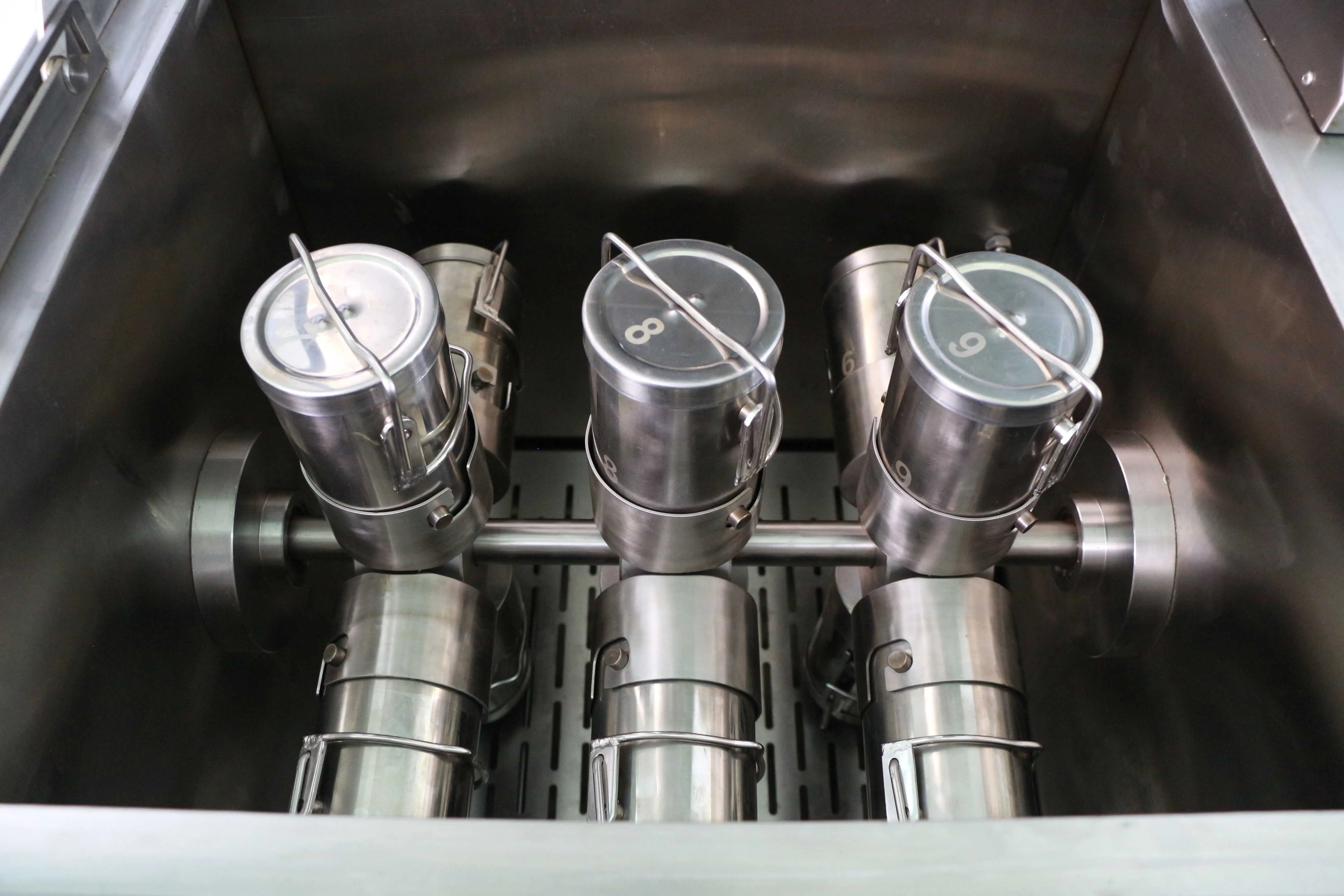

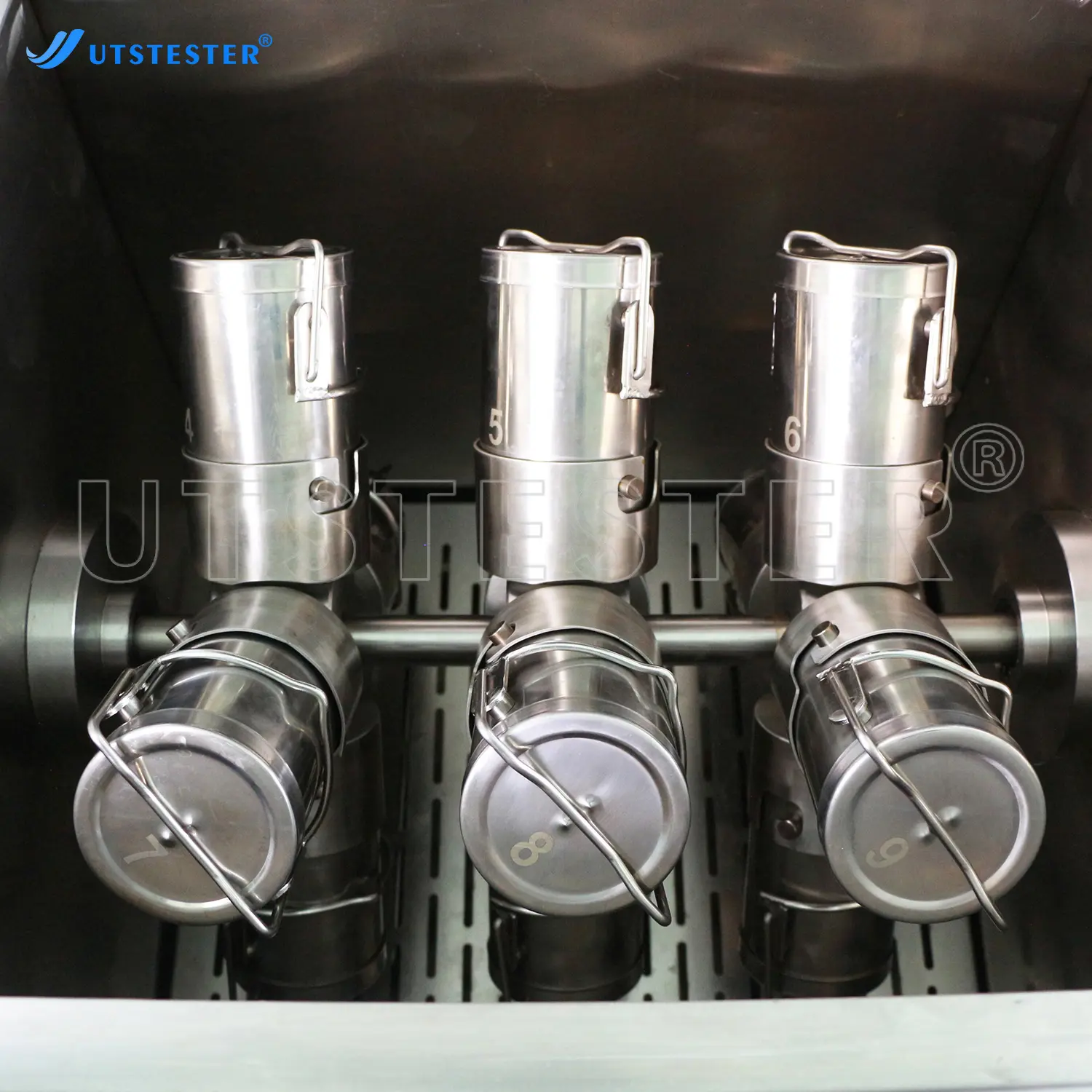

Test cups

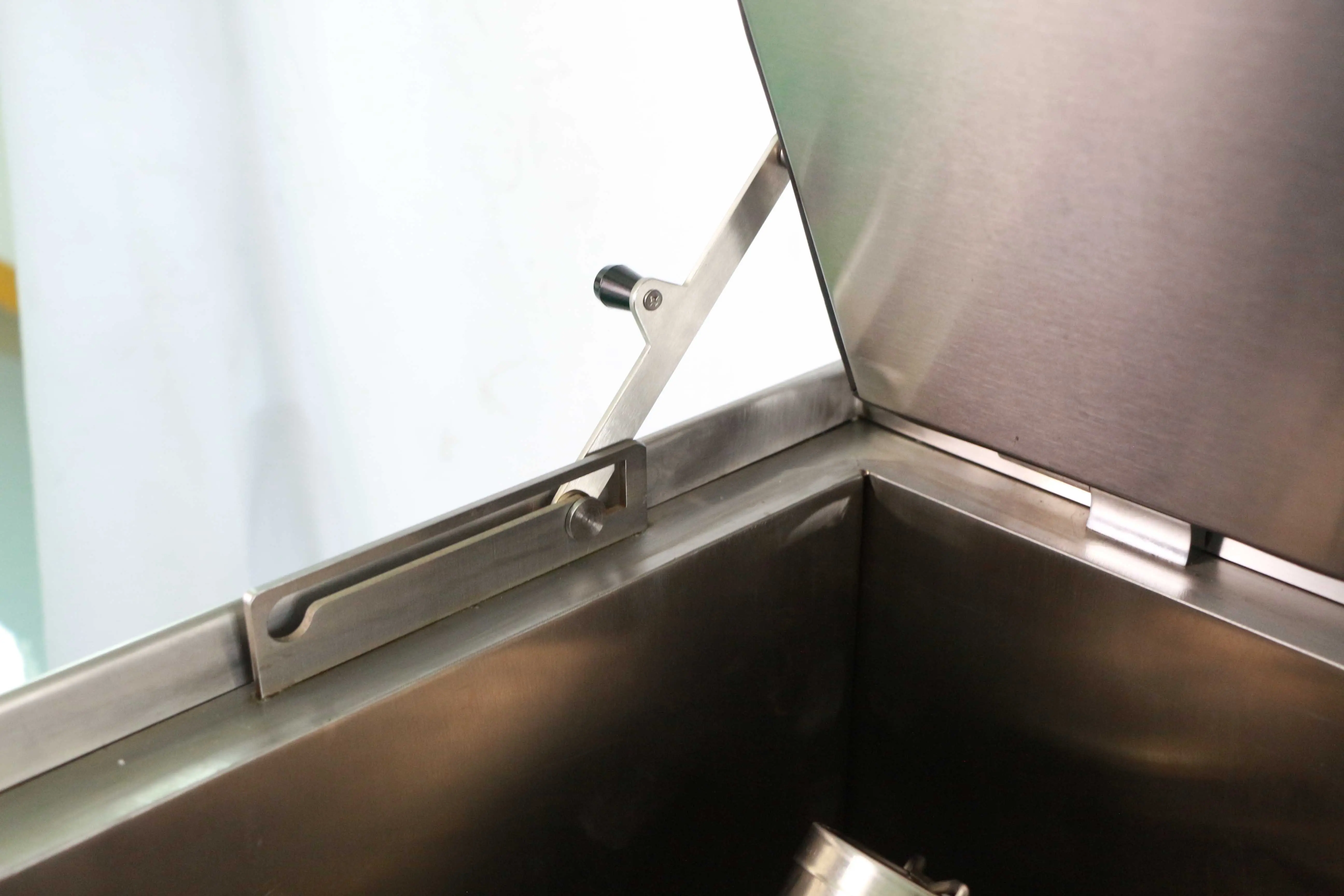

Bracket

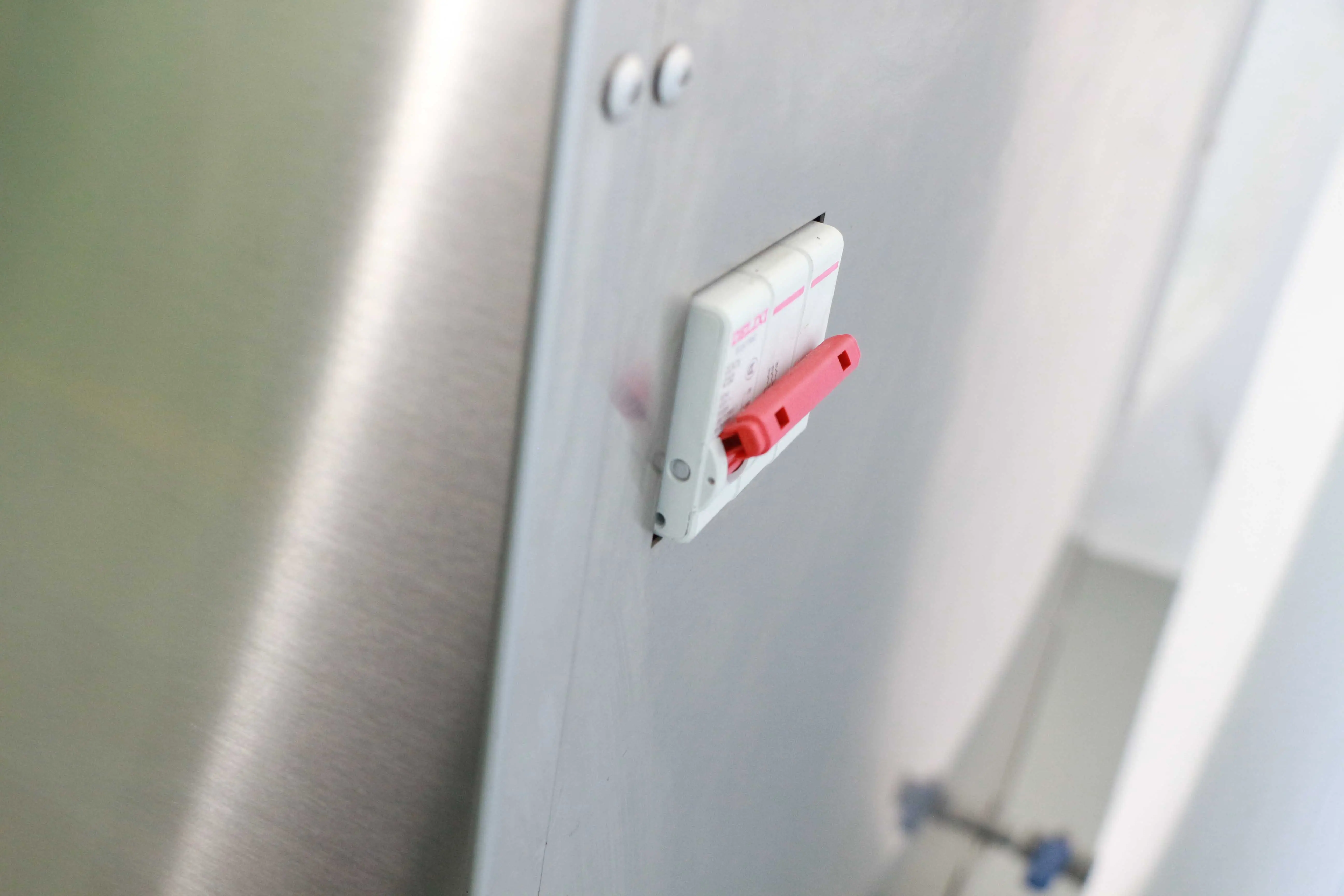

Power

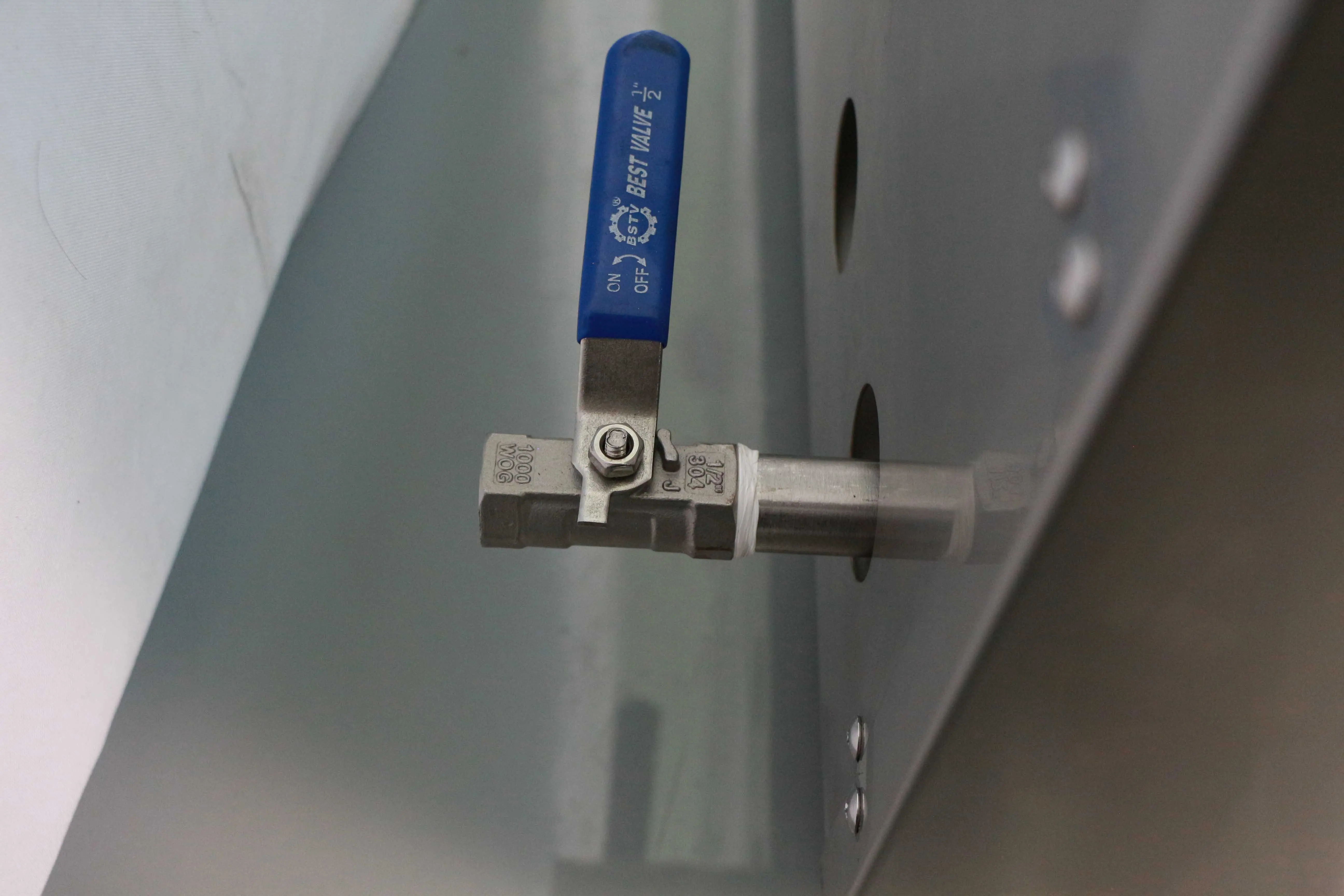

Drain valve

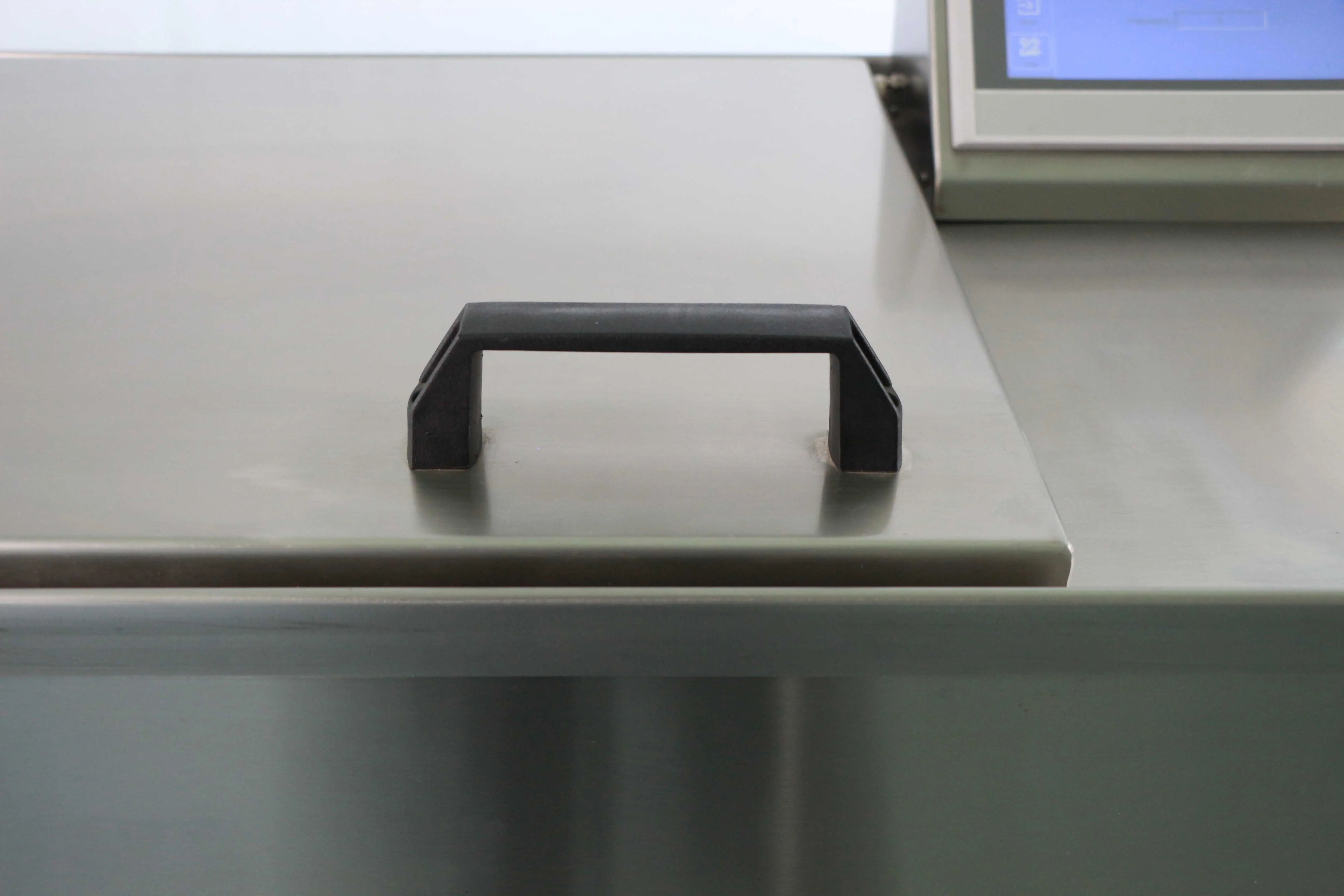

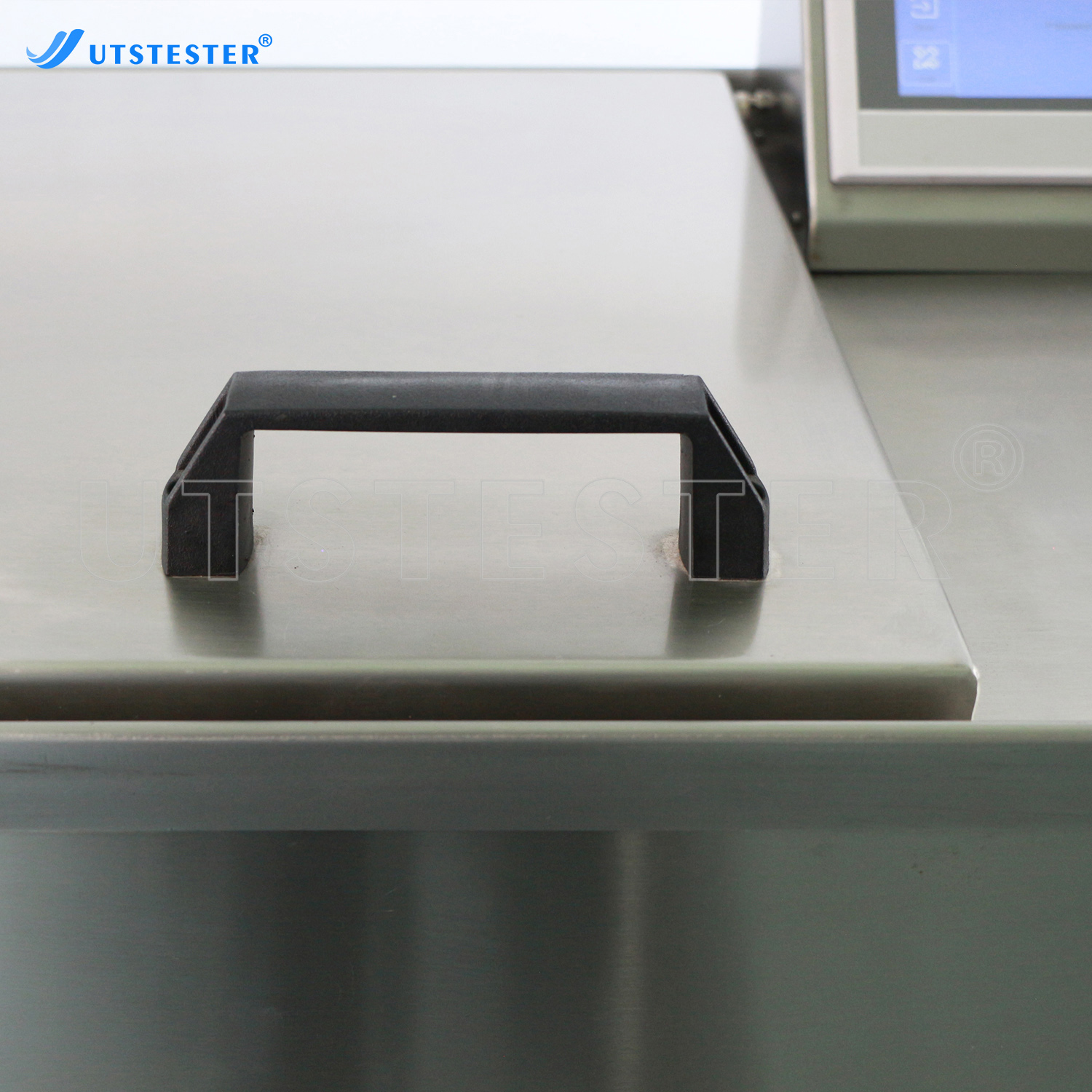

Water tank cover

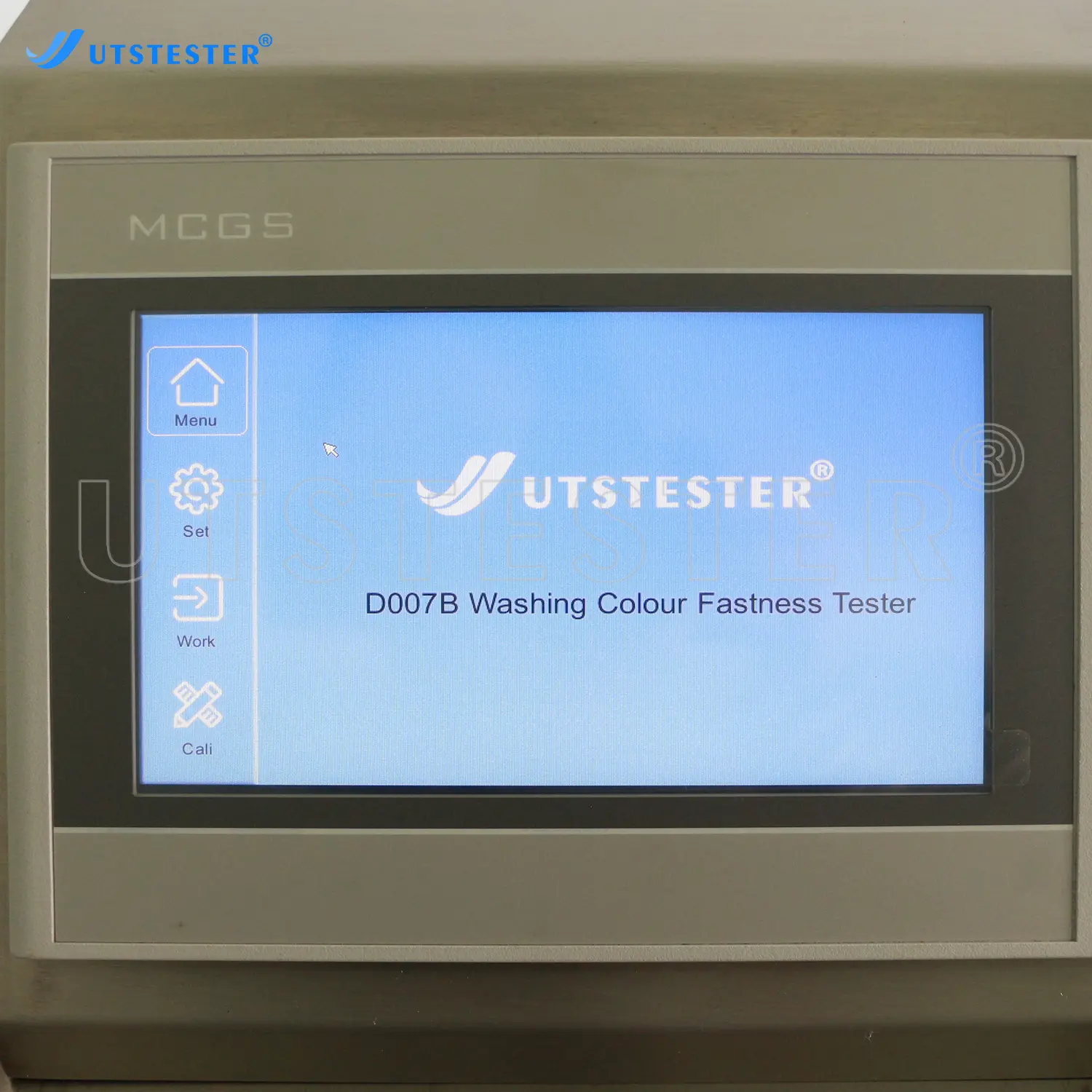

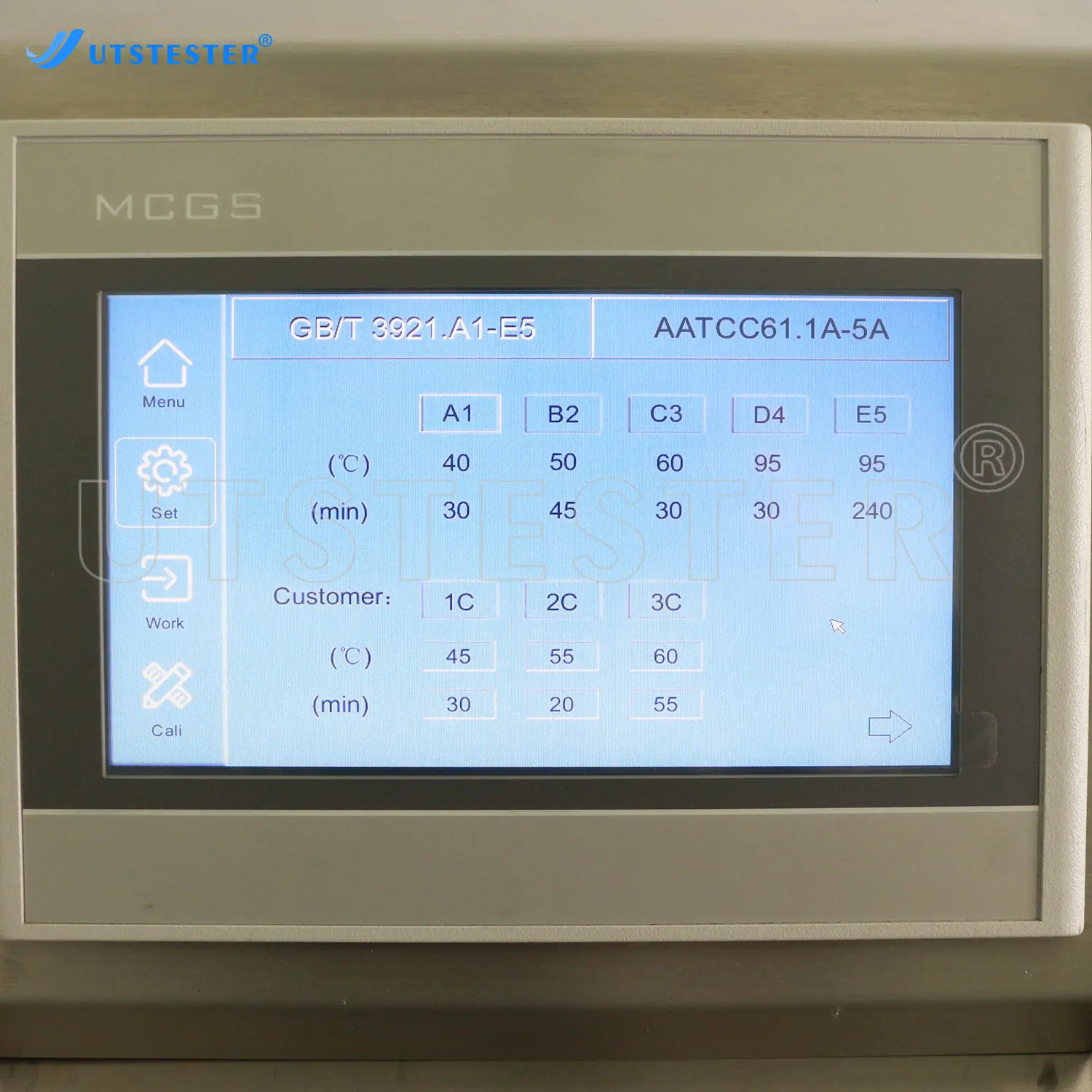

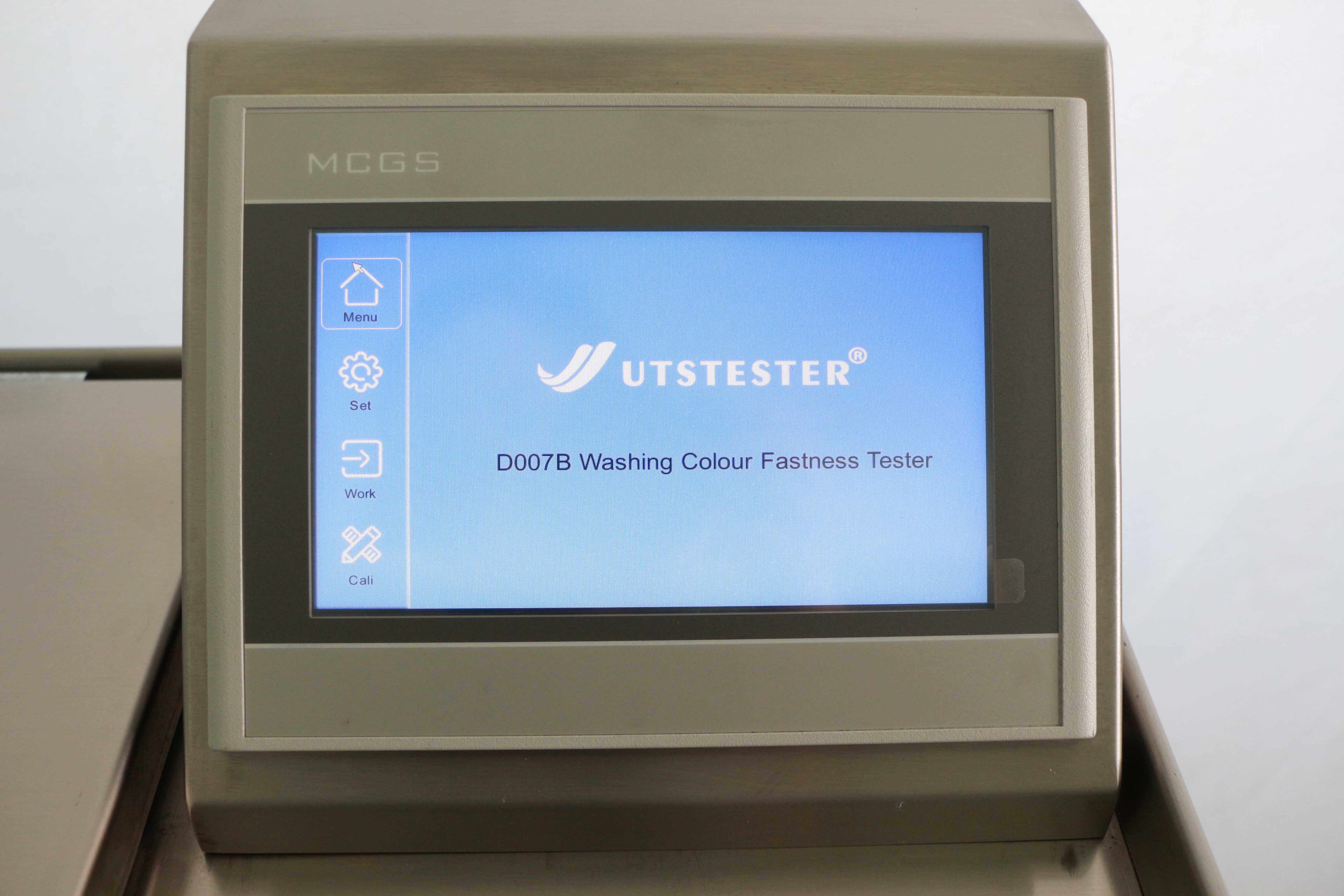

Display and operational screen
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
