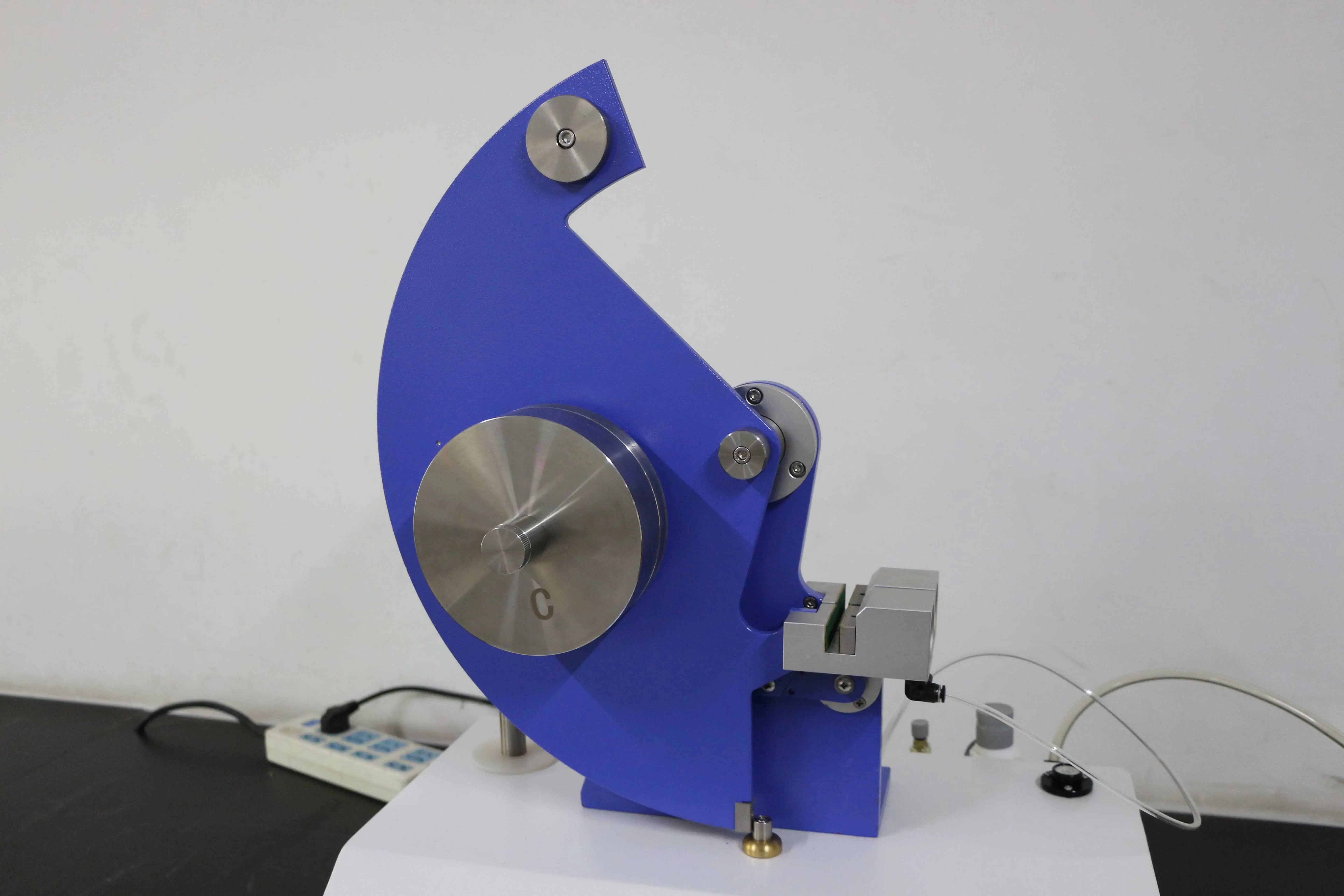

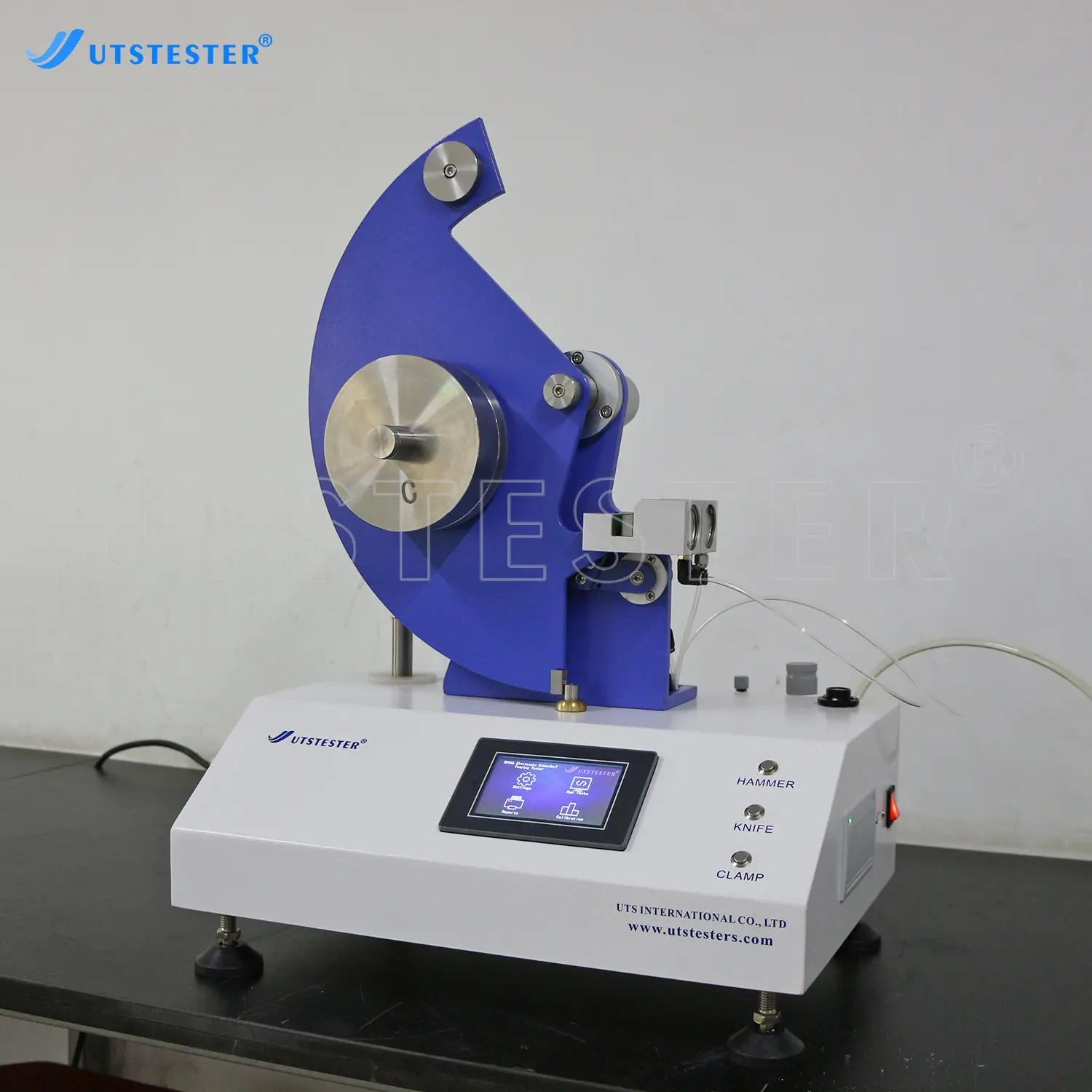

Textile Tearing Instrument Electronic Elmendorf Tearing Tester for Paper and Plastic Cloth M006A
Overview
To determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.
Three interchangeable pendulums ranging from 16,000 to 64,000 Millinewtons (mN) can be selected separately for multiple test method compliance.
Application
textile
cotton
thick paper
plastic cloth
Standards
|
Textile |
ASTM D1424, ISO13937-1, ISO4674-2, ISO9290, GB/T3917.1, DIN 53862, M&S P29, NF G07-149 |
|
Paper |
ASTM D689, ISO 1974, TAPPI T414, BS 4468, CSA D9, GB/T455, APPITA P400, DIN 53128, EN 21974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, UNI 644 |
|
Plastic |
ASTM D1922, JIS K7128-2, GB/T11999, ISO6383-2 |
|
Non-woven |
ASTM D5734 |
Key Parameters
|
Model |
M006A |
|
Range of Tearing Force |
A hammer: 0~16N B hammer: 0~32N C hammer: 0~64N |
|
Test Accuracy |
≤±0.2％F·S |
|
Test Units |
N, cN, gf, lbf |
|
Sample size |
100 x 63 mm |
|
Tear length |
43mm |
|
Auto Incision Length |
20±0.2mm |
|
Clamping mouth distance |
2.8mm±0.3mm |
|
Sample clamping methods |
Pneumatic (air supply pressure 0.6-0.8MPa) |
|
Power supply |
AC 220V 50/60HZ 100W |
|
Dimensions |
560 x 420 x 480mm(L x W x H) |
|
Weight |
40kg |
Product Details
knife disc

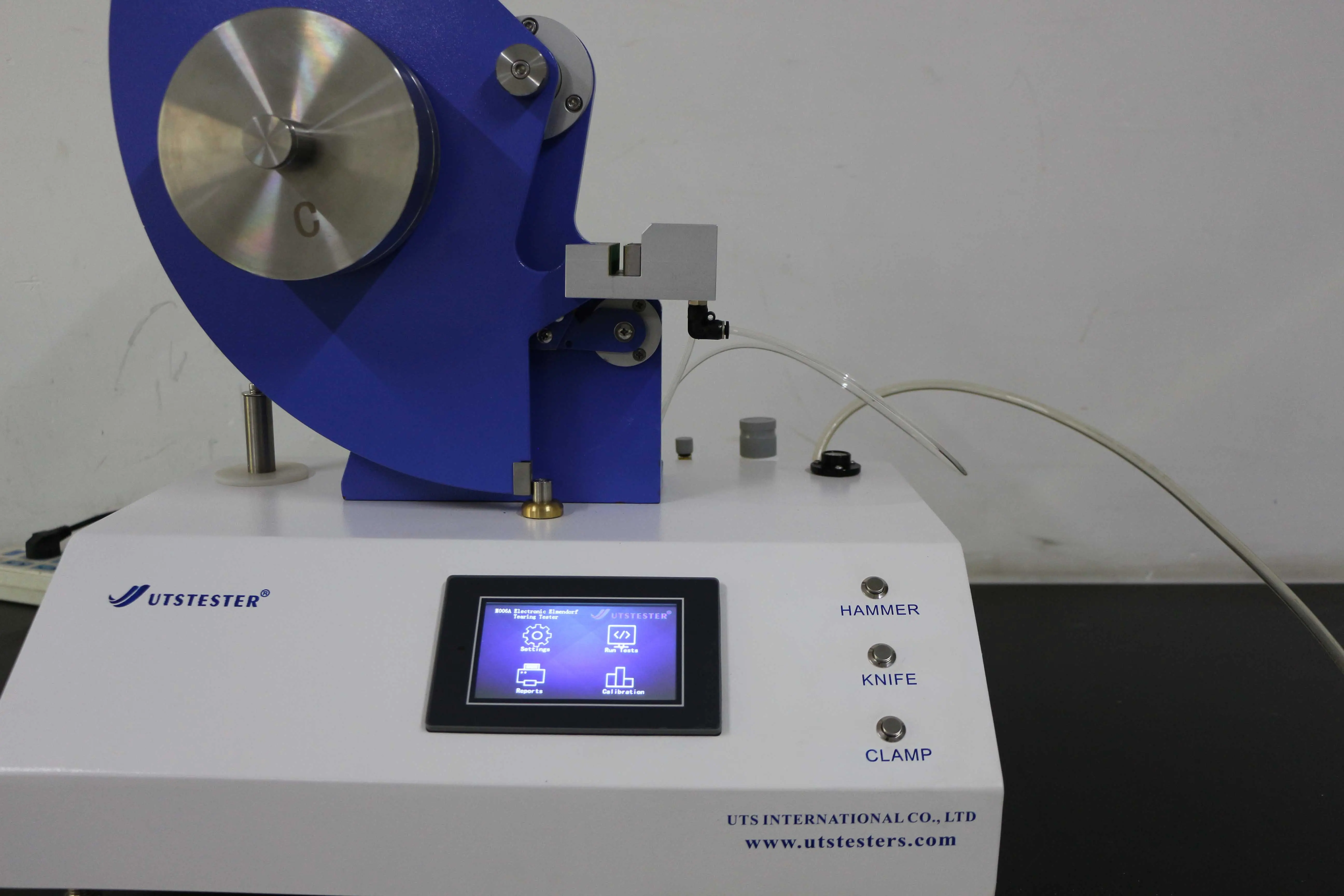

color touch screen

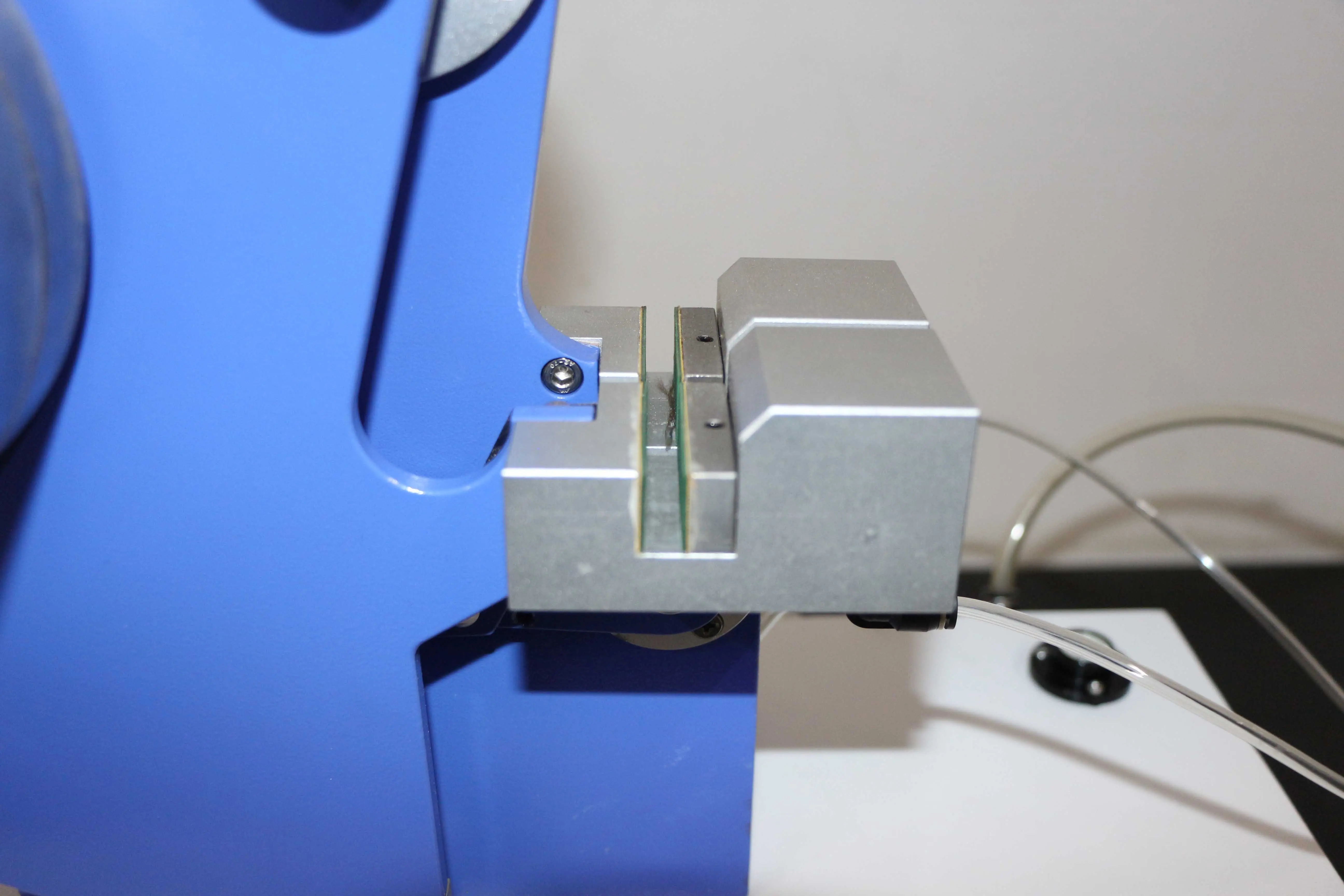

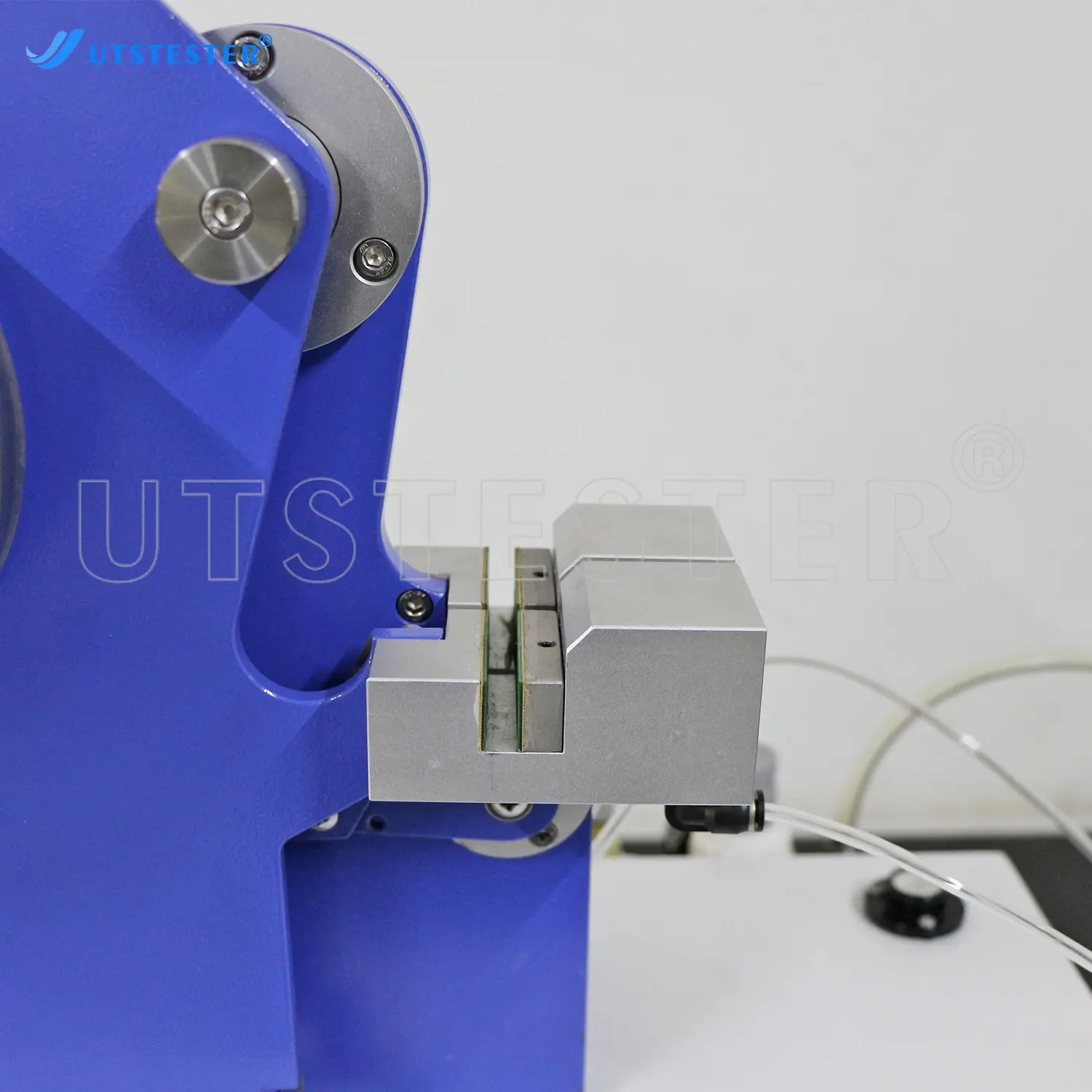

sample fixture

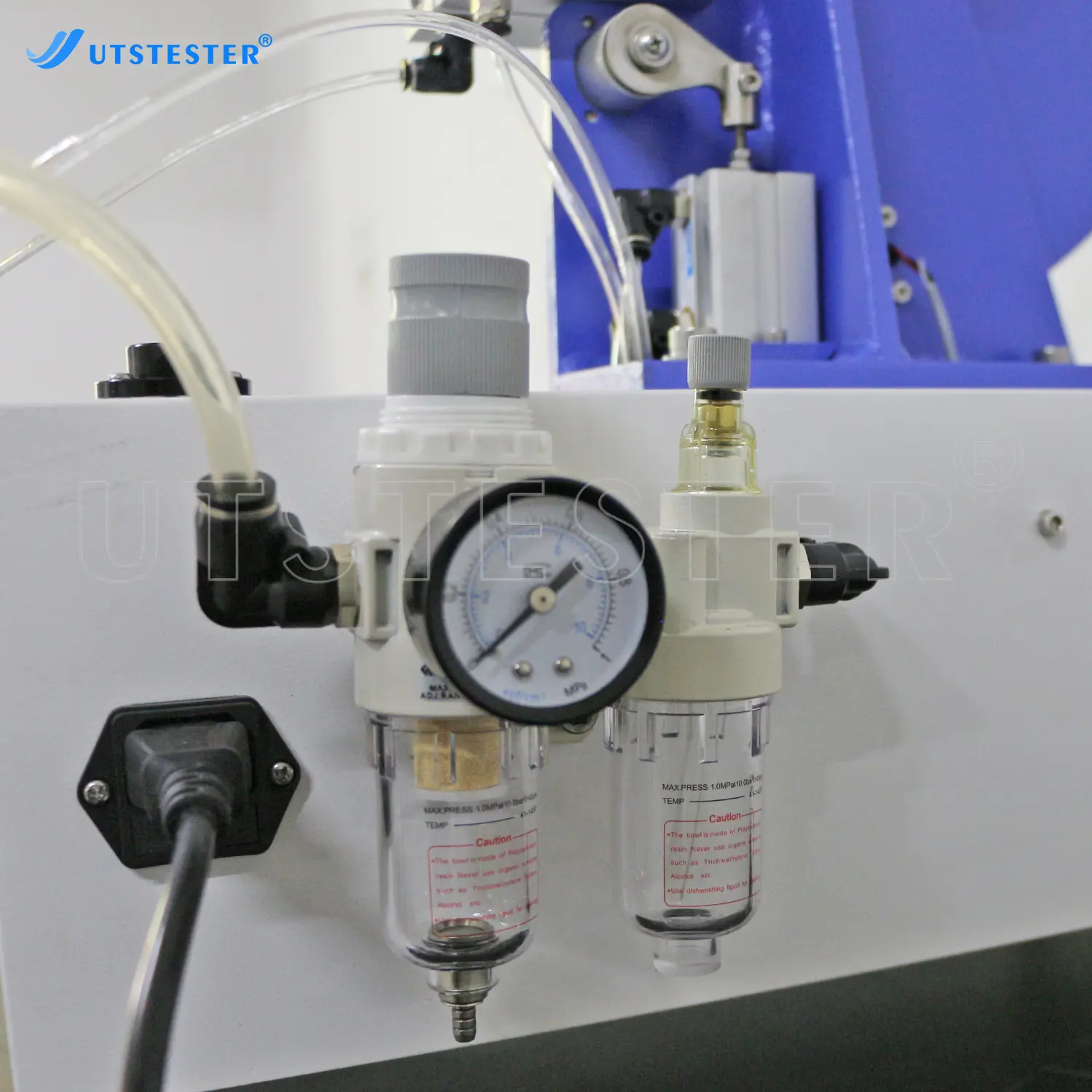

pneumatic valve

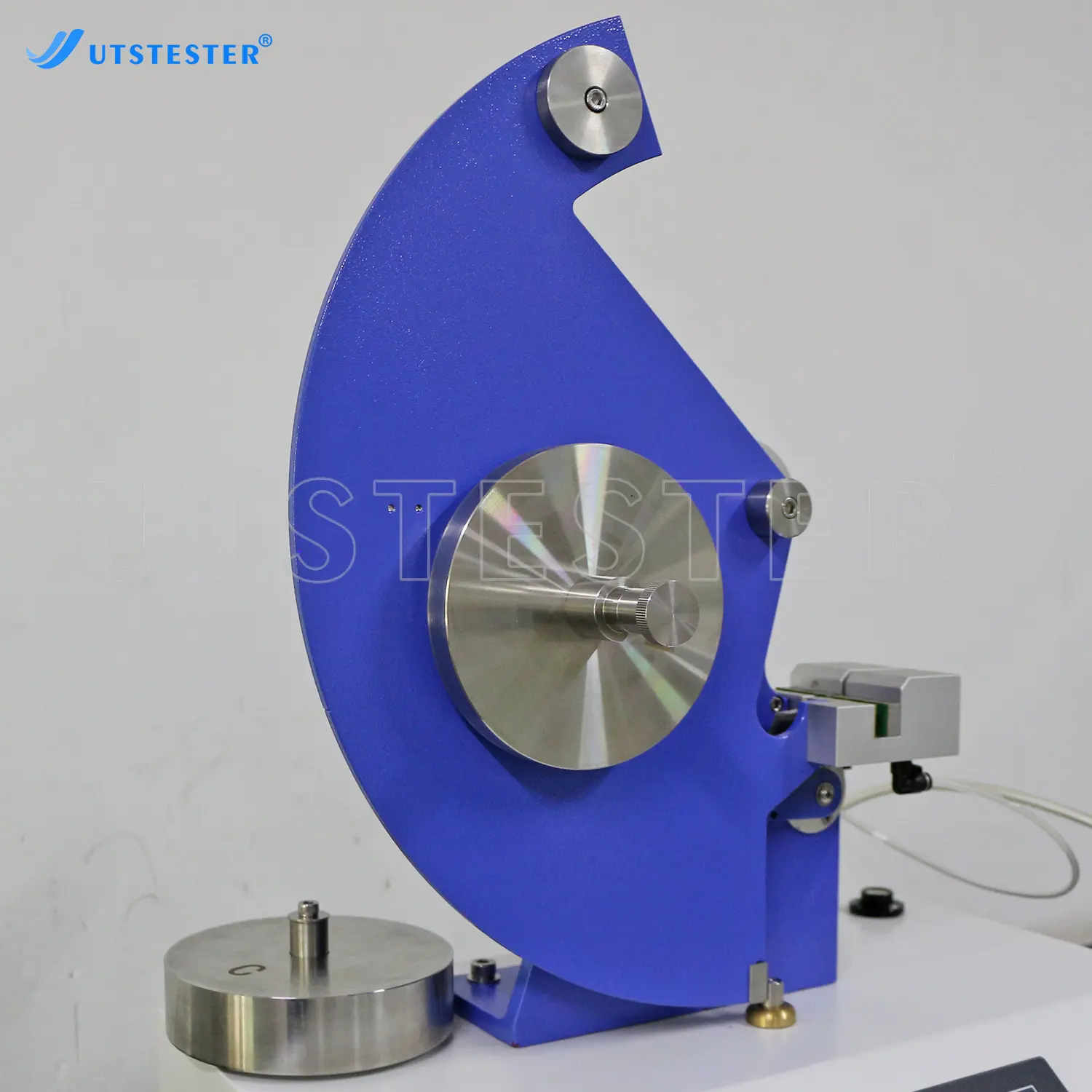

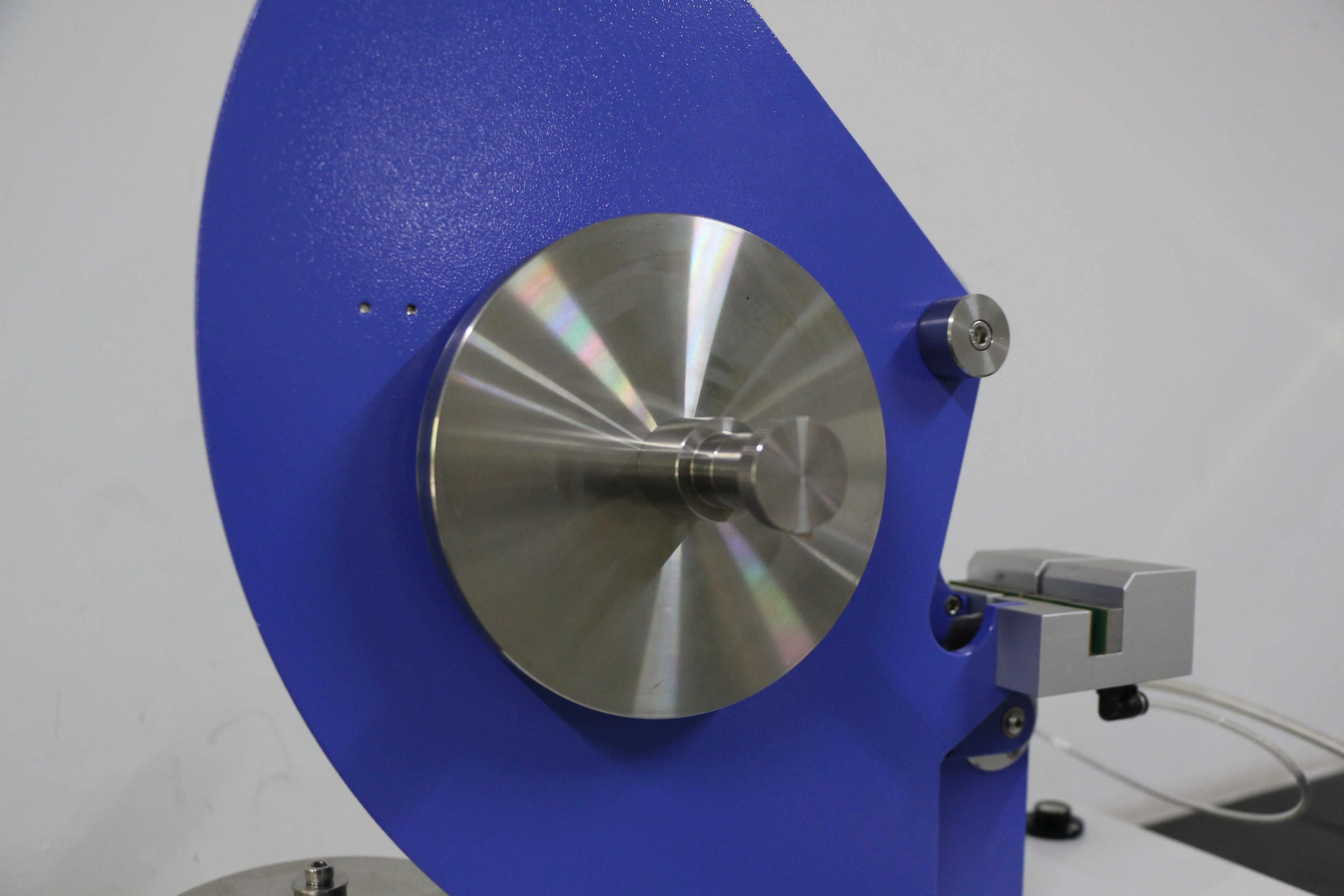

weight

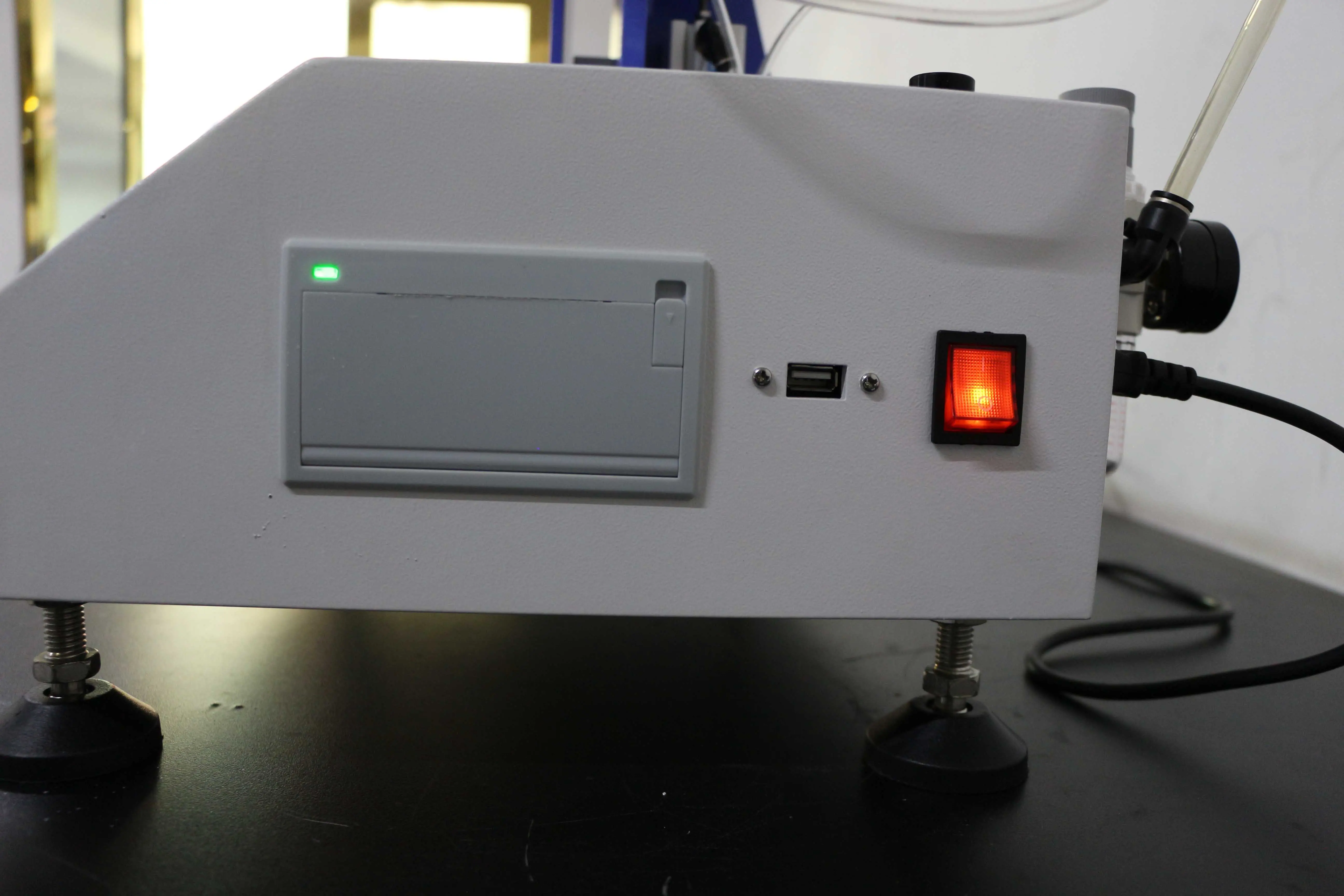

micro printer
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
