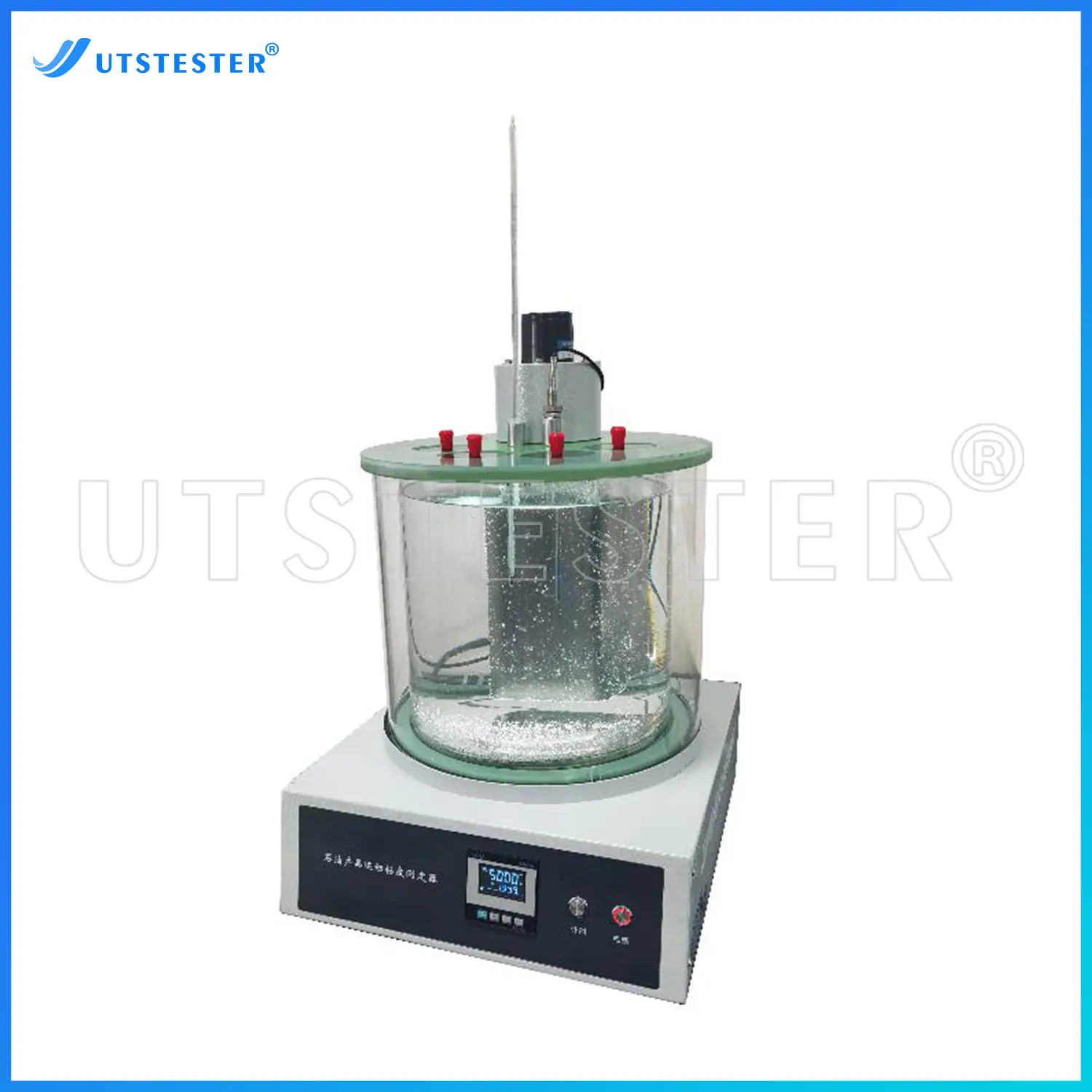

Textile Testing Equipment Kinematic Viscosity Tester M057C
Overview
This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity.
Application
Greases
Oil paints
Plastics
Pharmaceutics
Adhesives
Washing solvents
Standards
standards
Key Parameters
|
Model |
M057C |
|
Power supply |
AC(220±10%)V，50Hz±5% |
|
Maximum power consumption |
1800W |
|
Stirring motor |
1200RPM |
|
Temperature control range |
Ambient to 100℃ |
|
Temperature control accuracy |
±0.1℃ |
|
Timing range |
0s～9999.9s |
|
Constant temperature bath |
Constant temperature bath |
|
Working environment |
Ambient temperature: 15℃～35℃ Relative humidity: ≤85％ |
|
Temperature sensor |
RTD, Pt100 |
|
Capillary viscometer tubes (Pinkevitch viscometer) |
6 pieces in total, inner diameter for each： 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm |
|
Dimension |
530mm×400mm×670mm |
|
Net weight |
20.5kg |
|
Note: This instrument is equipped with 6 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers Cannon-Fenske Opaque capillaries according to customer's requirements. |
|
Product Details

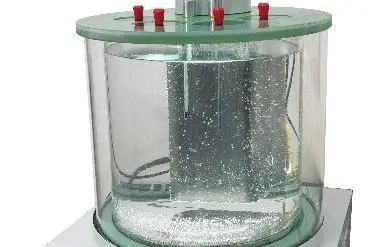

Sample testing area

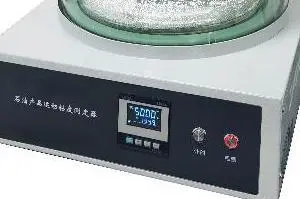

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
