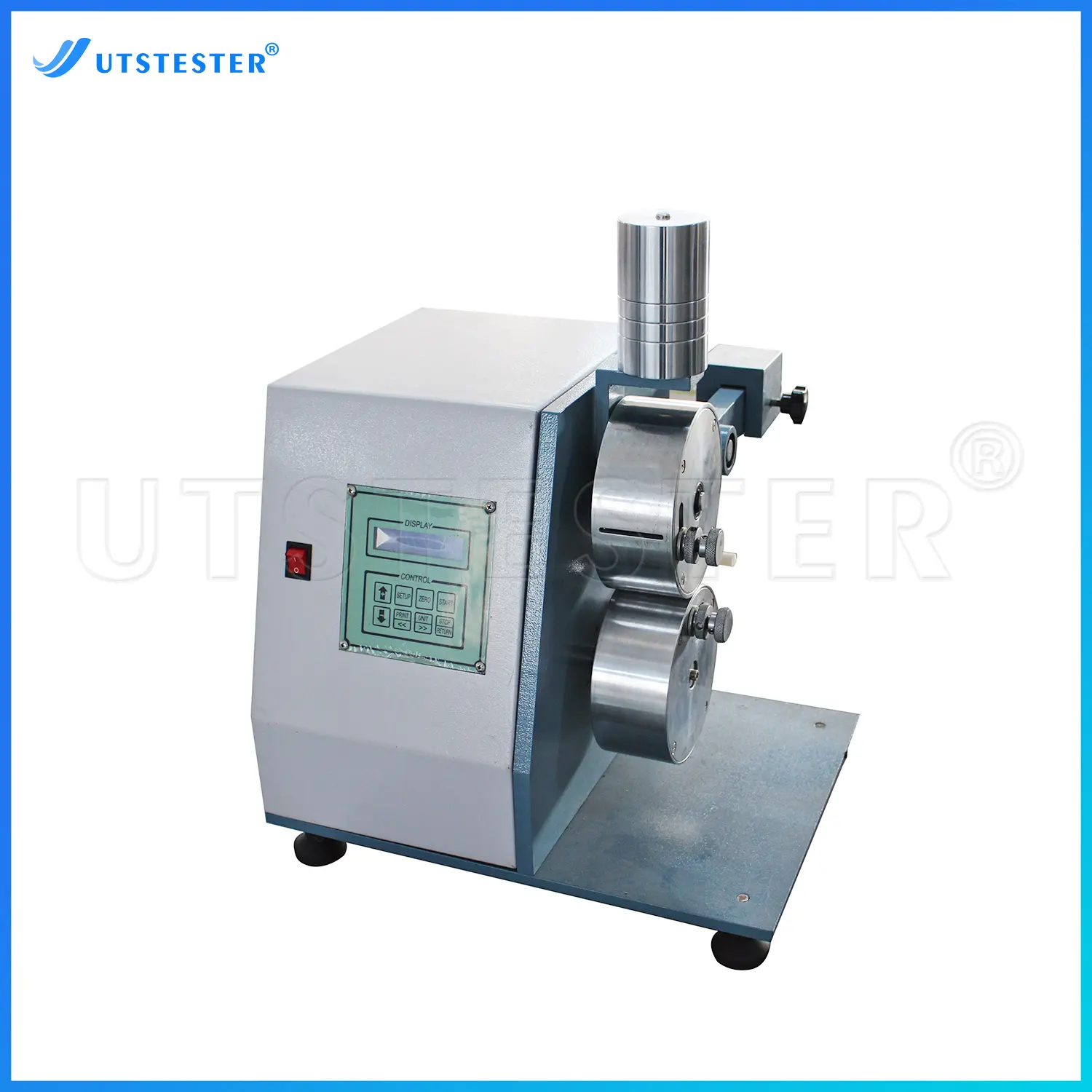

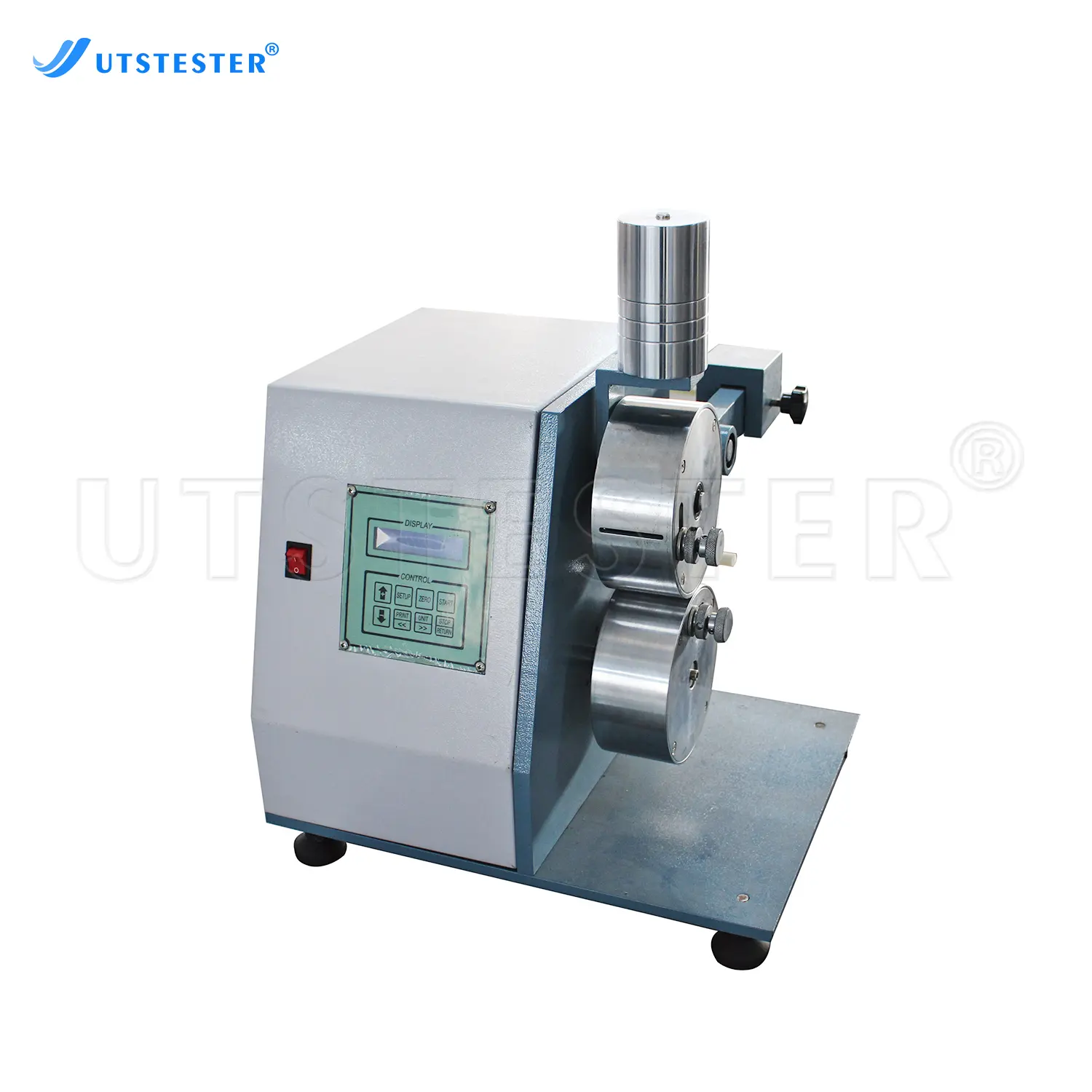

Textile Testing Equipment Manufacturers Magic Tape Fatigue Tester H005
Overview
This Velcro fatigue tester is designed to do opening and closing test between both layers of various hook & loop fastener(magic tape). With memory function. Available to adjust balance adjustable block and loads to achieve adjusting pressure demands between samples.
Application
shoes
shoes
shoes
Standards
DIN-3415 SATRA TM123 ISO 22776 GB/T 3903.20 GB/T 3903.21 GB/T 23315-2009,Astm d5169
Key Parameters
|
Model |
H005 |
|
Main driving wheel rotating speed |
60±5 rpm |
|
Switch time for rotating direction |
30±5 sec |
|
Sample test load |
1±0.1N/mm |
|
Counter |
PLC Touch screen, 1- 9, 999 times, adjustable |
|
Power supply |
1∮AC 220V 50/60HZ |
|
Dimensions( L x W x H ) |
53 cm × 35 cm × 67 cm |
|
Weight |
55kg |
Product Details

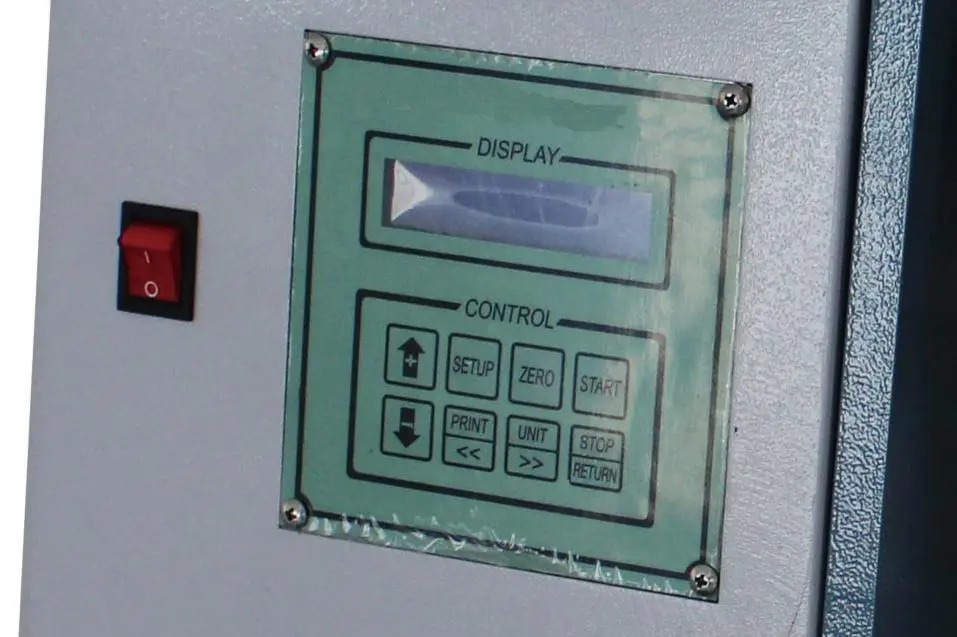

Control panel

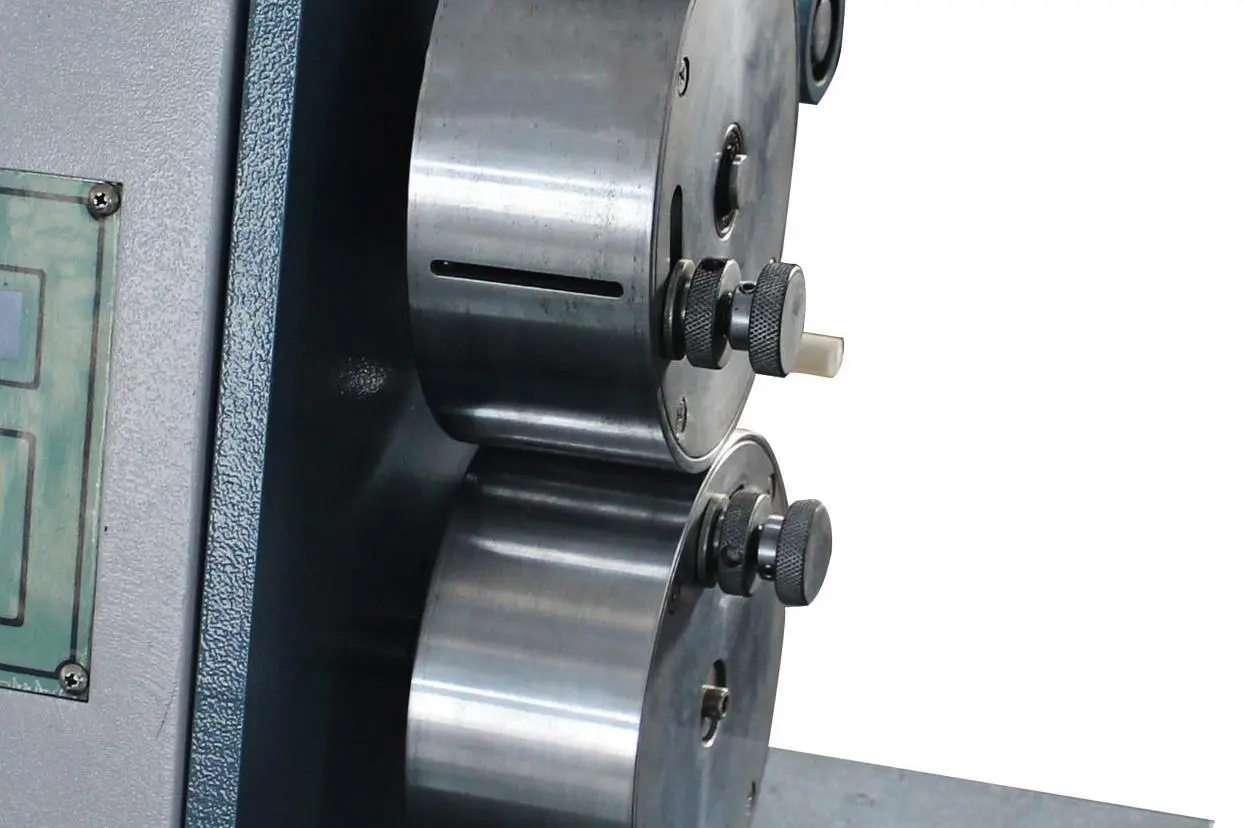

Sample test load
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
