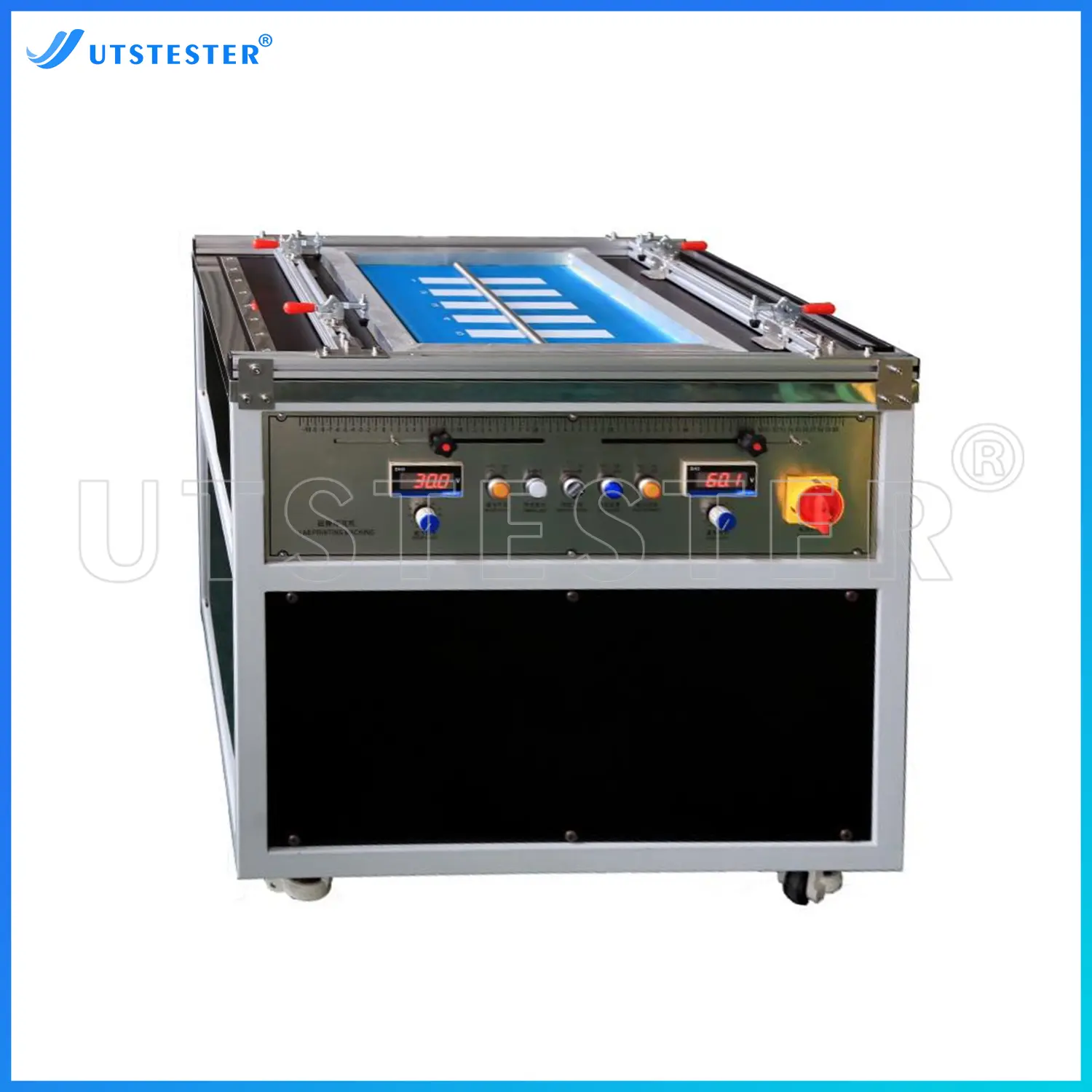

Textile Testing Equipment Manufacturers Magnetic Bar Sample Printing Machine D016
Overview
The magnetic bar type sample printing machine replaces the manual scraper scraping experiment with a magnetic bar pressurized squeegee. The pressure and running speed of the magnetic bar can be adjusted, which avoids the human error of traditional manual scraping and improves the matching degree of the sample and printed products. This machine has uniform magnetic force, high proofing accuracy, stable operation and good reproducibility. It is suitable for laboratory dye inspection, auxiliary experiment, single-color scraping sample or SO sample scraping process experiment.
Standard
Standard
Application
Fabrics
Garment
Key Parameters
|
Model |
D016-1 |
D016-2 |
|
Maximum Effective printing range |
500mm×500mm |
1000mm x 1000mm |
|
Magnetic rod stroke |
Adjustable: 100mm-500mm |
|
|
Magnet length |
520mm optional |
|
|
Printing table |
Professional guide belt |
|
|
Magnetic force range |
Four sections optional |
|
|
Running speed |
Steplessly adjustable: 0-100 |
|
|
Power |
1Phase AC 220V/50Hz/60w |
|
|
Dimensions |
950W×830D×820H (mm) |
|
|
Weight |
140kg |
|
Product Details

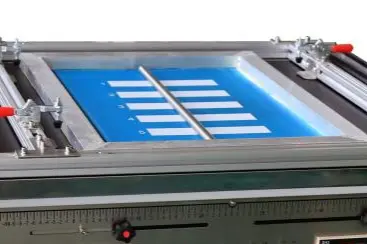

Sample Testing Area

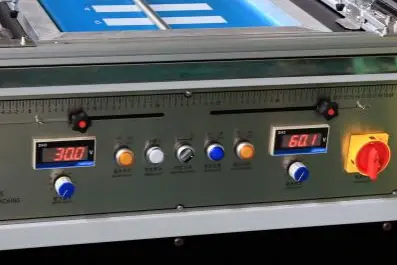

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
