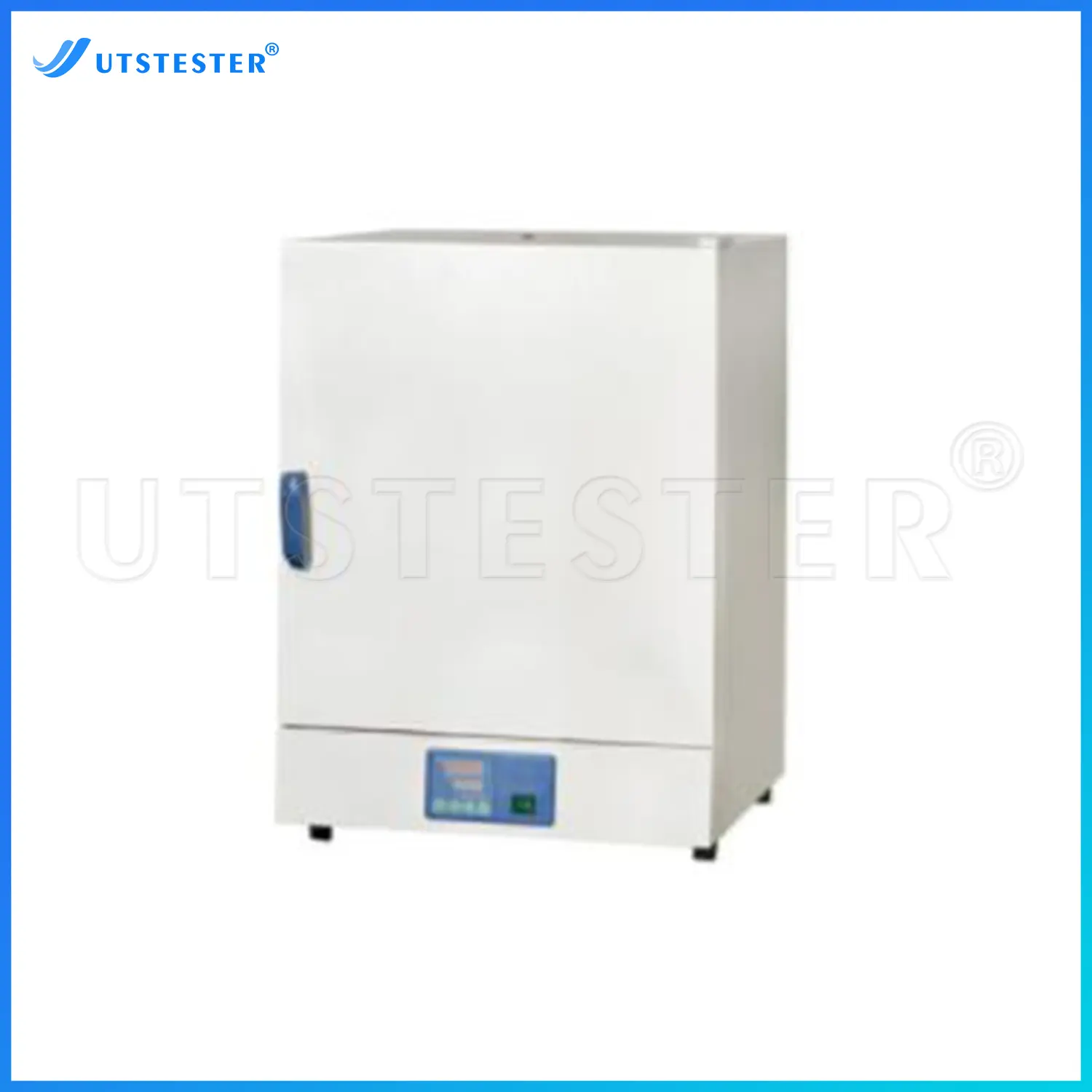

Textile Testing Equipment Manufacturers Natural Convection Drying Oven D010N
Textile Testing Equipment

Textile Testing Equipment Manufacturers Natural Convection Drying Oven D010N

1.The inner tank is made of stainless steel, and the four corners of the inner tank are semi-circular arc transition, which is convenient for the cleaning of the studio.
2.Adopt natural convection circulation method, no noise, avoid sample volatilization during the test.
3.Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
4.Multi-segment programmable controller (optional)
5.Multi-segment LCD programmable controller, one-screen display of multiple parameters, and menu-type operation interface, which can simplify the complicated test process and truly realize automatic control and operation.
6.7 groups of 63 steps can be pre-programmed, each group has 9 steps, and the set time of each group is 0~5999 minutes.

    Overview

    Utilizing the natural convection phenomenon of hot air rising, it has the characteristics of no noise, less dust and slow air flow. Suitable for drying, baking, wax melting, sterilization, etc.

    Application


    Textiles

    Standards

    Standards

    Key Parameters

    Model

    D010N-27L

    D010N-56L

    D010N-96L

    D010N-140L

    D010N-200L

    Input power

    850W

    1000W

    1400W

    2000W

    2200W

    Volume

    27L

    56L

    96L

    140L

    200L

    Liner size (mm) W×D×H

    320×300×355

    400×330×415

    450×430×505

    520×500×575

    570×560×640

    Dimensions (mm) W×D×H

    460×520×660

    540×550×720

    590×650×810

    660×720×880

    710×780×945

    Voltage

    AC220V 50HZ

    Temperature control range

    RT+10~200℃

    Temperature resolution/fluctuation

    0.1℃/±0.5℃

    Working temperature

    +5~35℃

    Sample tray

    2pcs

    3pcs

    Product Details

    D010N - 副本

    Friction head

    D010N

    Control panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
