Textile Testing Instruments Manufacturers Salt Spray Corrosion Tester E002B
Overview
This instrument is mainly to do surface processing for various materials, including paints, electroplate, inorganic and anti-rust oil, and after anticorrosion treatment, test the corrosion resistance of their products. Widely used in the aerospace industry, automobile electronics, electronic electrician, mobile phone digital, plastic products, metal materials industries.
Application
mobile phone digital
metals
foodplastic products
vehicles
Standards
GB/T 2423.18-2000, GB/T 6461-2002, GB/T 12967.3-91 CASS, GB/T 5170.8-2008, GB/T 5170.11-2008
GJB 150.11A-2008, GB/T 2423.17-2008, GB/T 10587-2006, GB/T 6461-2002, QB/T 3828-1999
ASTM.B117-2009, JIS H8502, IEC 60068-2-11-1981, IEC 68-2-52 1996, ISO 9227-2006
CNS 8886-2002, CNS 4159, CNS 4158
Key Parameters
|
Mist spray mode |
Continuously spray fog(programmable control) and interval spray(Optional) |
|
Machine material |
Imported PVC board & P.P, thickness 5mm |
|
Test chamber temperature |
Salt water test method(NSS ACSS) 35±1° C Corrosion resistance test method (CASS) 50±1° C |
|
Saturated air barrel temperature |
Salt water test method(NSS ACSS) 47±1° C Corrosion resistance test method (CASS) 63±1° C |
|
PH value |
Salt water test method(NSS ACSS) 6.5-7.2 Corrosion resistance test method (CASS) 3.0-3.2 |
|
Spray mist amount |
1.0-2.0 |
|
Power supply |
Single phase, AC, 220V |
Product Details
Spray tower
Heating tube
Meter measuring cylinder

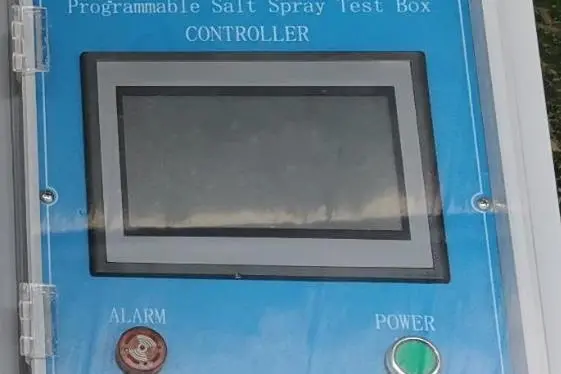

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
