Textile Testing Instruments Manufacturers Transmittance Haze Tester P016

1.It can meet the requirements of haze and full transmittance measurement under cie-a, cie-c and cie-d65 standard lighting sources
2.meet the compensation method test, which can provide more accurate test results.
3.it has an open measurement area, which can meet the measurement of samples of any size.
4.It adopts 5.0-inch TFT display and has a good human-computer interface.
5.It can be placed vertically or horizontally, which is convenient for sample placement
6.LED light source, long life, no need to replace in ten years
7.No need to preheat, it can be tested after startup and calibration, and the test time is short, 3 seconds
8.Small size, light weight, easy to carry

product details

Production Processes

Packing System

Overview

It is used to test the transmittance and haze of all transparent and translucent parallel plane samples (plastic film, sheet, plastic bottle, etc.) and the turbidity or clarity of liquid samples (water, beverage, etc.)

Application

Plastic film

Plastic bottle

Standards

GB 2410-2008, ASTM D1003, JIS K7105-81

Key Parameters

Specification	Transmittance (0～100.0% )	Haze (0～30.00%)
Accuracy	≤1%
Repeatability	0.5unit
Minimum reading	0.01unit
Sample size	Thickness≤150mm
Light source	CIE-A, CIE-C, CIE-D65
Store data	20000set
Lighting and sample aperture size	16.5mm/21mm
Instrument size	310mmX215mmX540mm(Length, width and height)
Weight	5kg
Working temperature	23℃±2℃
Relative humidity	60% max, no condensation
Working power supply	220V 50Hz

Product Details

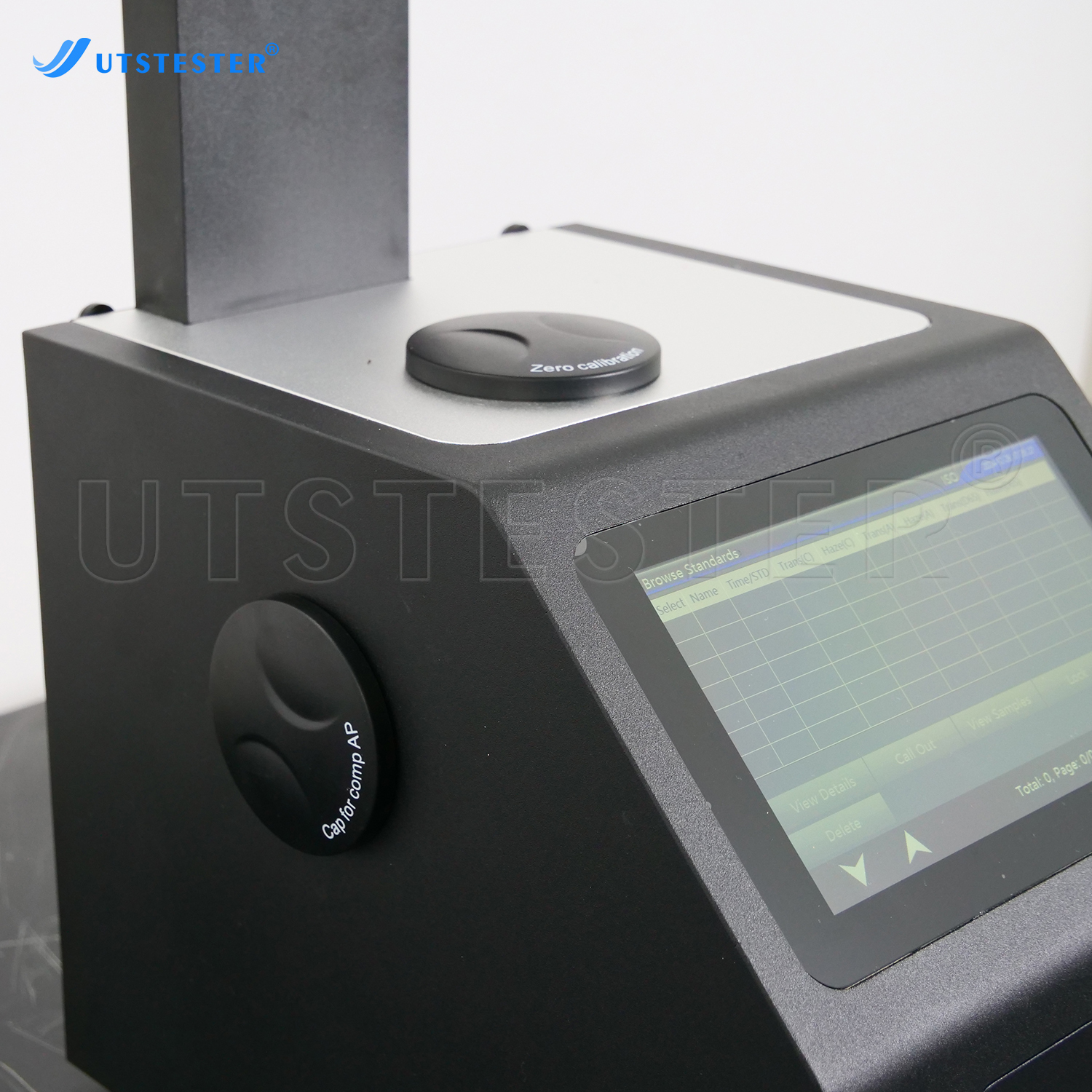

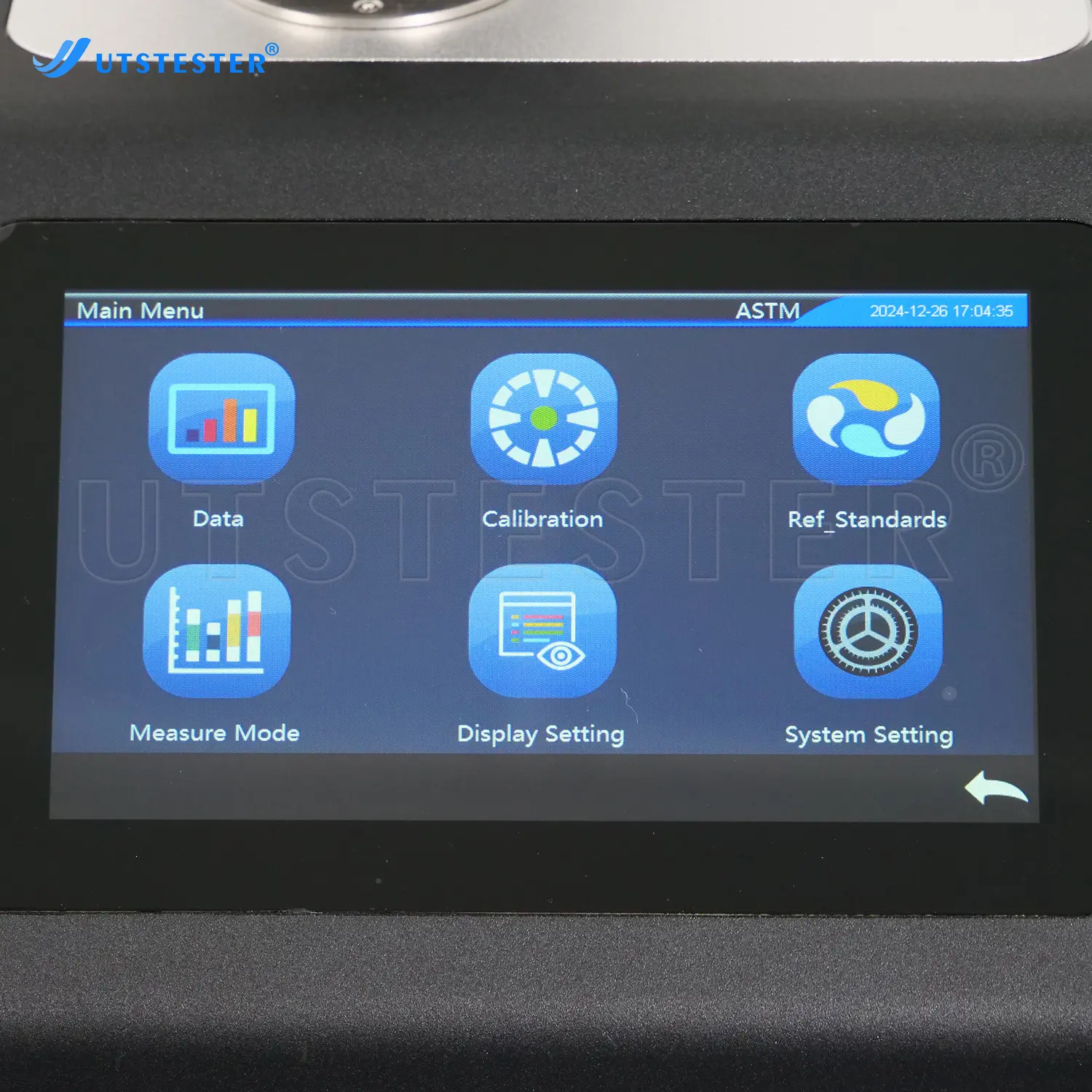

Displayer

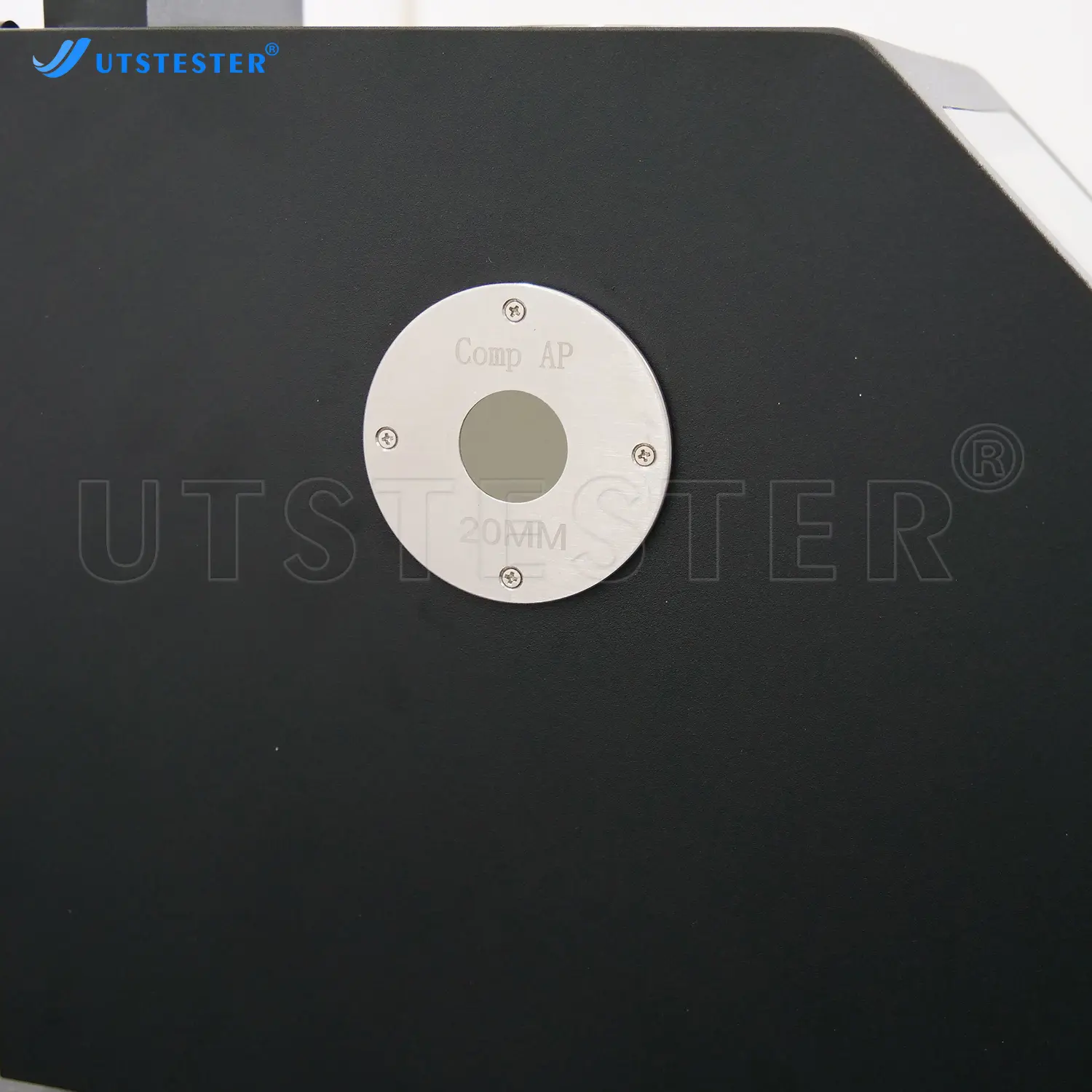

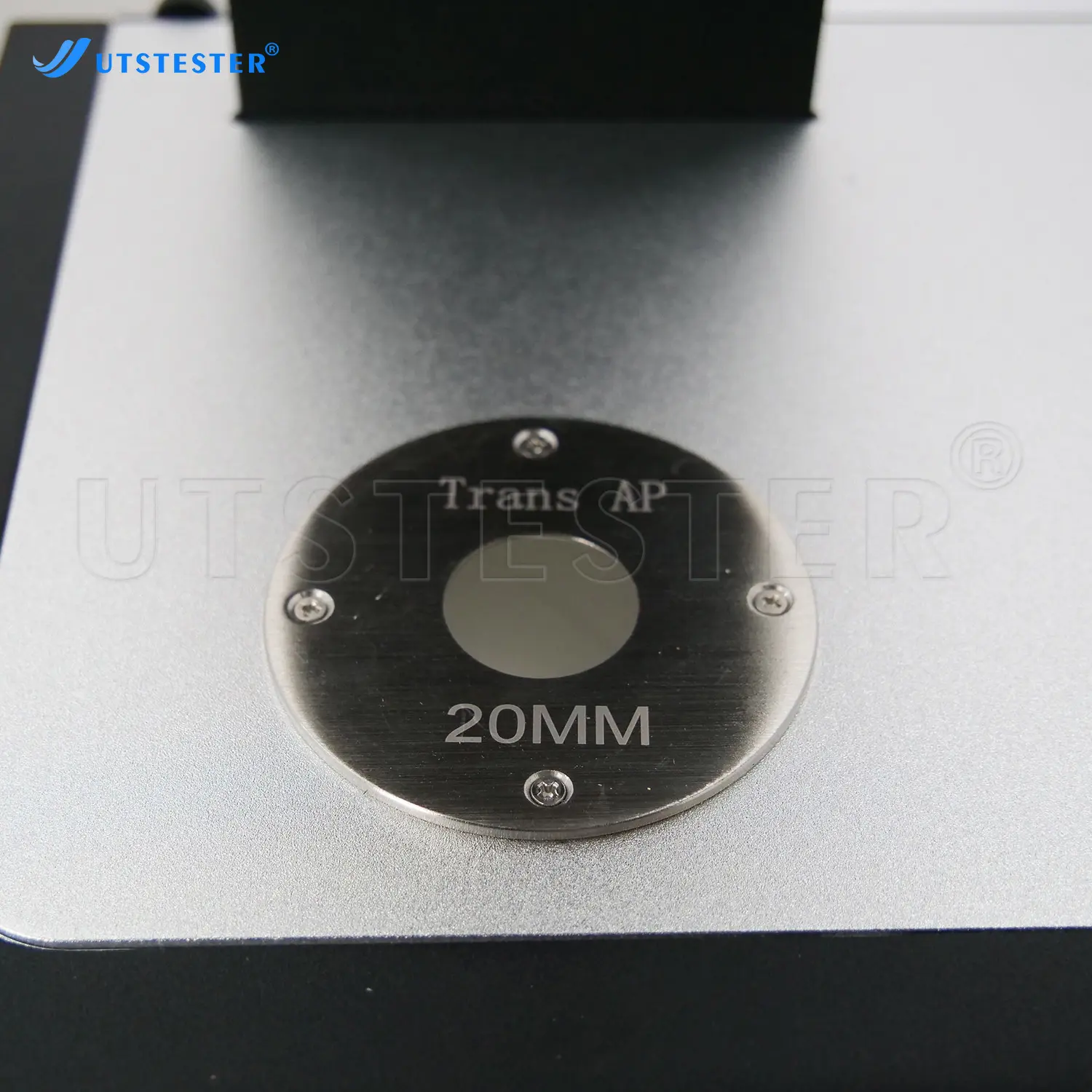

Test port

Light source

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.

For Metal Box Package

For Carton Package

For Wooden Case
