Textile Testing Machine Waterproof Tester Portable Hydrostatic Head Tester M023E
Overview
The test piece is placed in the fixture of MARTINDALE wear-resisting testing machine.The constant pressure causes it to conduct friction on the sample according to the operation trajectory of LISSJOUS diagram. After a certain number of times of friction, the wear-resisting performance of the test material is evaluated by measuring the degree of wear of the sample.
Application
Tent
Rainwear
Waterproof clothing
Standards
GB4744-84, ISO -811, GB4706.8-2008-21.110.2
Key Parameters
|
Model |
M023E |
|
Measuring scope |
plastic bags, cold clothing, tents, raincoats, cloth, etc |
|
Technical parameters |
the samples are placed horizontally and the samples are under pressure |
|
Pressure area |
55cm2, d=80.00mm |
|
Water column height |
0-10000mmh2O (more than 10000mmh2O shall be customized) |
|
Rising speed |
10± 3mmh2O (standard rate) 60± 20mmh2O |
|
Standard rate |
100±30 mmh2O (increase rate) |
|
Psychic sensitivity |
1mmh2O, maximum display value 9999.9mmh2O |
|
Machine size |
280×200×300mm |
|
Machine weight |
5.5kg |
Product Details

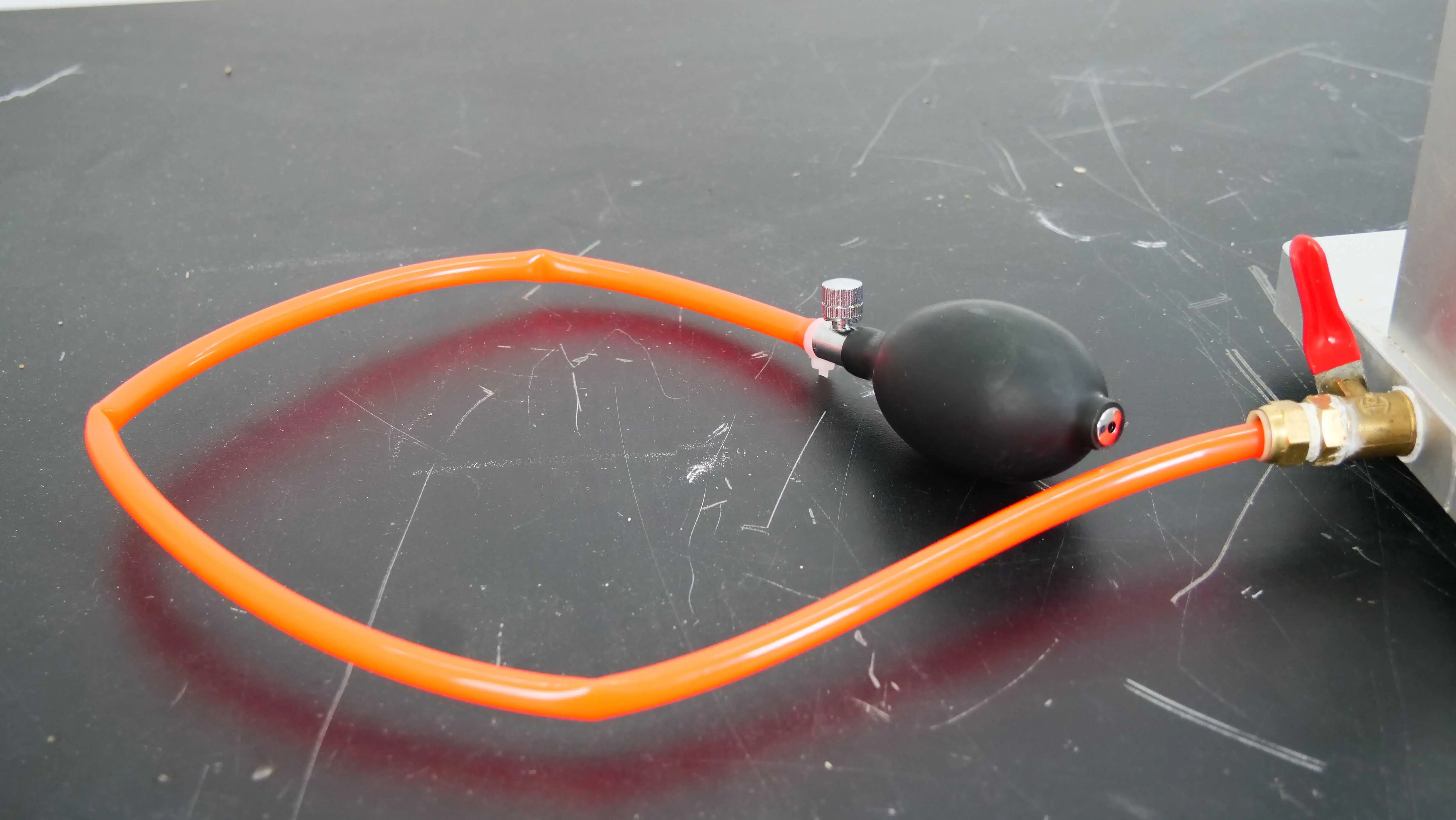

Pressure ball

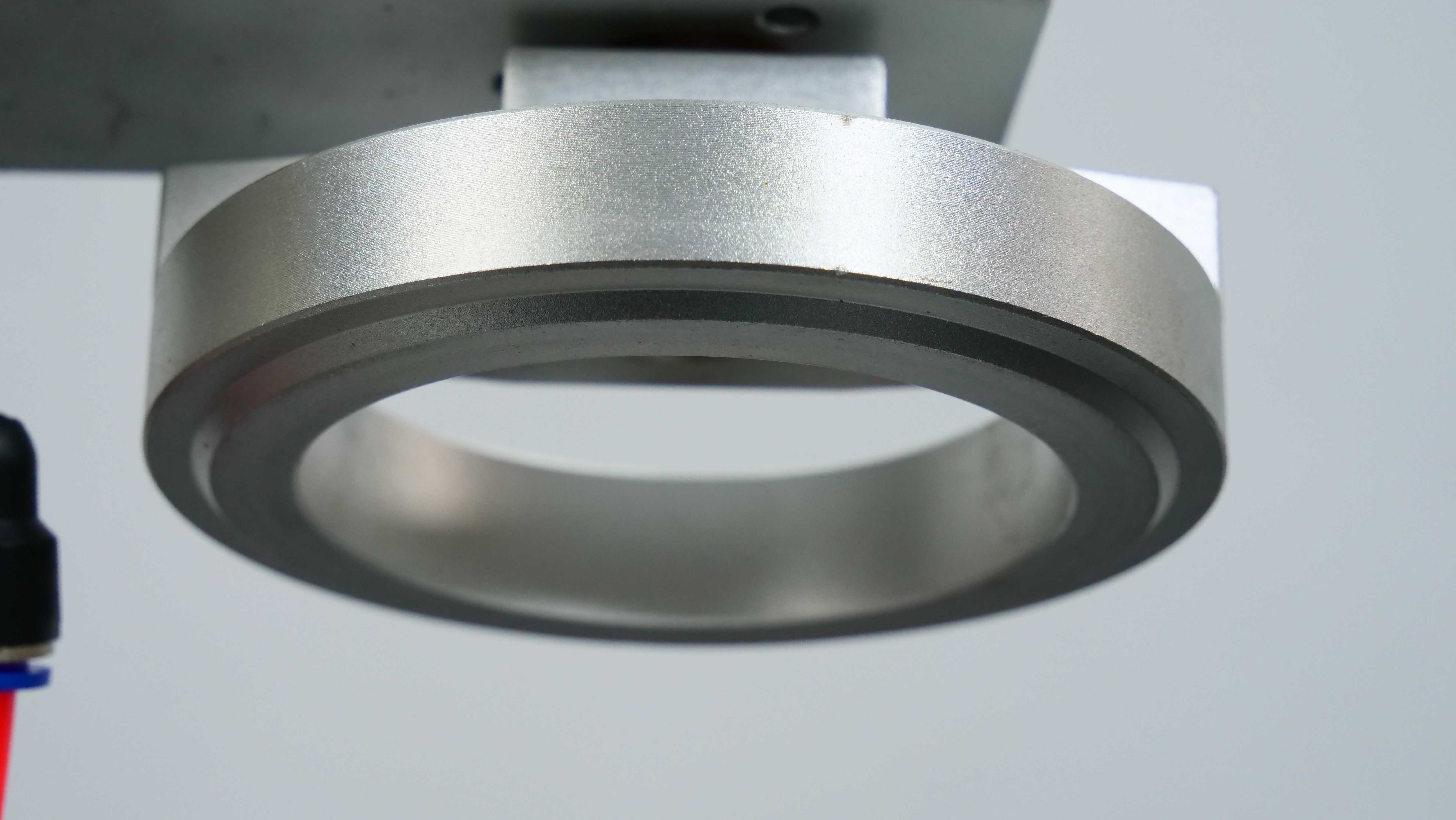

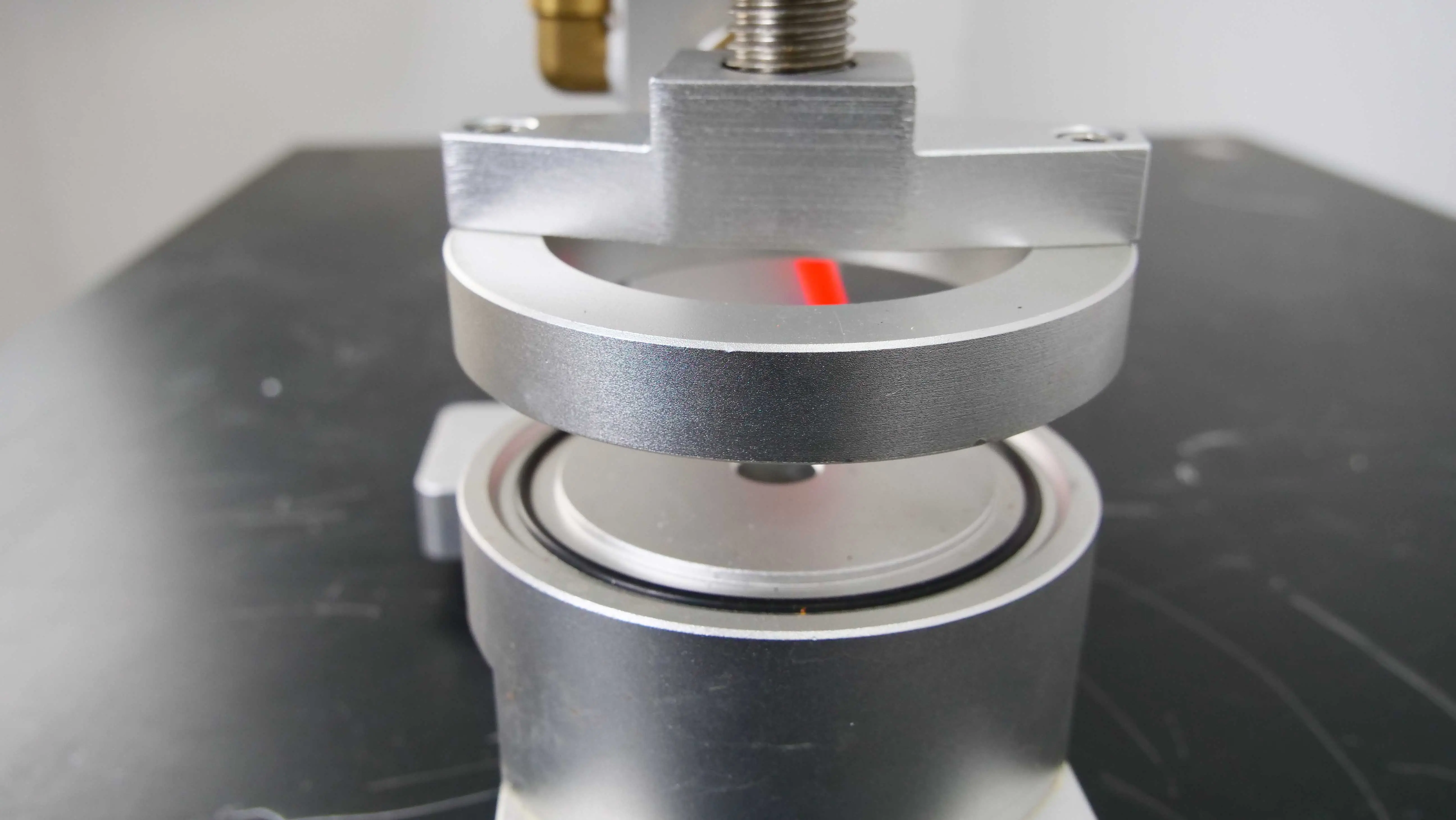

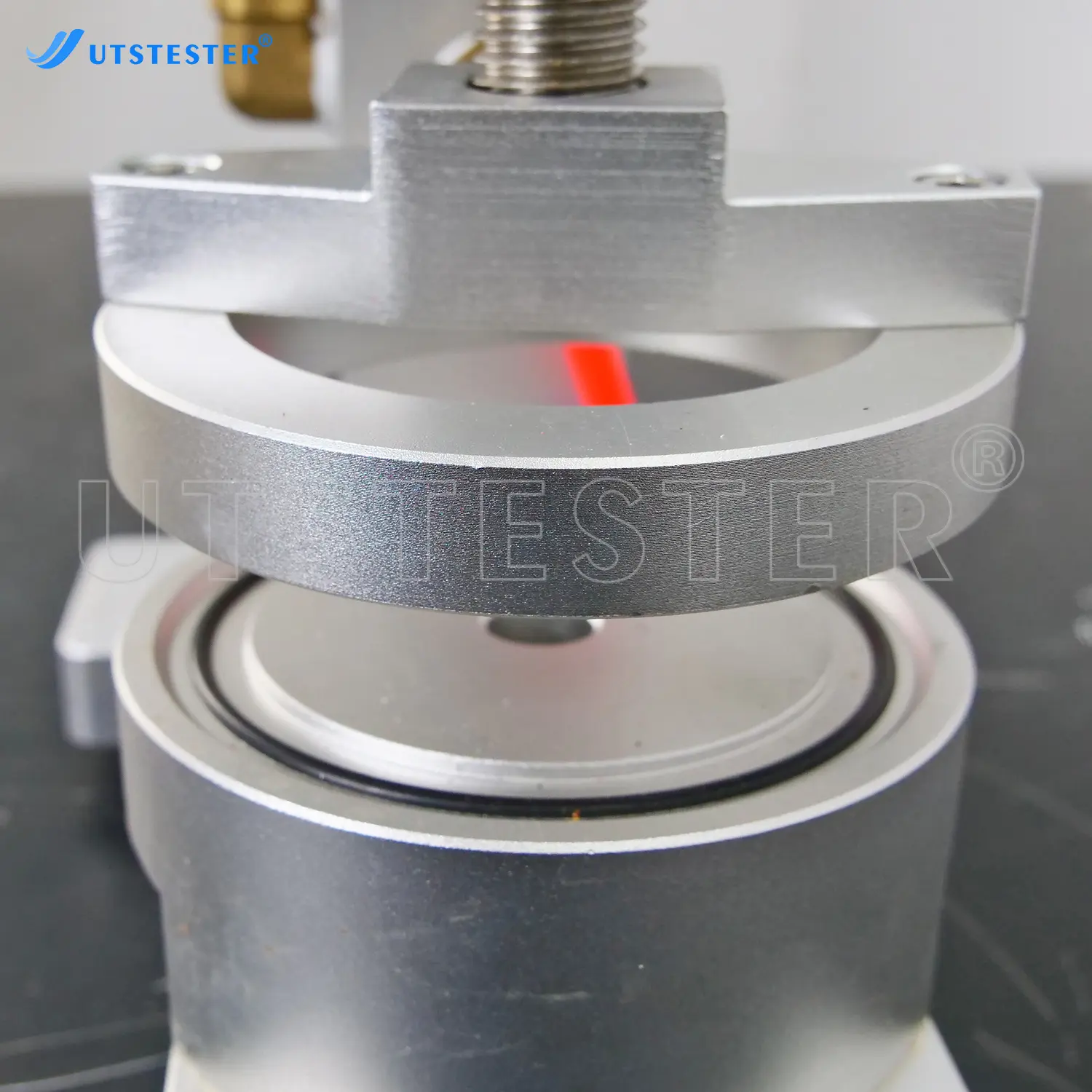

Fixture
Tank

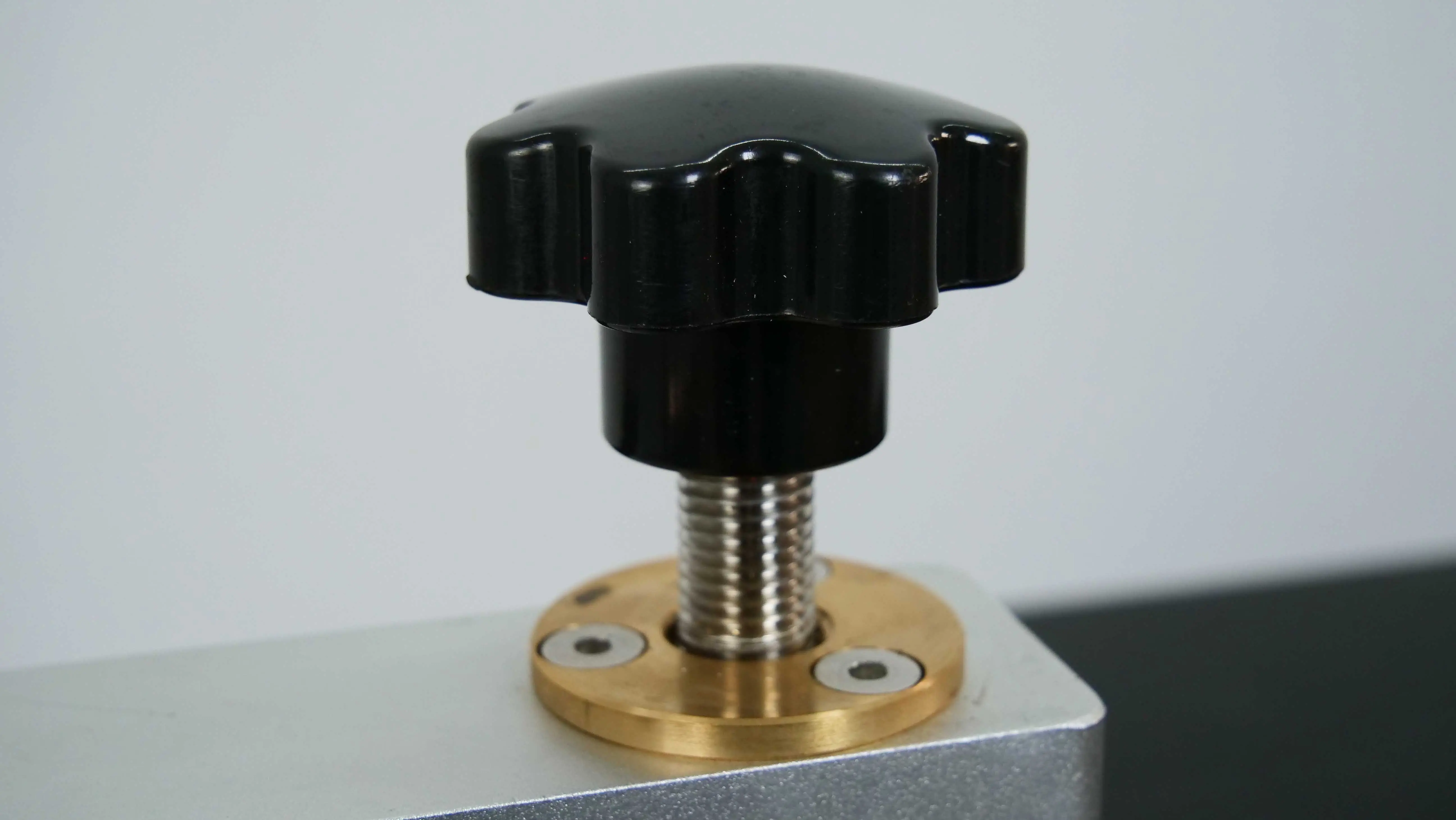

Handwheel

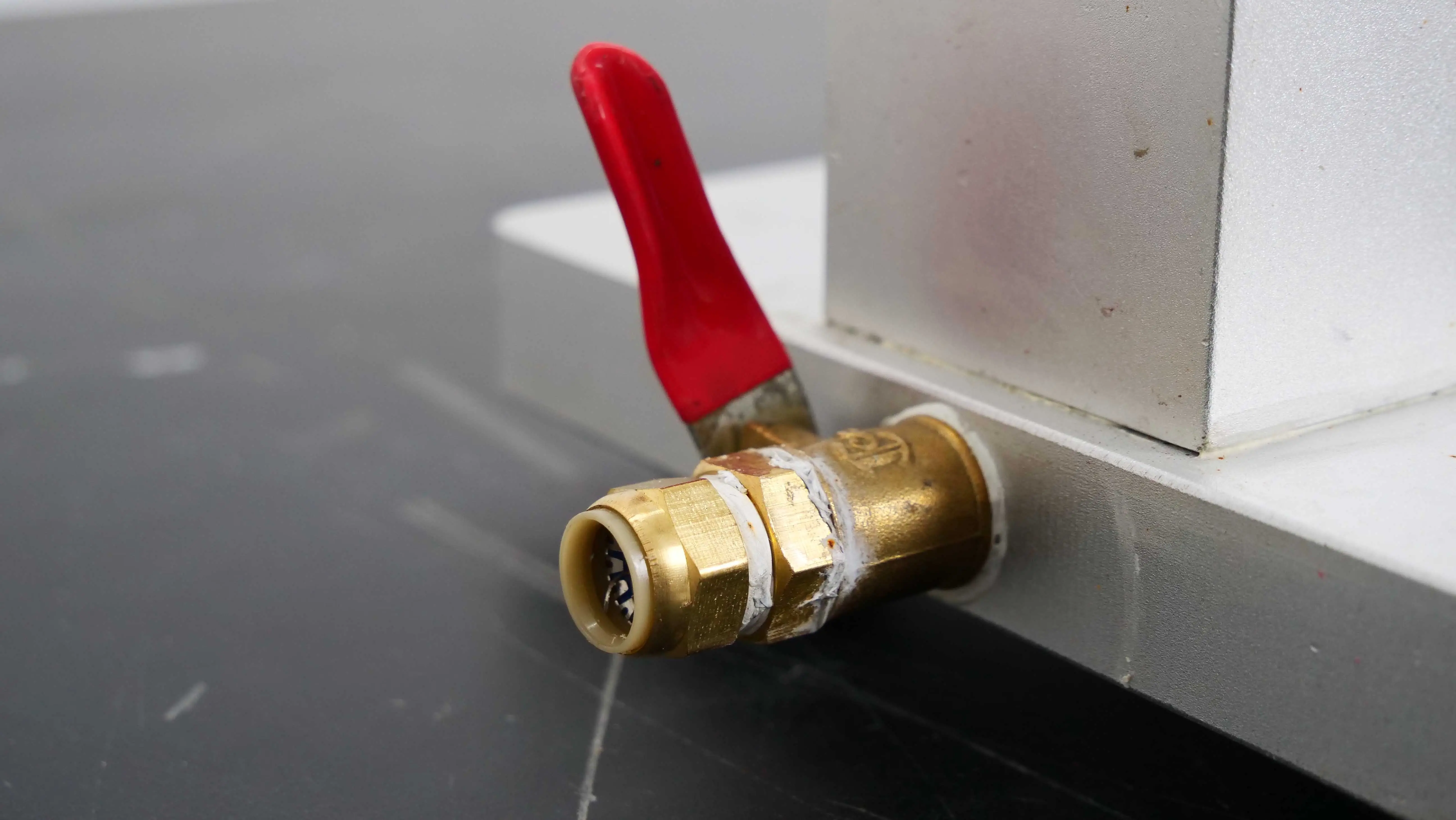

Pneumatic valve

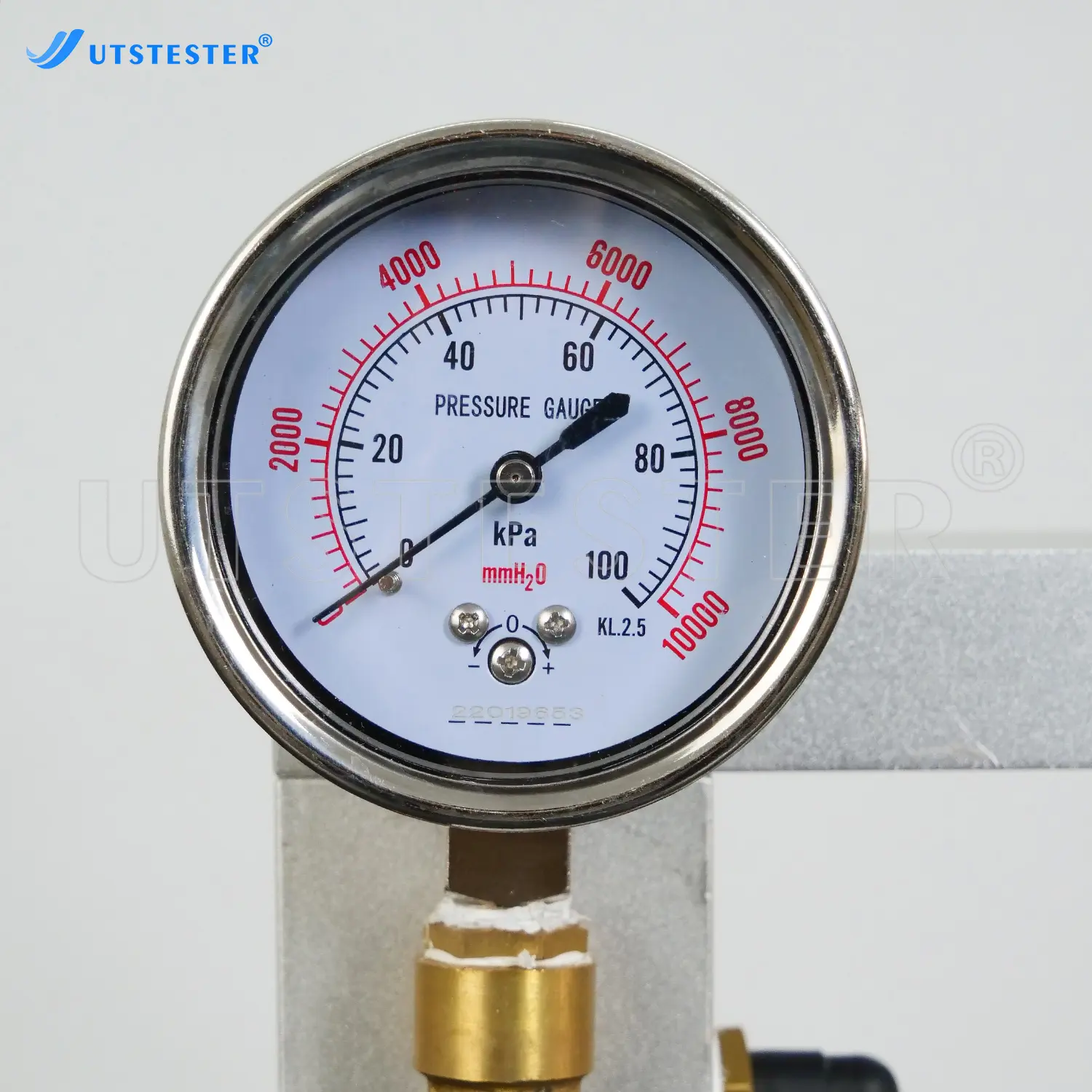

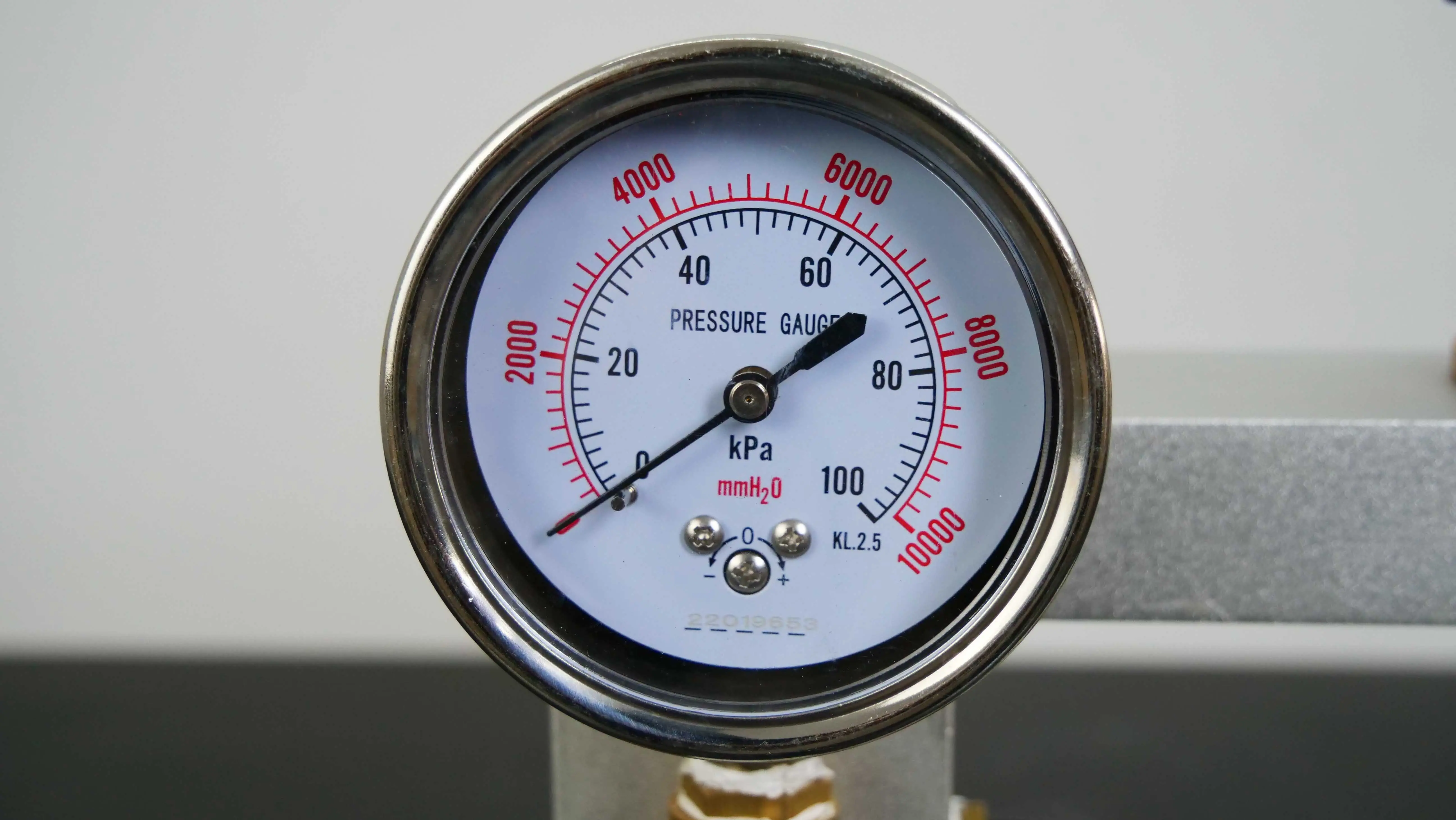

Barometer
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
