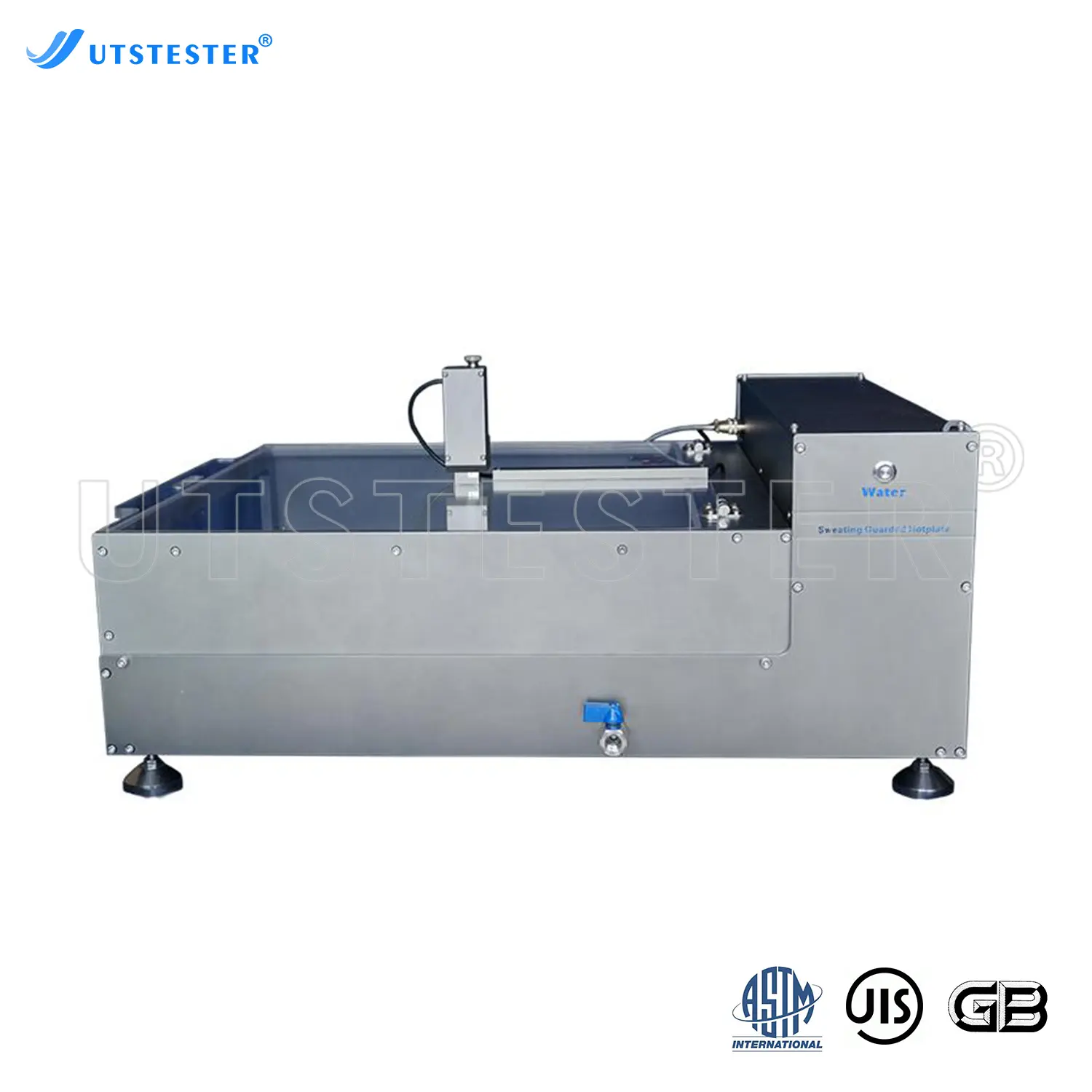

Thermal Insulation Tester Sweating Guarded Hotplate M045
Overview
M045 Thermal insulation tester/Sweating Guarded Hotplate is used to simulate the process that human skin produces heat and water vapor penetrate fabrics. Special designed to determine the Thermal resistance (heat preservation) and moisture resistance (moisture conductivity) properties under the constant environment, which is applicable for fabric, thin film, coating, foamed plastic, leather, composite material and its garments, quilts, sleeping bags, interior decoration materials, other textiles products.
Application
Fabrics
thin film
foamed plastic
leather
quilts
sleeping bags
Standards
ASTM D1518; EN ISO 11092; ASTM F1868-09; ASTM F1868-02; JIS L1096; GB/T 11048; etc.
Key Parameters
|
Model |
M045 |
|
|
Thermal resistance(RCT) |
Range |
0.002 - 2.0 ㎡.K/W |
|
Display value error |
≦ ±2% |
|
|
Repeatability error |
≦ ±2% |
|
|
Resolution |
0.0001 ㎡.K/W |
|
|
Wet resistance(RET)
|
Range |
0~1000 ㎡.Pa/W |
|
Display value error |
≦ ±2% |
|
|
Repeatability error |
≦ ±2% |
|
|
Resolution |
0.001 ㎡.K/W |
|
|
Testing plate temperature range |
30 ℃ ~ 40℃ adjustable |
|
|
Temperature control accurate |
±0.03℃ |
|
|
Temperature resolution |
±0.01℃ |
|
|
Wind speed |
Range |
0-2 m/s continuously adjustable |
|
Accuracy |
±1% |
|
|
Specimen platform available for lifting and down range |
0-70 mm, automatic lift and down |
|
|
Testing specimen thickness |
0-70 mm |
|
|
Testing plate area |
250 mm x 250mm |
|
|
Specimen area |
512mm x 512mm |
|
|
Width of Heating Protection Ring |
127mm |
|
|
Dimension |
760 x 560 x 750mm (L x W x H)(Exclude outside chamber) |
|
|
Weight |
30kg(Exclude outside chamber) |
|
Product Details

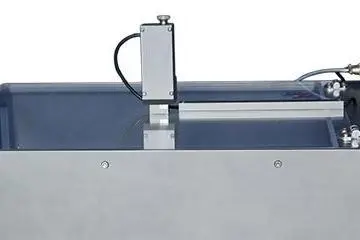

Clamping Device

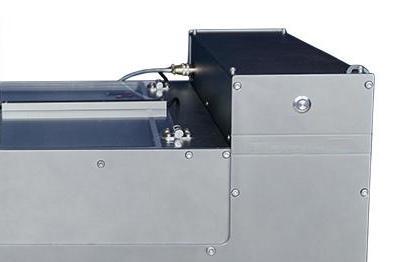

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
