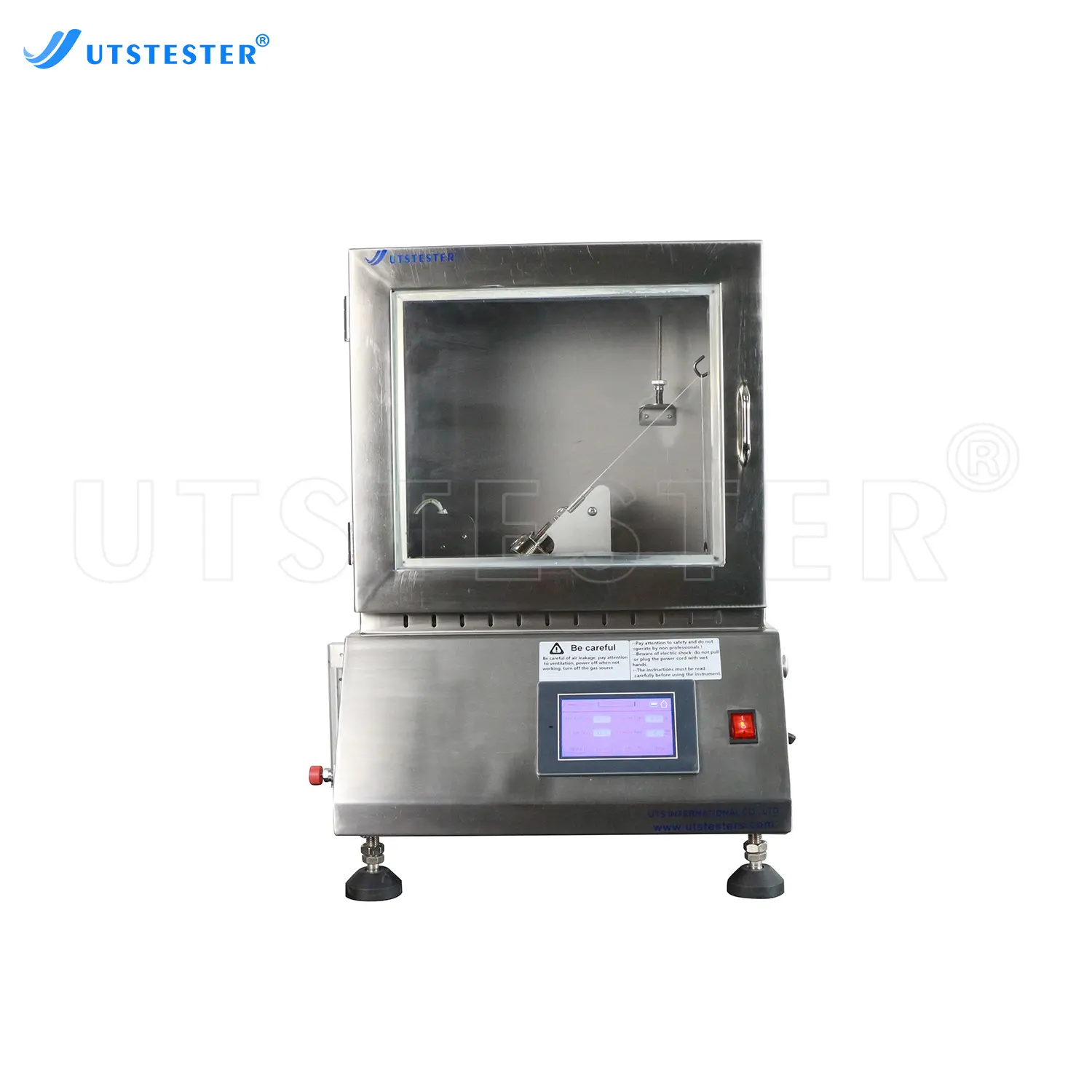

Tilt Burn Tester 45 Degree Flammability Tester Fabric Combustion Flammability Test Machine M015N
Overview
To determine textile damaged area and length at 45 degree condition and the times of touching flame when textile is melted to specified length after heated at 45 degree condition.

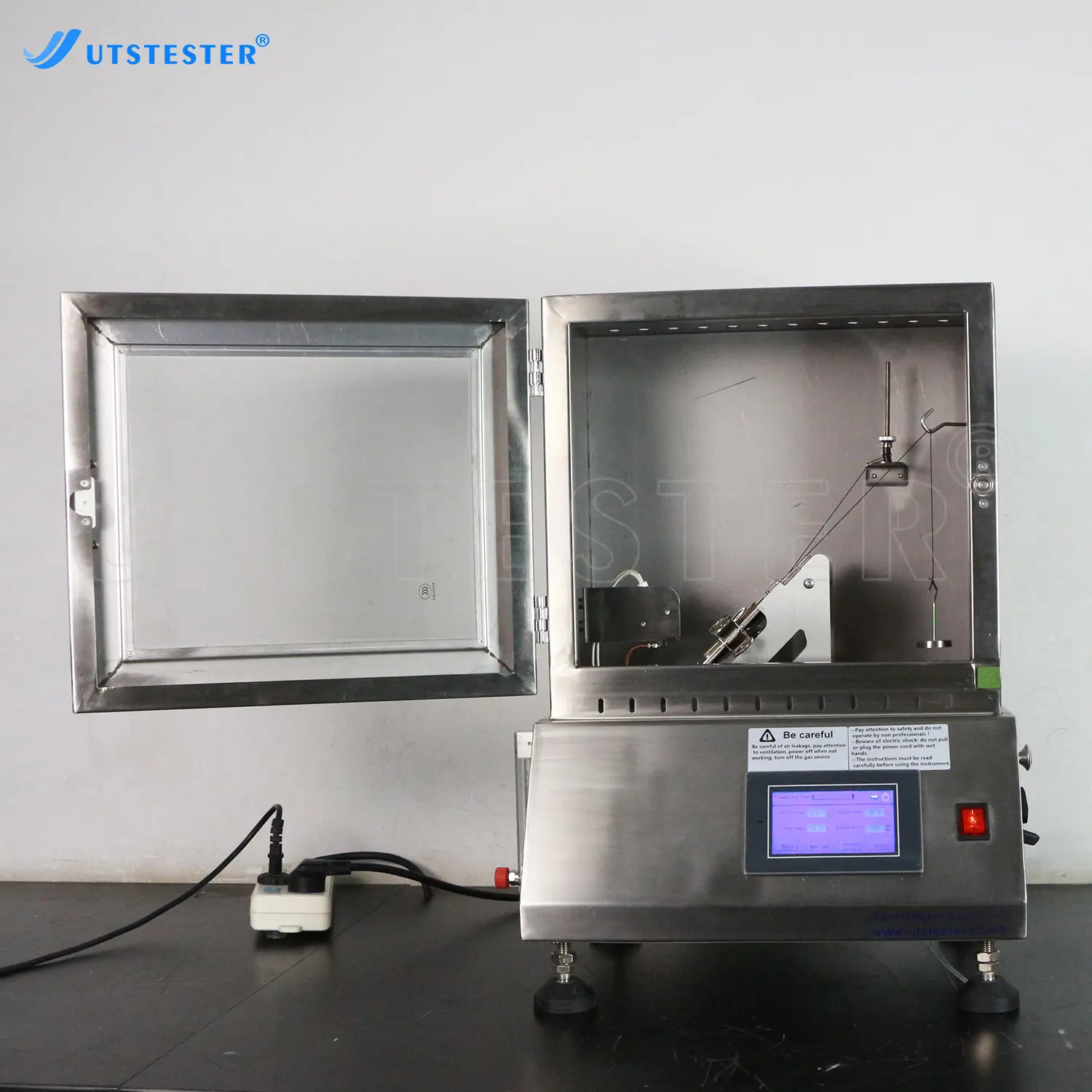

Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1 second increments from ignition. Automatic or manual flame impingement for 1,5 or 20 seconds.
Application
chemical fiber
hemp
silk
cotton
Standards
16 CFR 1610 ASTM D1230 GB/T 14644
Key Parameters
|
Model |
M015N |
|
Timing range |
Spread time 0.1~999.9s, accuracy 0.1s |
|
Burning rate |
0~9999mm/min |
|
Warm-up time |
3~20s, accuracy 0.1s |
|
Ignition time |
0~99s, precision 0.1s |
|
Sample holder size |
Inner frame 152×38mm |
|
Diameter of igniter nozzle |
4½ type needle |
|
Angle of specimen rack |
45˚ |
|
Igniter gas |
Propane or butane; Pressure 17.2±1.7kPa can be adjusted |
|
Distance between top of igniter to sample surface |
8mm |
|
Flow meter measure range |
0~60ml/min |
|
Required pressure of gas supply |
≤ 0,2 Mpa |
|
Flame height |
16mm can be adjusted |
|
Power supply |
AC220V 50Hz 100W |
|
Dimensions(L x W x H) |
460×300×570mm |
|
Weight |
20kg |
Product Details

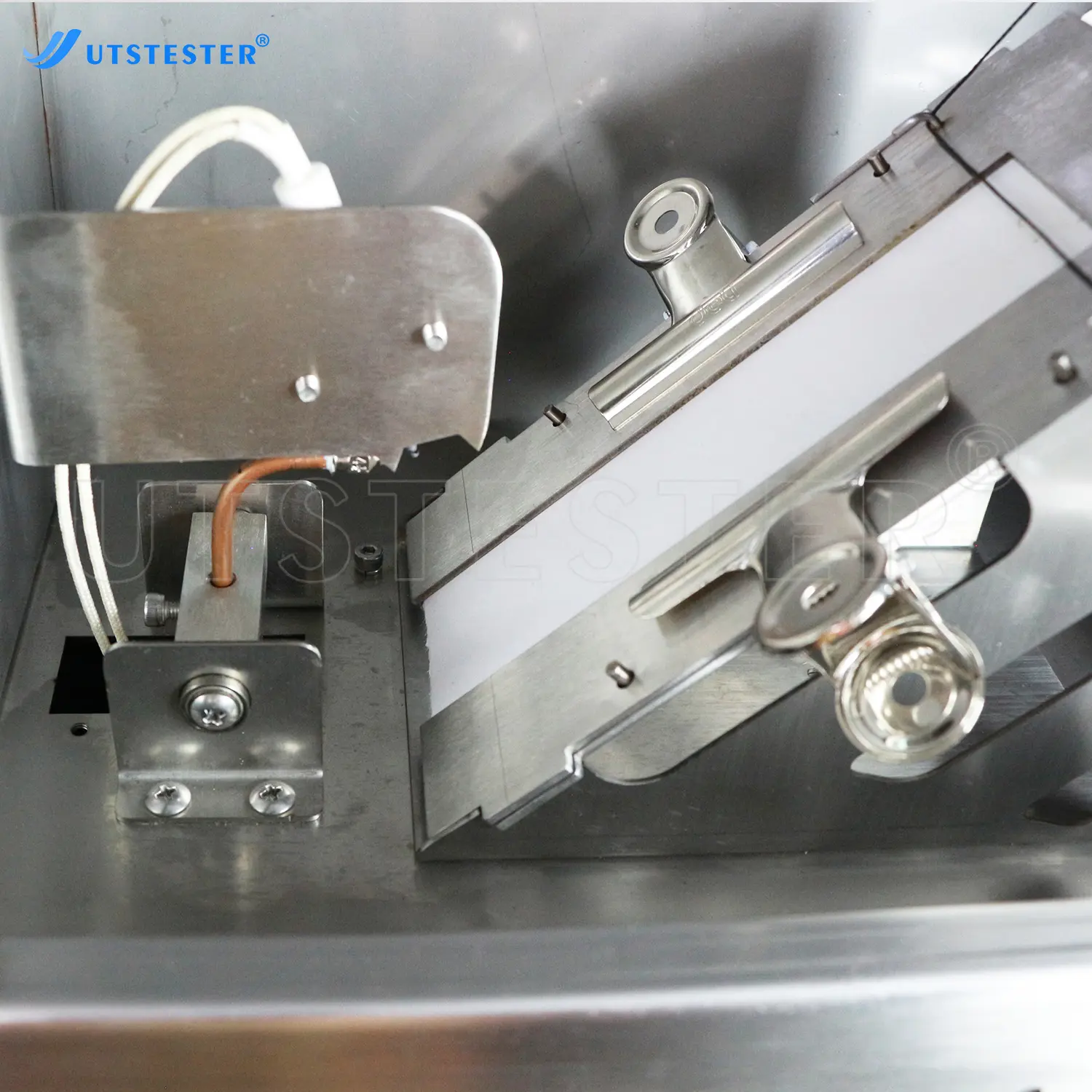

Ignition device

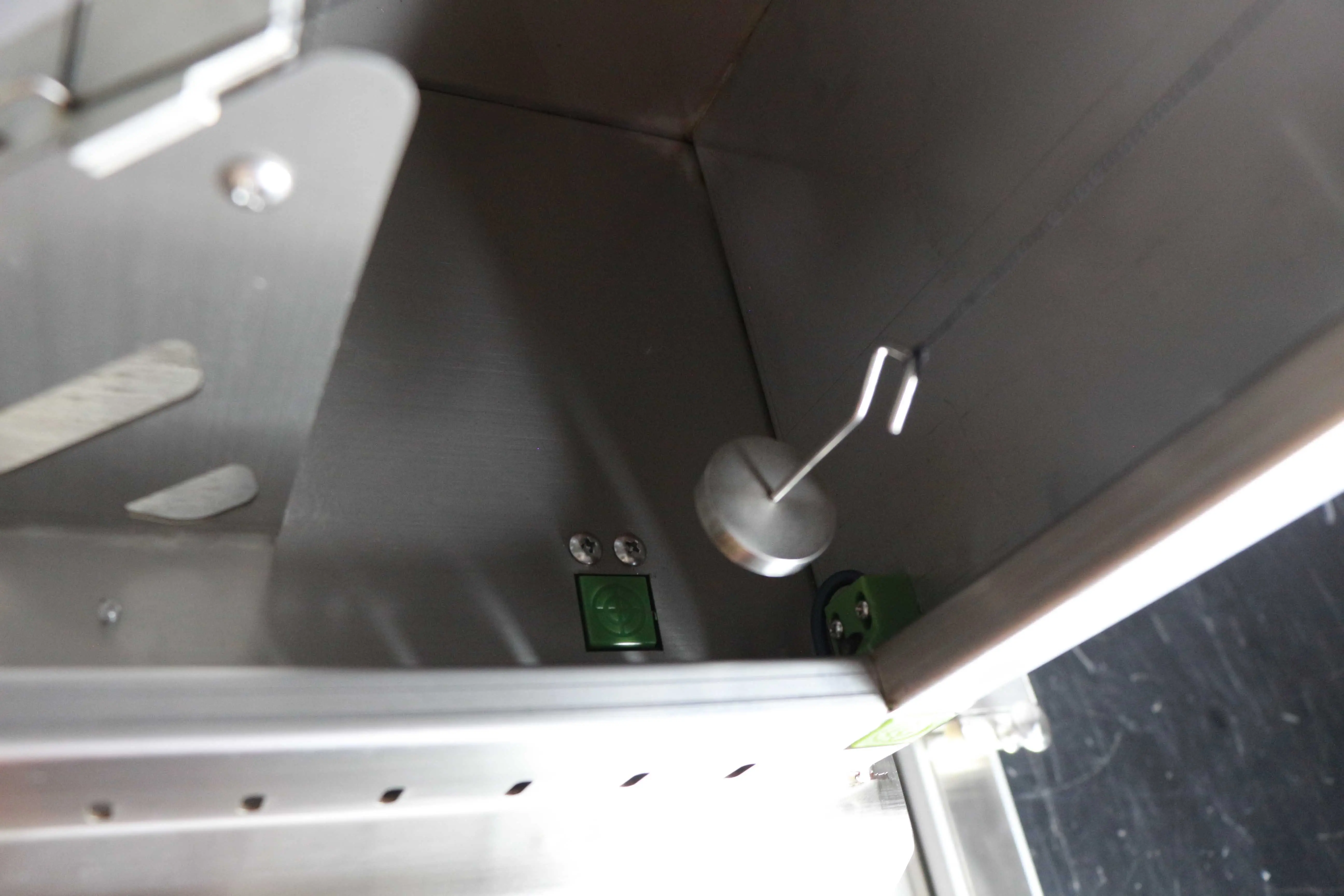

Force hammer

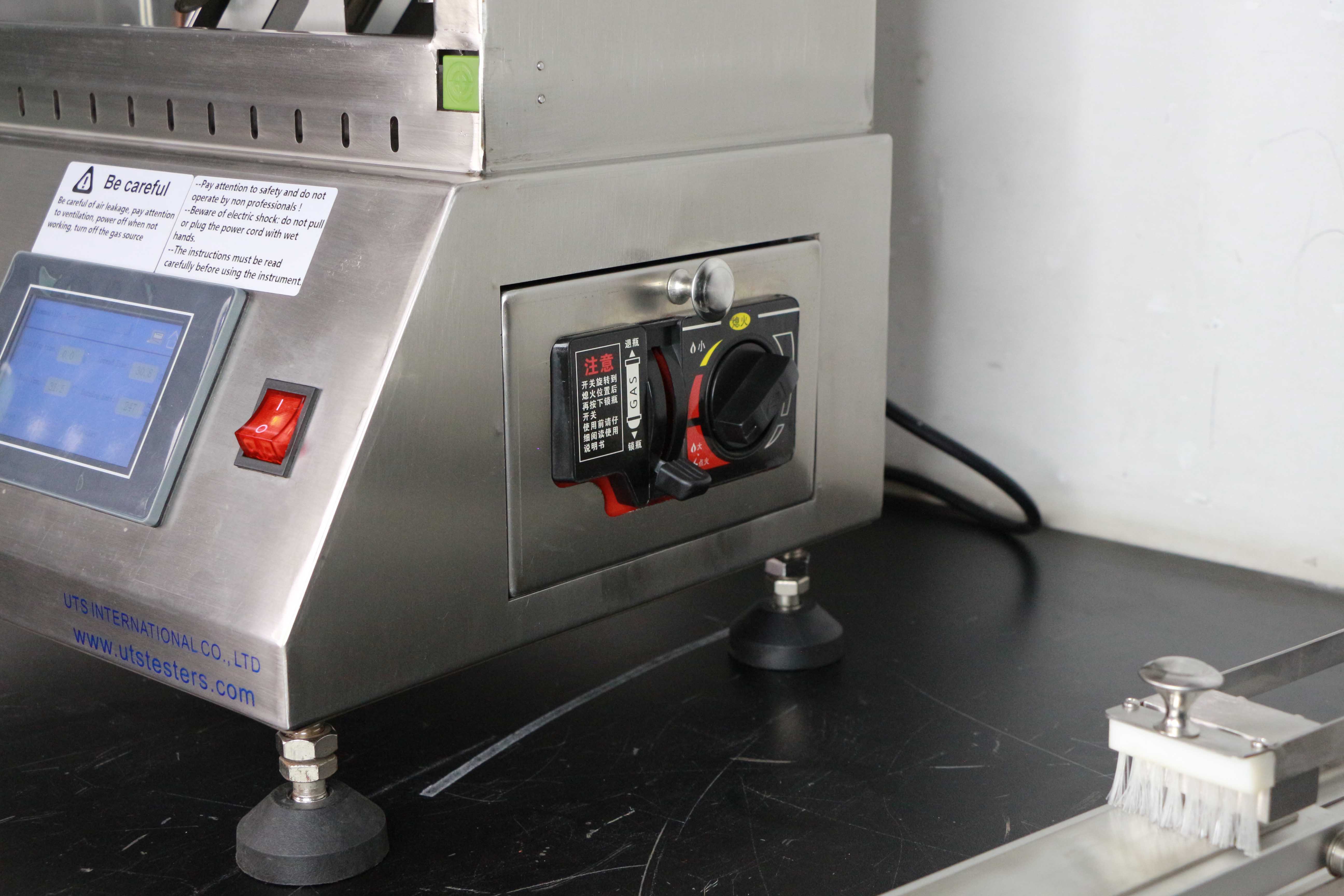

Gas

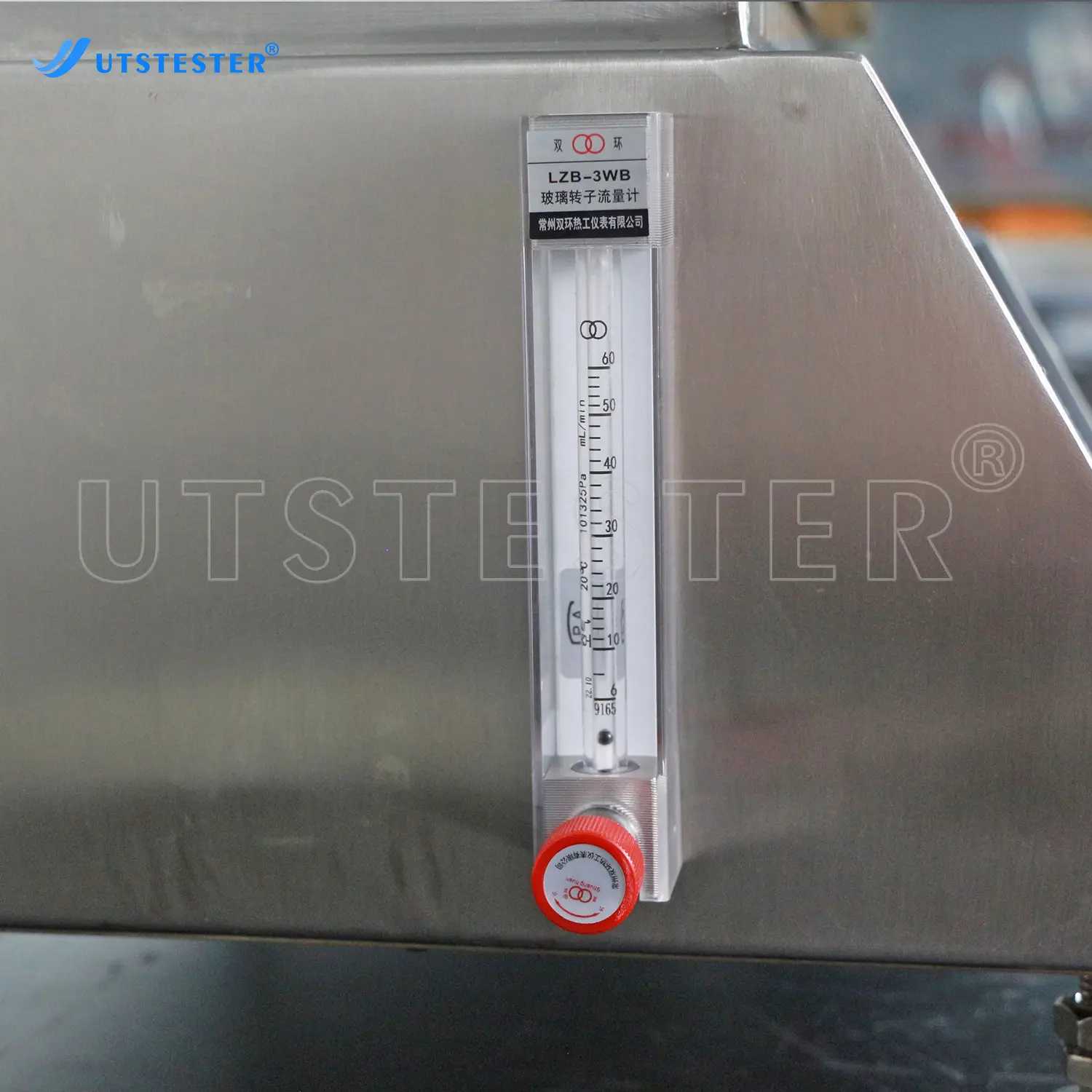

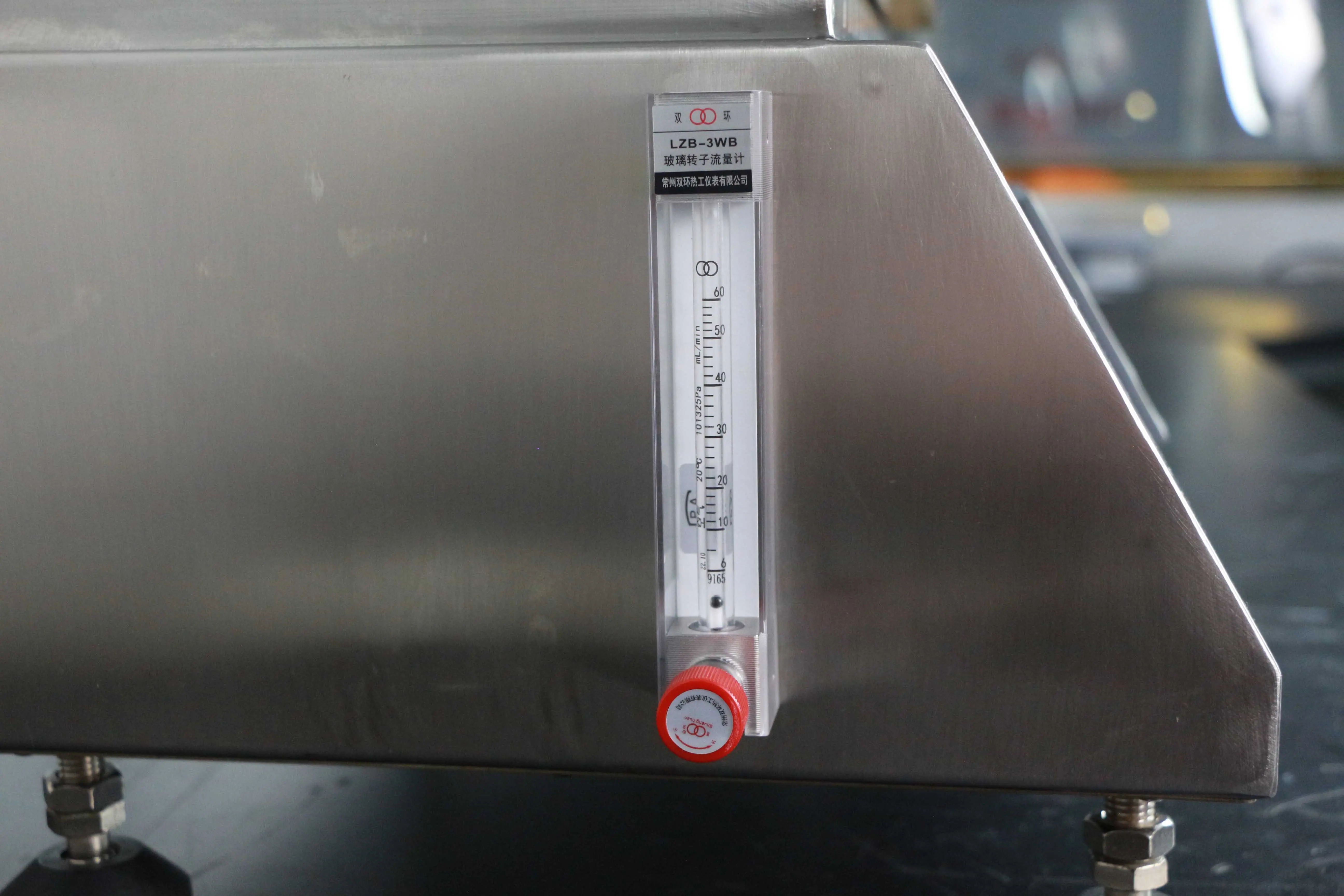

Flow meter

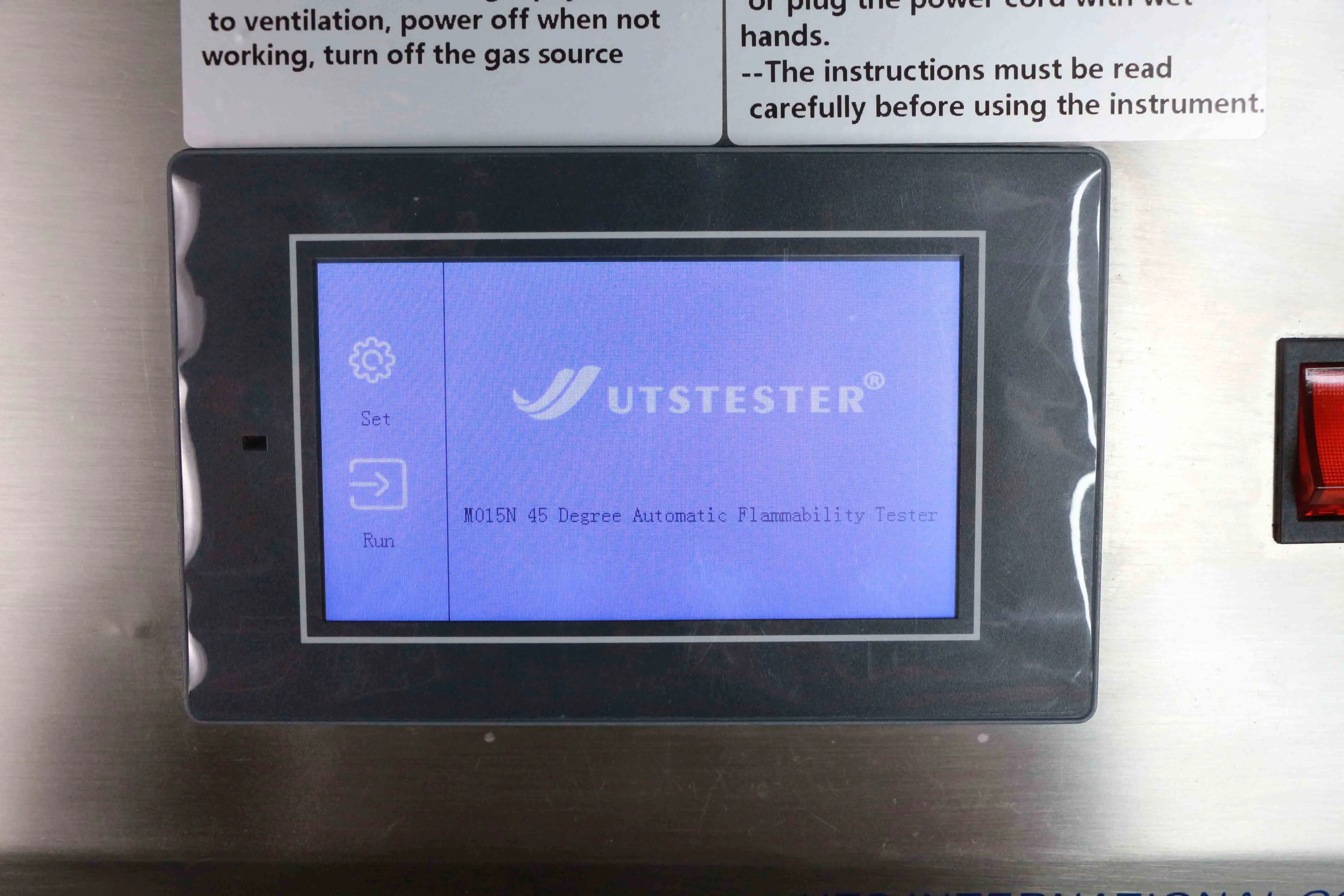

Touch screen

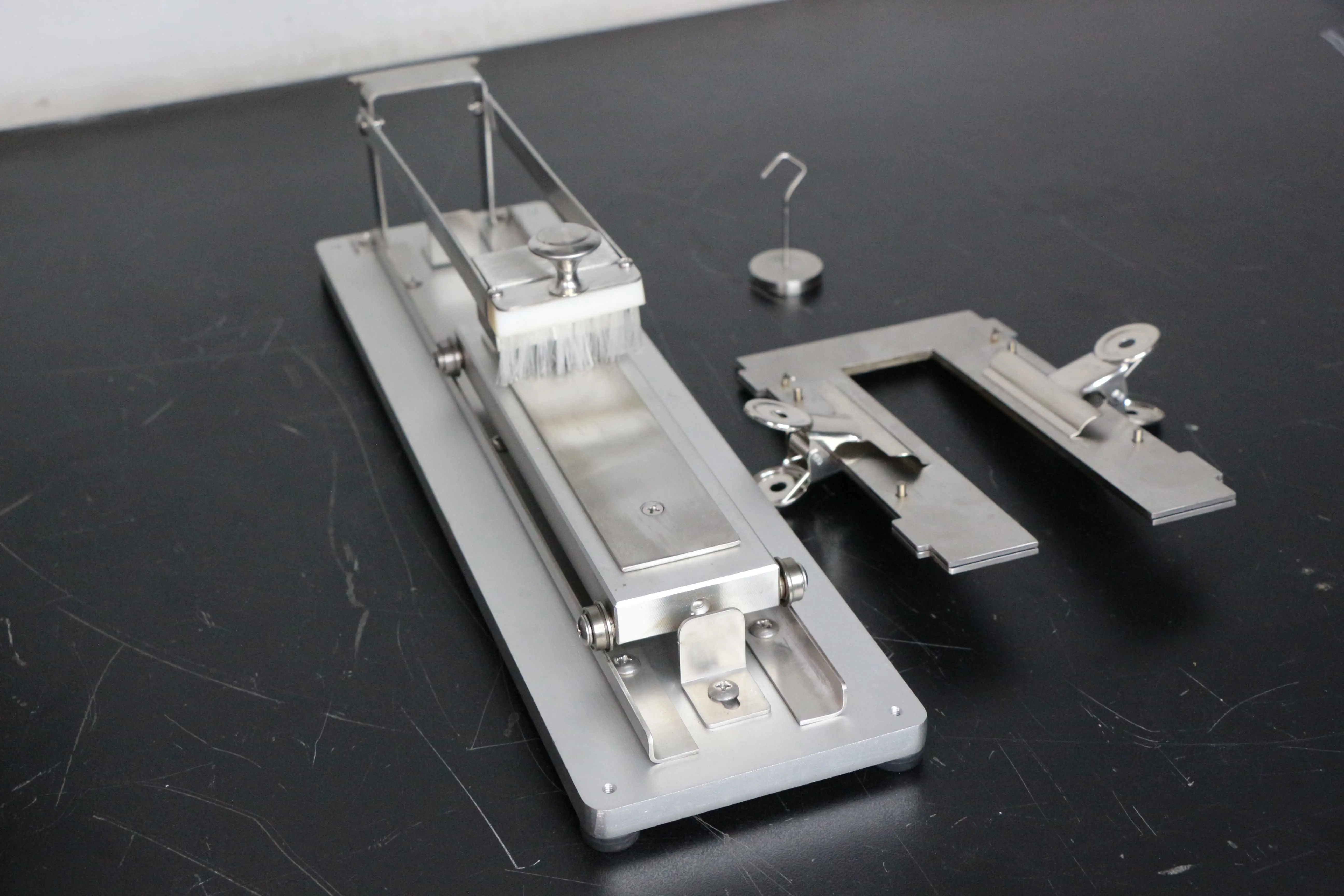

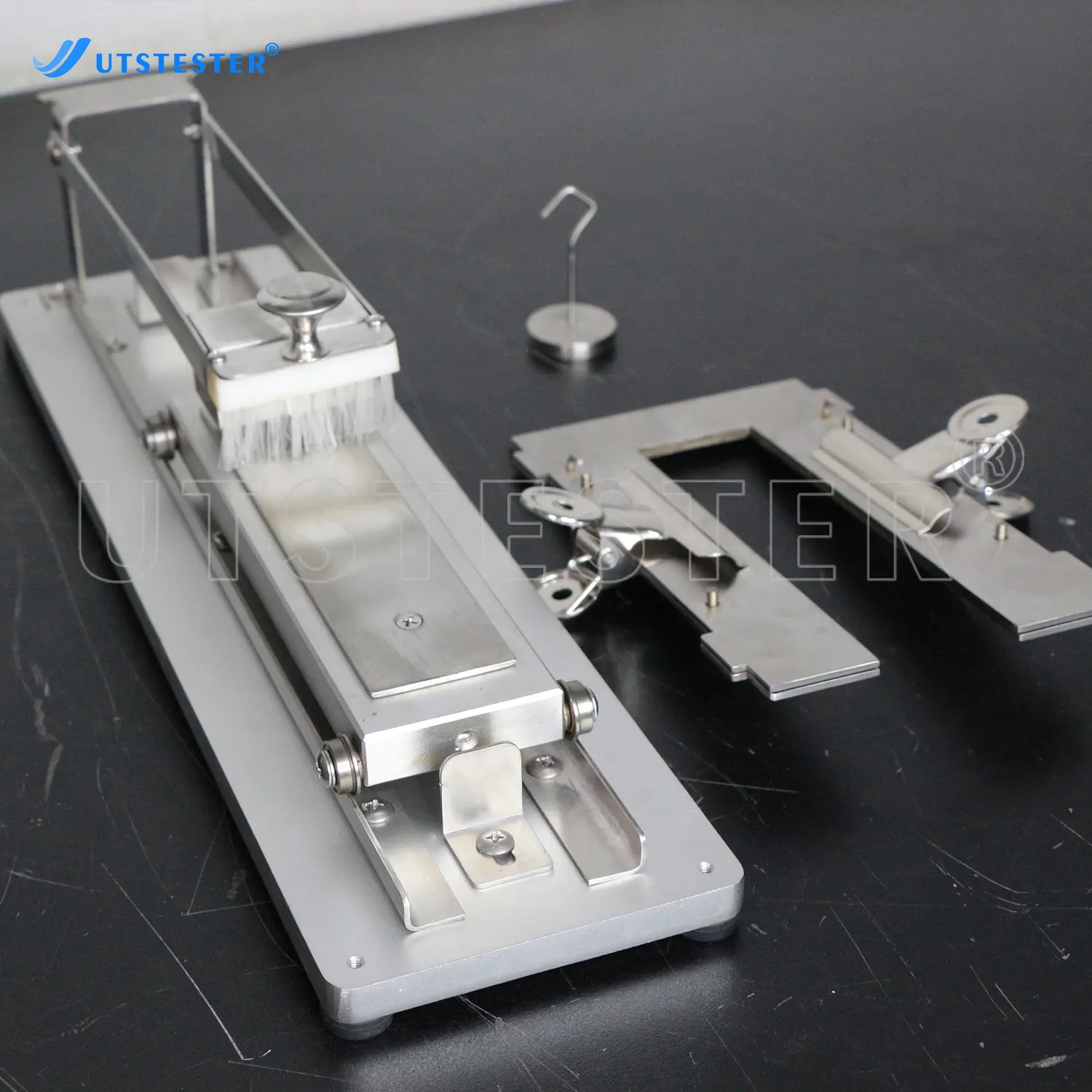

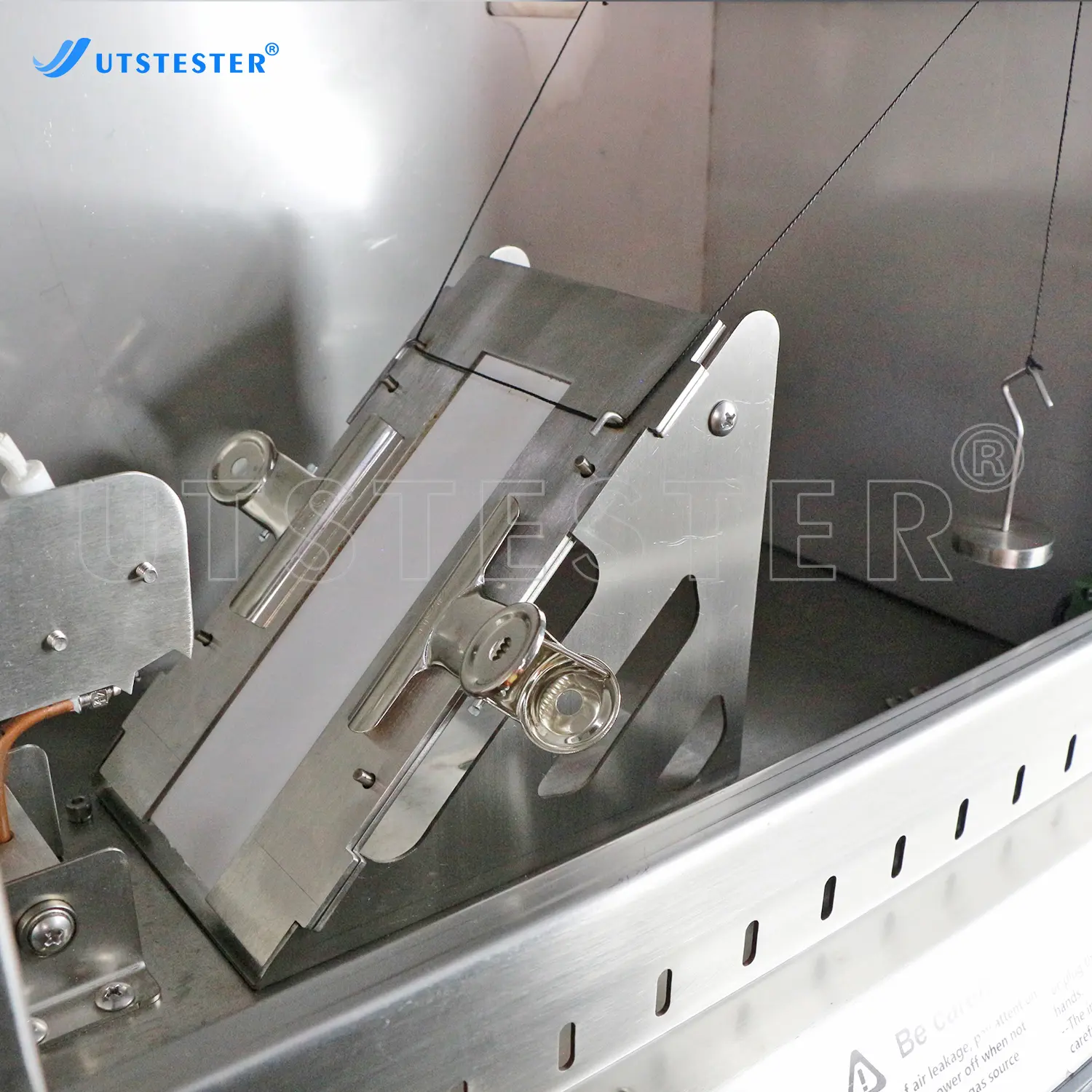

Sample clip plate
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
