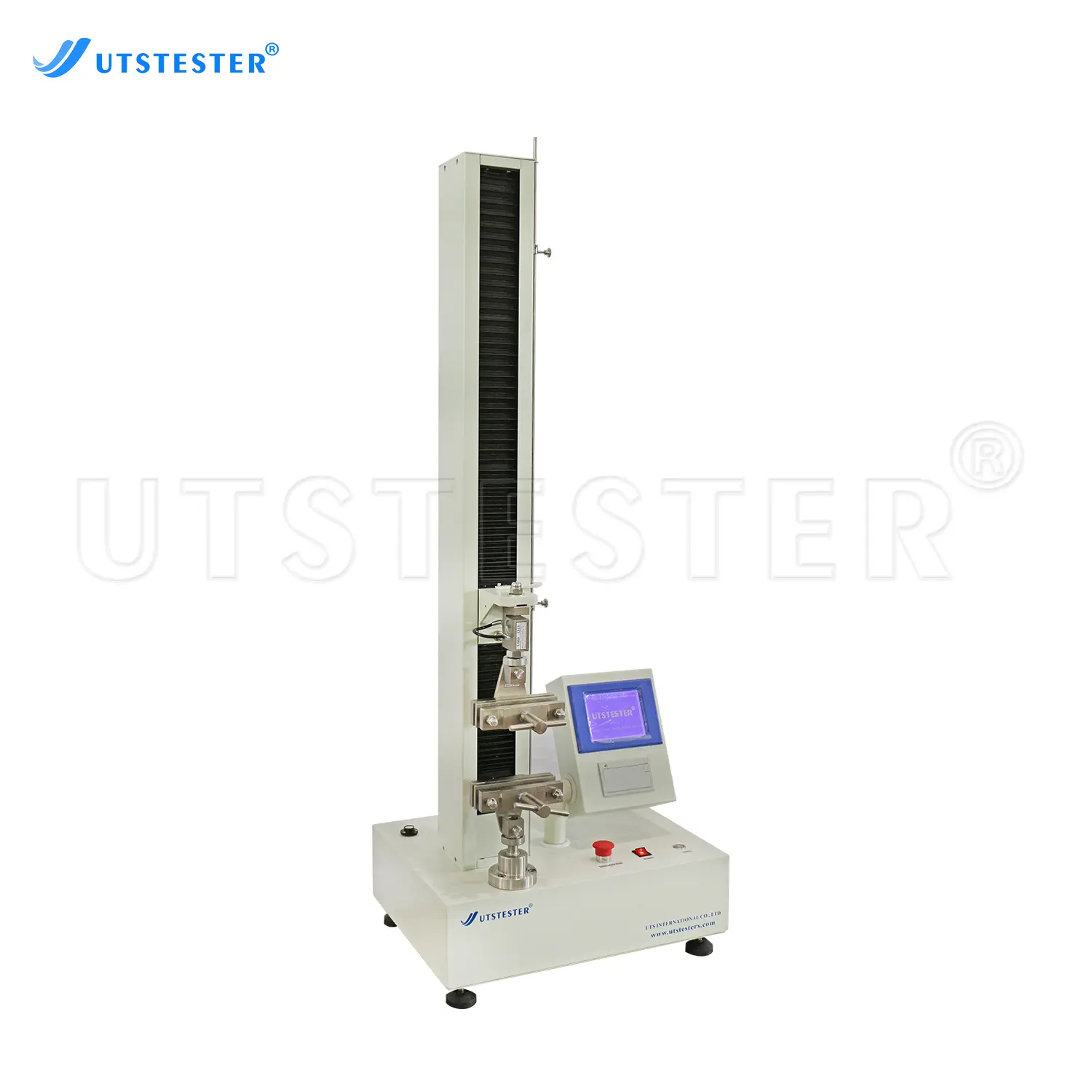

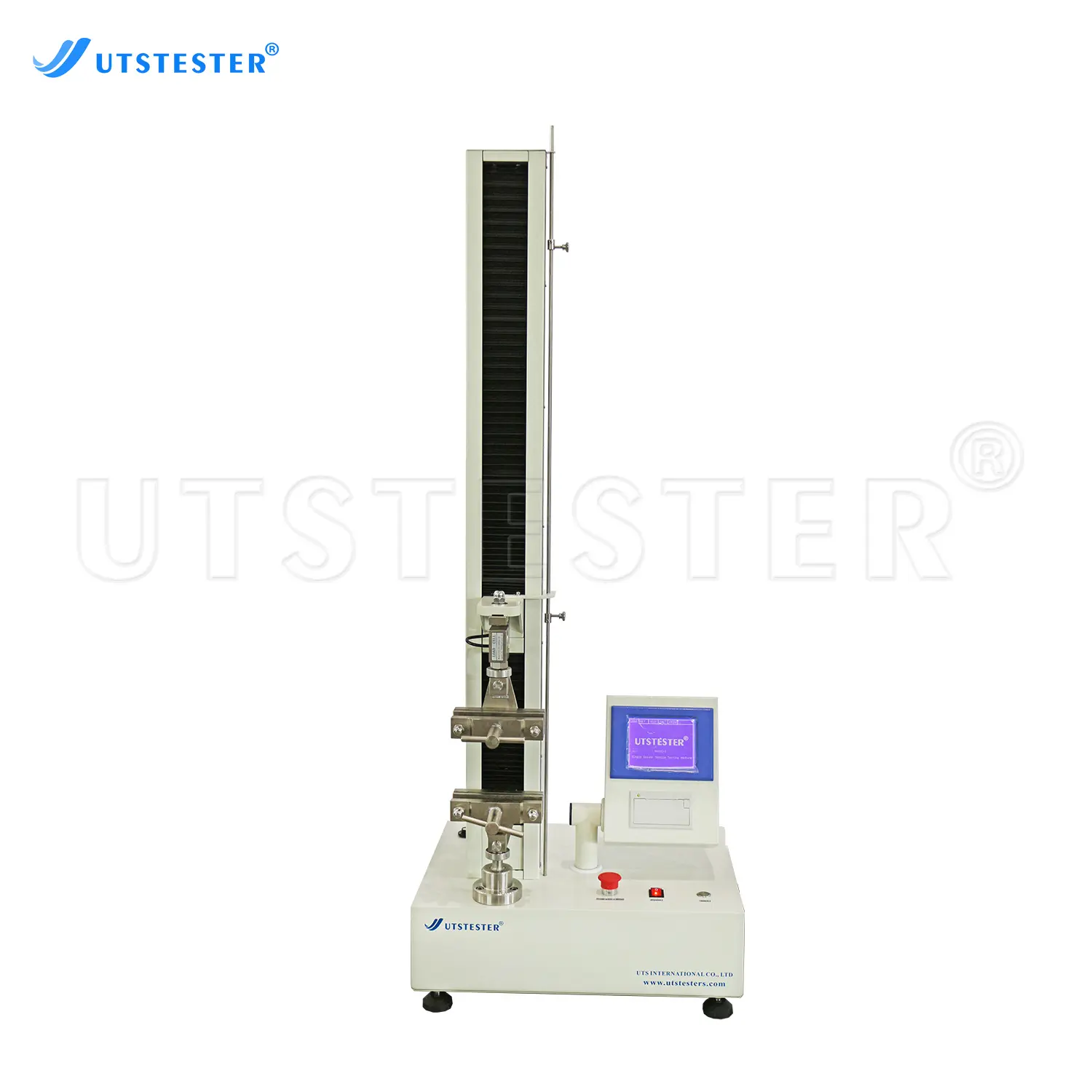

Universal Testing Machine Dynamometer Tensile Strength Tester Equipment M002C

1. The main machine of the instrument is controlled by touch screen, and the built-in printer.
2. Suitable for testing the mechanical properties of various materials.
3. High-precision sensor with force measurement accuracy higher than 0.2%F·S.
4. Equipped with online interface.
5. No sensor replacement is required for stretching and bursting test.
6. with software copyright.

product details

Production Processes

Packing System

Overview

To determine the resistance to tensile rupture strength and rupture elongation property for cotton, fur, fiber, silk, wool fiber fabric, non-woven, paper, braid, etc.

Application

ROPES

PAPERS

LEATHER

GARMENT

FABRIC

COTTON YARN

Standards

GB/T 3923.1 determination of breaking strength and elongation at break (strip method)

GB/T 3923.2 determination of fracture strength (scratch sample method)

GB/T 3917.2 trouser specimen (single seam) -- determination of tear strength

GB/T 19976 -- determination of bursting strength -- steel ball method

ISO 13934.1 determination of breaking strength and elongation at break by strip method

ISO 13934.2 determination of fracture strength by scratch method

ISO 13935.1 determination of thread strength by spline method

ISO 13935.2 determination of thread strength by scratch method

ASTM D5035 standard test method for breaking strength and elongation at break (strip method)

ASTM D2261 method for determination of tear strength of fabrics

Key Parameters

Model	M002C
Max. Capacity	500N 2500N 5000N
Effective stroke	600mm
Test Method	CRE Principle (Constant Rate of Elongation), microcomputer control, liquid crystal Chinese display, support of online communication
Test force range	Full stroke 1% ~ 100%
Force Accuracy	≤+/-0.2% F· S
Stretch speed	0.1~500mm/min
Max elongation	600mm

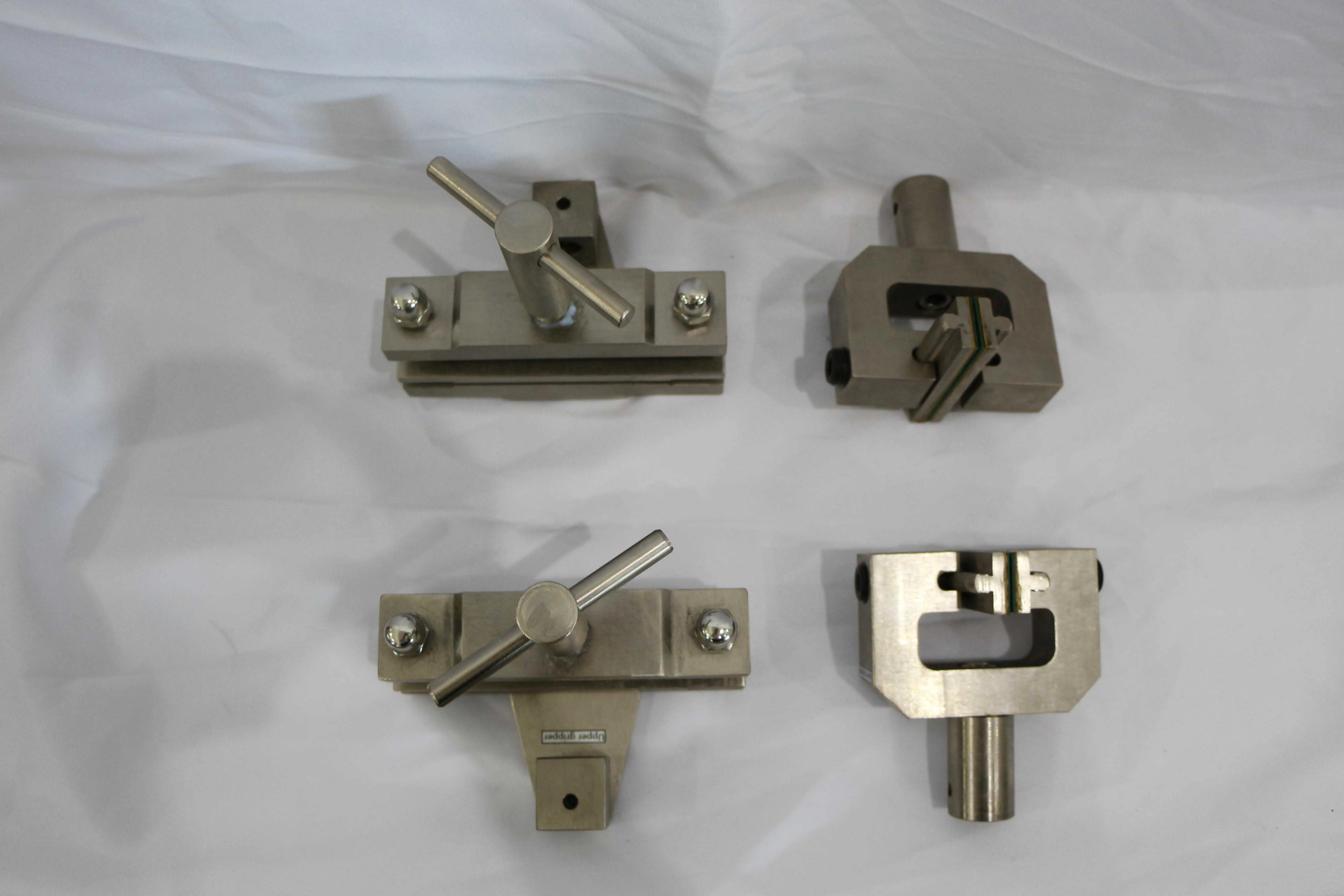

Sample clamp mode	Manual clamp
Power Supply	AC 220V 50/60HZ 200W
Dimensions(WxDxH)	670 x 480 x 1440 mm
Weight	120kg

Product Details

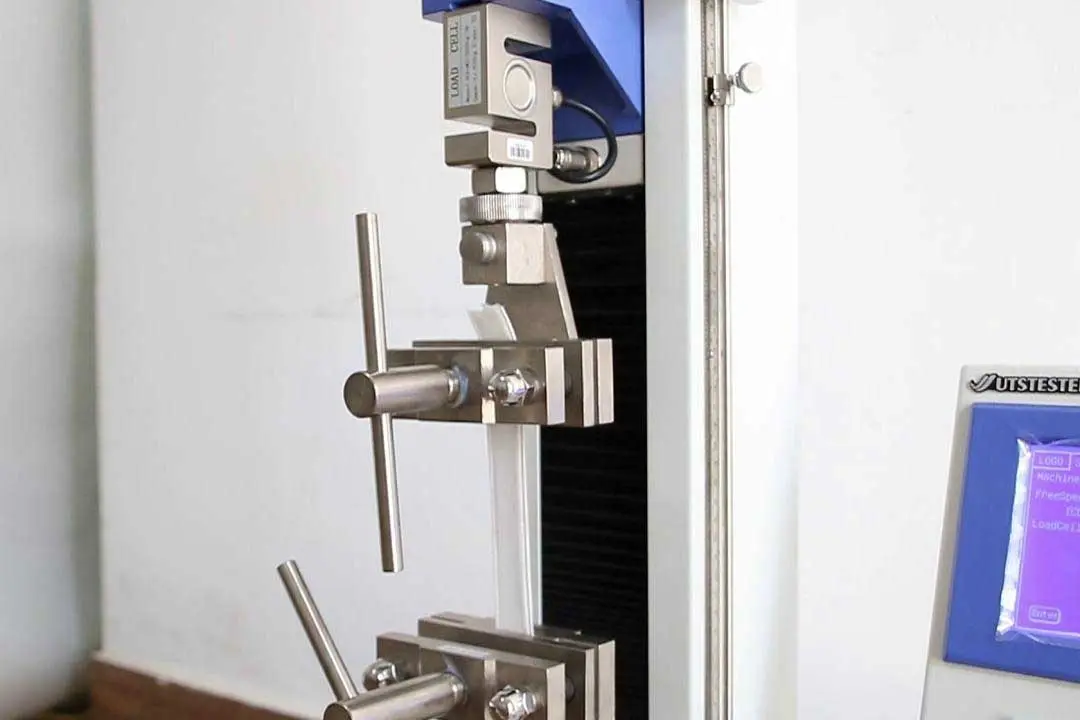

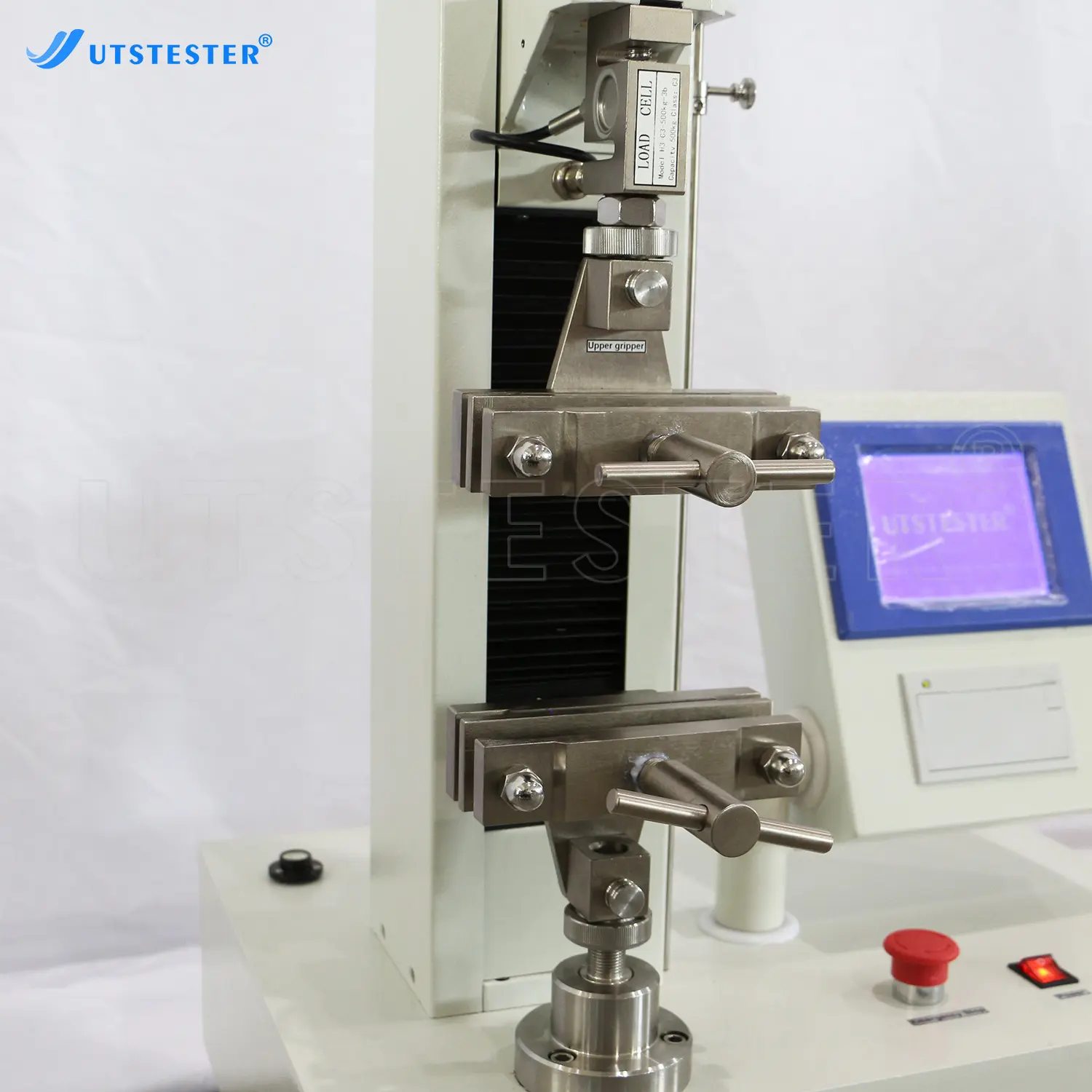

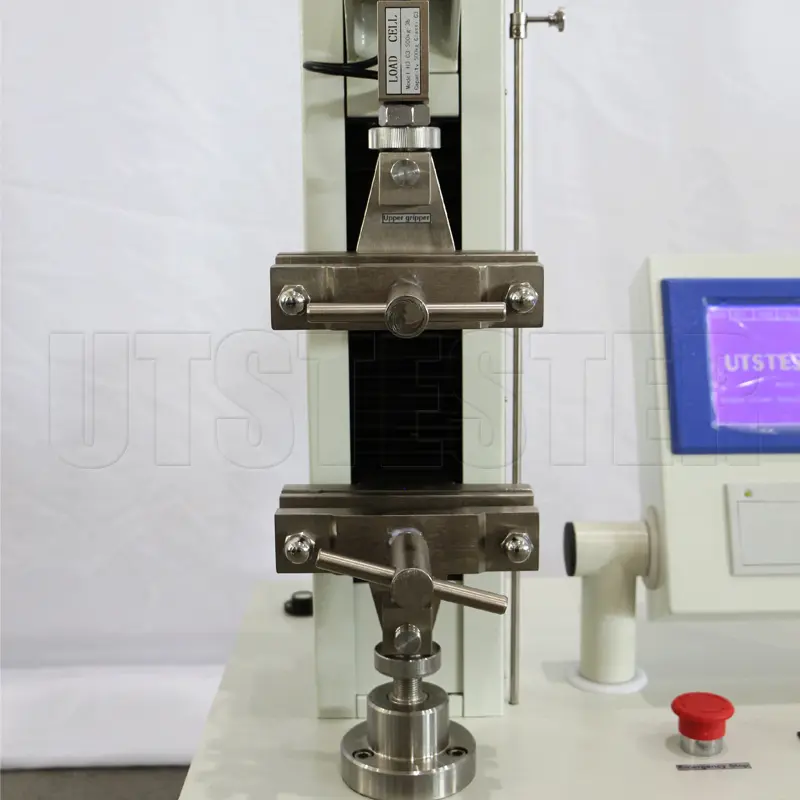

Load Cell

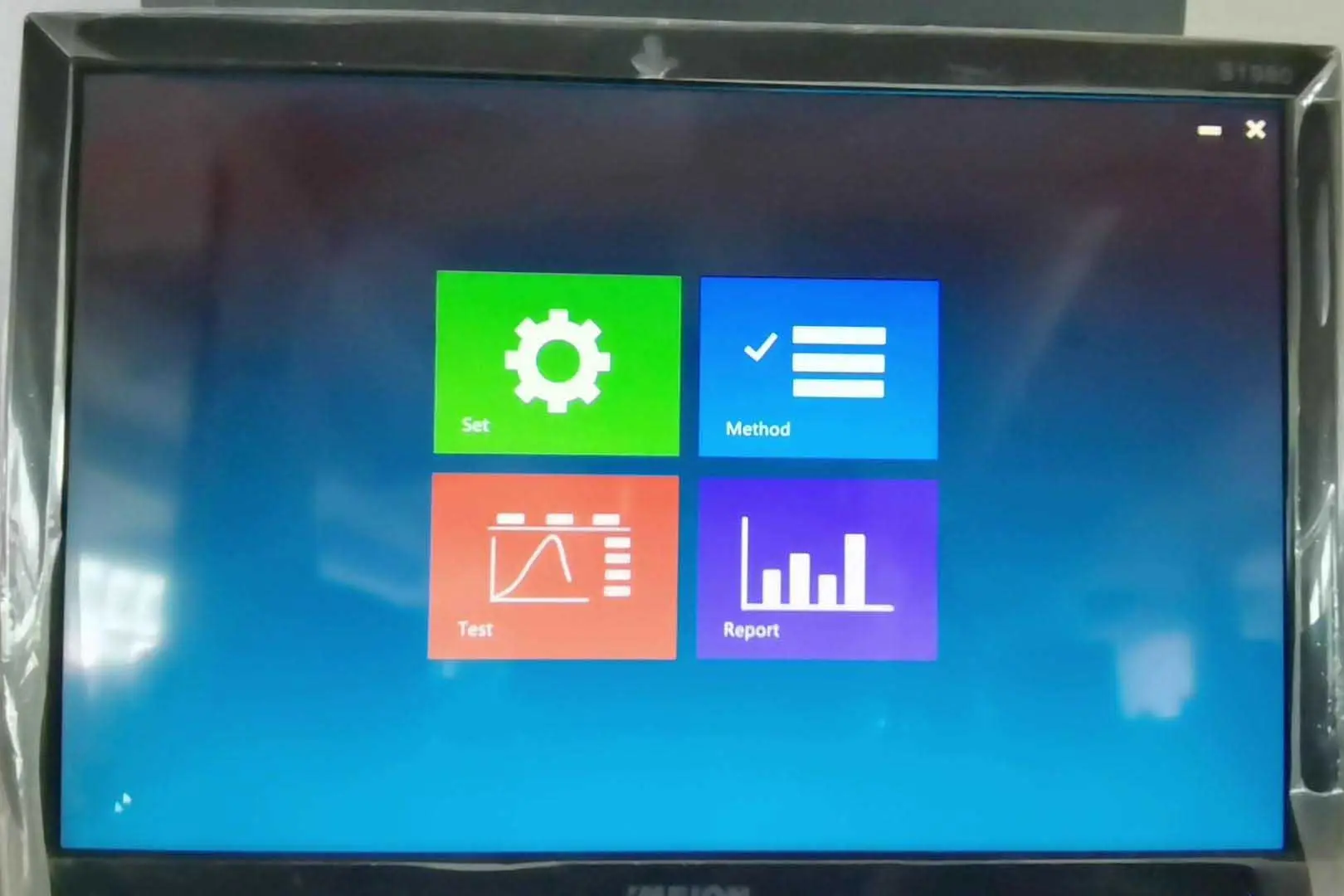

M002C 强力机操作视频[00-06-20][20241119-135327474]

Control panel

Extensometer

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
