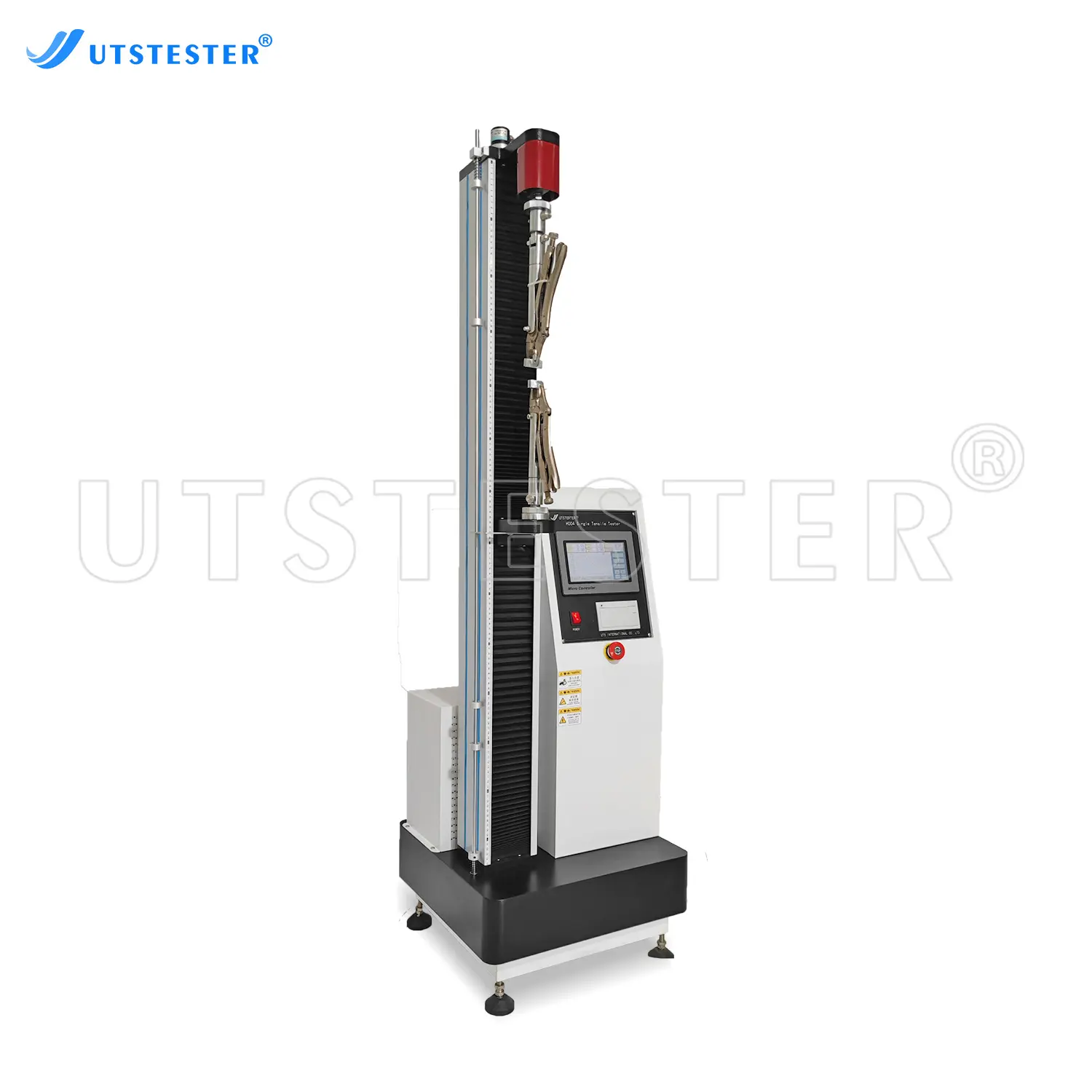

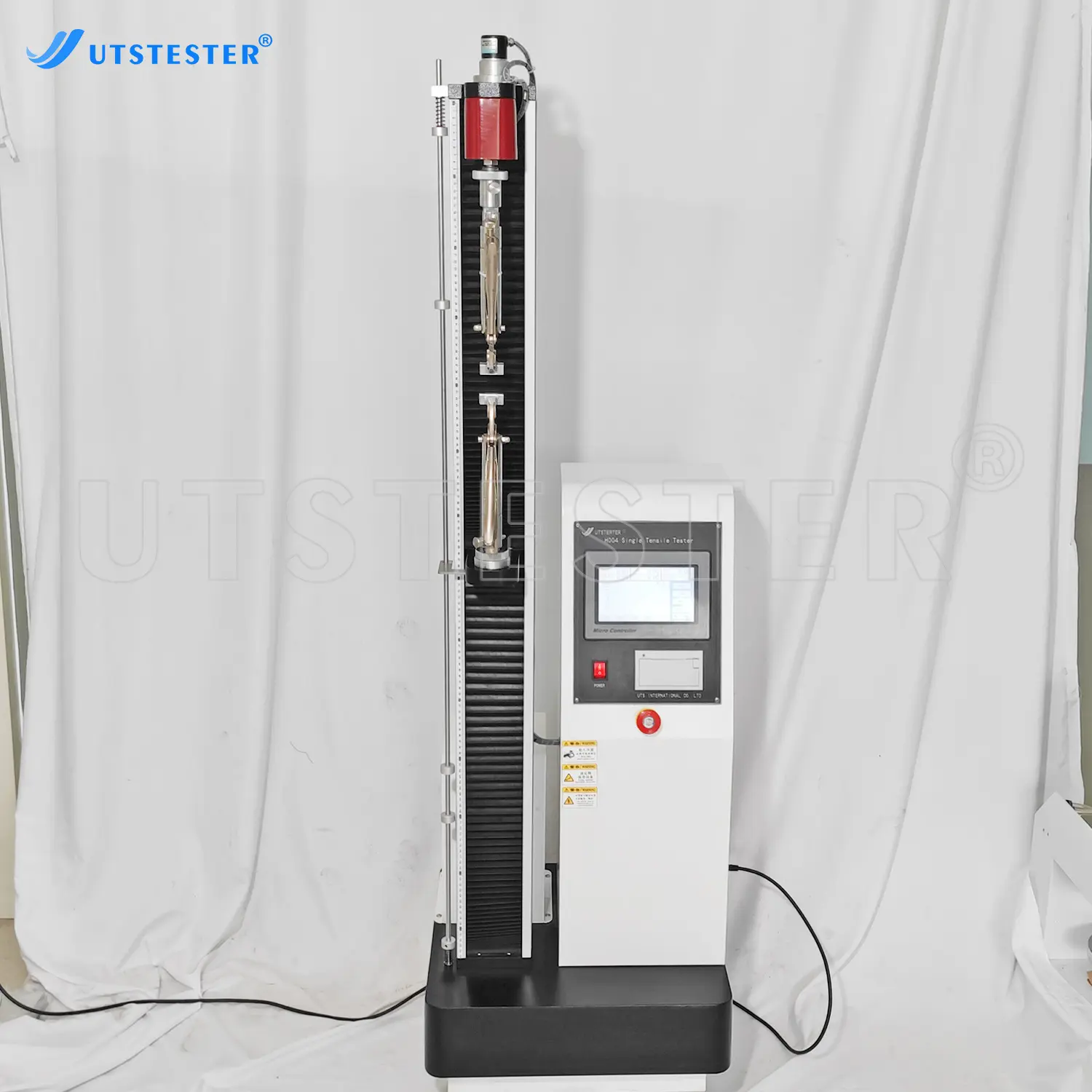

Universal Testing Machine Tensile Testing Machine Micro-Computer Tensile Test Machine H004A
Textile Testing Equipment

Universal Testing Machine Tensile Testing Machine Micro-Computer Tensile Test Machine H004A

1. It has mechanical beam limit protection function to prevent misoperation and damage the machine and power sensor
2. Have fixed report format, able to choose the qualitative test report for output and print
3. Have the function of automatic return, automatic identification after sample fracture, and movable clamps return in high speed and stop at limit position.
4. With automatic reset function, when main controller receives starting testing command, measuring system automatic reset.
5. Multiple sample feature data is available to add the average way, implement a set of sample analysis and comparison.
6. The potential control of motor speed, can quickly control, implement a variety of fixture positioning function of displacement.

    Overview

    This tensile tester has wide function with different clamps equipped to test tensile strength, elongation, tear, adhesion, tensile stress, stripping, shear force, bonding force between rubber and metal, etc.
    Applicable for leather, wood, shoe sole, tire, rubber tube, triangle tape, plastic sheeting, plastic sheet, packaging film, acrylic, FRP,ABS, EVA, PV, etc.

    Application

    企业微信截图_1733797596286

    leather

    企业微信截图_17337976467512

    rubber tube

    企业微信截图_17337991772920

    wood

    企业微信截图_17337992083765

    shoe sole

    企业微信截图_17337993382693

     acrylic

    Standards

    DIN 53512-2000, ADIDAS CE-12, DIN53573,GB/T 168

    Key Parameters



    Model

    H004A

    Max. Capacity

    100kg, 200kg,500kg

    Test Speed

    5 ~ 500 mm/min(Adjustable)

    Force Resolution

    1/10000

    Unit

    Kgf, lbf, N

    Load accuracy

    ± 1%

    Effective stroke

    800 mm

    Motor

    AC Frequency conversion motor

    Sensing method

    LOAD CELL Force sensor

    Speed input method

    Adjustable potentiometer knob adjustment

    Displayer

    Display test value, maximum value, and average value

    Power Supply

    AC 220V 50/60HZ 10A

    Dimensions

    50*50*170cm

    Weight

    121kg

    Product Details

    IMG_20211106_155020

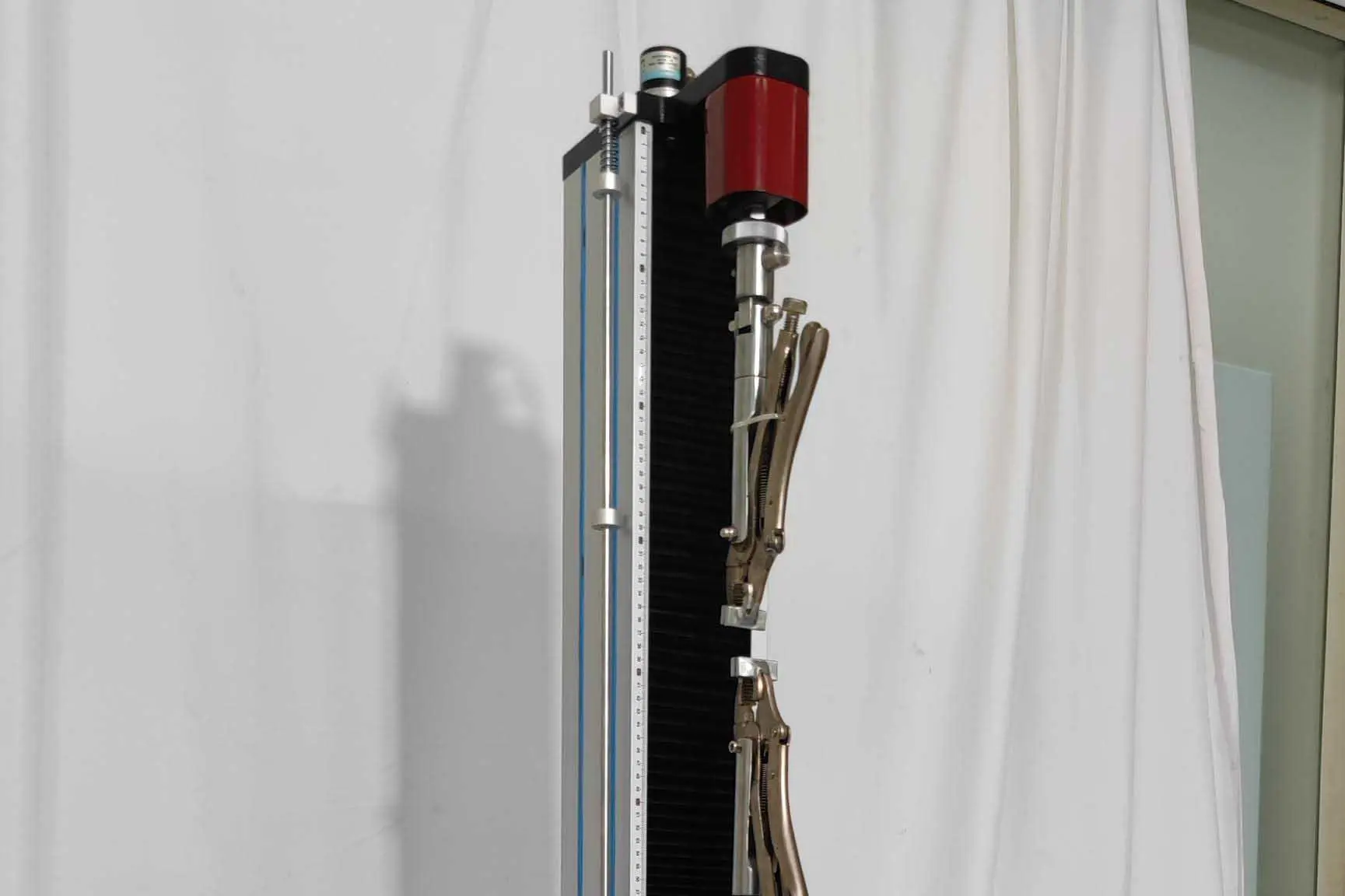

    Mechanical beam

    IMG_20200723_173245

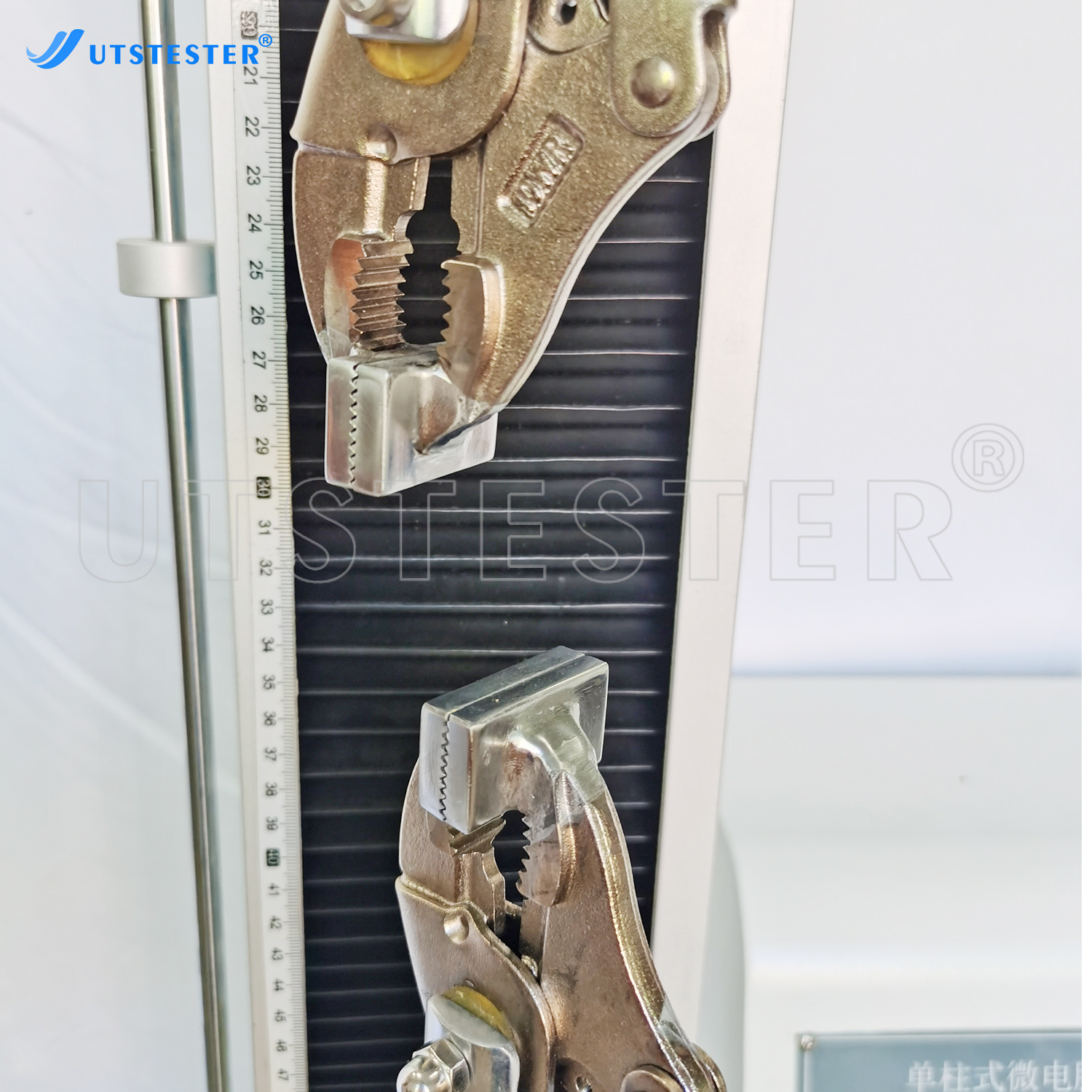

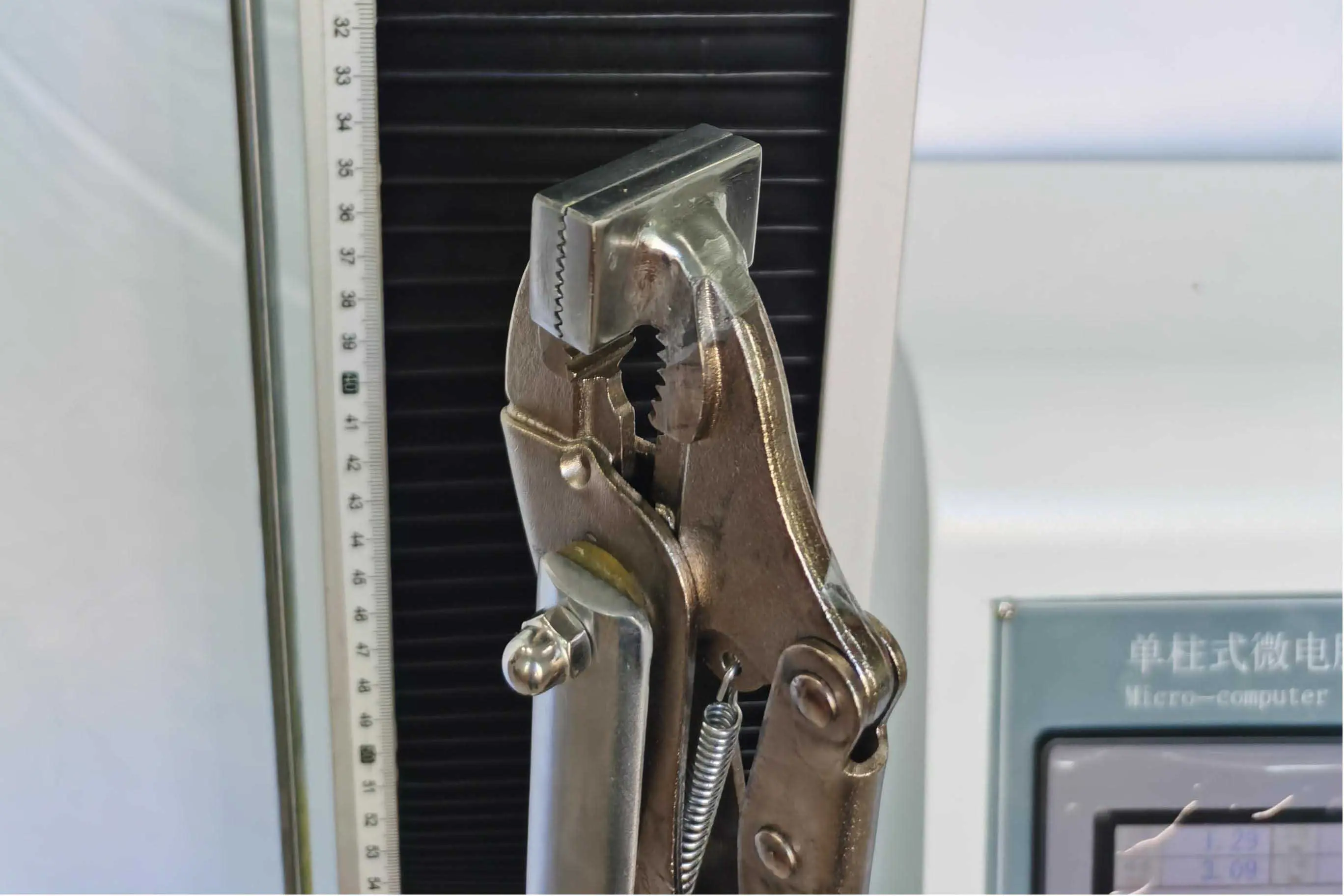

    Fixture

    H004[00-01-17][20240422-163839130]

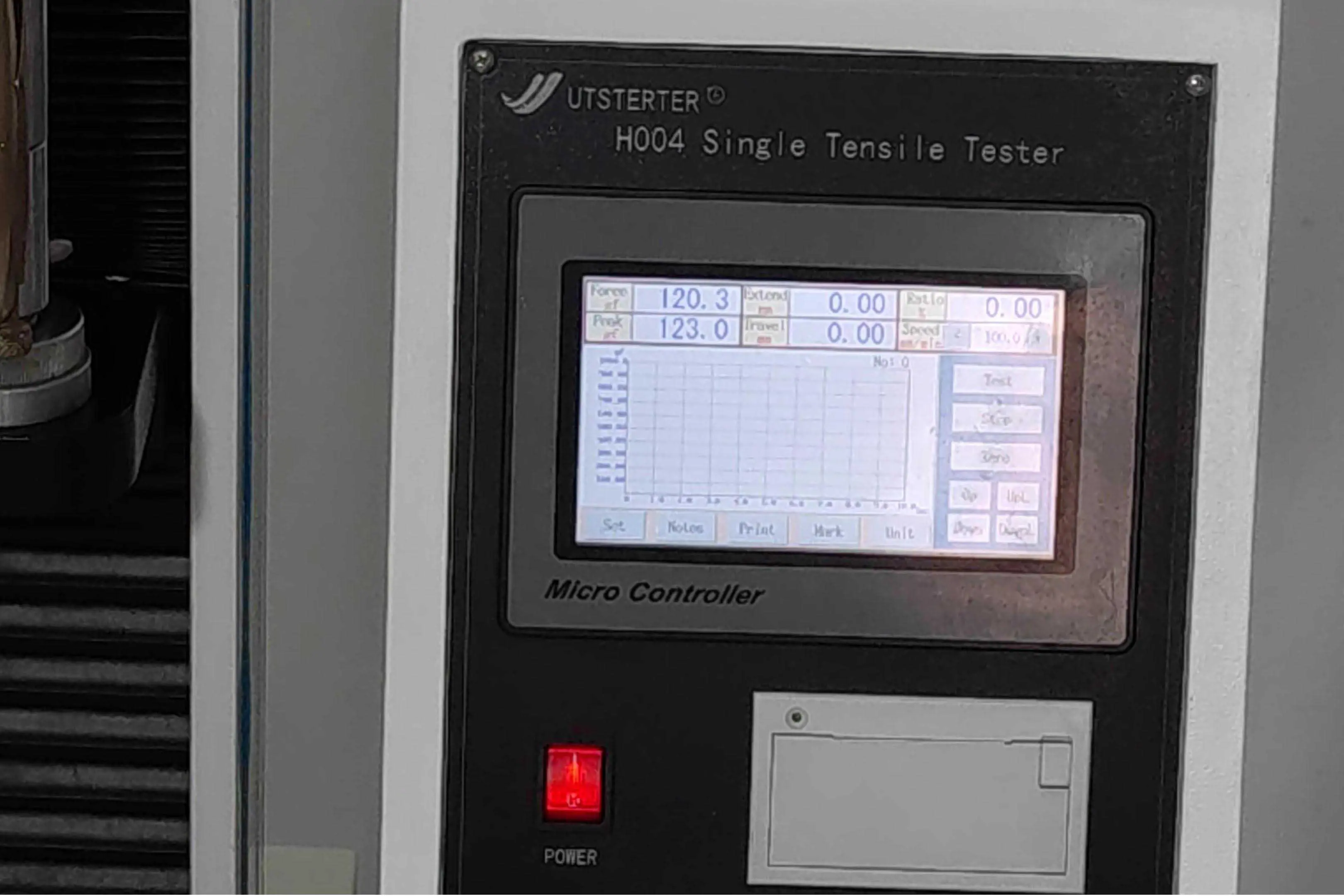

    Operation Display

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

    Transportation

    image071evh

    Packing System

    1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
    2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
    3. Packing materials selected accorded with economic and safety requirements
    4. Compliance with environmental requirements.

    For Metal Box Package

    image07470y
    image075gi2

    For Carton Package

    image078n3e
    image07703l
    image079bsv

    For Wooden Case

    image082szo
    image0800r6
