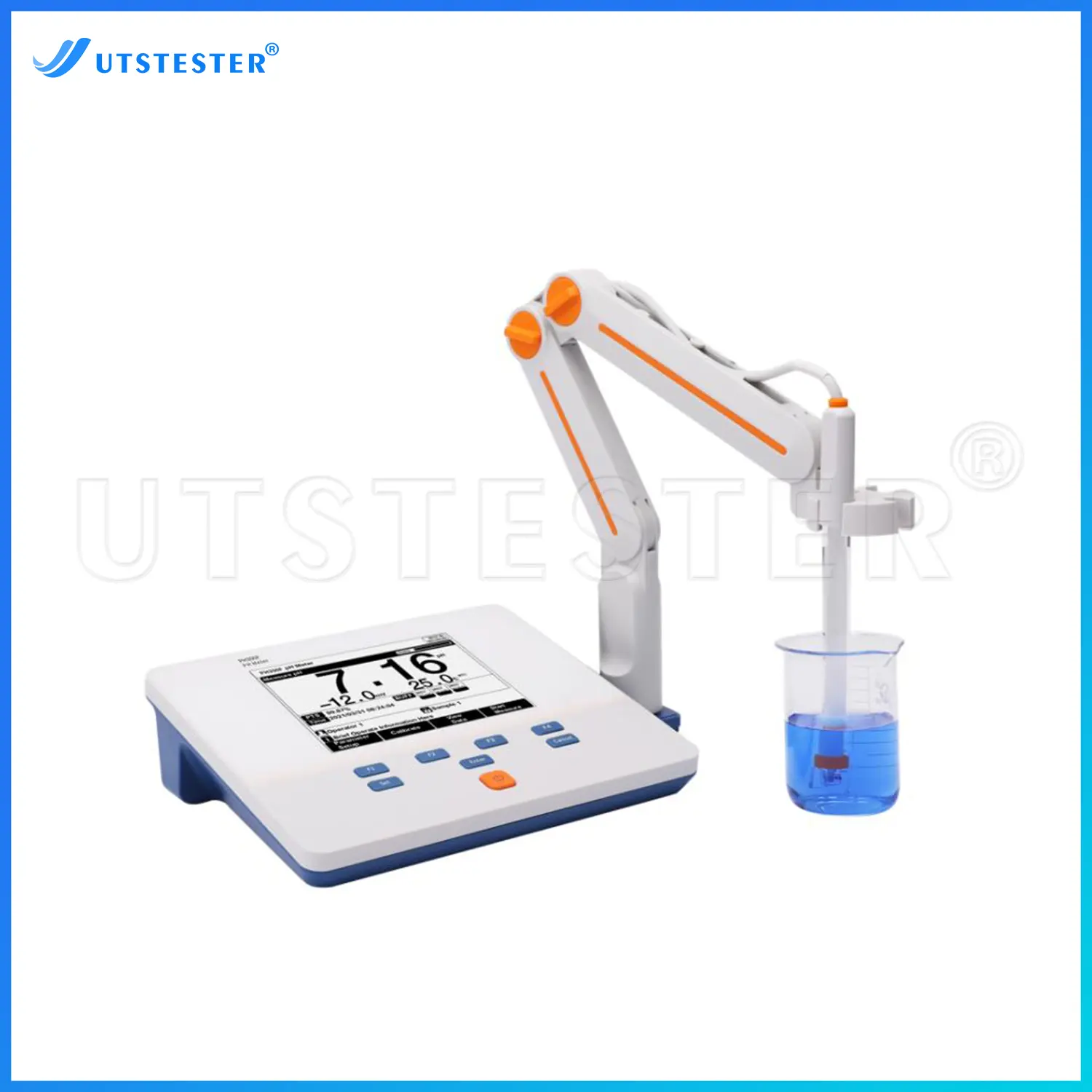

UTS-M70-pH300F pH Meter Benchtop pH Meter

1.Multi-reading feature allows auto-read, timed-read and continuous-read.
2.Automatic/Manual temperature compensation ensures accurate results.
3.Auto-hold feature senses and locks the measurement endpoint.
4.Data Storage 500 sets (GLP-compliant).
5.Support for USB or RS-232 communication.
6.IP54 waterproof.
7.1-5 points calibration with Standard Recognition.
8.Selectable pH buffer groups, including NIST, DIN, GB，USA，MERK
9.Automatic electrode diagnosis with pH slope and offset display.

product details

Production Processes

Packing System

Overview

A laboratory instrument used to measure the pH value and mV value of liquids, one of the three major types of acidity meters.

Application

Textile and clothing

Standards

Key Parameters

Parameters		pH/Temp.(mV)
pH	Range	-2.00 to 20.00pH
	Resolution	0.1, 0.01 pH
	Accuracy	±0.01 pH
	Calibration Points	Up to 5
	Standard Customization	Yes
	Standard Recognition	NIST, GB and DIN buffers
mV	Range	-2000.0 to 2000.0 mV
	Resolution	0.1 mV
	Accuracy	±0.3 mV or ±0.1%
Temperature	Range	-5 to 110 ºC, 23 to 230 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Accuracy	±0.2
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	500 results each
Data management	GLP Features	Yes
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC
Outputs	RS 232	printer
Display options	Backlight	Yes
	Auto Shutdown	1~60 min, off
	Date and Time	Yes
General	Power	AC Adapter, 100-240V AC input, DC9V output
General	Dimensions，Weight—Carton	370310340mm,3kg

Product Details

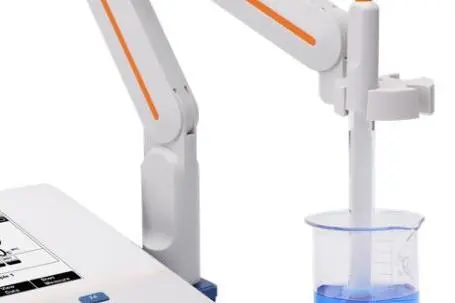

Sample test area

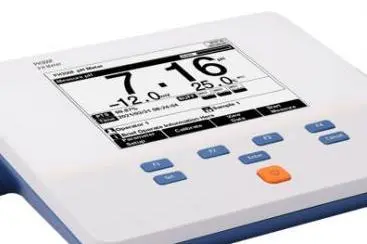

Control Panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
