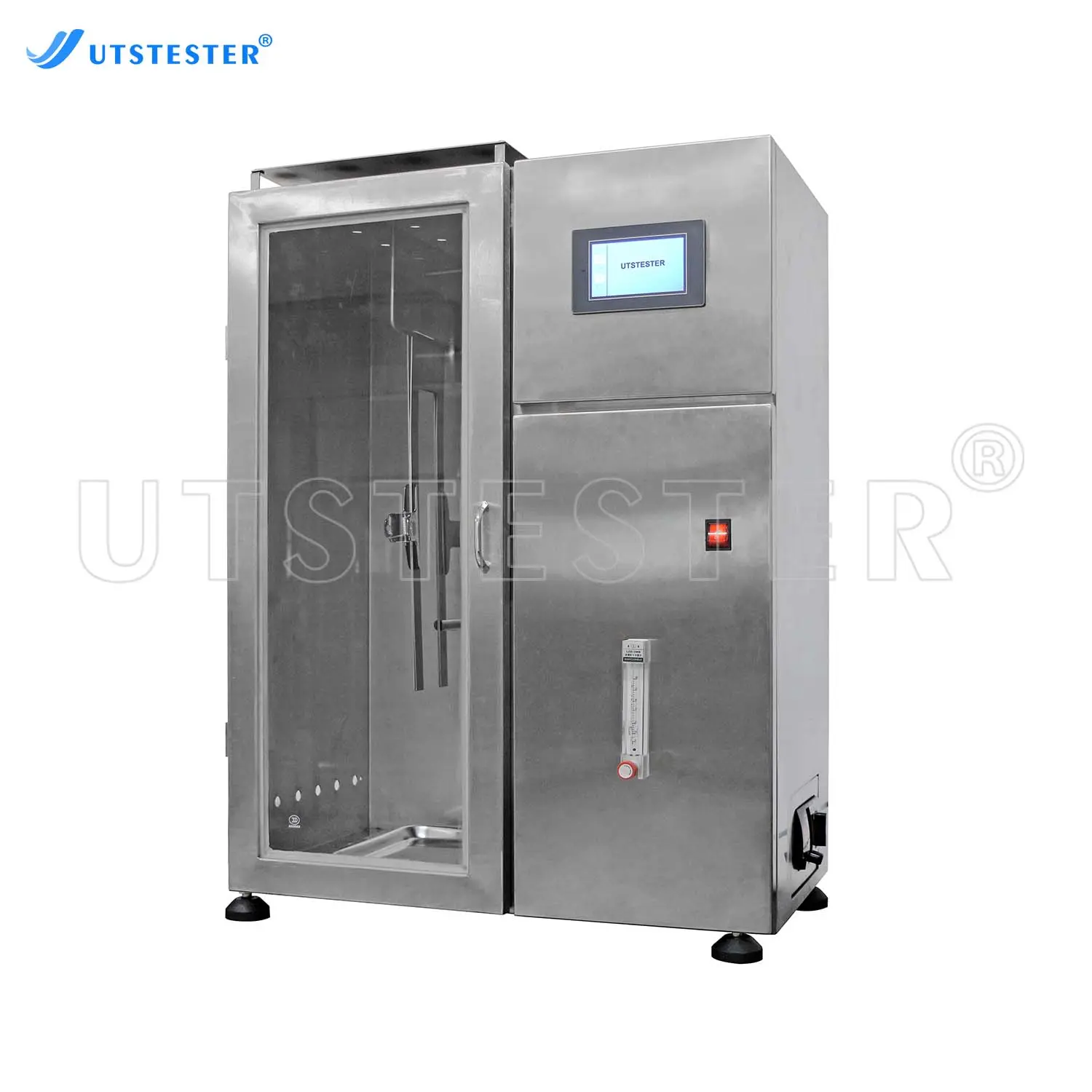

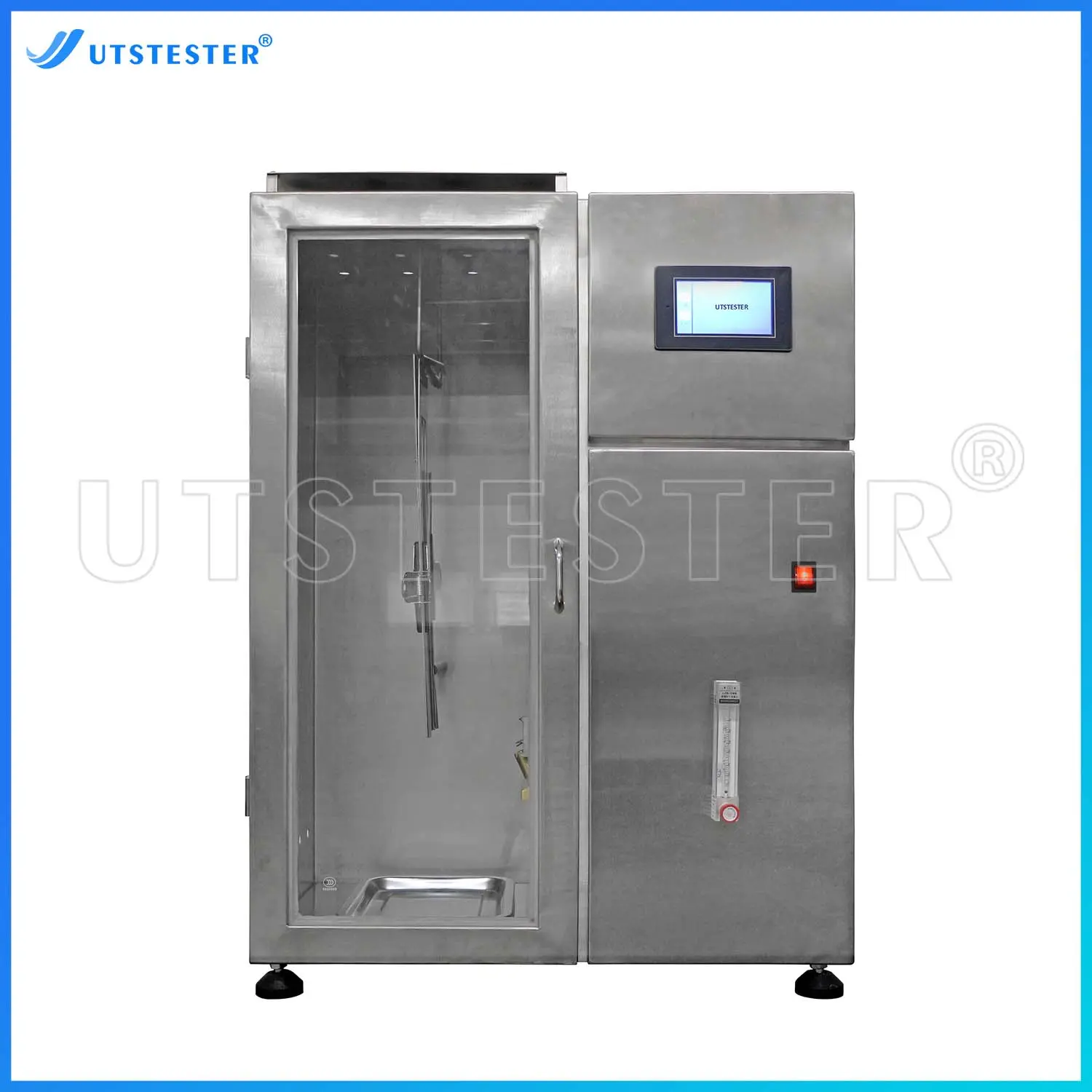

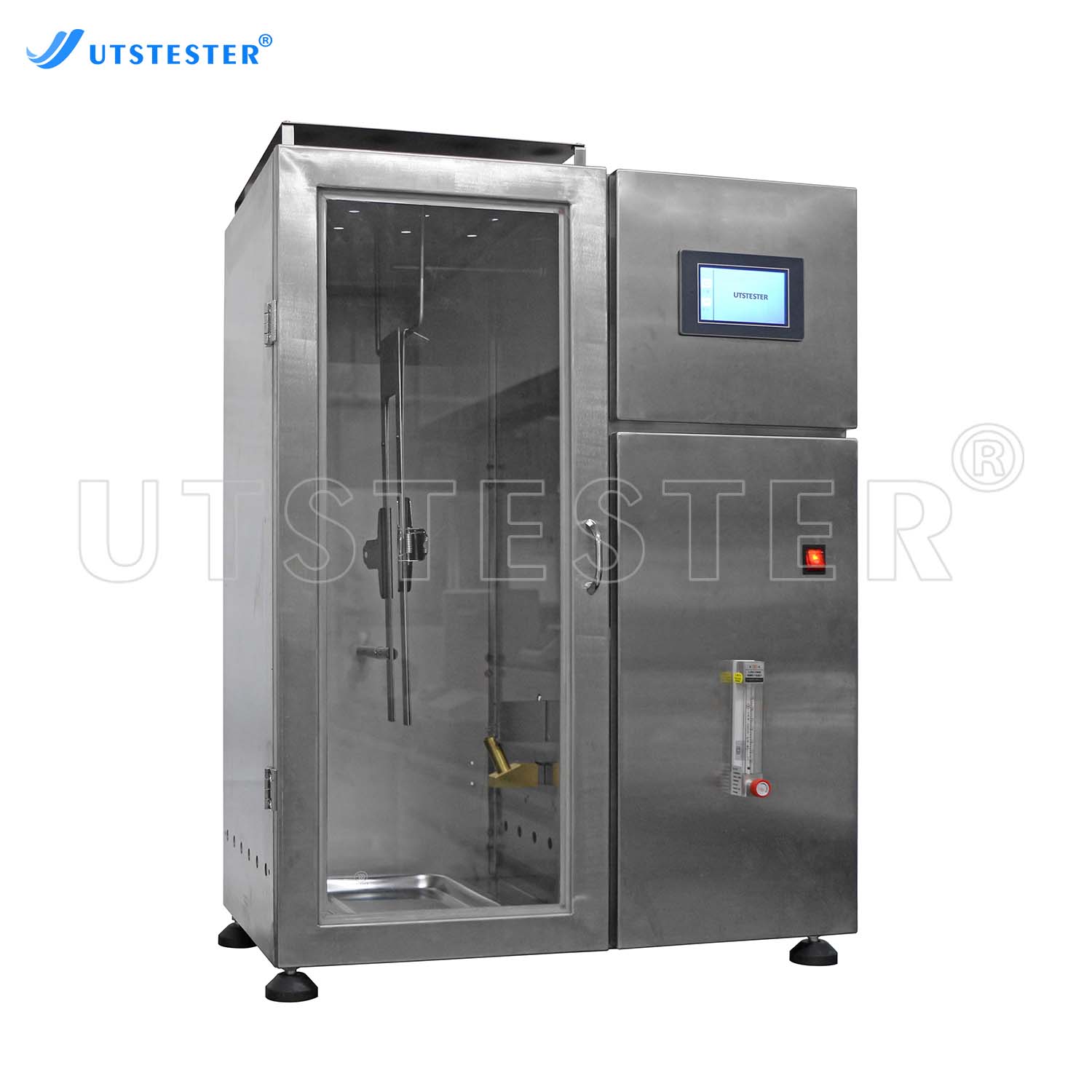

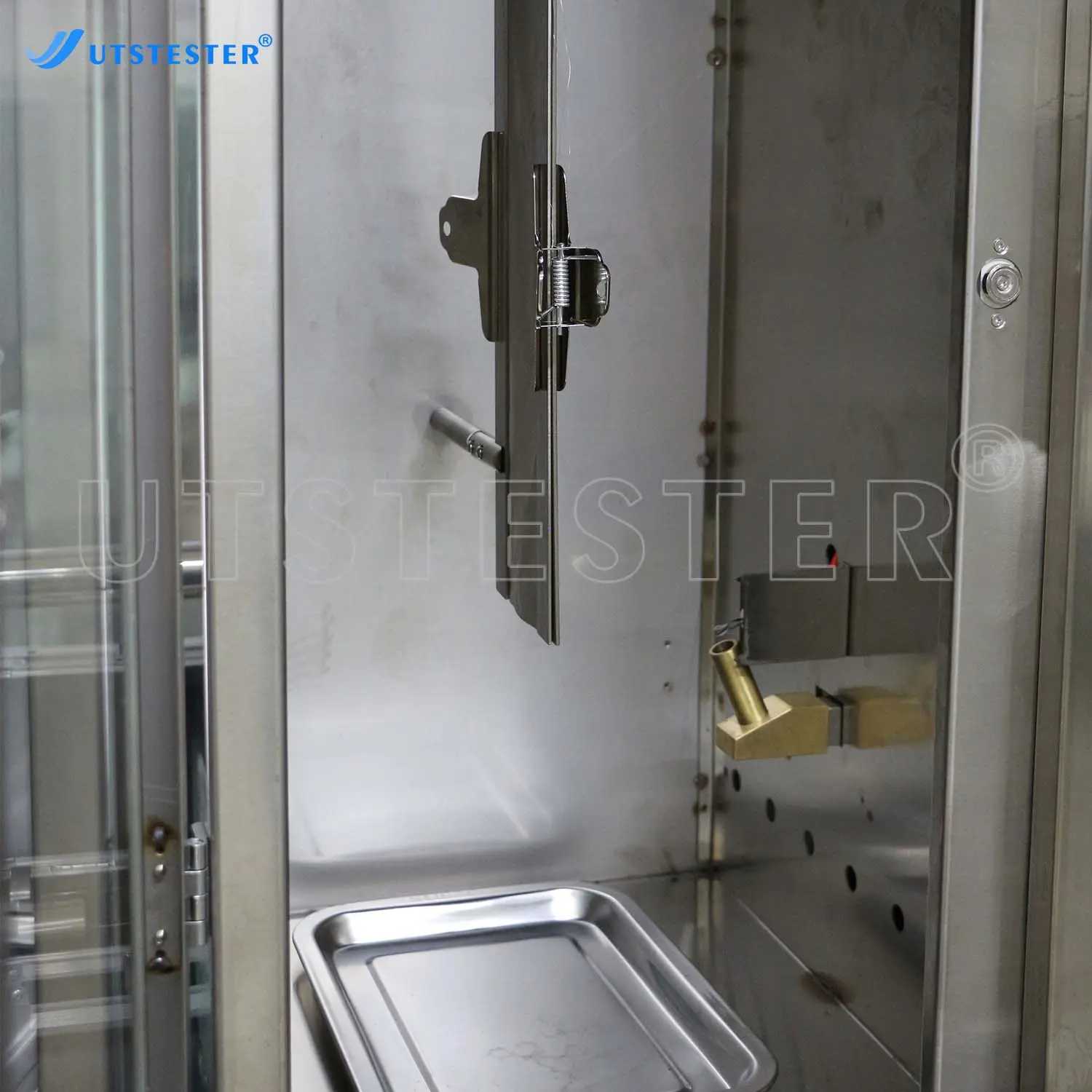

Vertical Flammability Chamber Tester for Textile Testing Machine in Laboratories M017AN

Mount sample into the fixture and hang on vertically inside test chamber. Burn the underneath of sample with specified height of flame for a certain of time, record the time of afterflame and smoldering, damaged length, so as to assess its flammability property.

product details

Production Processes

Packing System

Overview

Fabric flame retardant performance tester is suitable for flame retardant requirements of woven fabrics, knitted fabrics, coated products, laminated products and other vertical direction of the combustion performance measurement.

Application

Curtain

Large tents

Single-layer

Woolen textile

Standards

BS EN ISO 6940,EN ISO 6941

Key Parameters

Model		M017AN-1	M017AN-2	M017AN-3
Standard		CFR1615, CFR1616, GB/T 5455.	ASTM D6413	CALIF TB-117
Heavy hammer		54.5g,113.4g, 226.8g, 340.2g, 453.6g	100g, 200g, 300g, 475g	None
Nozzle	Inner orifice diameter	11mm	10mm
	Angle	25 degree	90 degree
Size of sample holder	Out frame	422x89mm x 2mm	442x76x12.5mm	Flexible foam holder
	Inner frame	356 x 51mm
Afterflame counter		0.1-999.9s, Resolution 0.1s
Smoldering counter		0.1-999.9s, Resolution 0.1s
Flame burning time		12s(adjustable)
Sample quantity		Long side parallels to the warp-wise, broadwise, 5 pcs for each direction
Chamber material		Imported brushed stainless steel plate
Burning flame height		40±2mm
Burning gas		Propane or butane; Pressure 17.2± 1.7kpa Pressure can be adjusted
Power supply		1∮ AC 220V 50Hz 100W
Interior test chamber size		329×329×767±2mm(L×W×H)
Dimension(W x D x H)		630×400×860mm
Weight		≈30Kg

Product Details

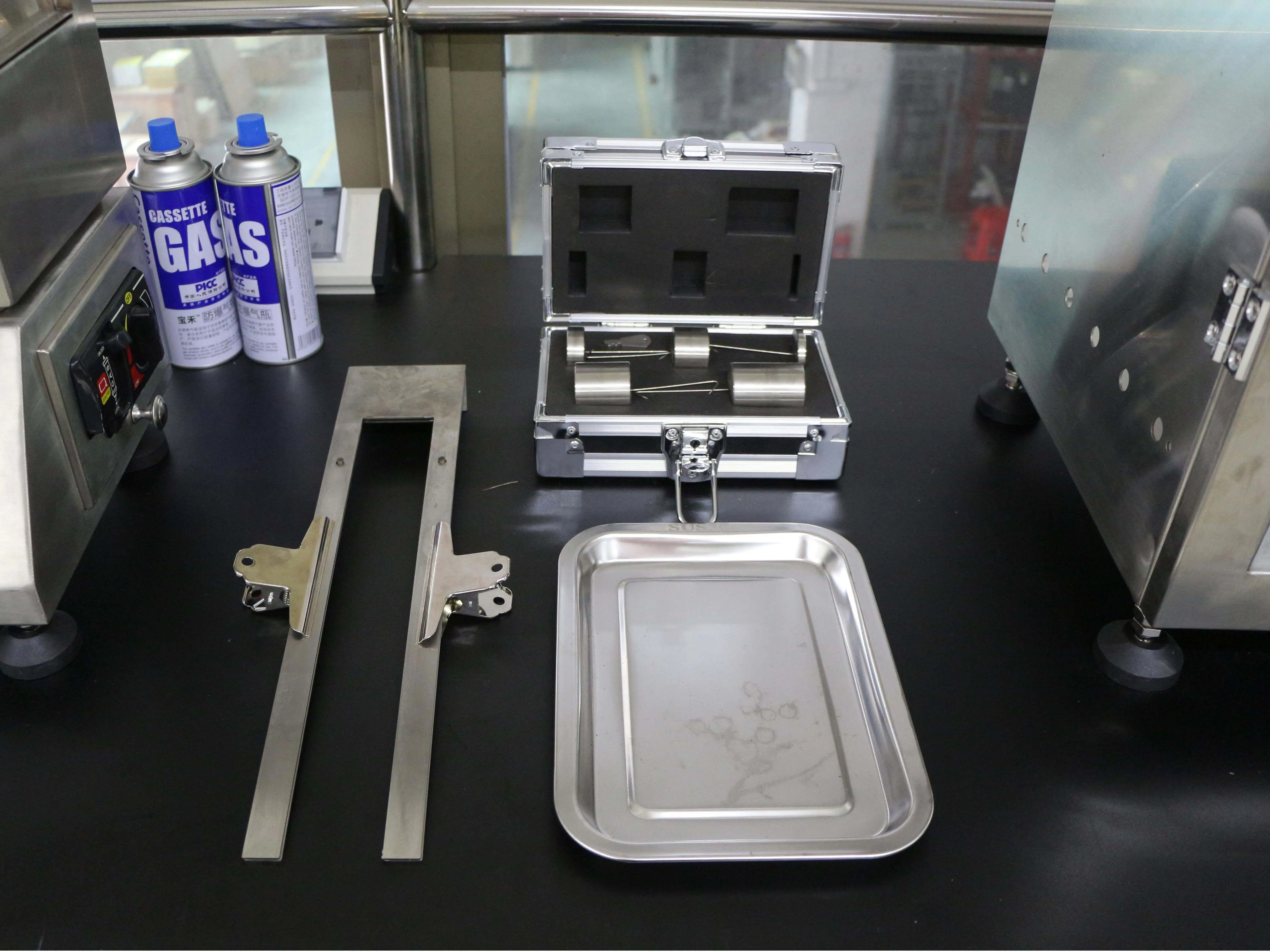

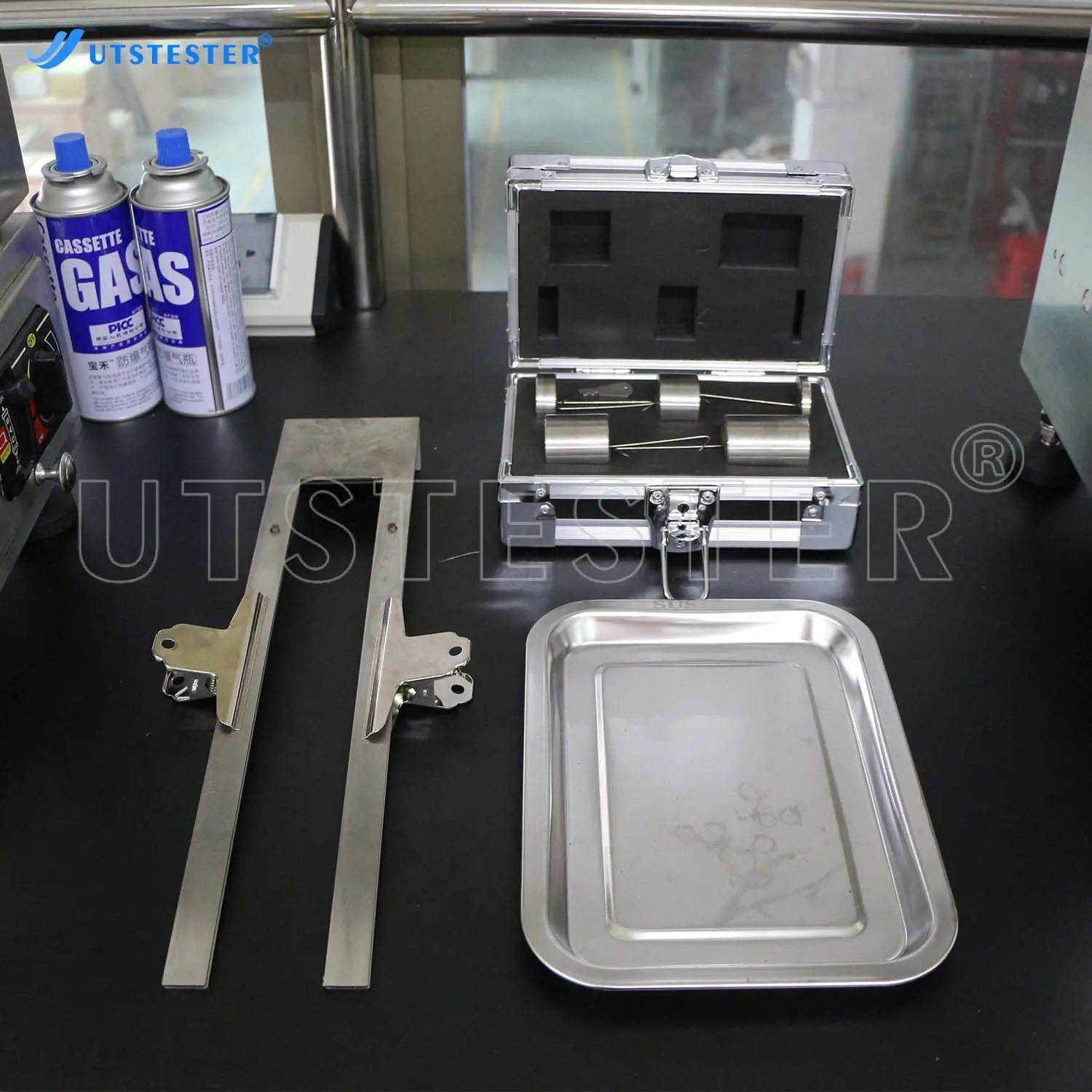

Accessories

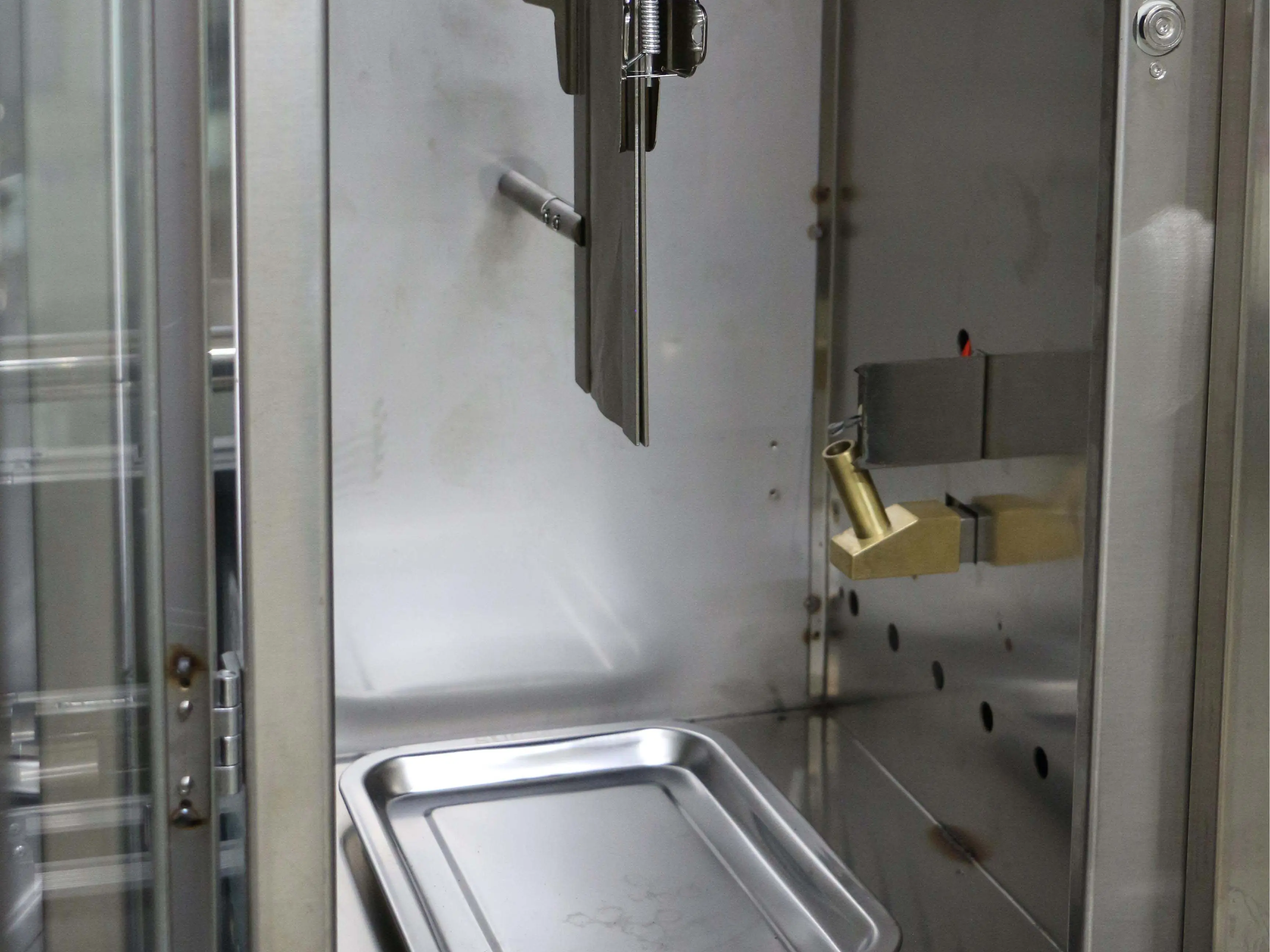

The igniter

M017A Vertical Flammability Chamber (5) - 副本

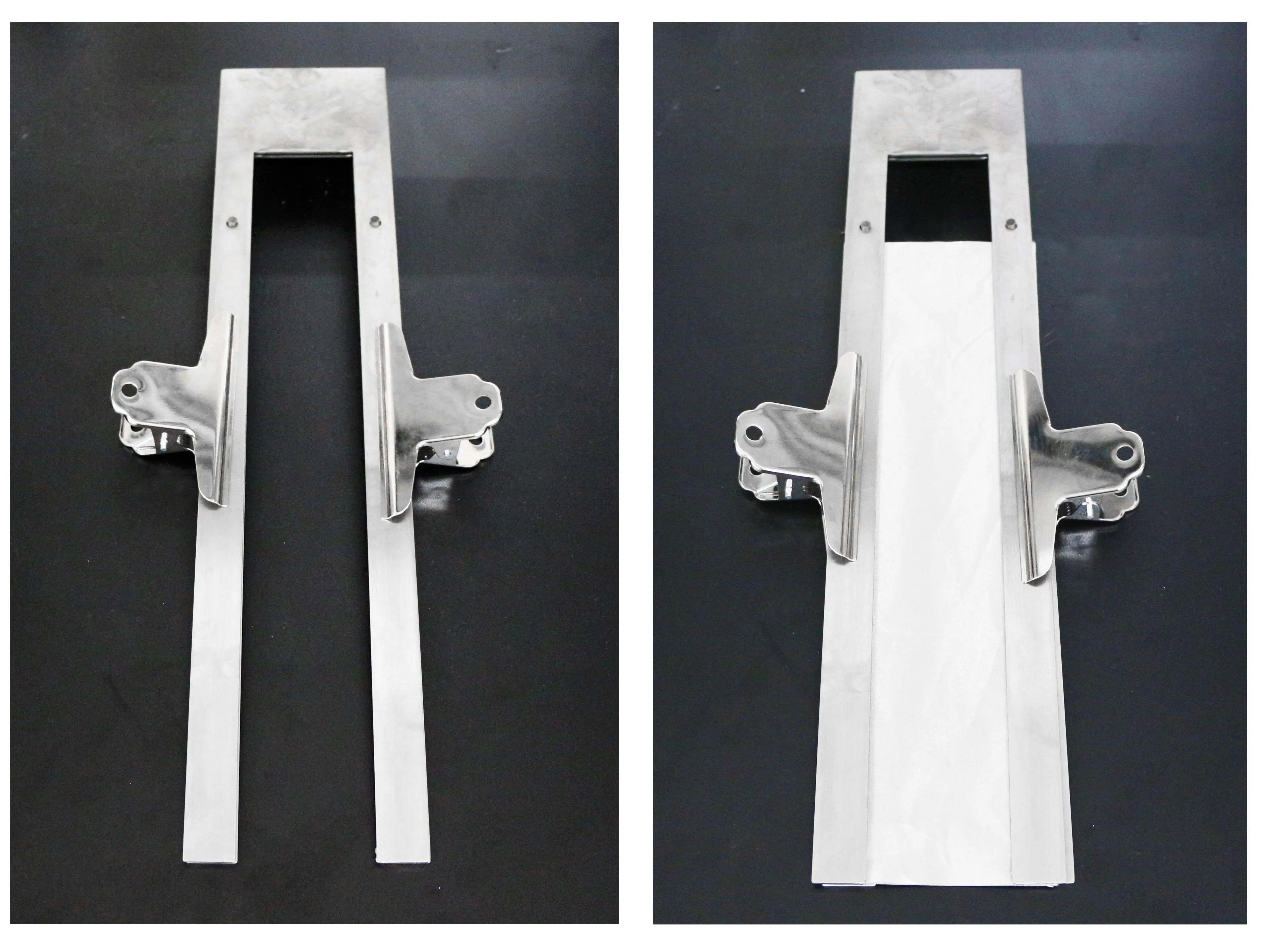

Sample fixture

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
