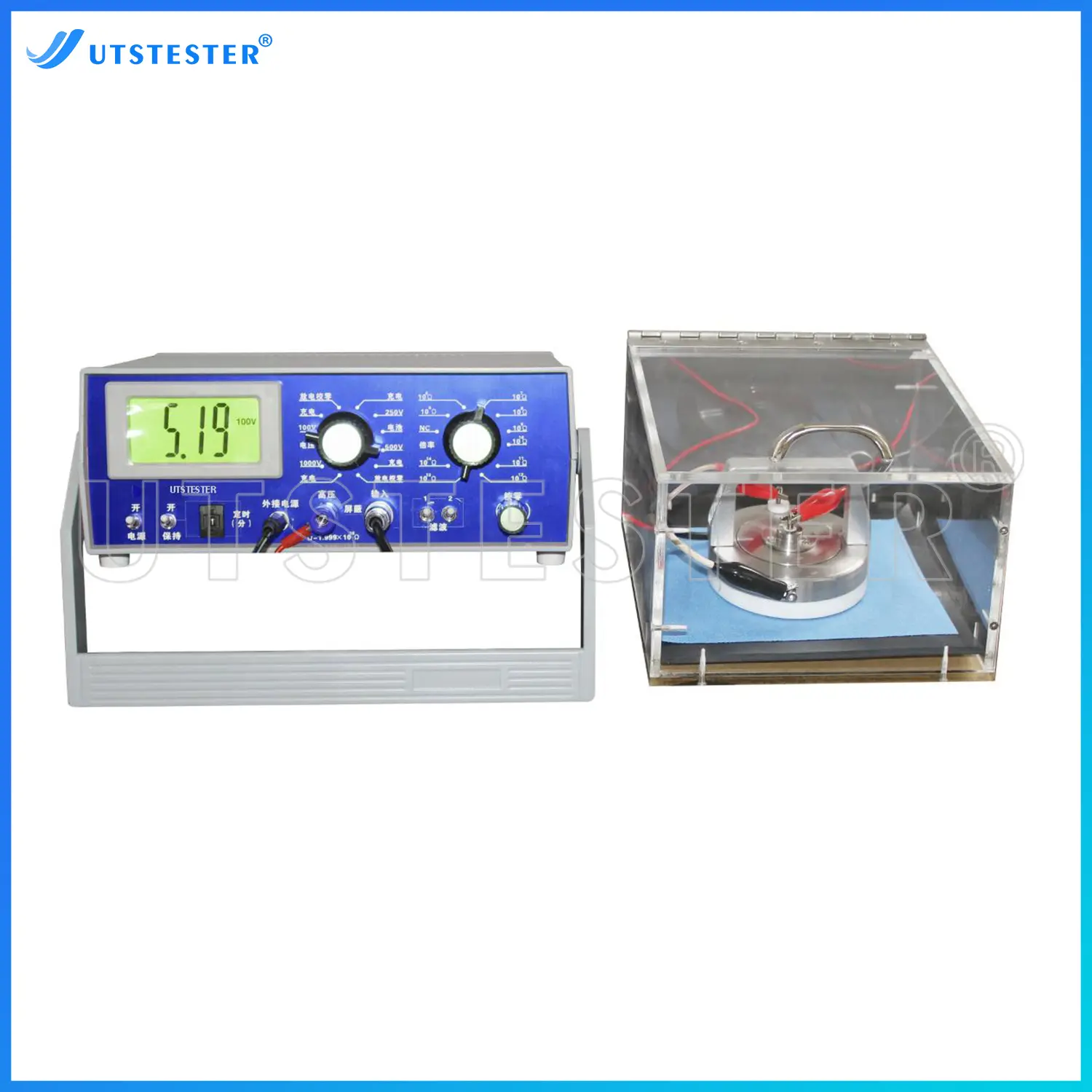

Volume Resistivity and Surface Resistivity Tester for Fabrics M047B

1. It adopts 3 1/2 digit digital display and bridge measurement circuit, with high measurement accuracy, convenient and accurate reading.
2. It has a portable structure, small size, light weight and is easy to use.
3. It has a built-in timer, automatic reading lock and convenient testing.
4. Four output voltages (100V, 250V, 500V, 1000V) are available, suitable for resistance testing of various clothing materials.

product details

Production Processes

Packing System

Overview

This machine is mainly Used to measure the surface resistance of fabrics.

Application

Fabrics

Standards

GB/T12703.4-2010, BS6524, BS EN1149-1-2006, BS EN 1149-2-1997, GB/T22042-2008, GB/T22043-2008, etc.

Key Parameters

Model	M047B
Resistance measurement	0~2×1016 (Ω)
Display	3 1/2 digit large screen with backlight digital display
Measurement timing	1min~7min
Basic error of resistance measurement	As shown in the following table
Resolution	The resistance value corresponding to the minimum value that the instrument display can stably read in each range should be less than or equal to 1/10 of the allowable error of the range
Terminal voltage error	The terminal voltage error of the instrument is not greater than ±3% of the rated value
Terminal voltage ripple content	The root mean square value of the ripple content in the instrument terminal voltage is not greater than 0.3% of the DC componen
Measurement timing error	The measurement timing error of the instrument is not greater than ±5% of the set valu
Power consumption	The built-in battery can work continuously for 30 hours, and the external power supply consumption is less than 60mA
Power supply	Rated voltage (V): DC100V, 250V, 500V, 1000V DC battery 8.5~12.5V AC power supply: AC 220V 50HZ 60mA

Product Details

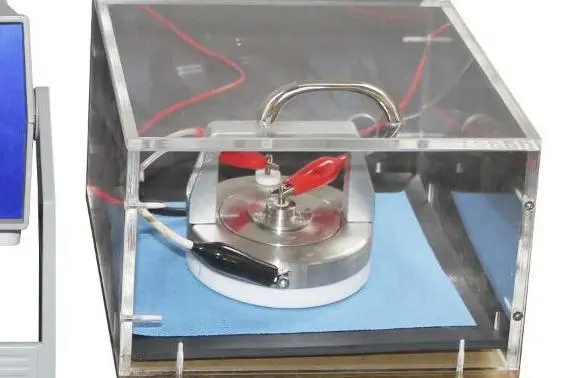

Sample Testing Area

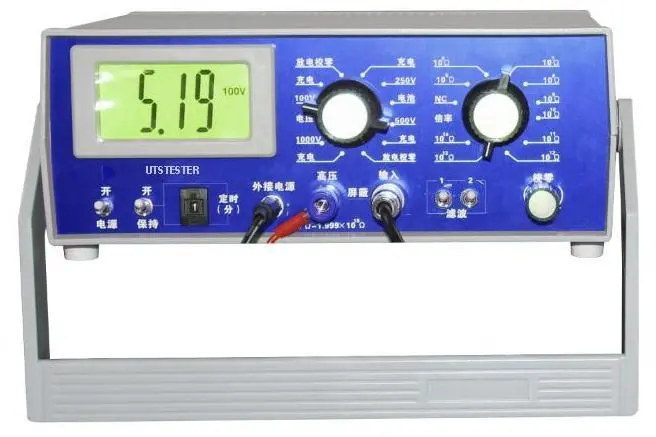

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
