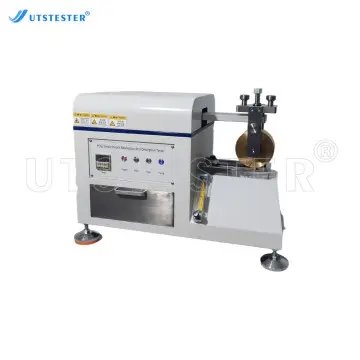

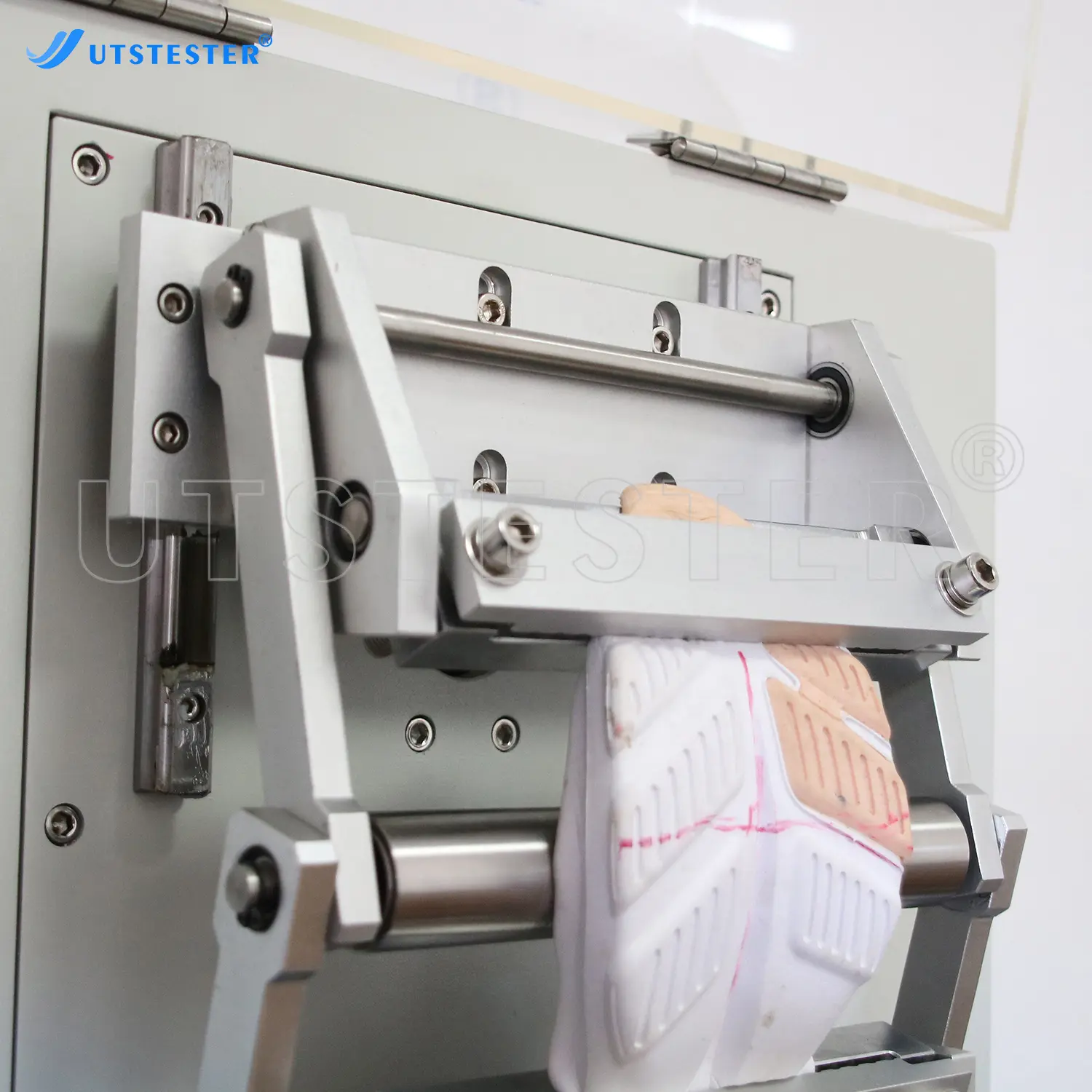

Whole Sole Flexing Machine Shoe Sole Bending Tester ISO 20344 H018
Overview
H018 Whole Sole Flexing Machine, to measure the material's resistance to incision elongation(cut growth) during repeated flexing, especially for outsoles of protective footwear, including soles.
Application
shoes
shoes
shoes
Standards
ISO 17707, SATRA TM161, ISO20344 section8.4.2 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991section8.4.2, QB/T 2885, DIN 53543
Key Parameters
|
Model |
H018-1 |
H018-3
|
|
Test position |
1 |
3 |
|
Clamp interval |
110 ± 1 mm, width 155 mm |
|
|
Flexing shaft diameter |
30 ± 0.1mm |
|
|
Movable grips displacement |
41.5 ± 0.5 mm |
|
|
Speed |
140 r/min |
|
|
Bending angle |
90±2 ° |
|
|
Counting |
LCD, 0-99,999,999 times settable |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions |
40*48*67cm |
85*44*70cm
|
|
Weight |
54kg |
110kg
|

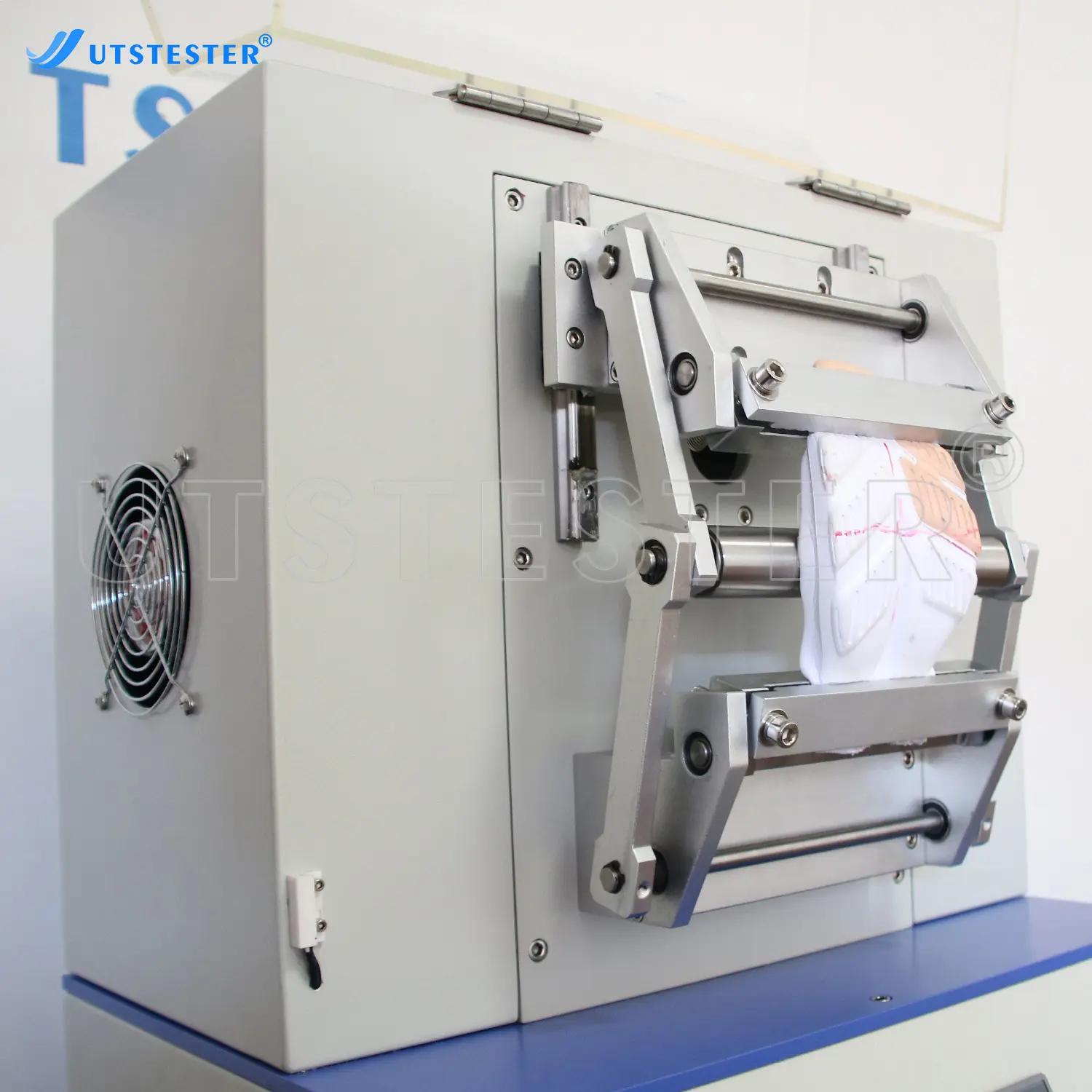

Product Details

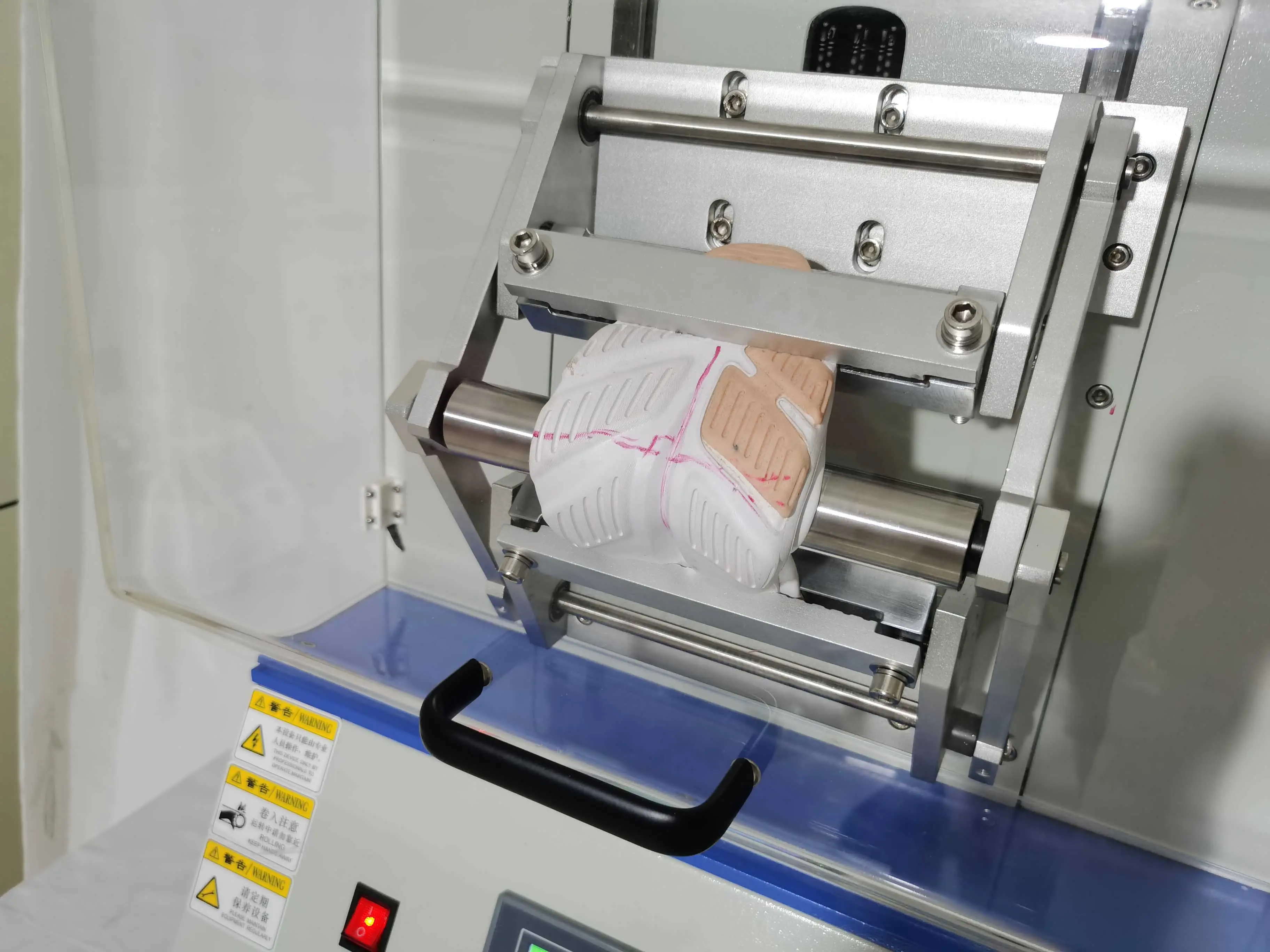

Safety Shield

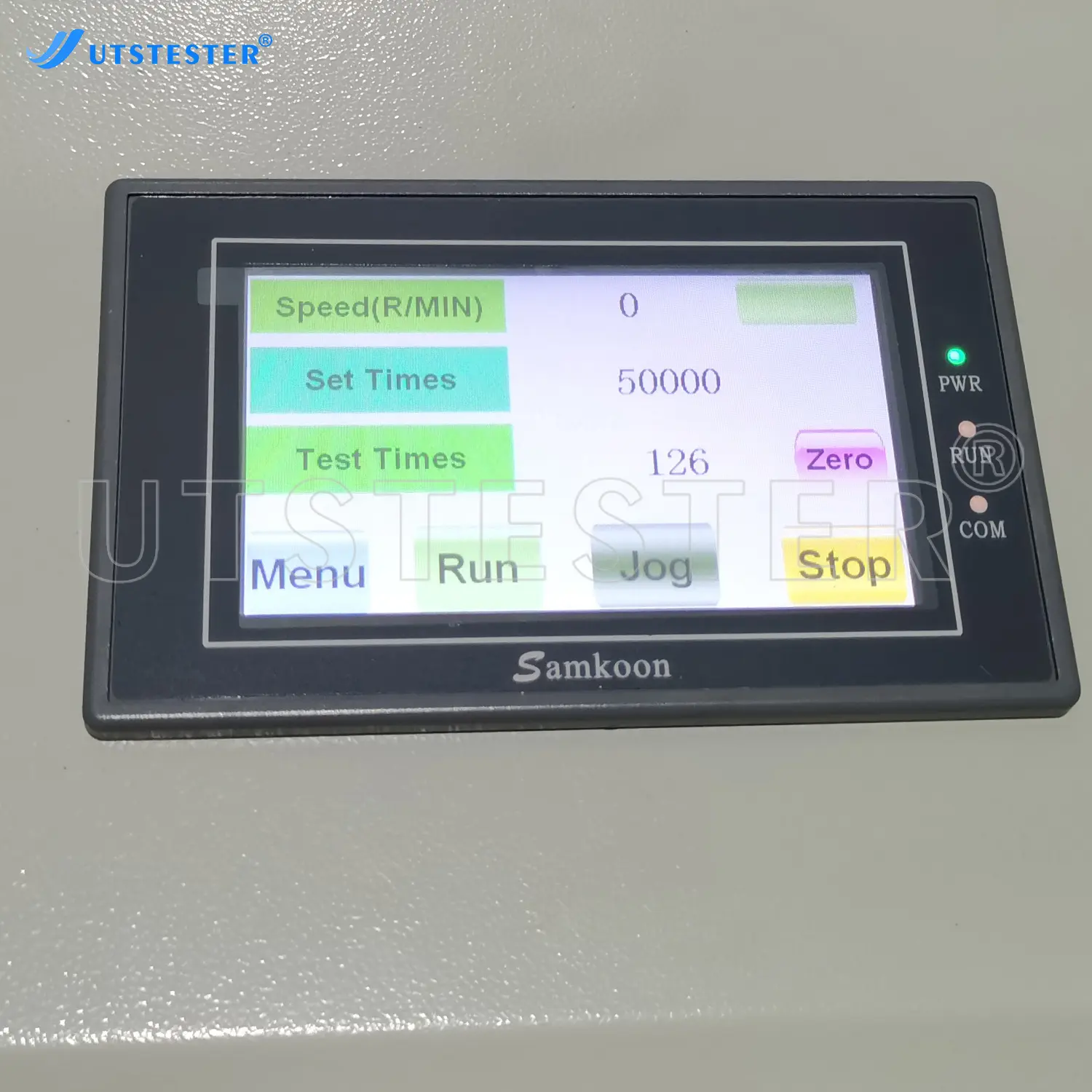

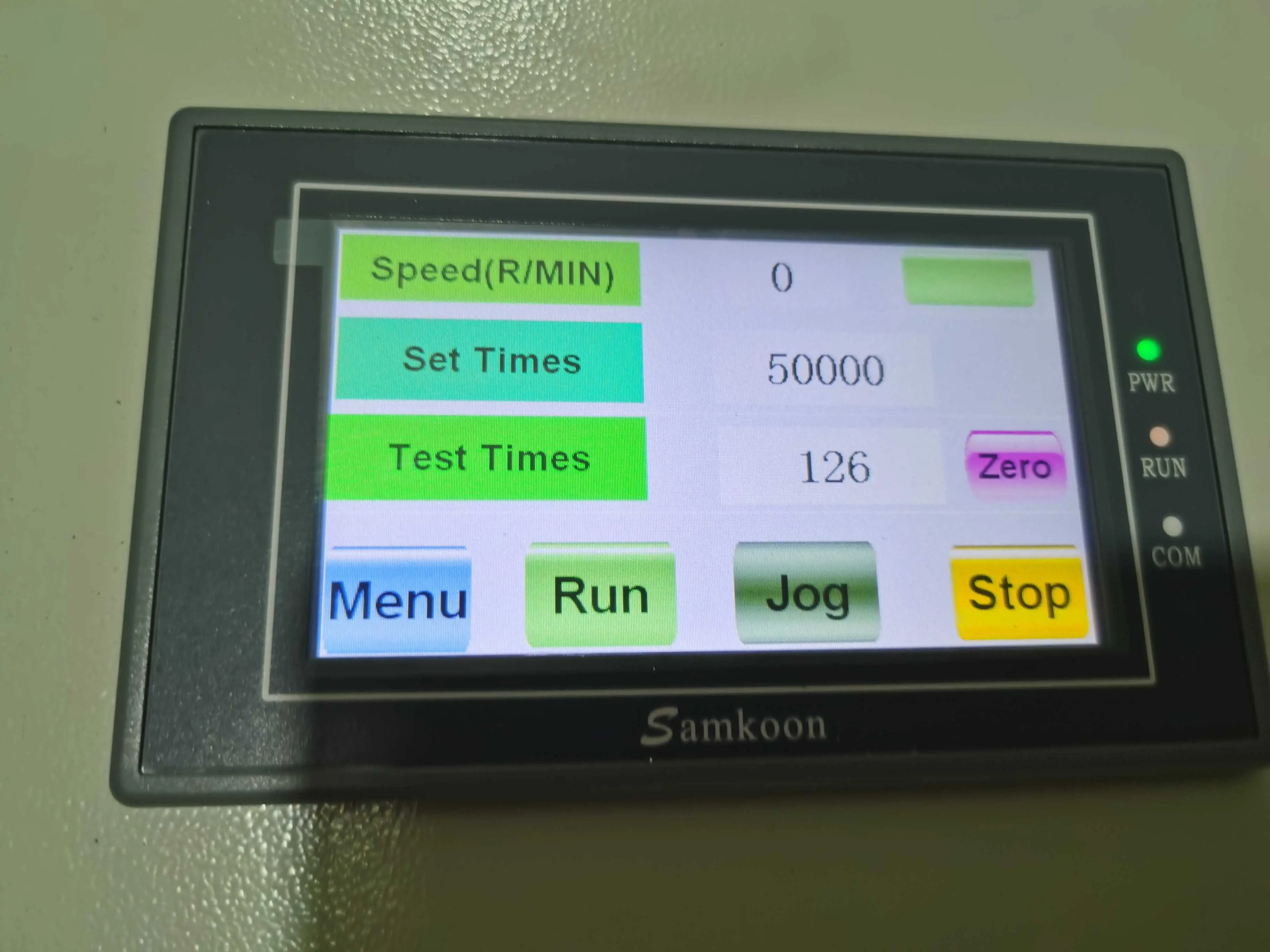

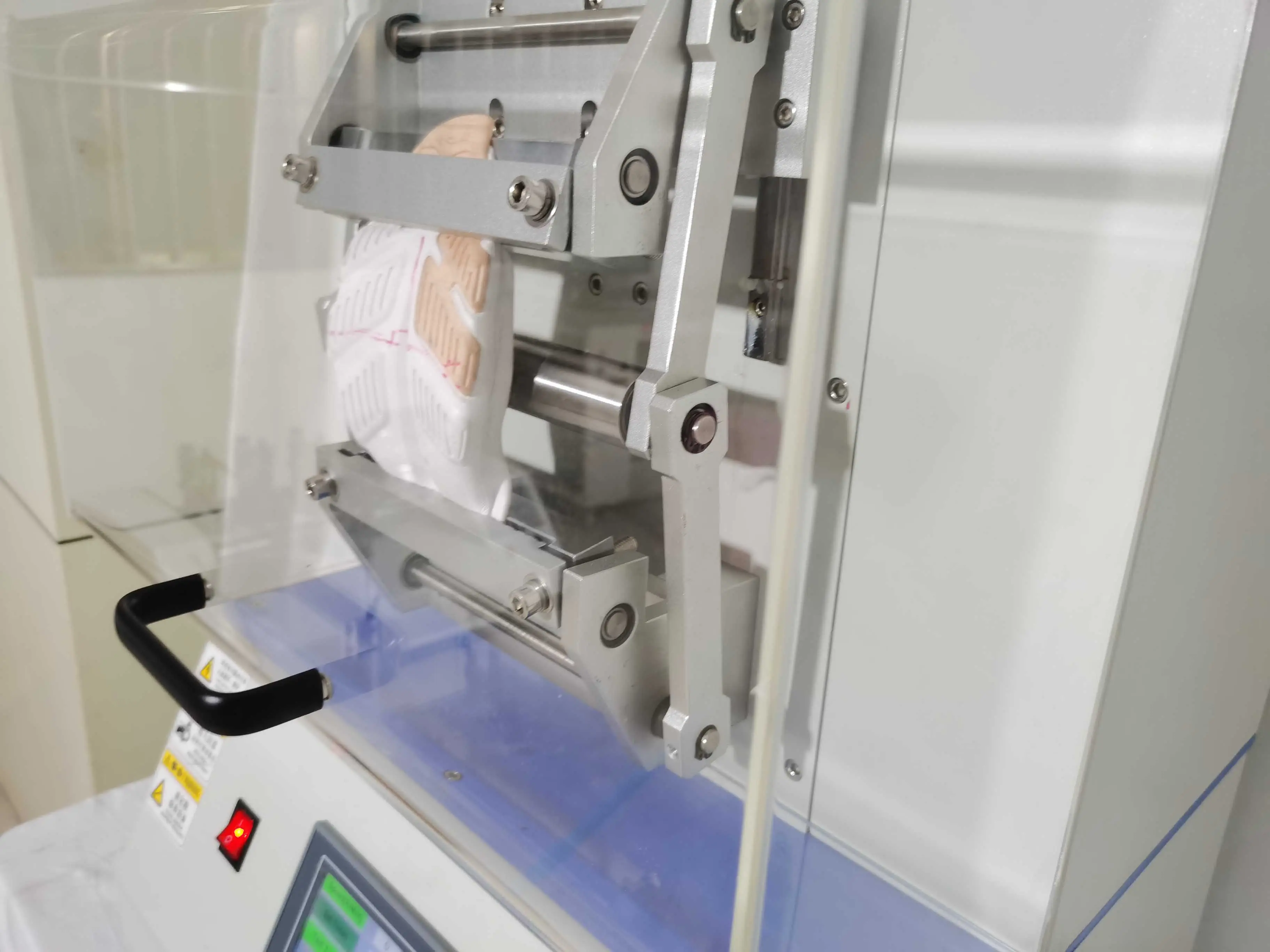

Control Panel

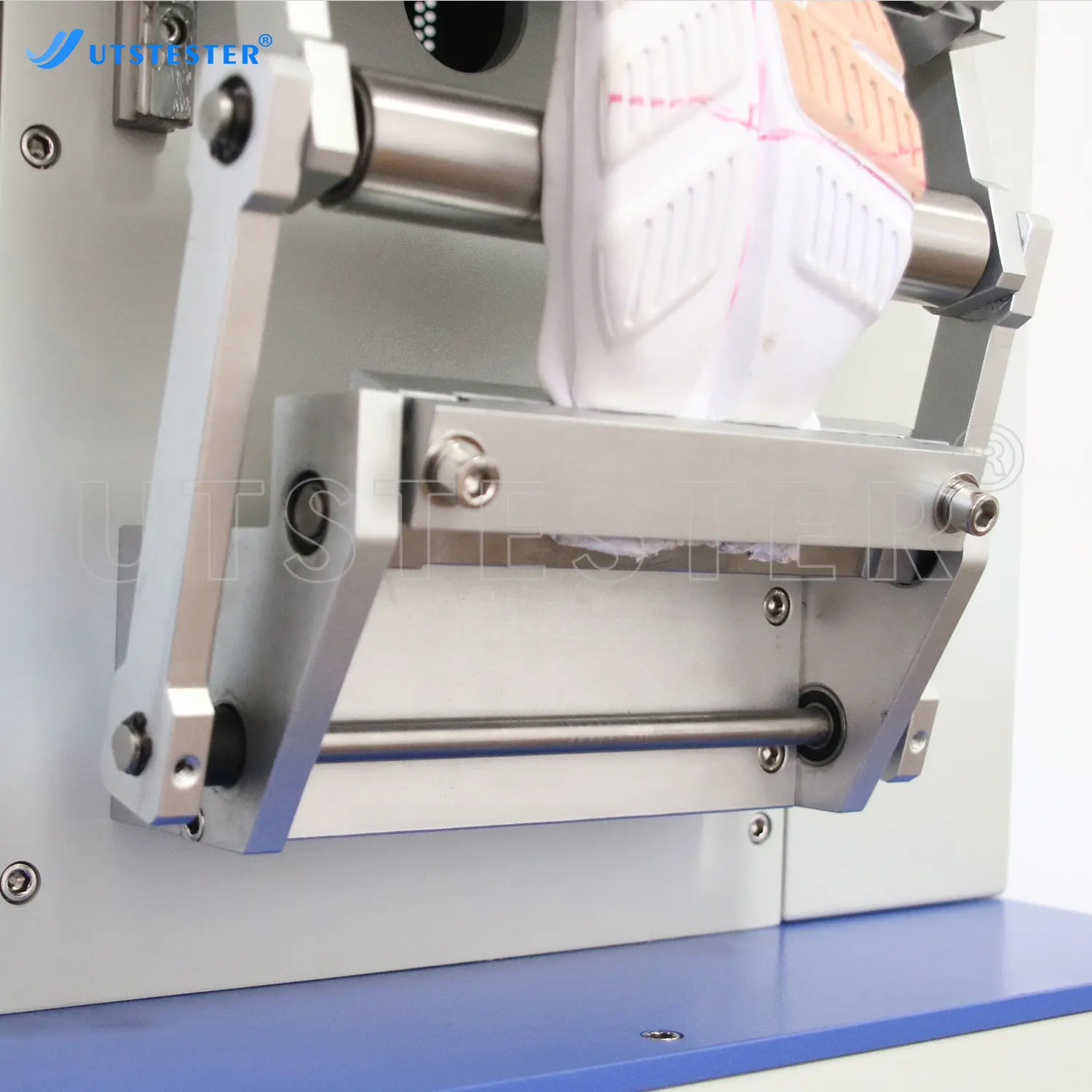

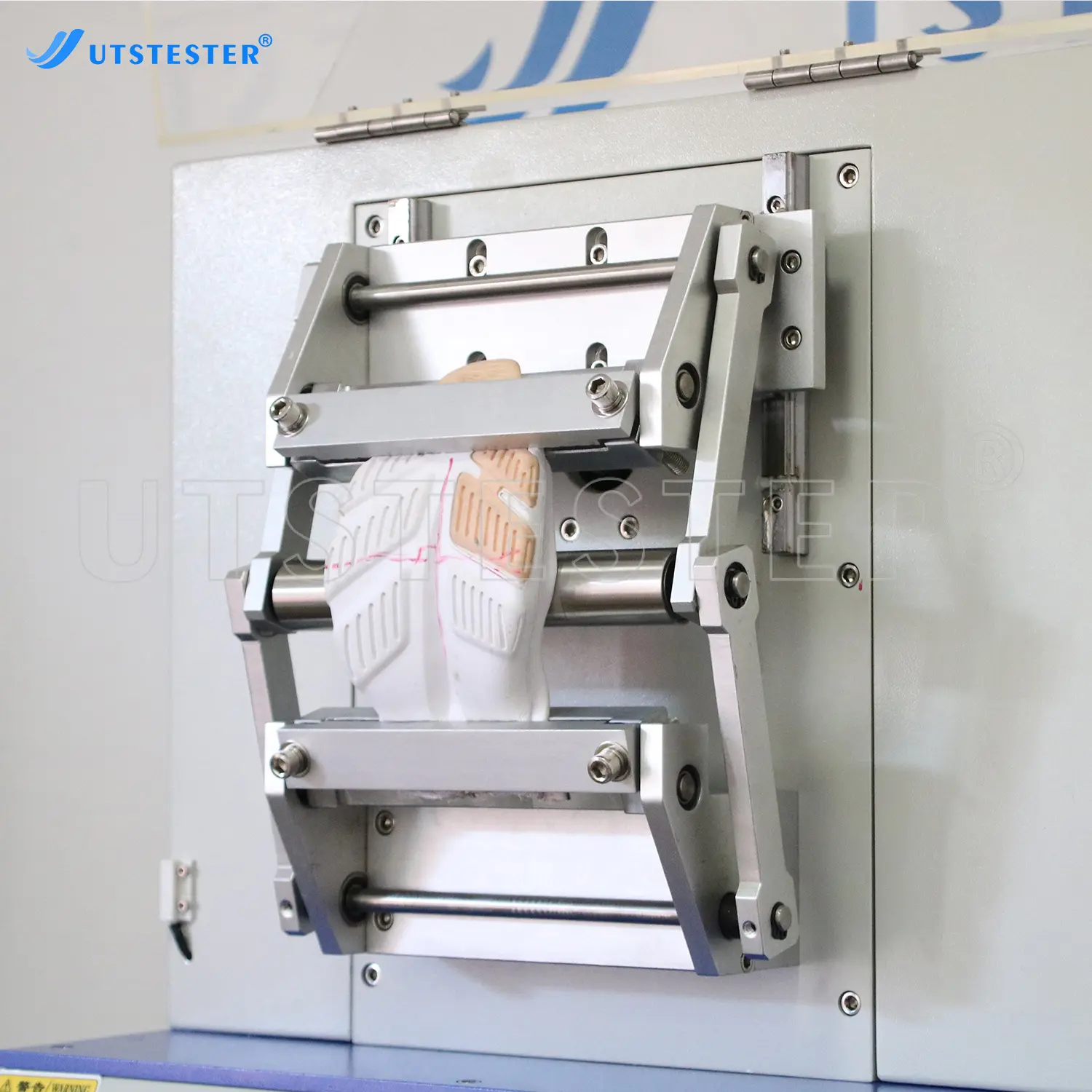

Revolving Shaft
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
