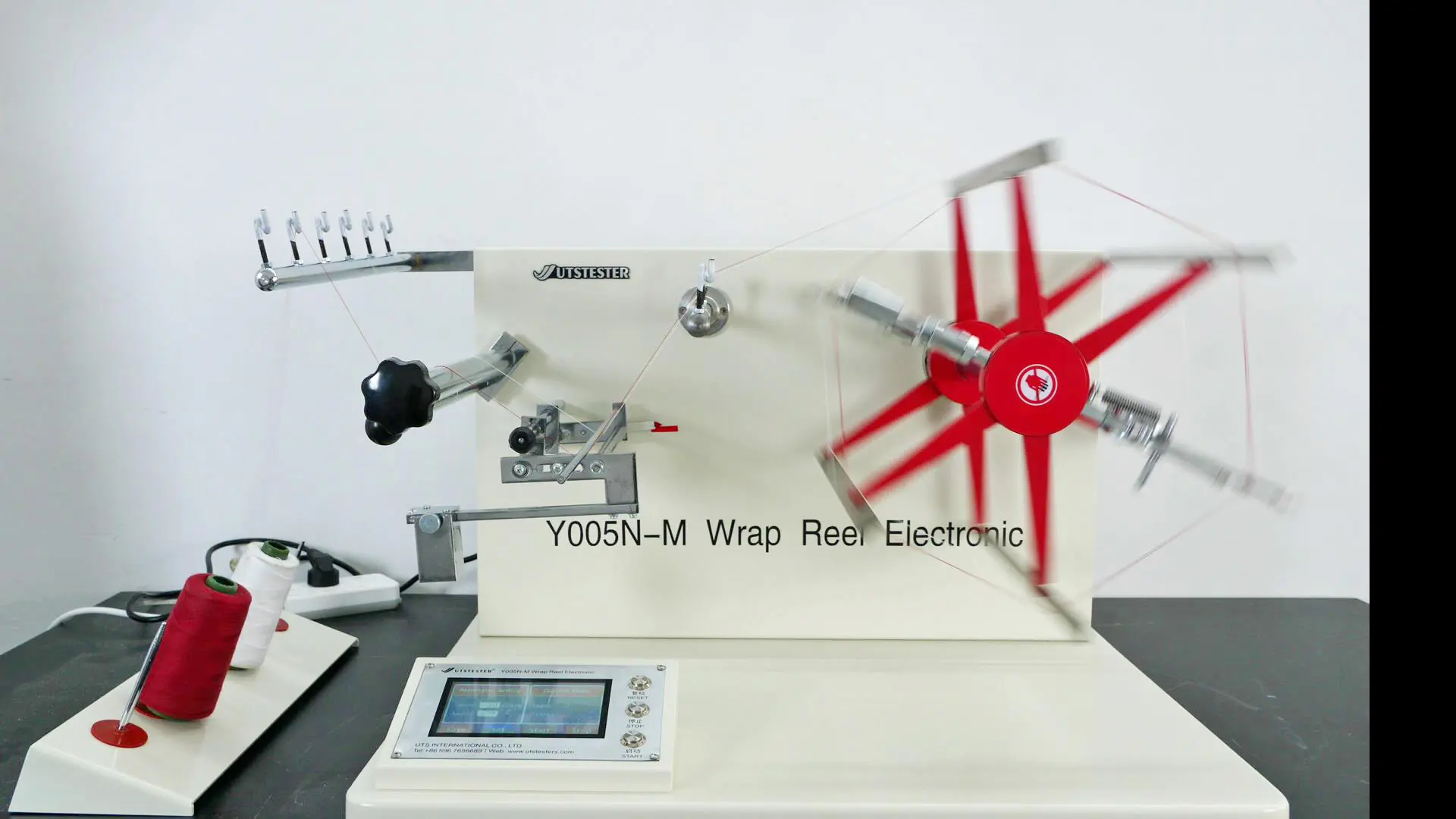

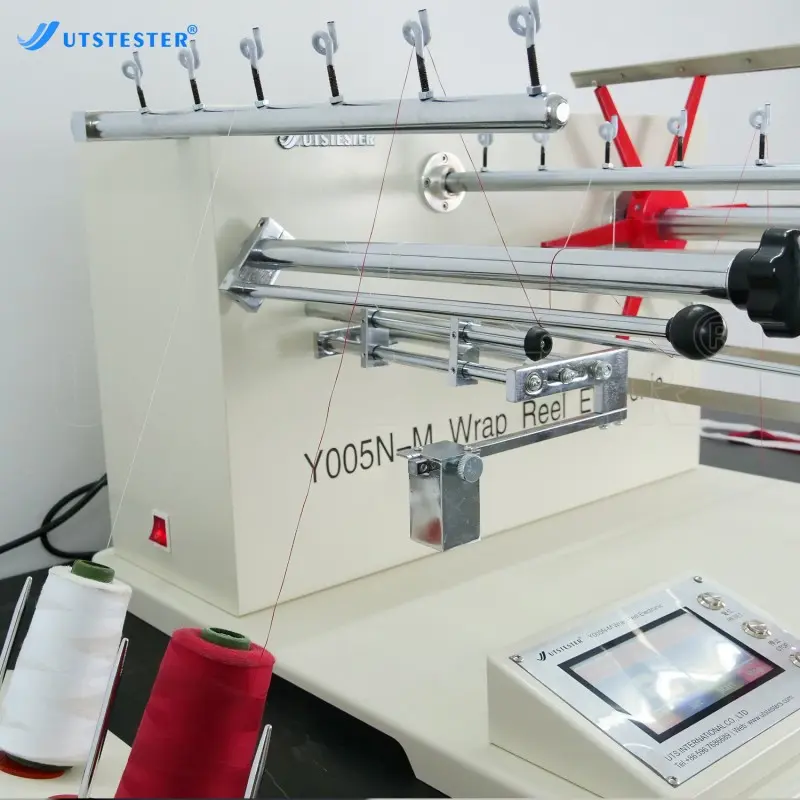

Wrap Reel Electronic Automatic Yarn Winding Machine
Overview
The instrument is used for the measurement of yarn density (or count) and the test of yarn breaking strength by winding the sample on yarn tube with yarn frame.
Application
Yarn
Yarn
Standards
ISO 7211-5, ASTM D1907, ISO2060,GB/T4743, GB/T6838, GB/T14343
Key Parameters
| Model | Y005N-E | Y005N-M |
| Reel circumference | 54± 1/16in (English system) | 1000± 1mm (Metric system) |
| Working positions | 6 | |
| Spindle distance | 65 mm | |
| Yarn frame speed | 30 ~ 300 r/min | |
| Guide rod reciprocating range | 35 mm | |
| Single yarn tension adjustment range | 0 ~ 100 cN | |
| Lap number setting range | 1 ~ 9999 laps | |
| Power | AC 220V±10% 50Hz 180W | |
| Size (L×W×H) | 760×650×460mm | |
| Weight | About 60Kg | |
Product Details

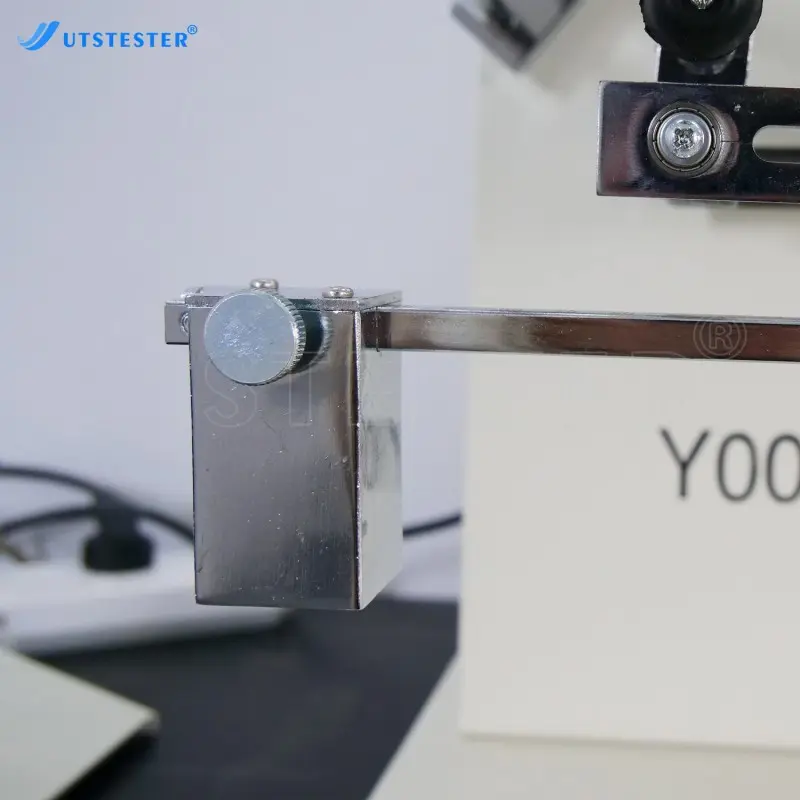

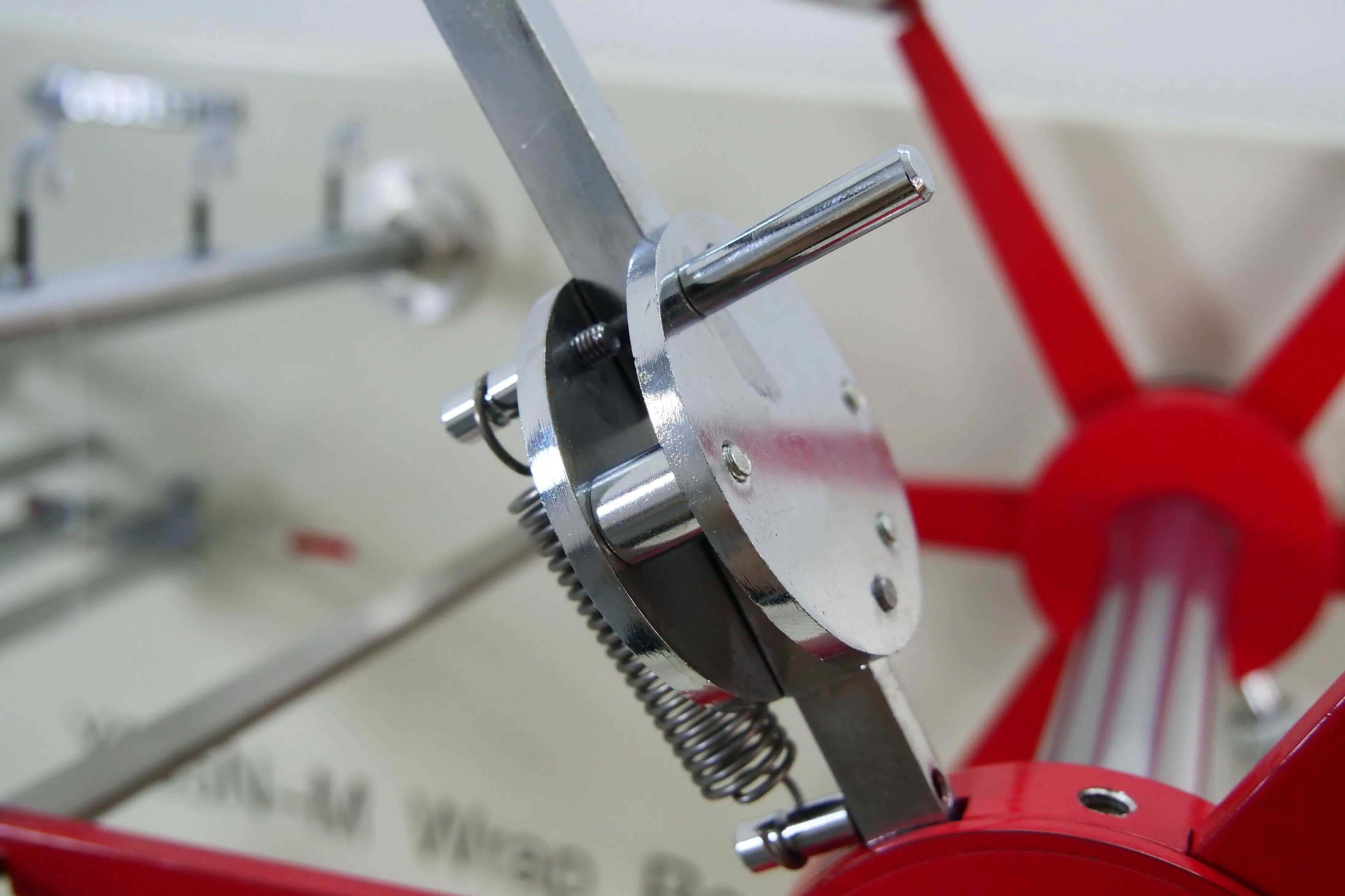

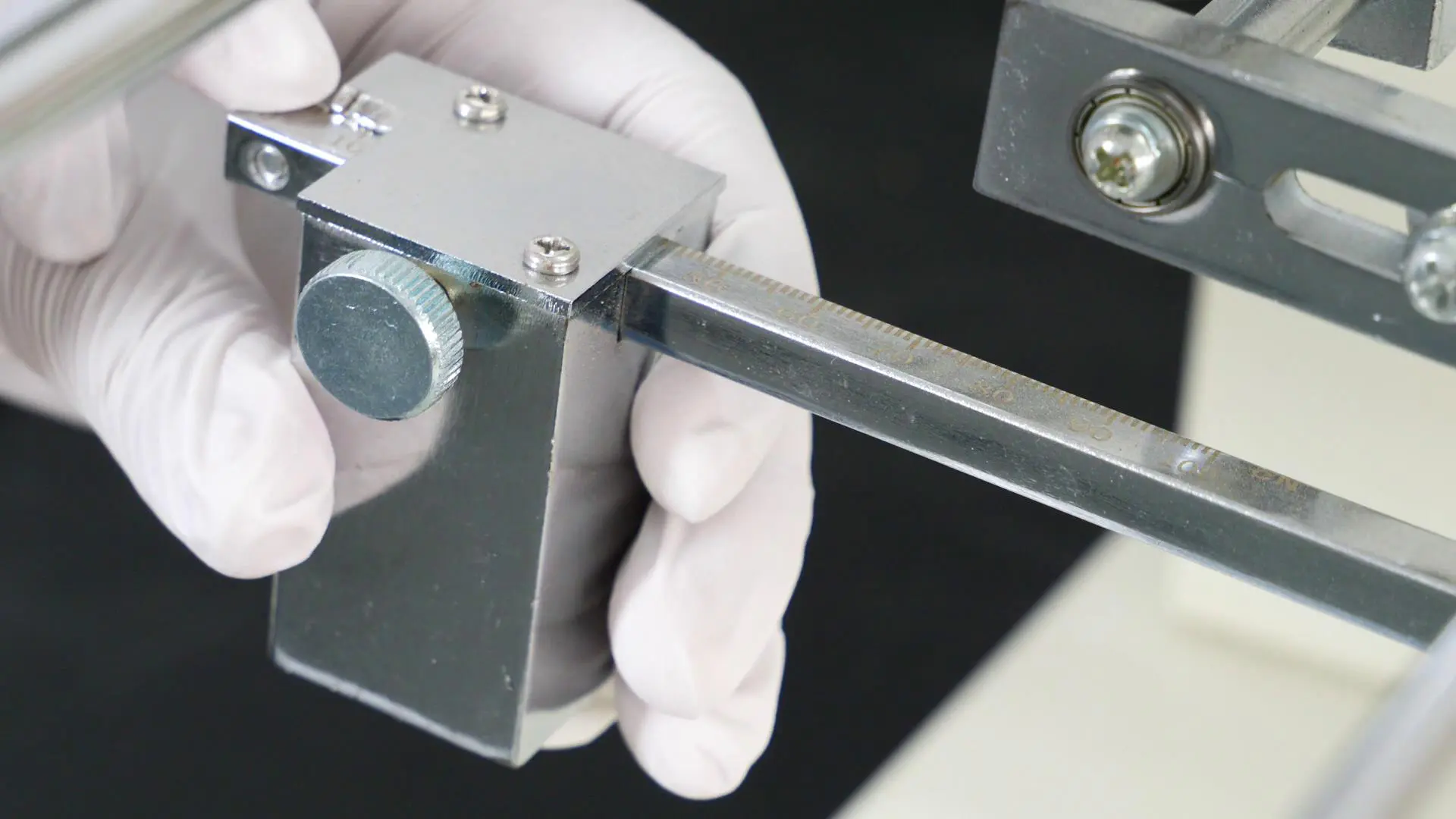

Handle

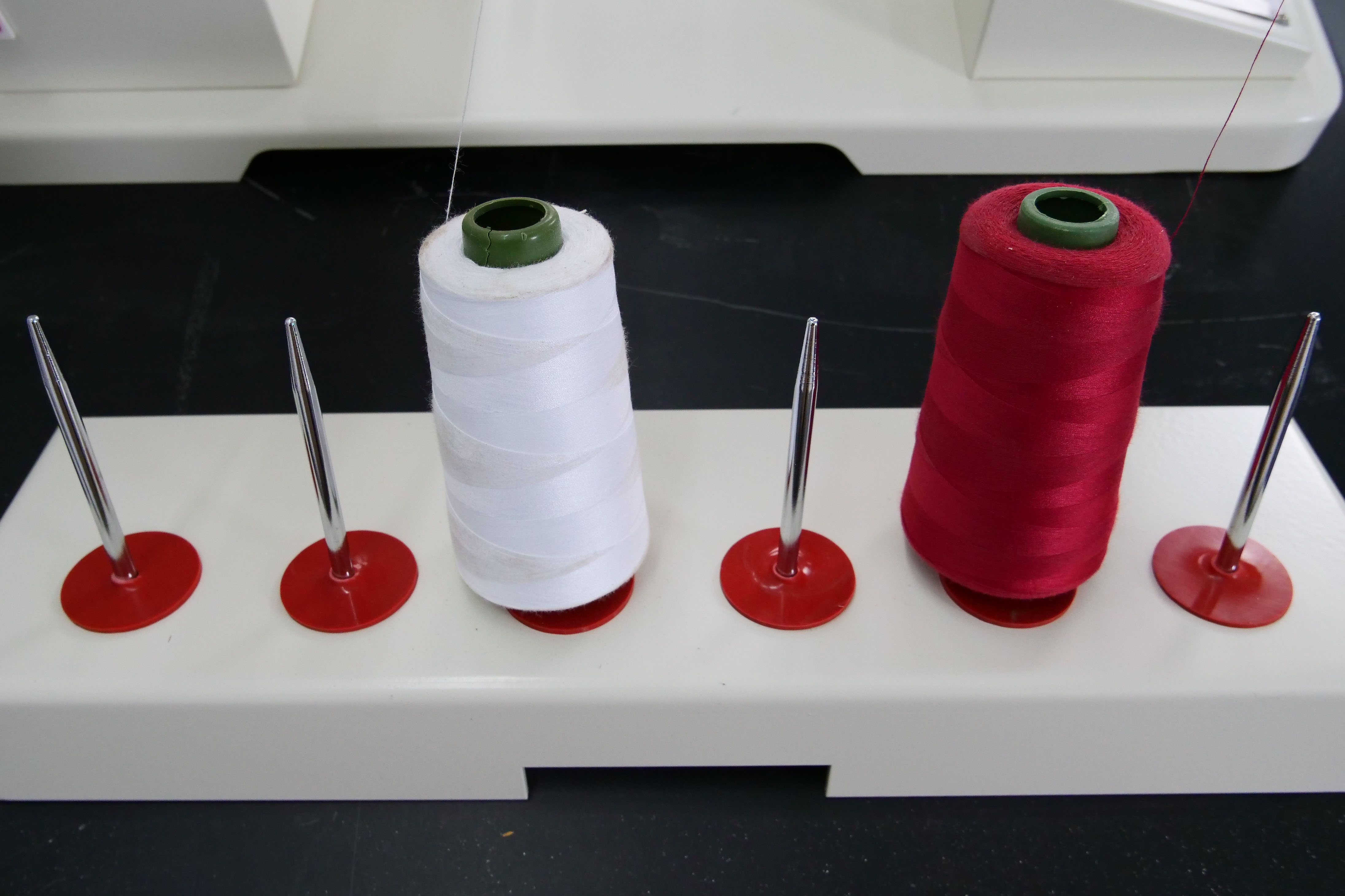

Spindle bar

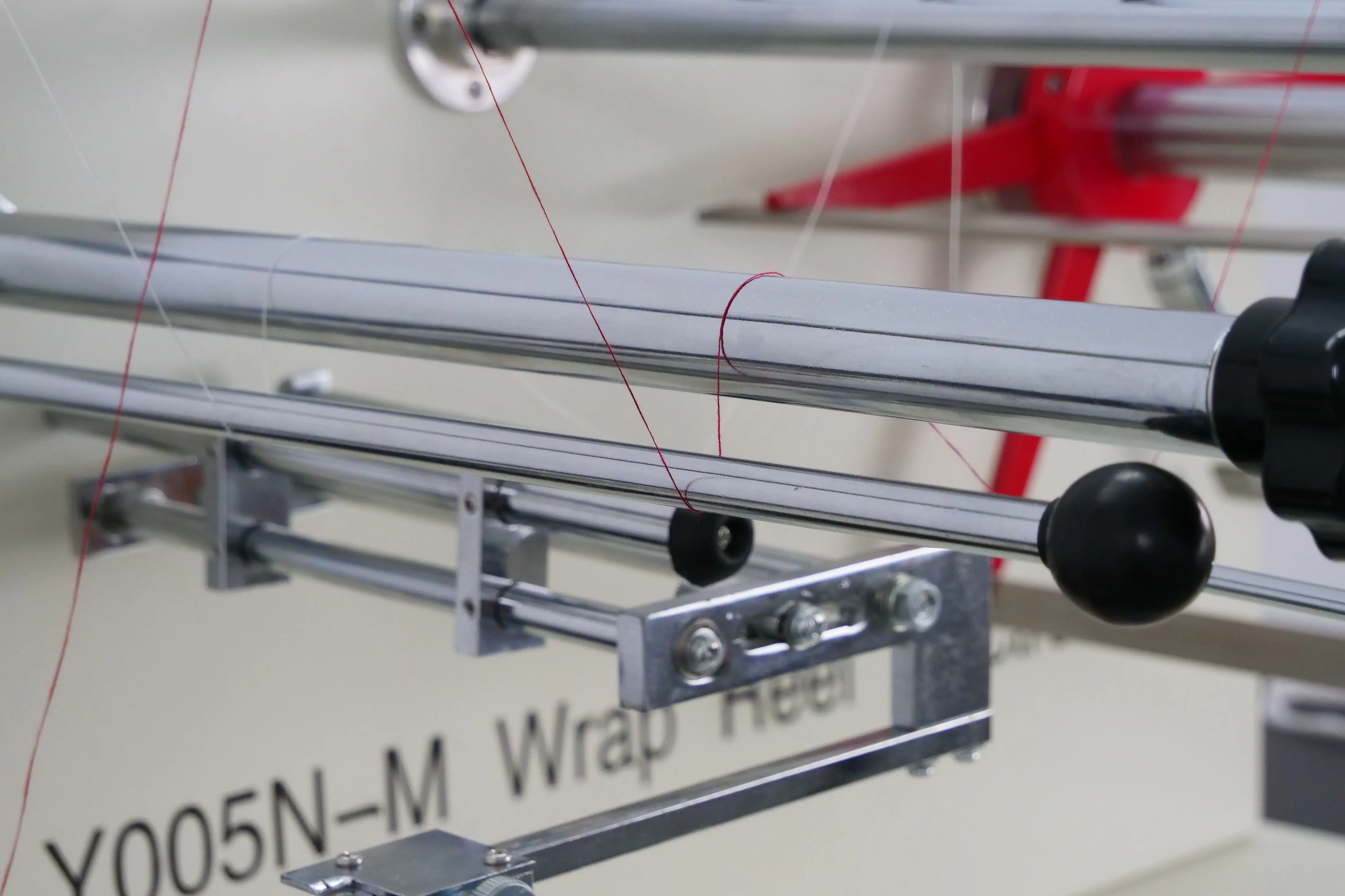

Tension bar

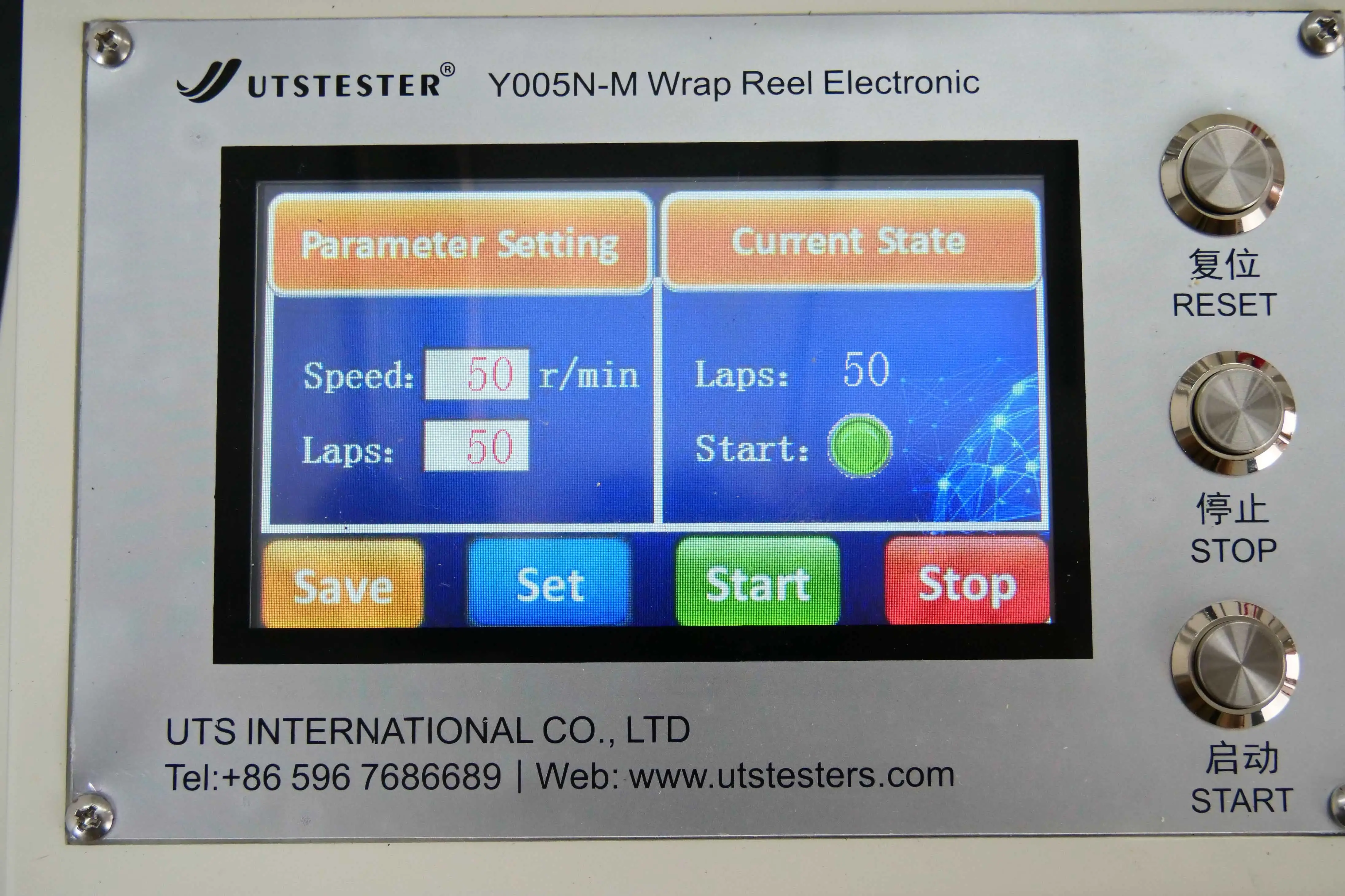

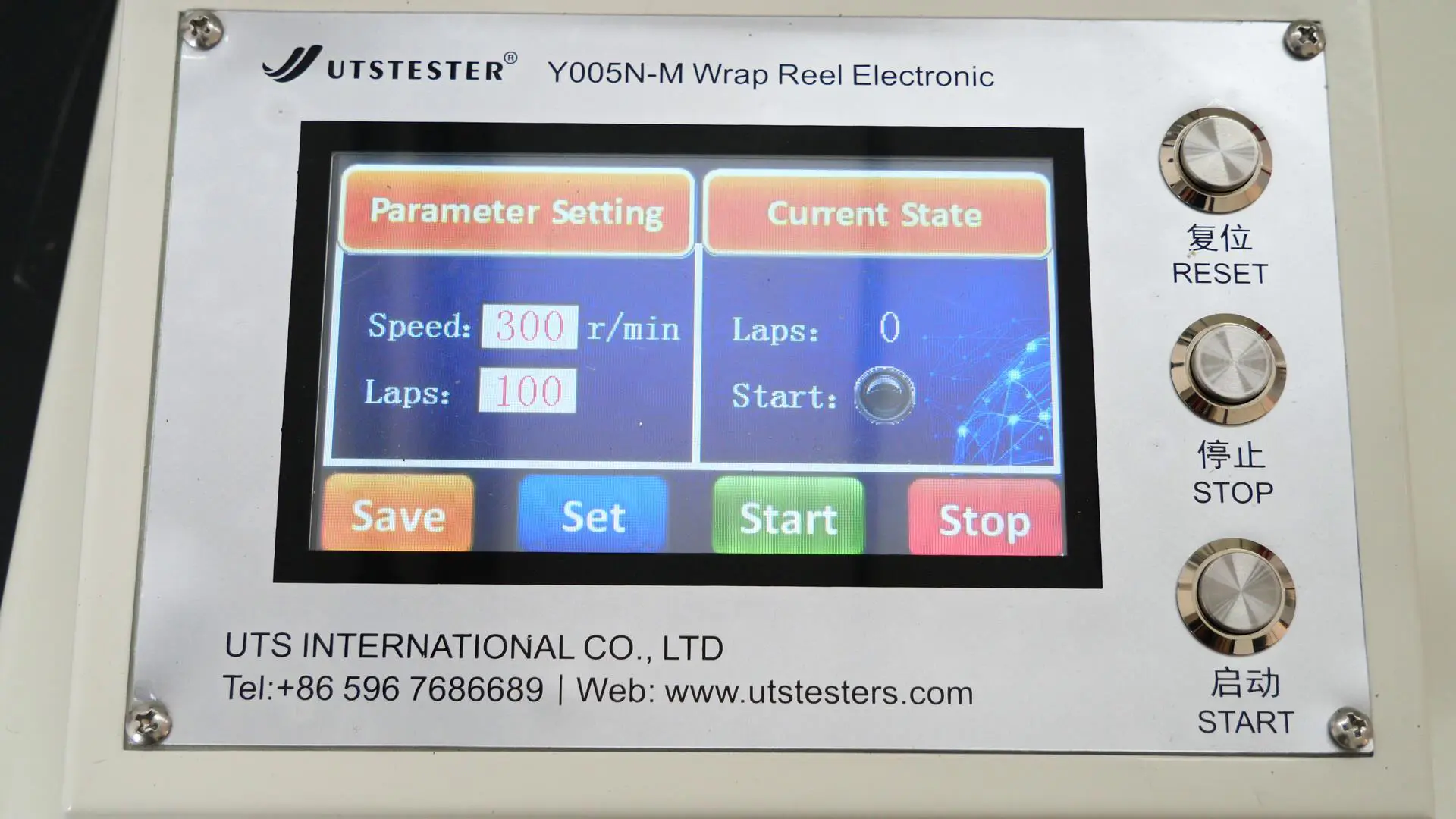

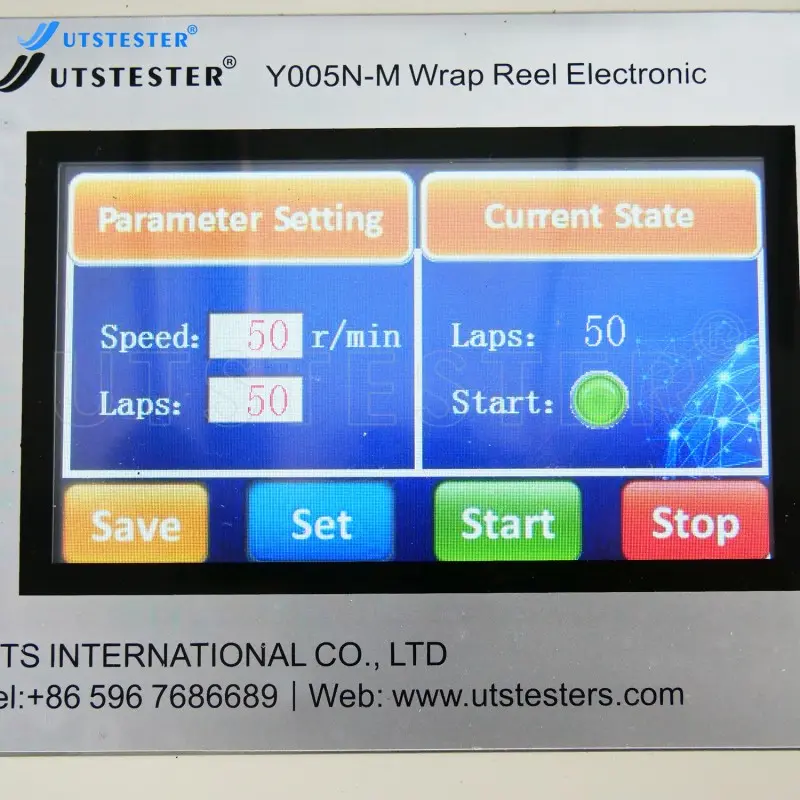

Touch screen

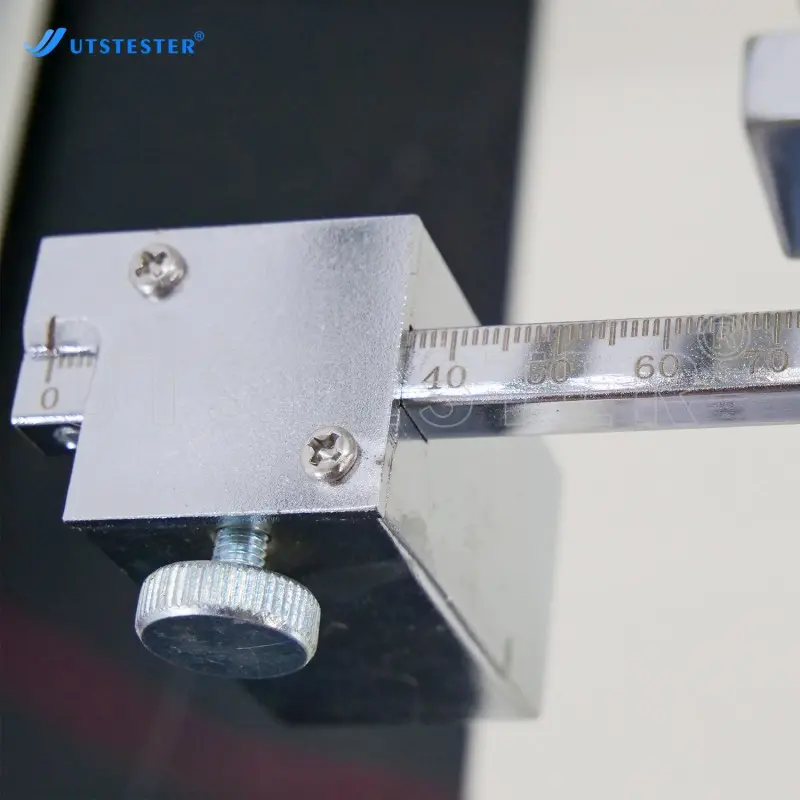

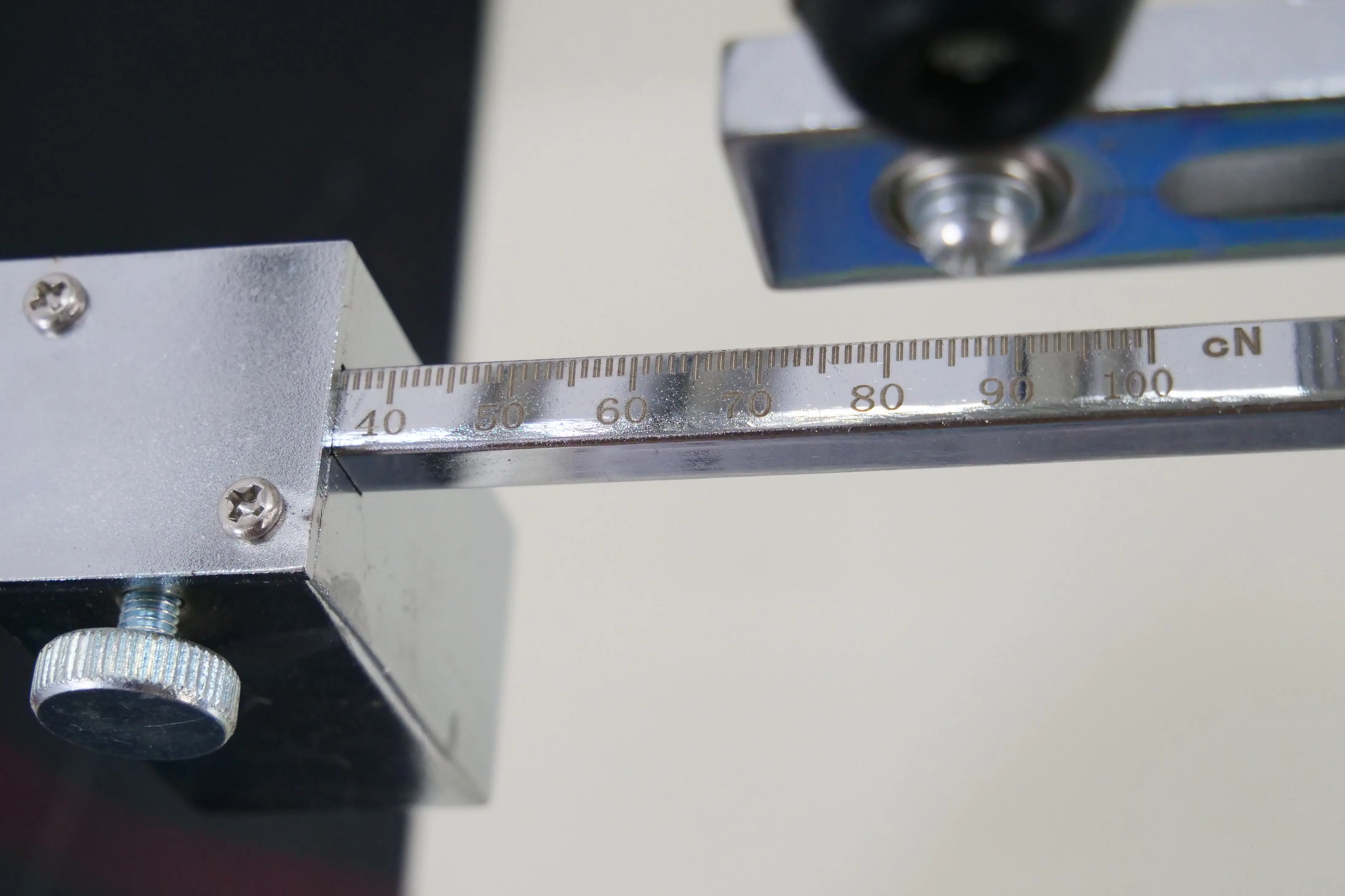

Tension scale

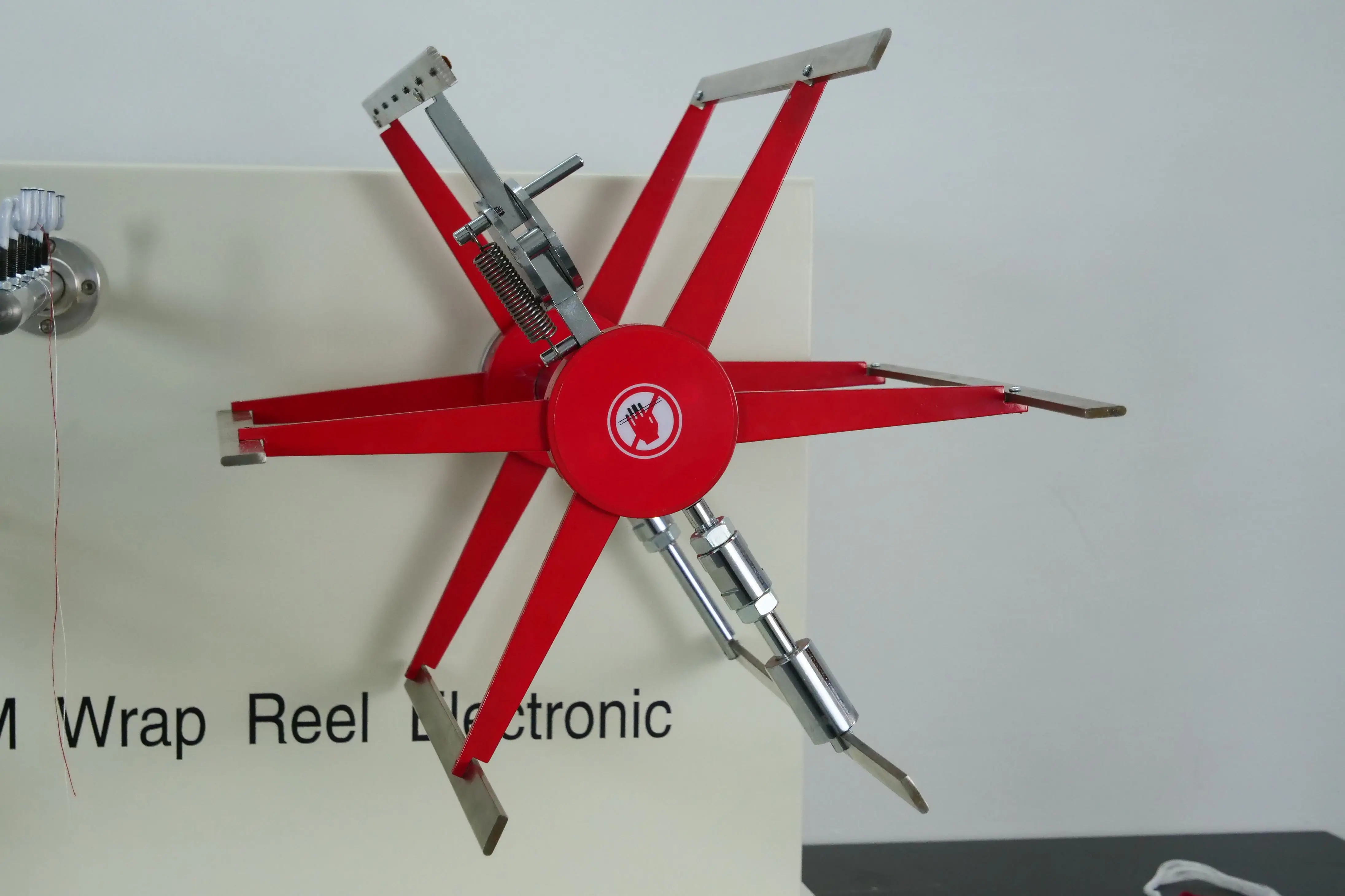

Yarn frame
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Setting
Set the corresponding conditions on the instrument: the number of loops of yarn to be shaken and the speed.

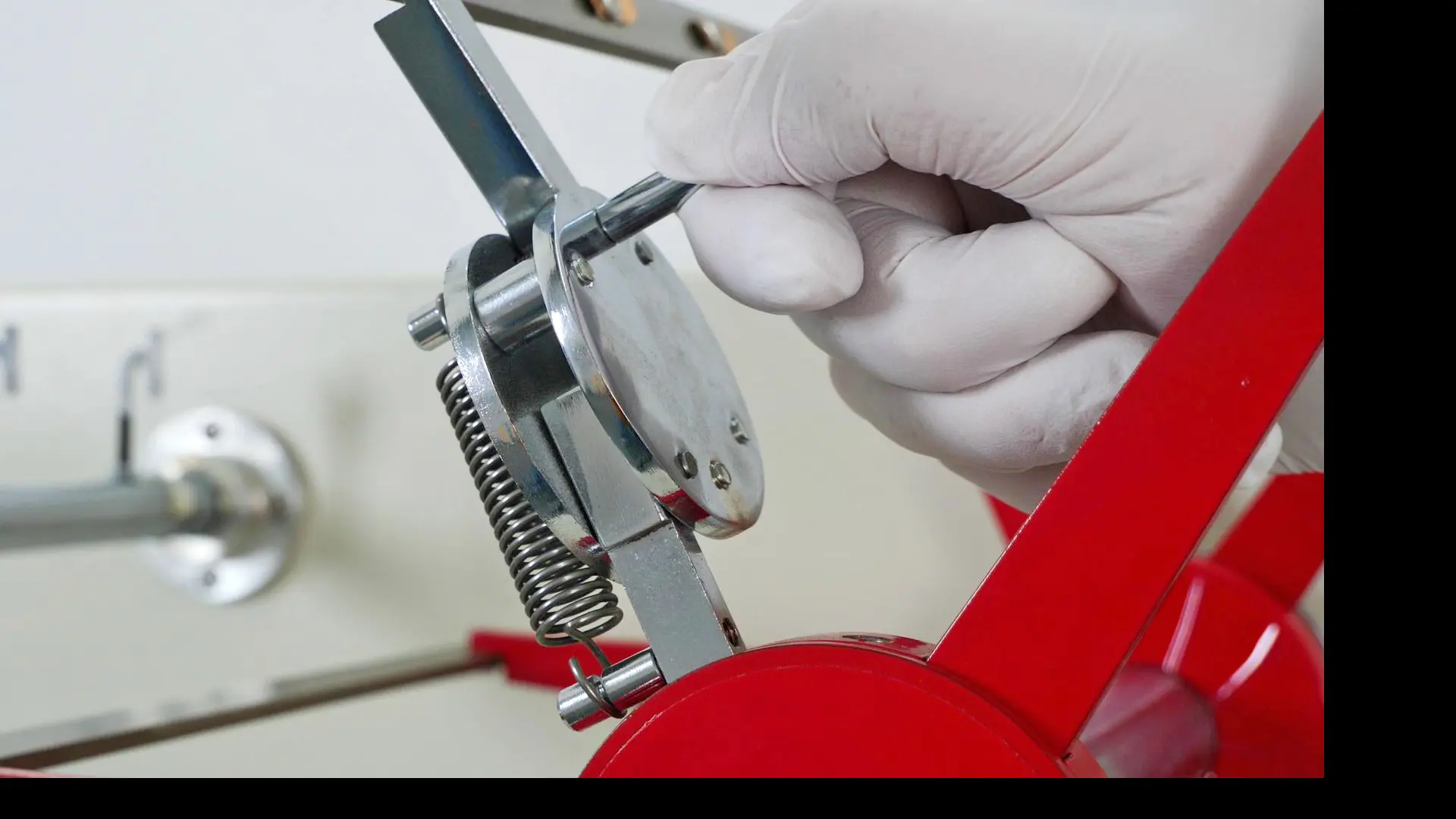

Adjust the tension
Adjust the tension indicator according to the test requirements.

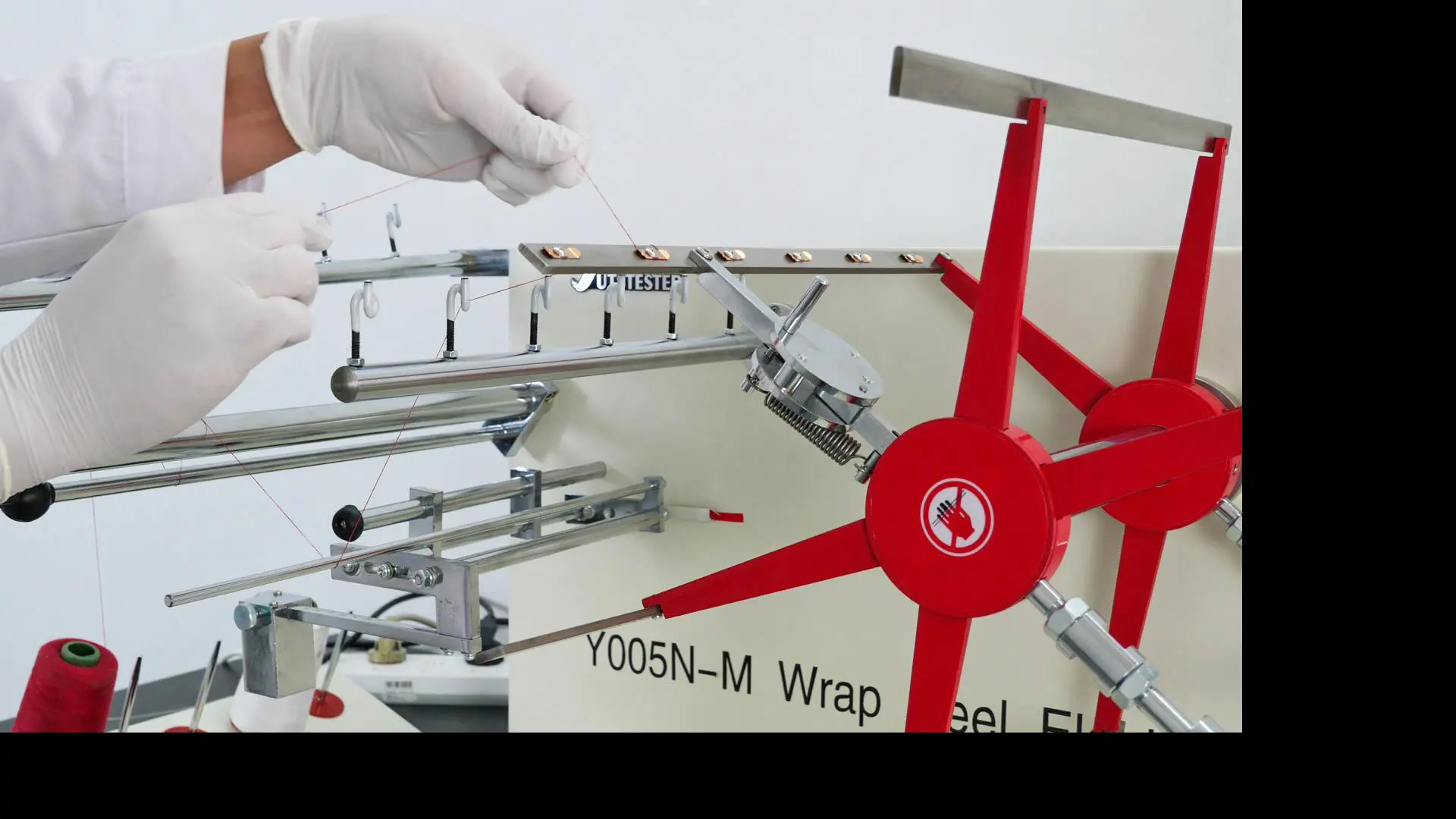

Prepare yarn

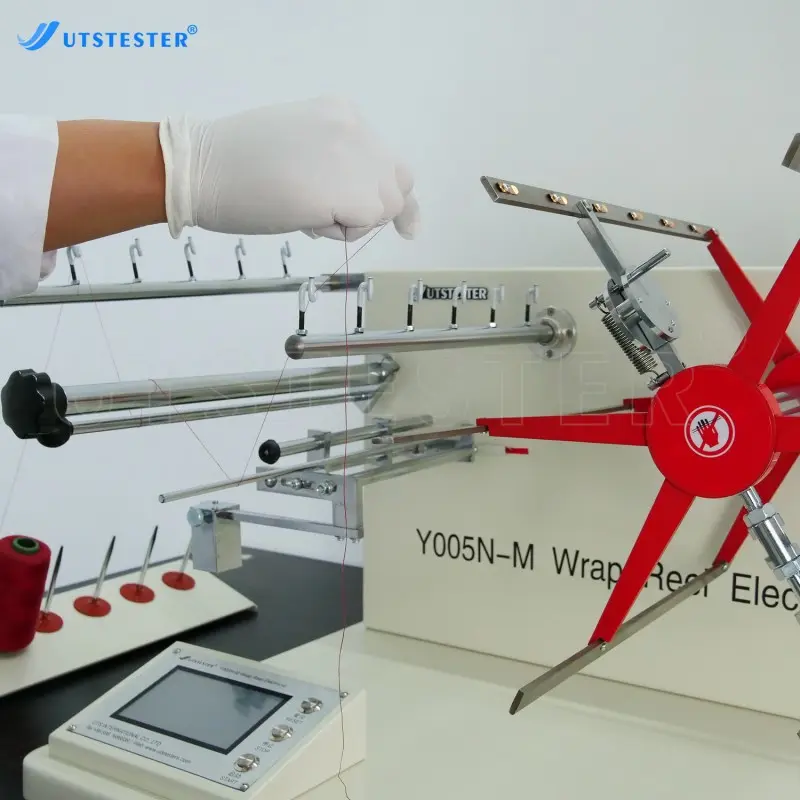

Lead the yarn to the presser of the frame as shown in the yarn path diagram and fix it.
Wind yarn
Press the "Start" button, the frame will rotate and start to wind the yarn.

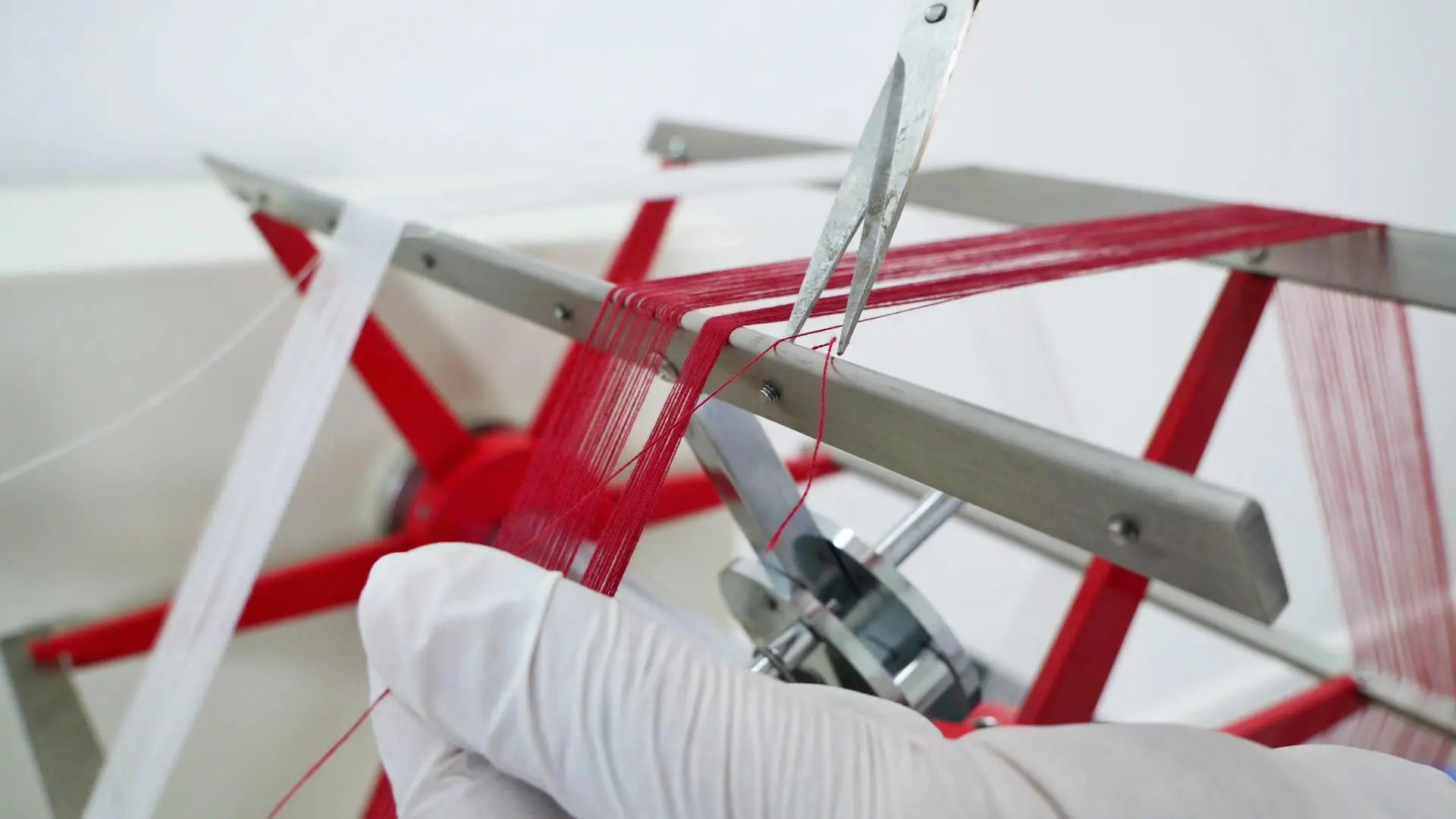

Cut the yarn
when the frame rotation reaches the set number of turns to stop, in a fixed position to cut the yarn bundle.
Sampling
Trigger the "blade lifting handle", lower the blade to take down the stranded yarn. Finish sampling once.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
