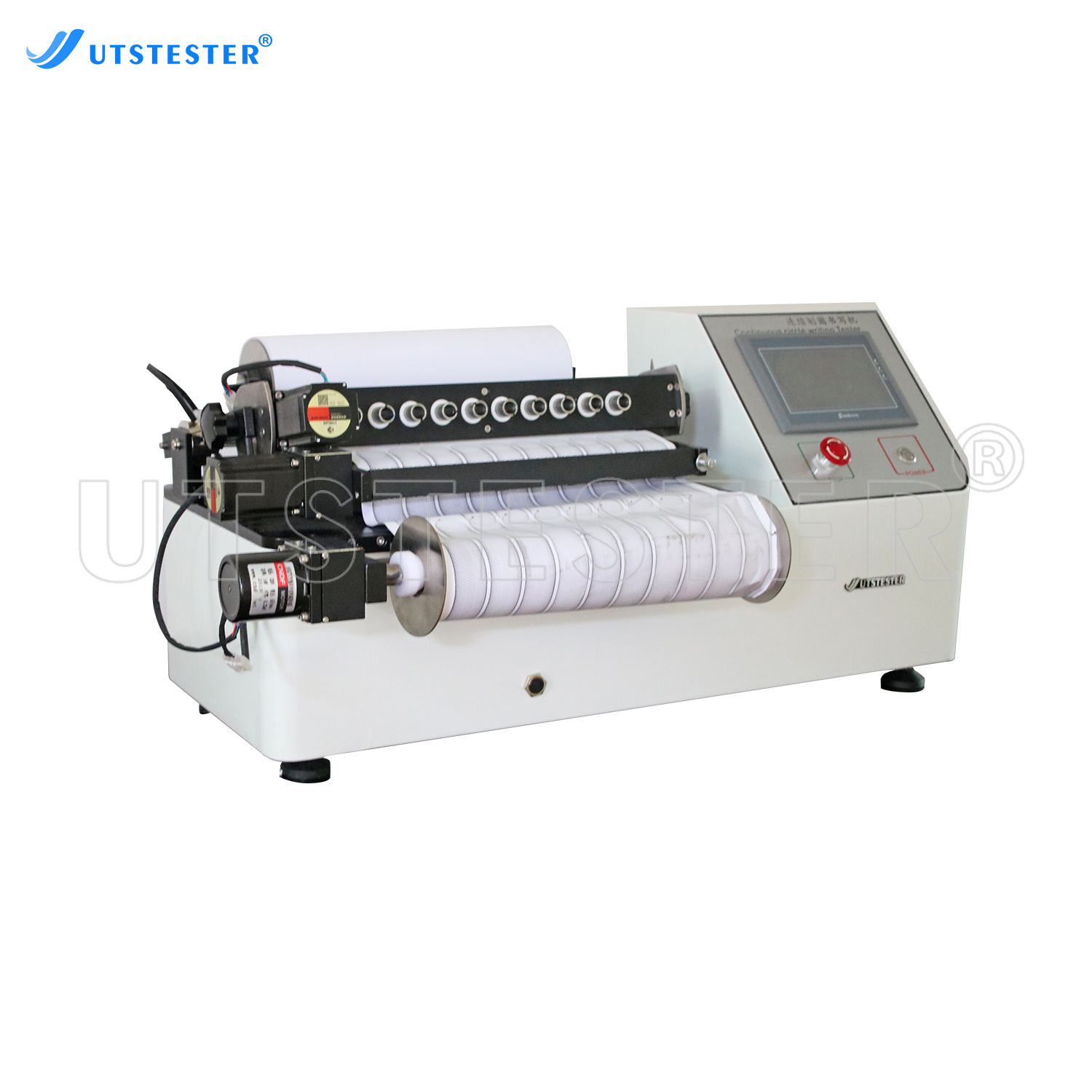

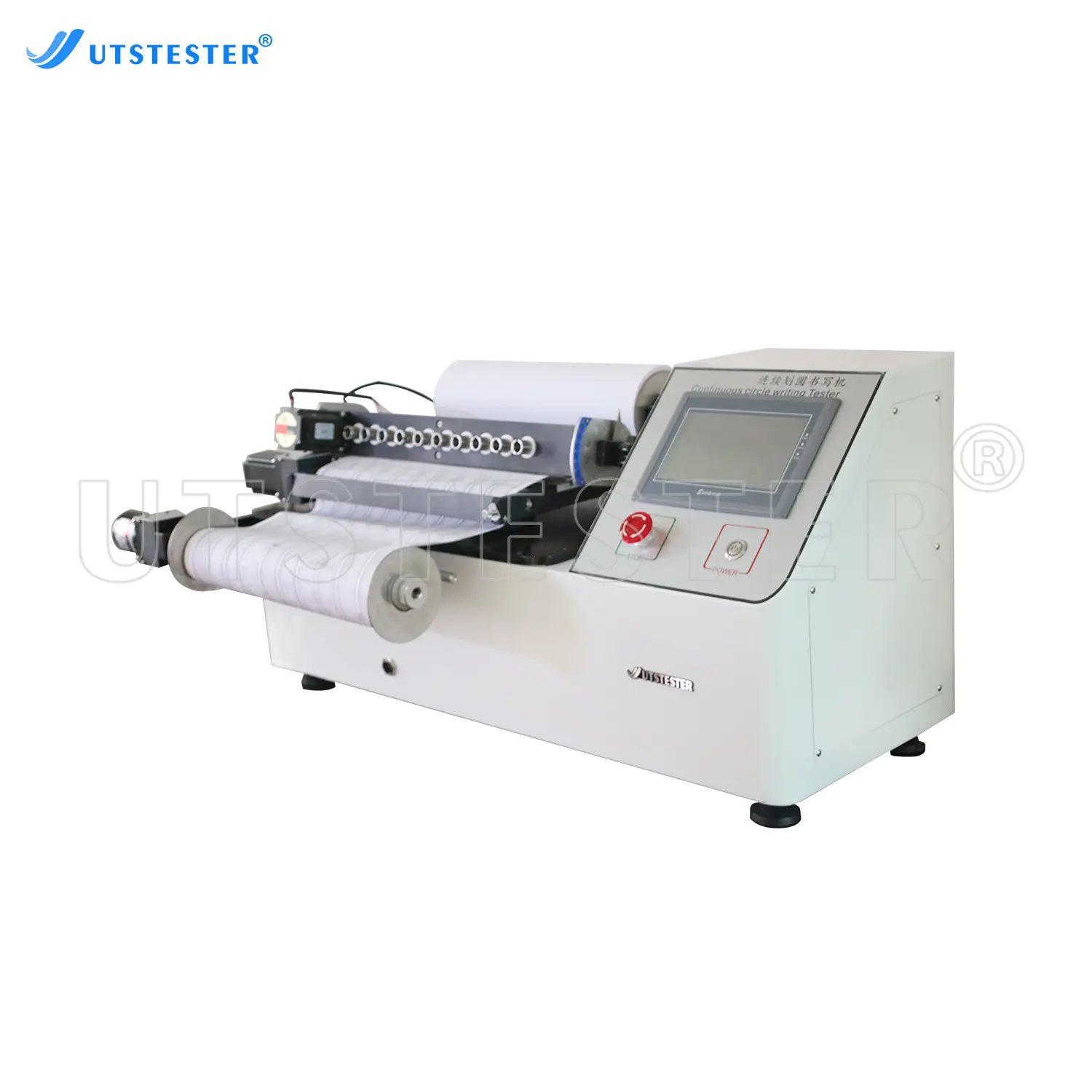

Write-out Performance Tester Writing Pen Abrasion Testing Machine T070
Overview
The machine is suitable for the abrasion resistance of writing pen. The system adopts touch screen control and automatically loads the pressure of the pen end. After writing on the white paper for a certain number of times, the abrasion resistance of writing pen is checked to provide data reference for the manufacturer to control the quality
Application

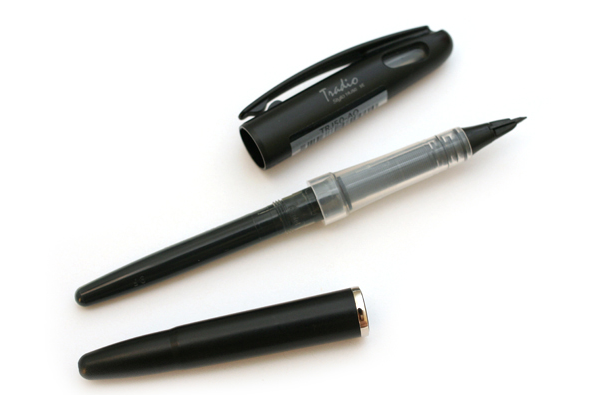

Writing pen
Writing pen
Standards
ISO 12756, ISO 12757-1&2, ISO 14145-1&2, ISO 27668-1
Key Parameters
|
Model |
T070 |
|
Control system |
PLC control
|
|
Display system |

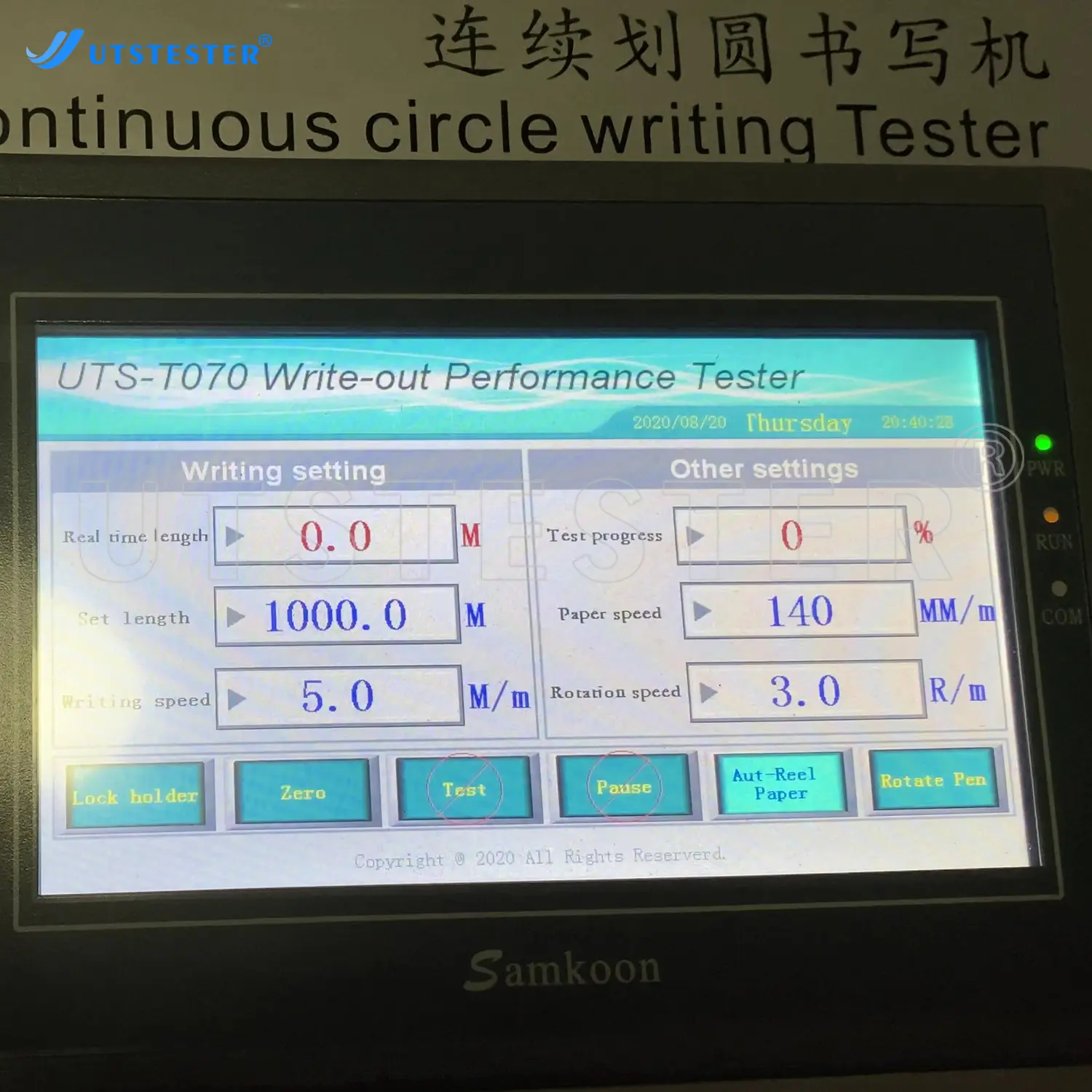

Delta 7-inch full-color LCD touch screen
|
|
Number of testing pen |
10 pcs |
|
Pen refilling speed |
0-3rpm |
|
Driving motor |
Stepper motor |
|
Pen load |
0.1N-5N |
|
Continuous helix |
Perimeter 100mm |
|
Writing speed |
1m-10m/min speed accuracy ±0.5m/min |
|
Writing spacing |
1mm-5mm |
|
Writing Angle |
50°-90° (continuously adjustable) |
|
Power supply |
AC 220V 50Hz |
Product Details

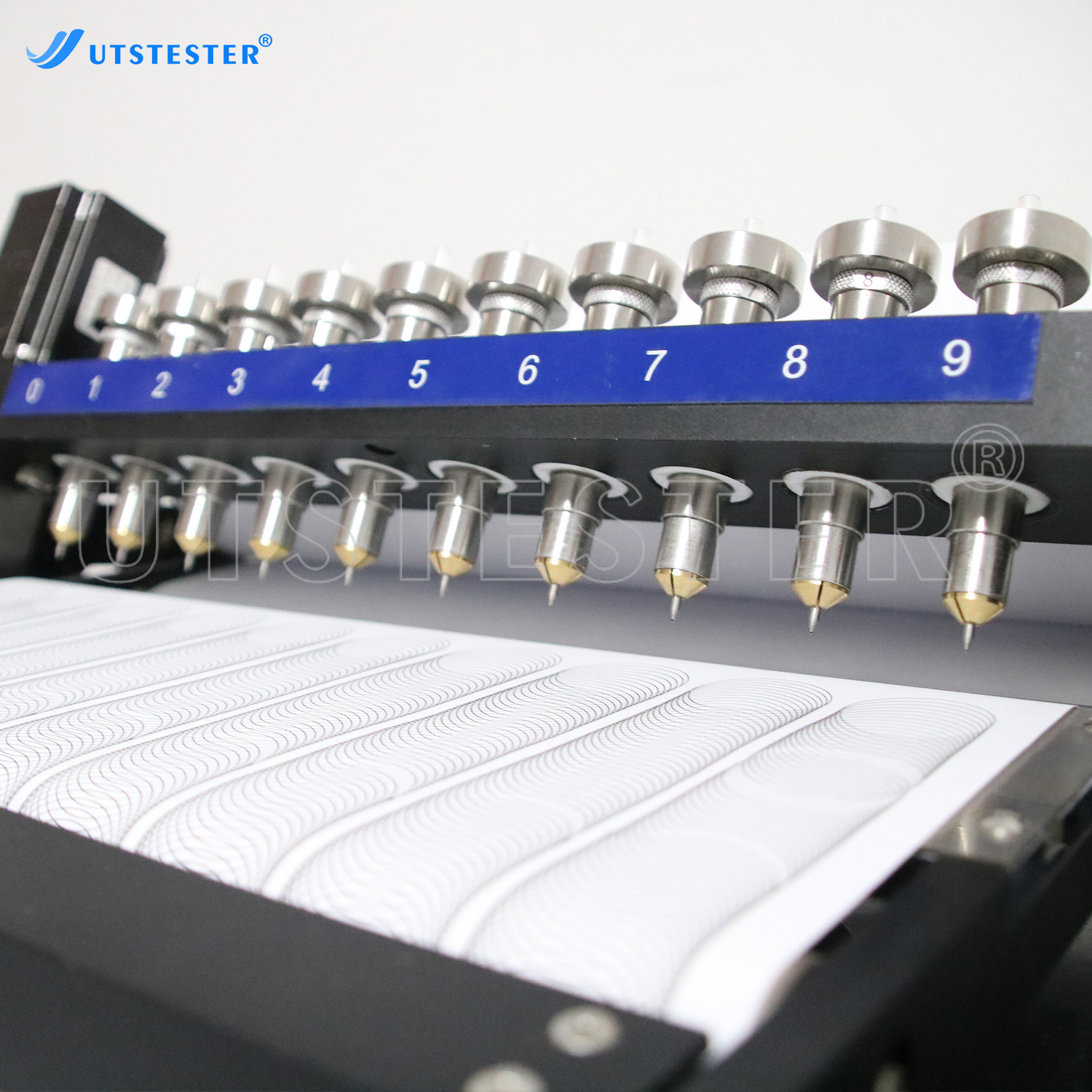

Pen holder

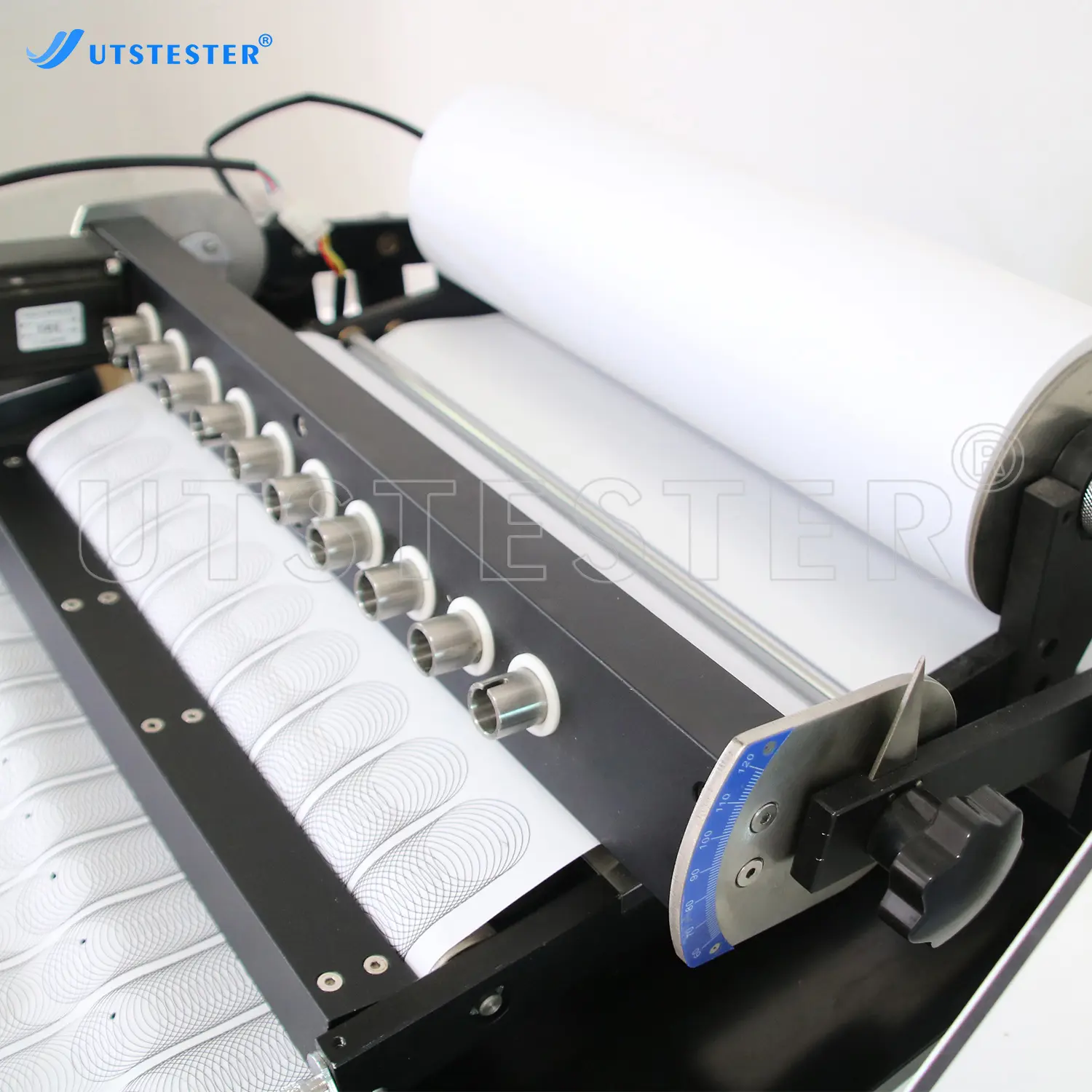

Writing paper
Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
