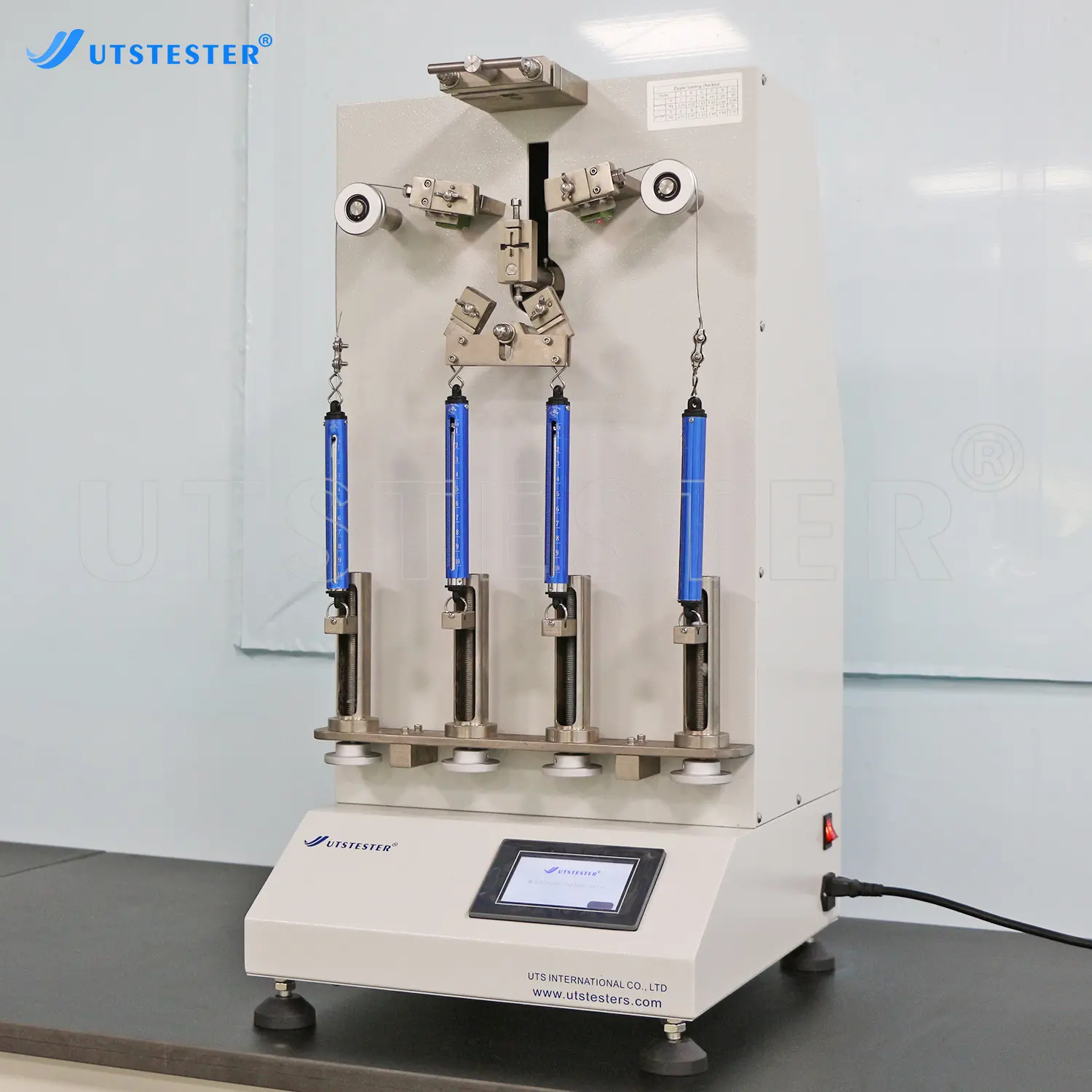

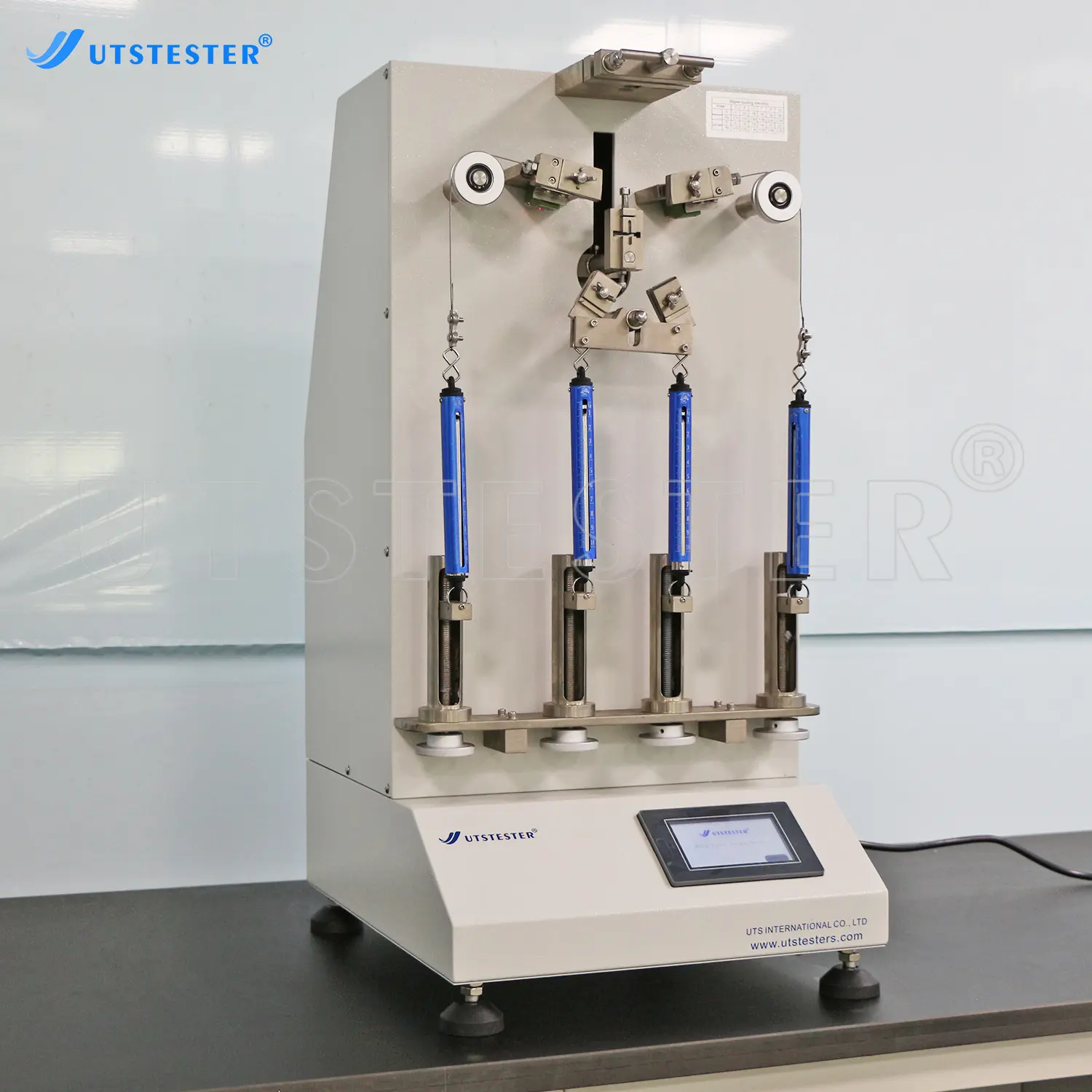

Zipper Fatigue Testing Machine for Automatic Zipper Detection Slide Fastener Reciprocating Tester M031A
Overview
This device is to test whether zipper can bear the specified times of reciprocating pull action, under the horizontal and vertical tension effect. During testing, machine drive the puller of zipper at constant speed, undergoes reciprocating movement of 30 times per minute until reaches specified test times. So as to assess the quality of zipper.
Application
Zipper
Zipper
Standards
CNS-1083 QB/T2171 QB/T2172 QB/T2173
BS 3084 annex F, DIN 3419-1 SECTION 6.2.3.8, BS EN 16732 annex F.
Key Parameters
|
Model |
M031A |
|
Reciprocating stroke |
75mm |
|
Horizontal fixture width |
25mm |
|
Vertical fixture total weight |
0.28-0.34kg |
|
Distance between horizontal and vertical fixture |
6.35mm |
|
Sample opening angle |
60° |
|
Sample closing angle |
30° |
|
Counter |
0~999,999 |
|
Power Supply |
AC 220V 50/60HZ 80W |
|
Dimensions |
280×550×660mm(L×W×H) |
|
Weight |
35kg |
Product Details

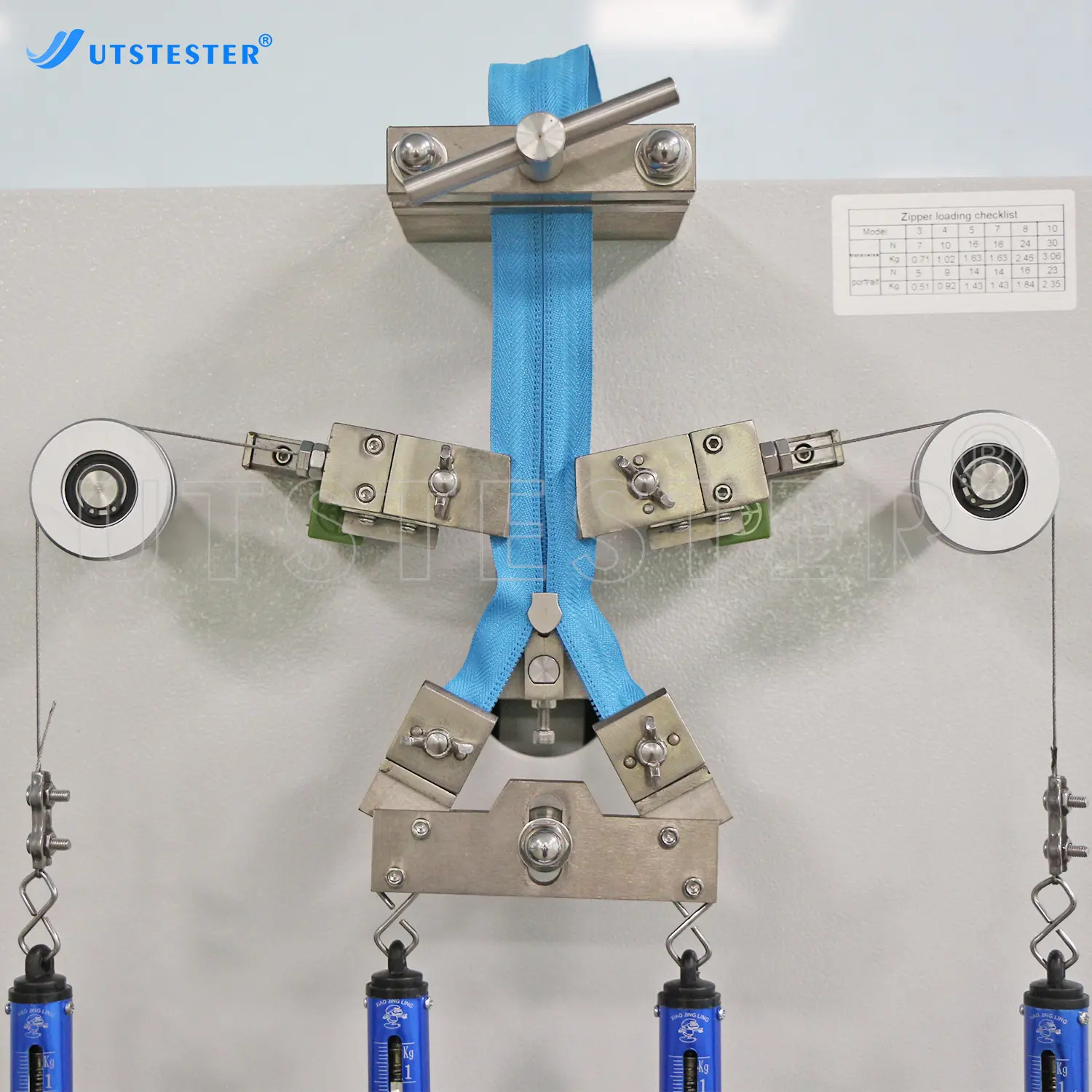

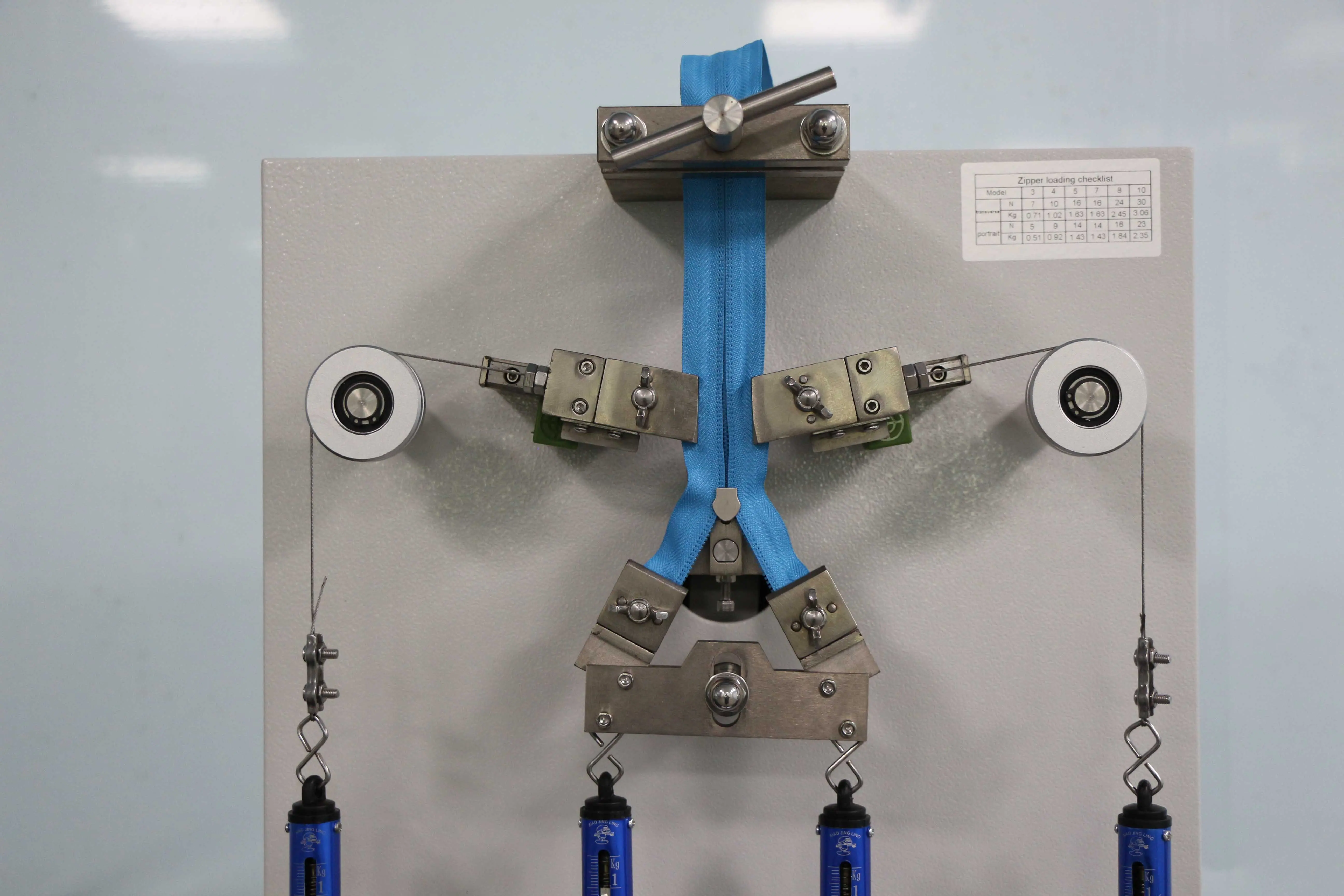

Clamping Device

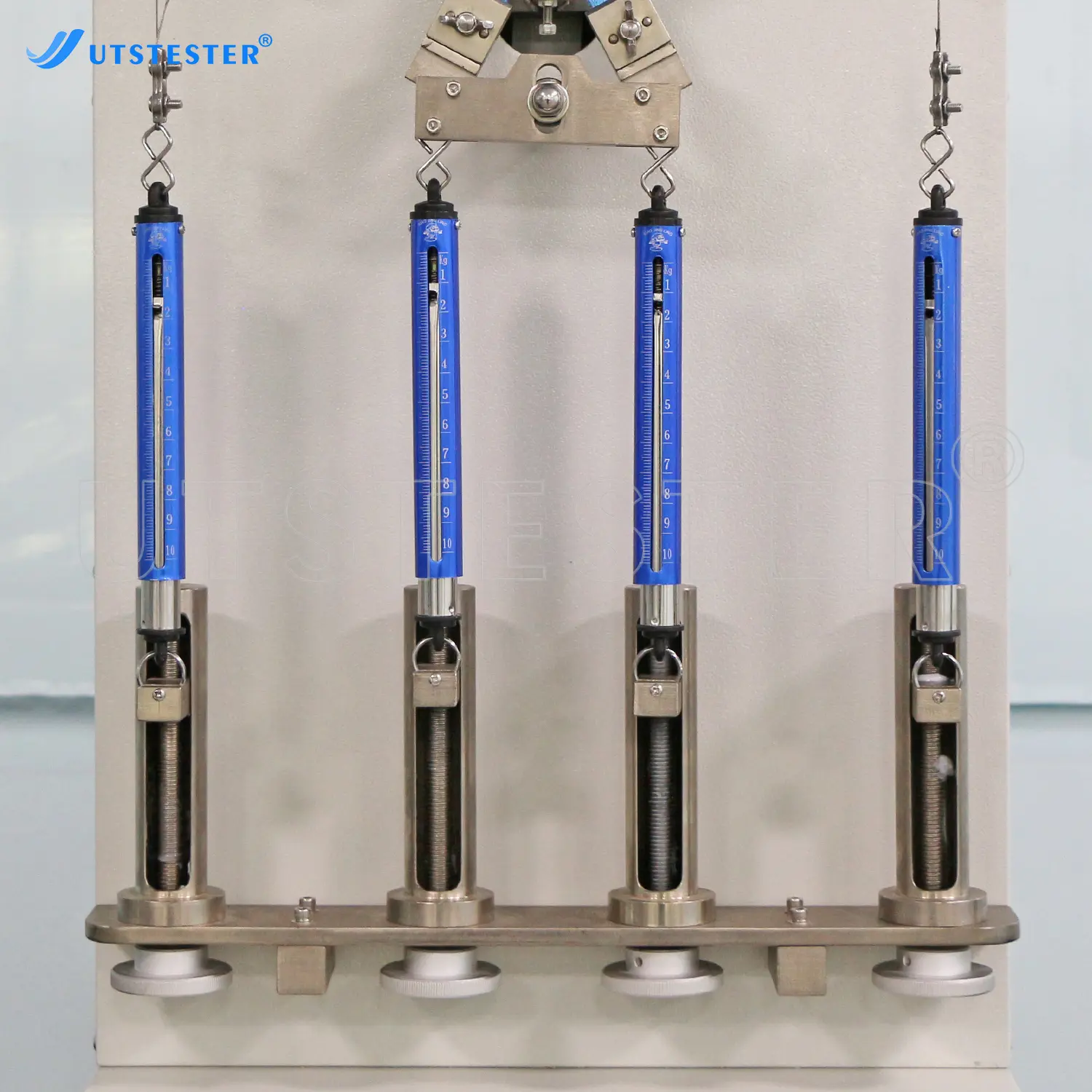

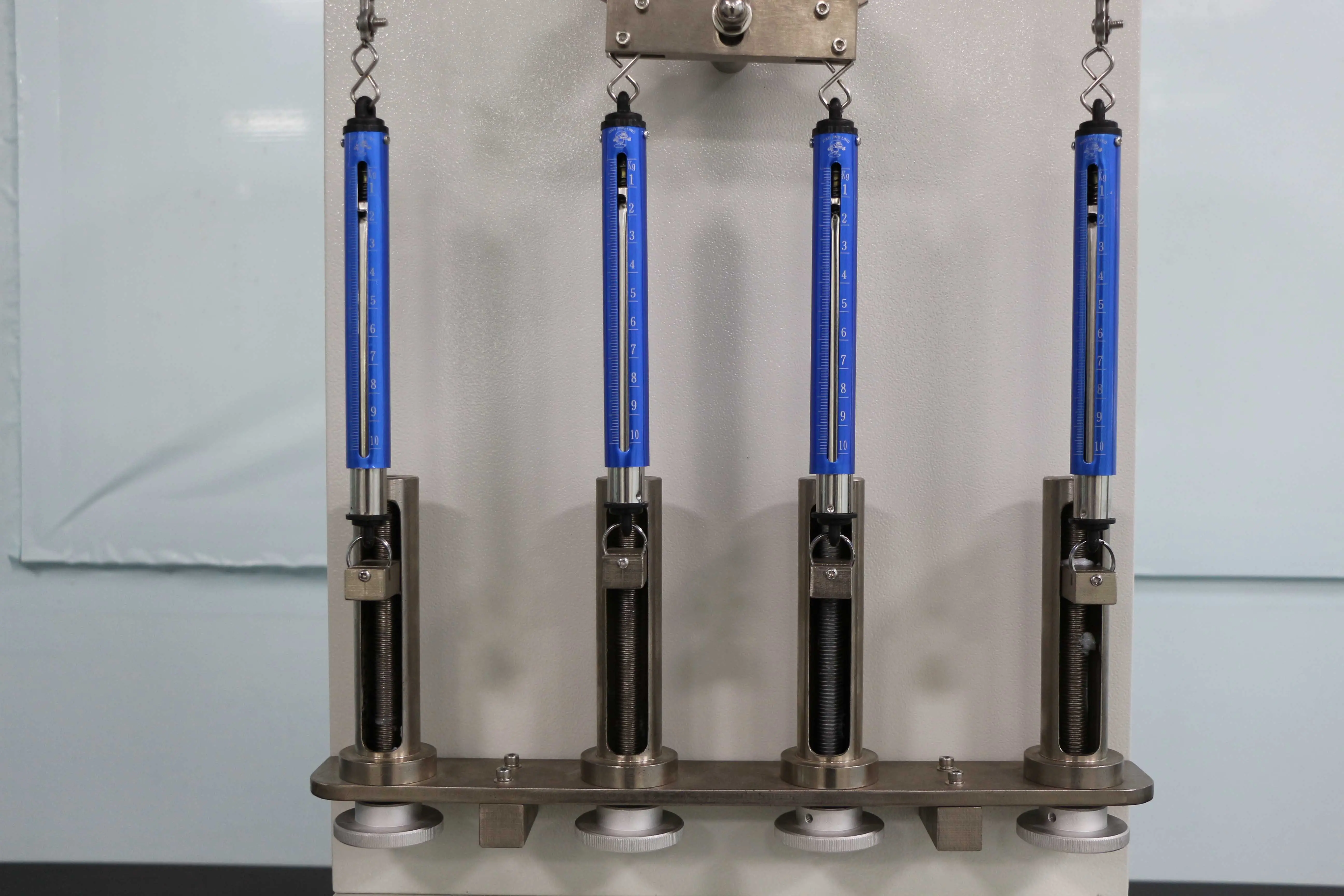

Spring scale

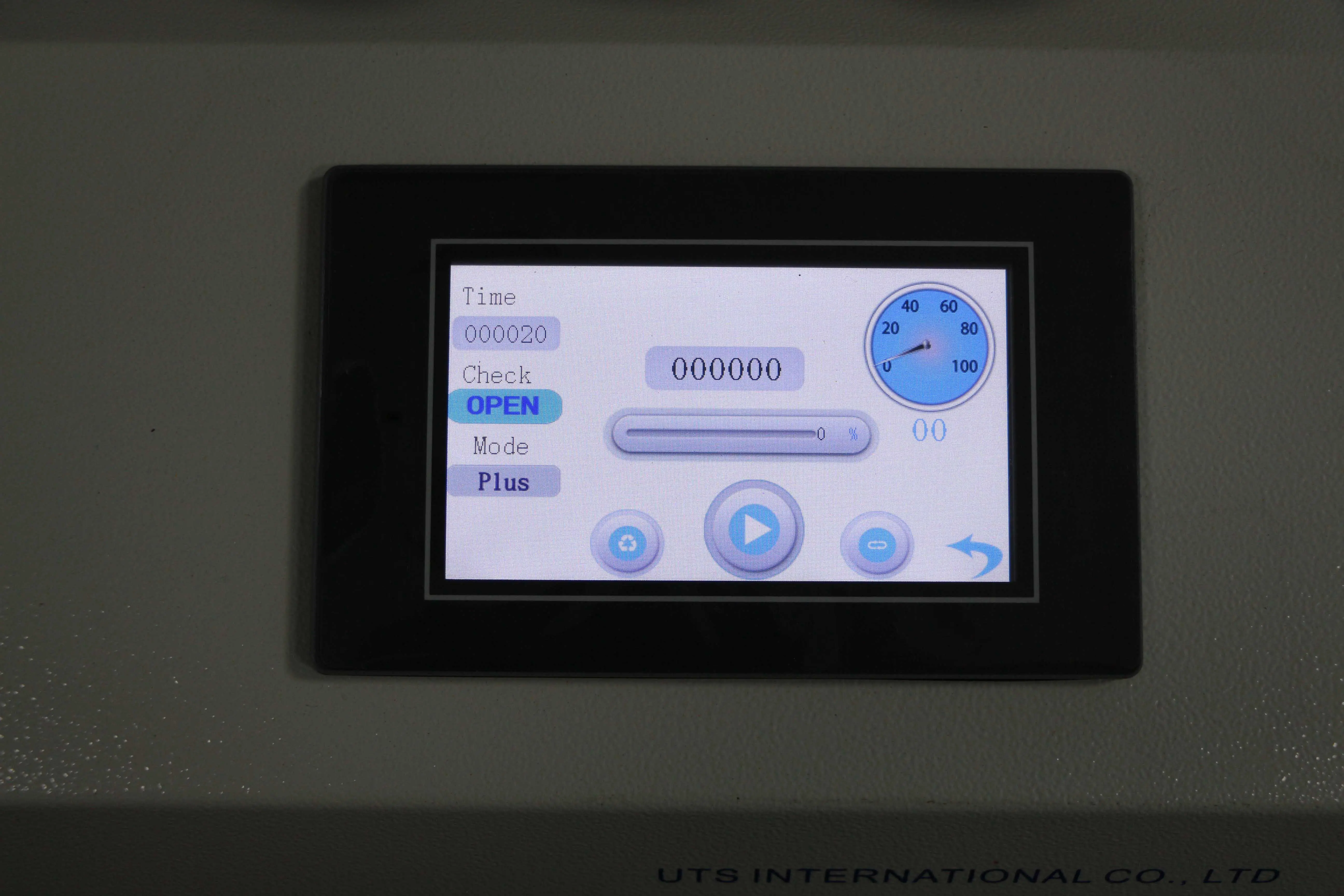

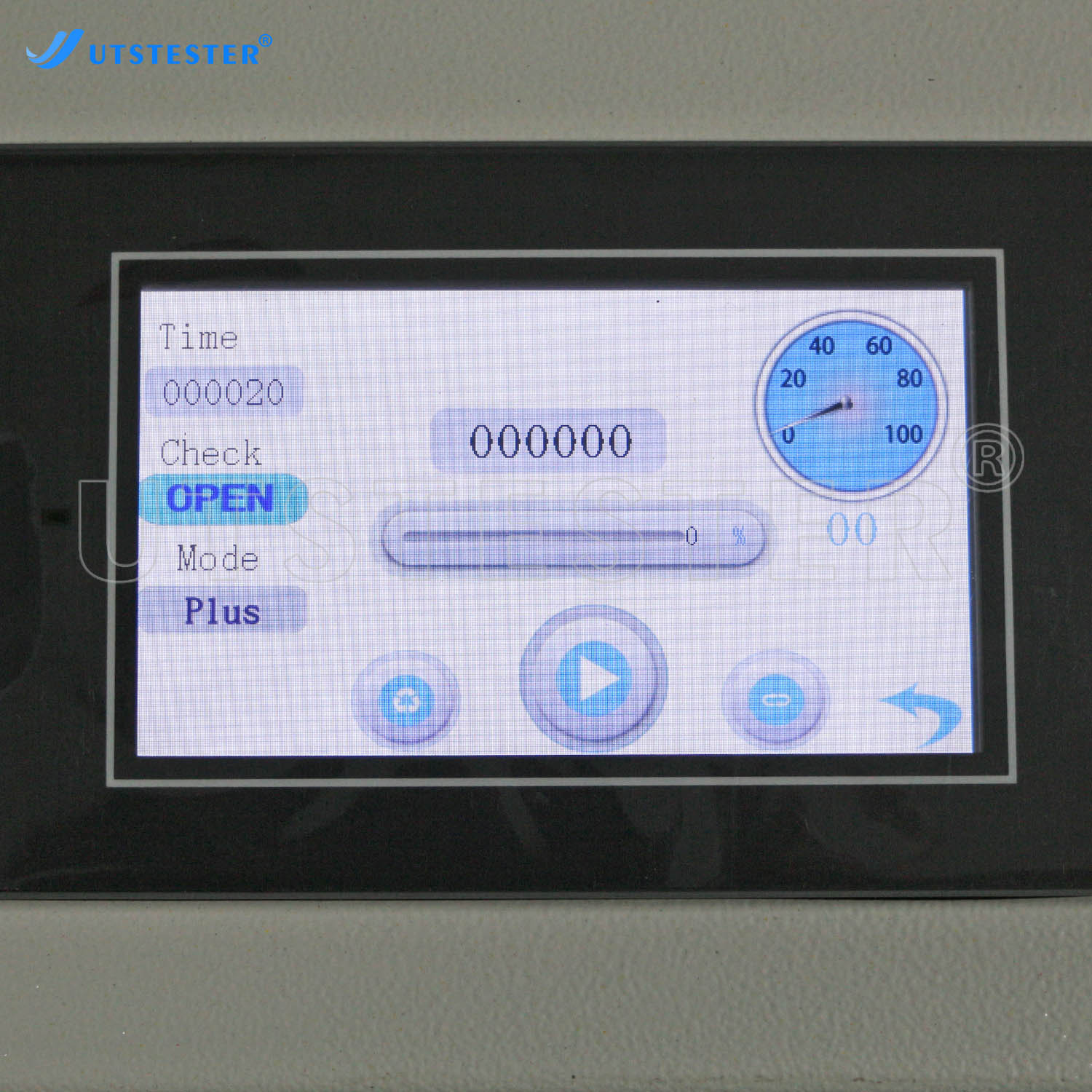

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
